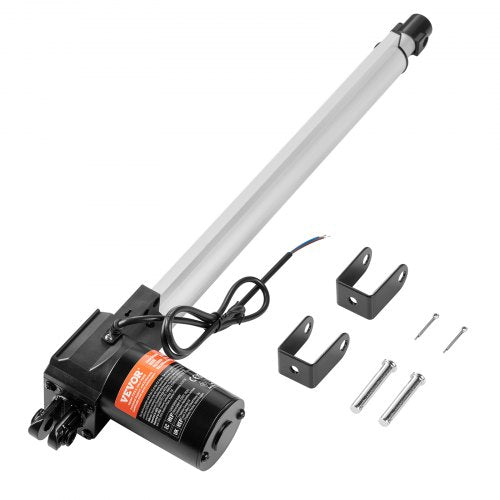

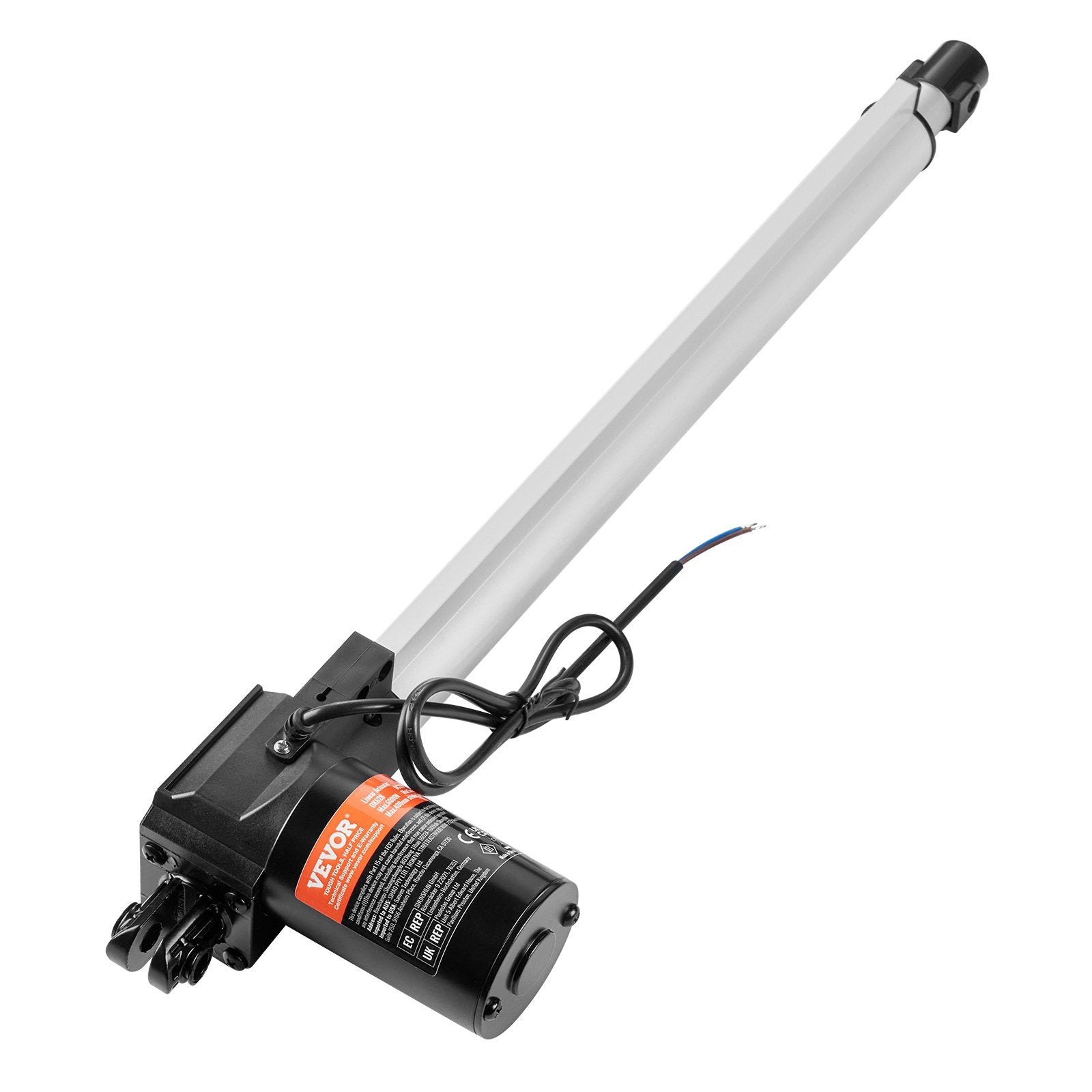

Linear Actuator 12V, 16 Inch Heavy Duty 1320lbs/6000N Linear Actuator, 0.19"/s Linear Motion Actuator with Mounting Bracket & IP44 Protection for Electric Door Industrial Machinery Vessels Cargo

Linear Actuator 12V, 16 Inch Heavy Duty 1320lbs/6000N Linear Actuator, 0.19"/s Linear Motion Actuator with Mounting Bracket & IP44 Protection for Electric Door Industrial Machinery Vessels Cargo

Regular price $78.00 USD
Regular price Sale price $78.00 USD
Sale Sold out
Taxes included.
Quantity
Features & Details
  • Heavy-Duty Applications: VEVOR heavy duty linear actuator boasts 1320lbs/6000N powerful torque output, perfect for industrial automation and heavy-duty lifting system. It's designed to tackle high-torque and heavy-load tasks with ease, providing reliable performance in demanding environments.

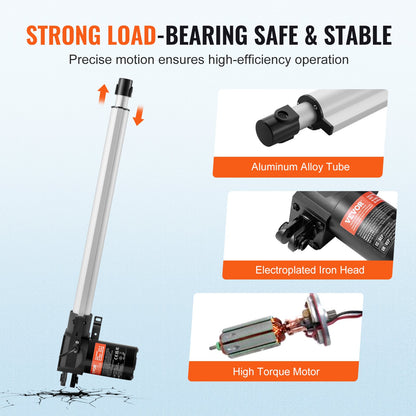

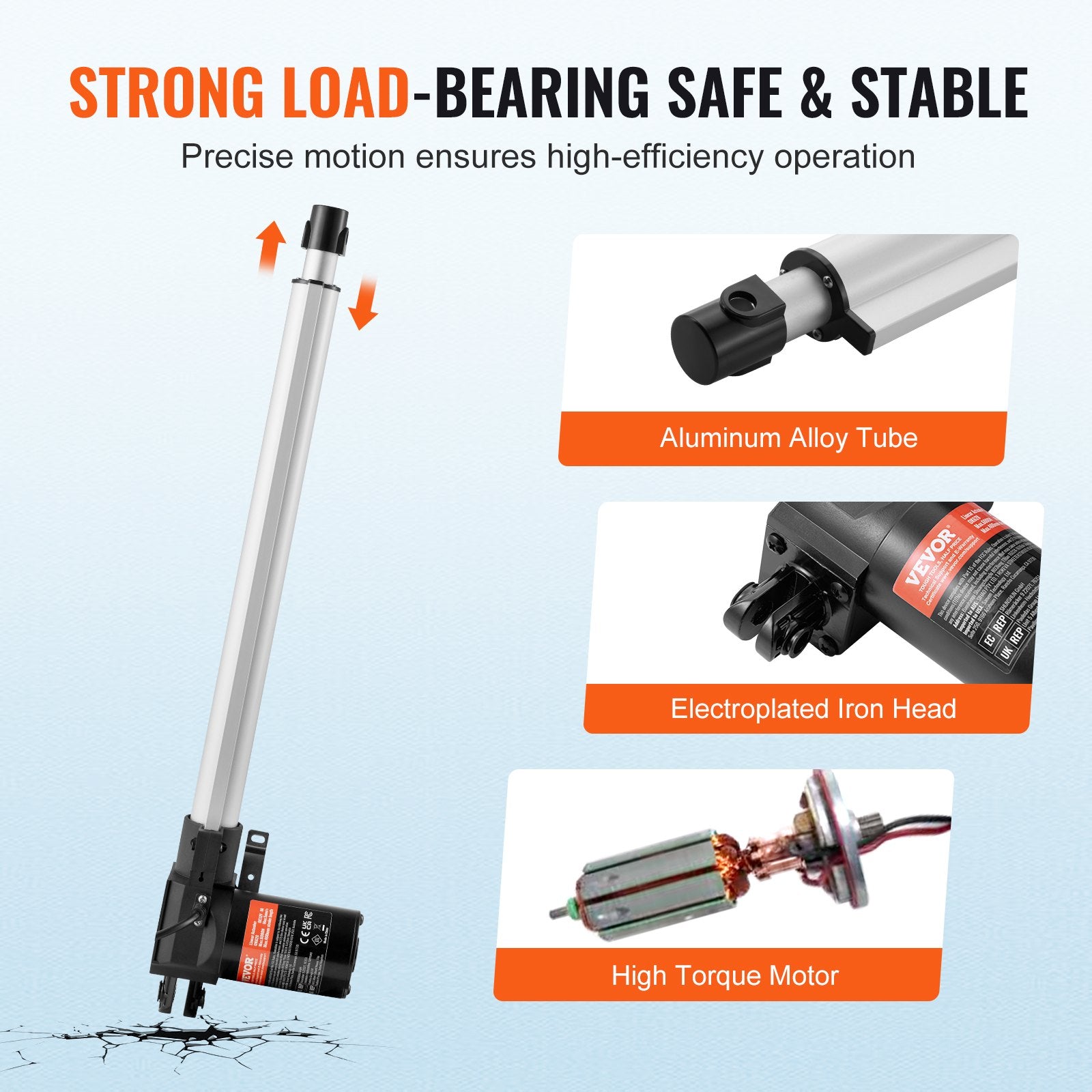

  • Durable Construction: Reinforced design and an all-metal transmission mechanism ensure reliability even under high loads, making it suitable for a wide range of industrial and home automation applications. It's built to withstand long-term use and provide dependable operation.
  • Versatility Unleashed: Get ready for a quiet revolution! VEVOR's linear motion actuators, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

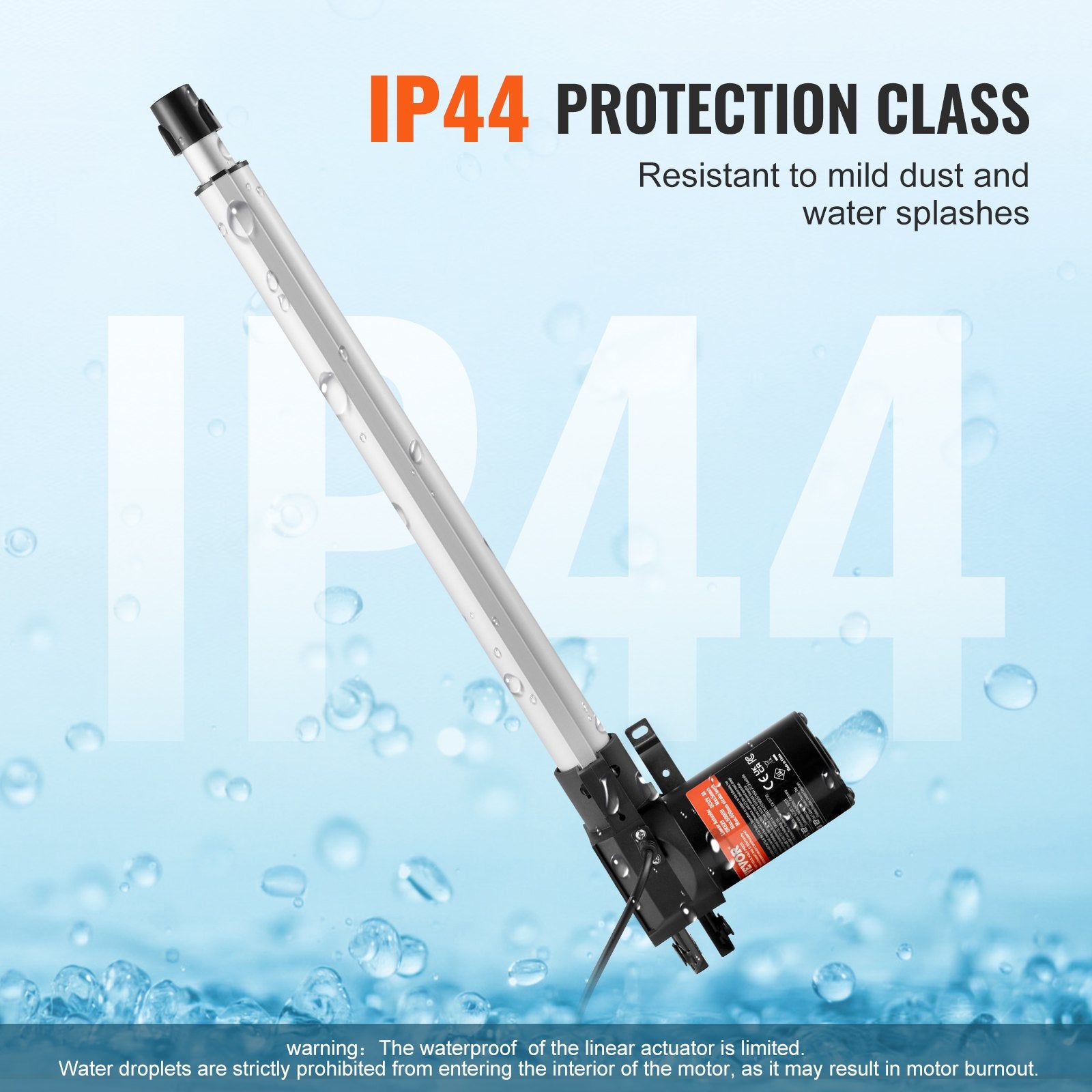

  • IP44 Protection Rating: Featuring an IP44 protection rating, VEVOR 12V linear actuator excels in environments with dust, solid particles, and light-splashing water. Count on it to withstand dust and moisture in general industrial and household applications. (Caution: Water should not penetrate the interior of the motor)

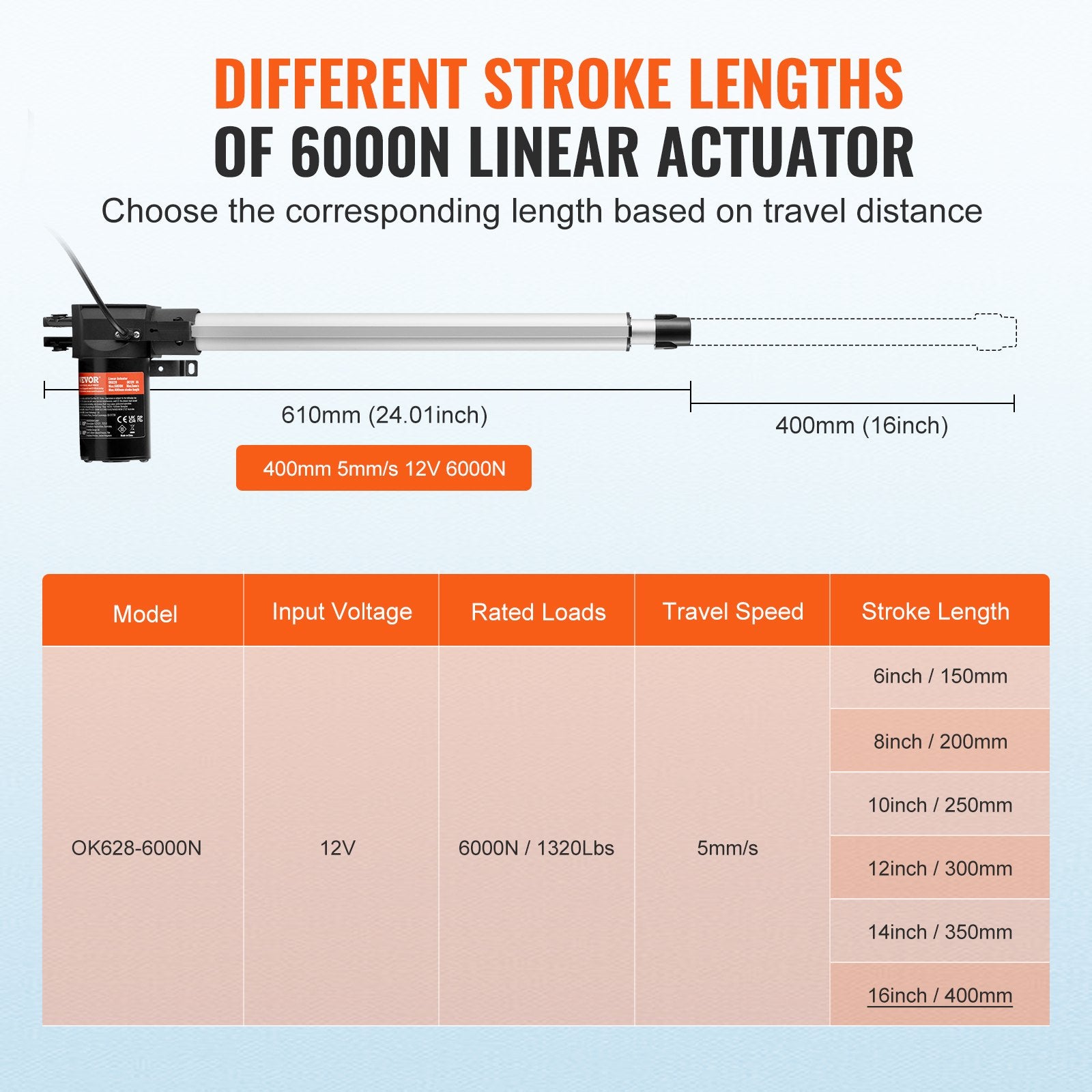

  • Key Specifications: Stroke Length: 16 inch (400mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 24.01" (610mm); Extended Length: 40.01" (1010mm); Current Draw: 8amps; Rated Voltage: DC12V; Duty Cycle: 10%.

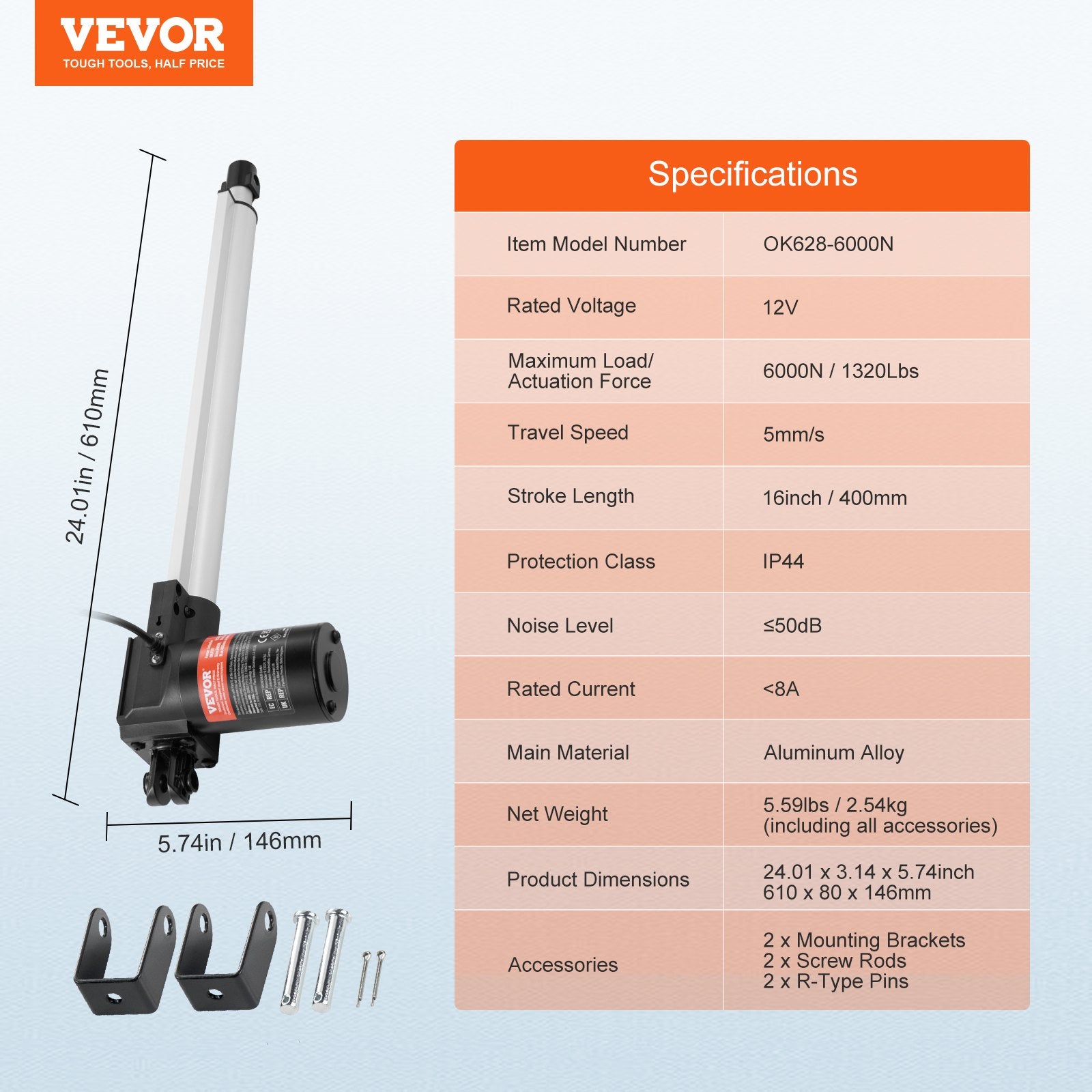

Product Specification
  • Protection Class: IP44
  • Noise Level: ≤50dB
  • Maximum Load/Actuation Force: 6000N
  • Item Model Number: OK628-6000N
  • Travel Speed: 0.19inch/s / 5mm/s
  • Stroke Length: 16 inch / 400 mm
  • Product Dimensions: 24.01 x 3.14 x 5.74 inch / 610 x 80 x 146 mm
  • Net Weight: 5.59 lbs / 2.54 kg (including all accessories)
  • Main Material: Aluminum Alloy
  • Rated Voltage: DC12V
