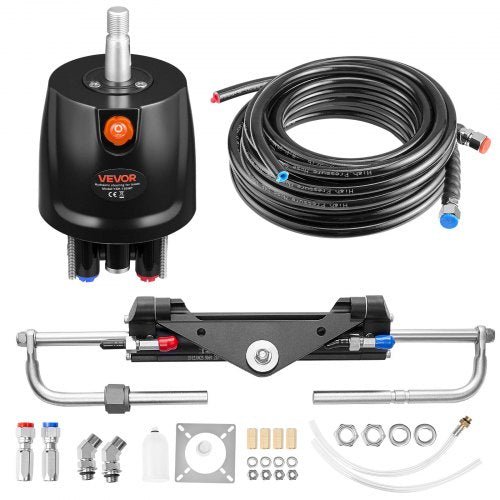

Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 26ft High-Strength Hoses, for Single Station, Single-Engine Use

Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 26ft High-Strength Hoses, for Single Station, Single-Engine Use

$408.00 USD
$408.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Handle Up to 150 HP Engines: This hydraulic steering kit delivers steady, efficient steering performance for outboards up to 150 HP, providing a 5.5 turns lock-to-lock for precise and responsive handling on every trip

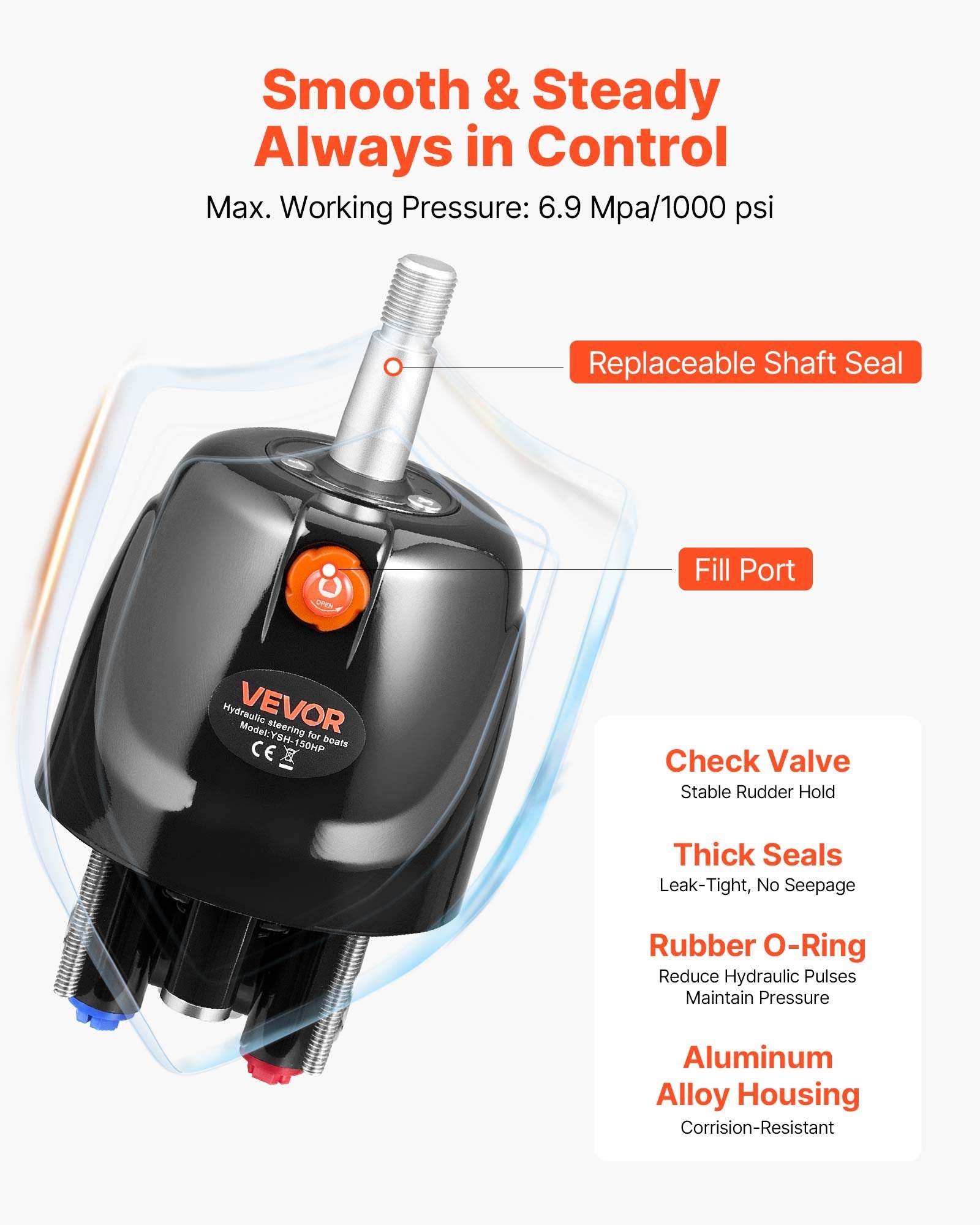

  • Durable & Reliable Helm Pump: Built to handle 6.9 MPa/1000 psi, this marine hydraulic steering kit features a check valve, fill port, stainless steel ORB fittings, and a replaceable shaft seal. The aluminum alloy housing ensures long-term use

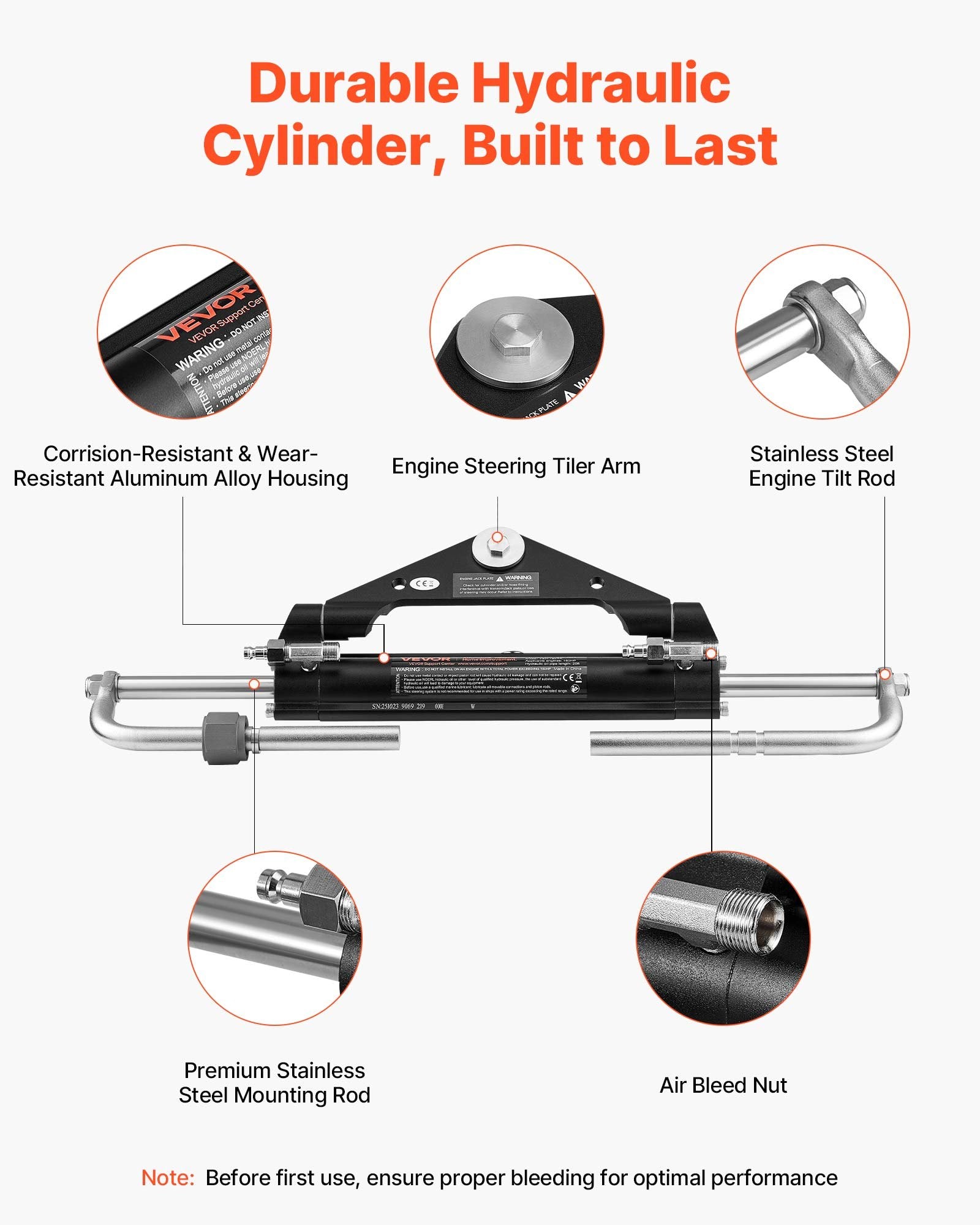

  • Compact Hydraulic Cylinder: The boat hydraulic steering system includes a space-saving cylinder that fits a variety of boat types. Its reinforced sealing structure ensures smooth steering performance and durability even in rough marine conditions

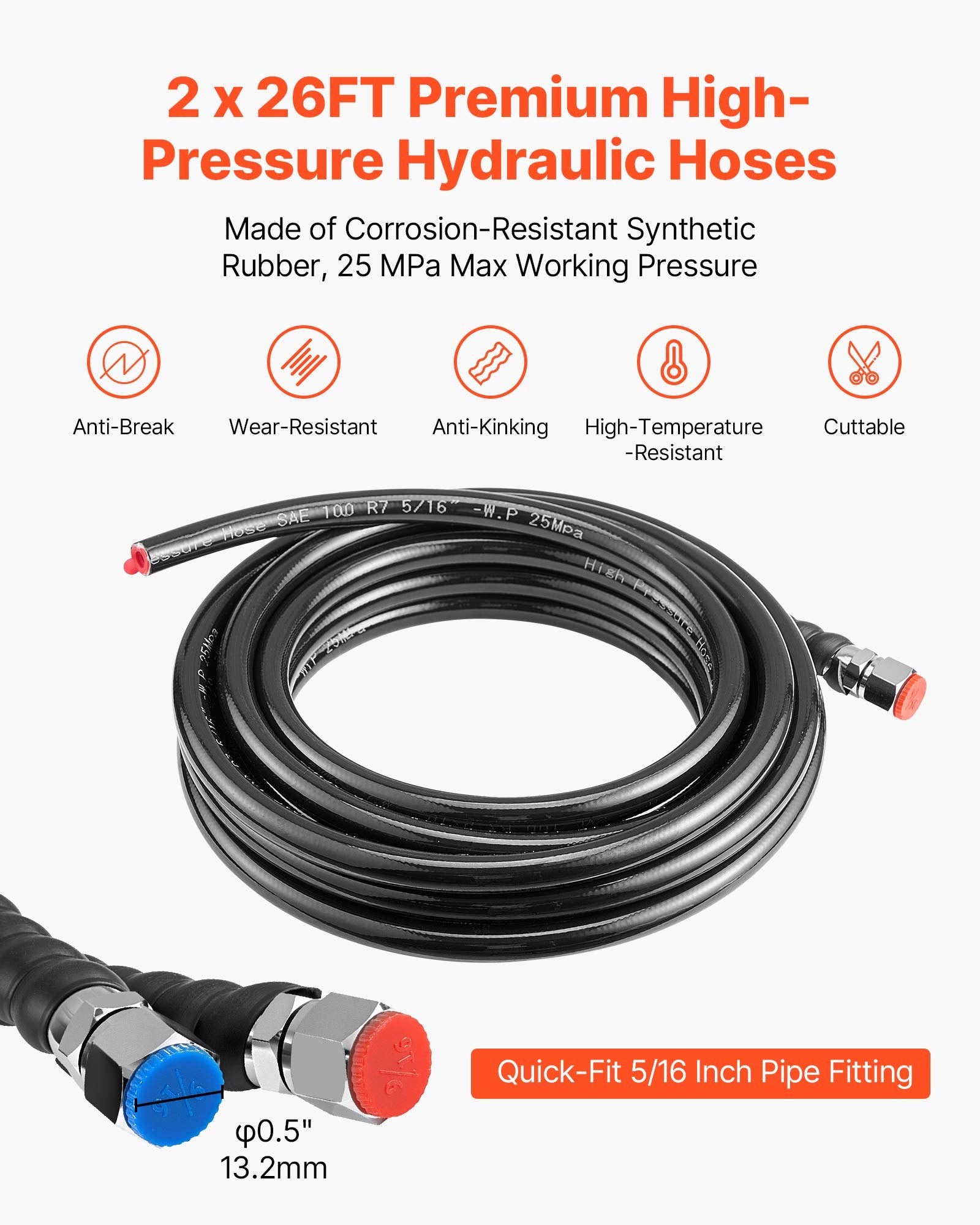

  • 2 x 26FT High-Strength Hoses: With a max working pressure of 25MPa, these premium hoses resist bursting, kinking, and leaking under heavy load. Equipped with a quick-fit 5/16-inch fitting, allowing for flexible, fast installation across various boats
  • Wide Boat Compatibility: This hydraulic steering helm pump kit works with cruisers, center consoles, speedboats, and offshore fishing boats, making it a versatile choice for a wide range of outboard setups

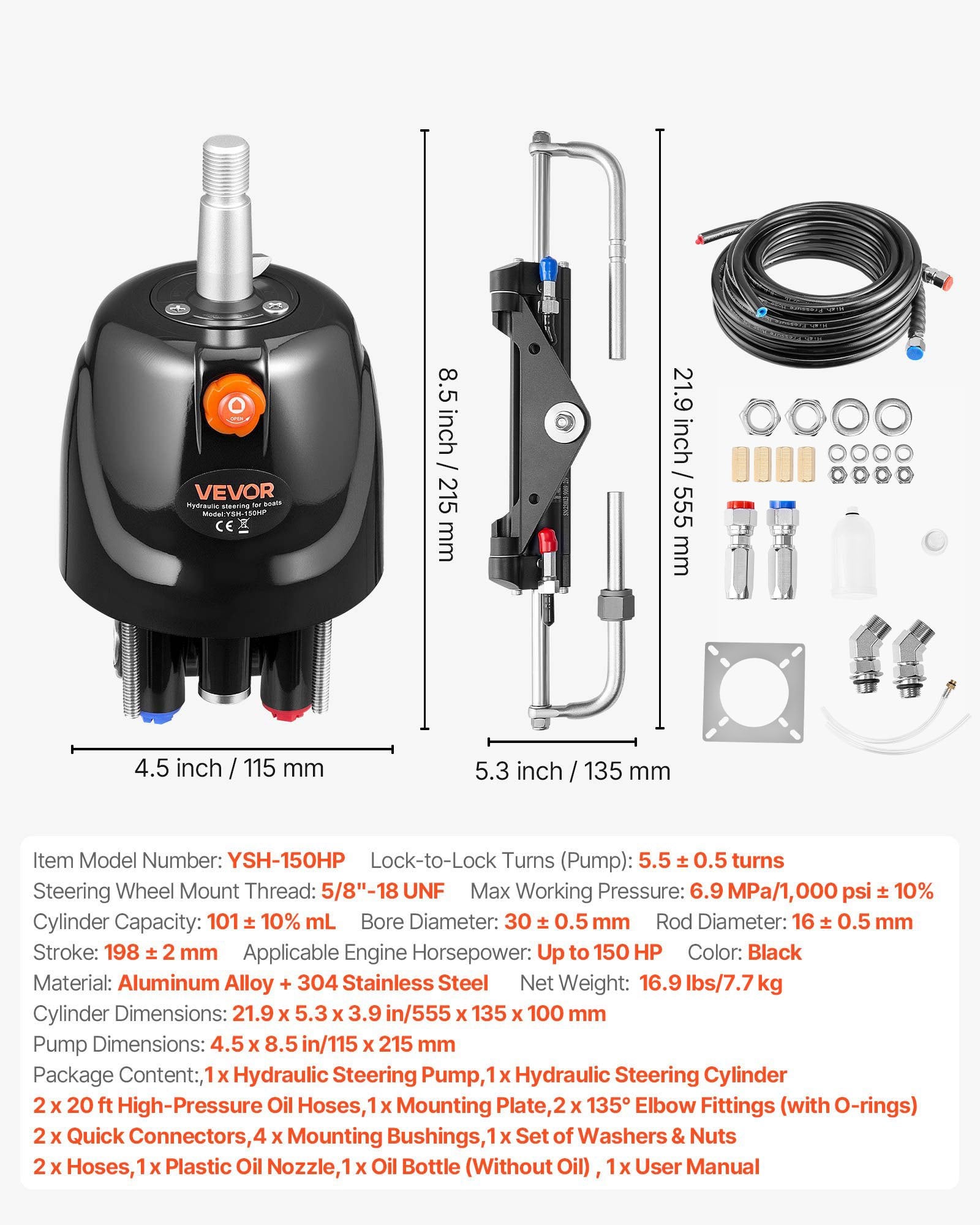

Product Specification
  • Lock-to-Lock Turns (Pump): 5.5 ± 0.5 turns
  • Stroke: 198 ± 2 mm
  • Rod Diameter: 16 ± 0.5 mm
  • Applicable Engine Horsepower: Up to 150 HP
  • Color: Black
  • Item Model Number: YSH-150HP
  • Steering Wheel Mount Thread: 5/8"-18 UNF
  • Cylinder Capacity: 101 ± 10% mL
  • Material: Aluminum Alloy + 304 Stainless Steel
  • Max Working Pressure: 6.9 MPa/1, 000 psi ± 10%
  • Bore Diameter: 30 ± 0.5 mm
