Hydraulic Coupler 1/2 Body with 1/2" NPT Thread 27.6 MPa Hydraulic Quick Connect 4 Pairs Hydraulic Coupling Quick Connect 45.5 L/min Hydraulic Quick Coupler

Hydraulic Coupler 1/2 Body with 1/2" NPT Thread 27.6 MPa Hydraulic Quick Connect 4 Pairs Hydraulic Coupling Quick Connect 45.5 L/min Hydraulic Quick Coupler

$142.00 USD
$142.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details

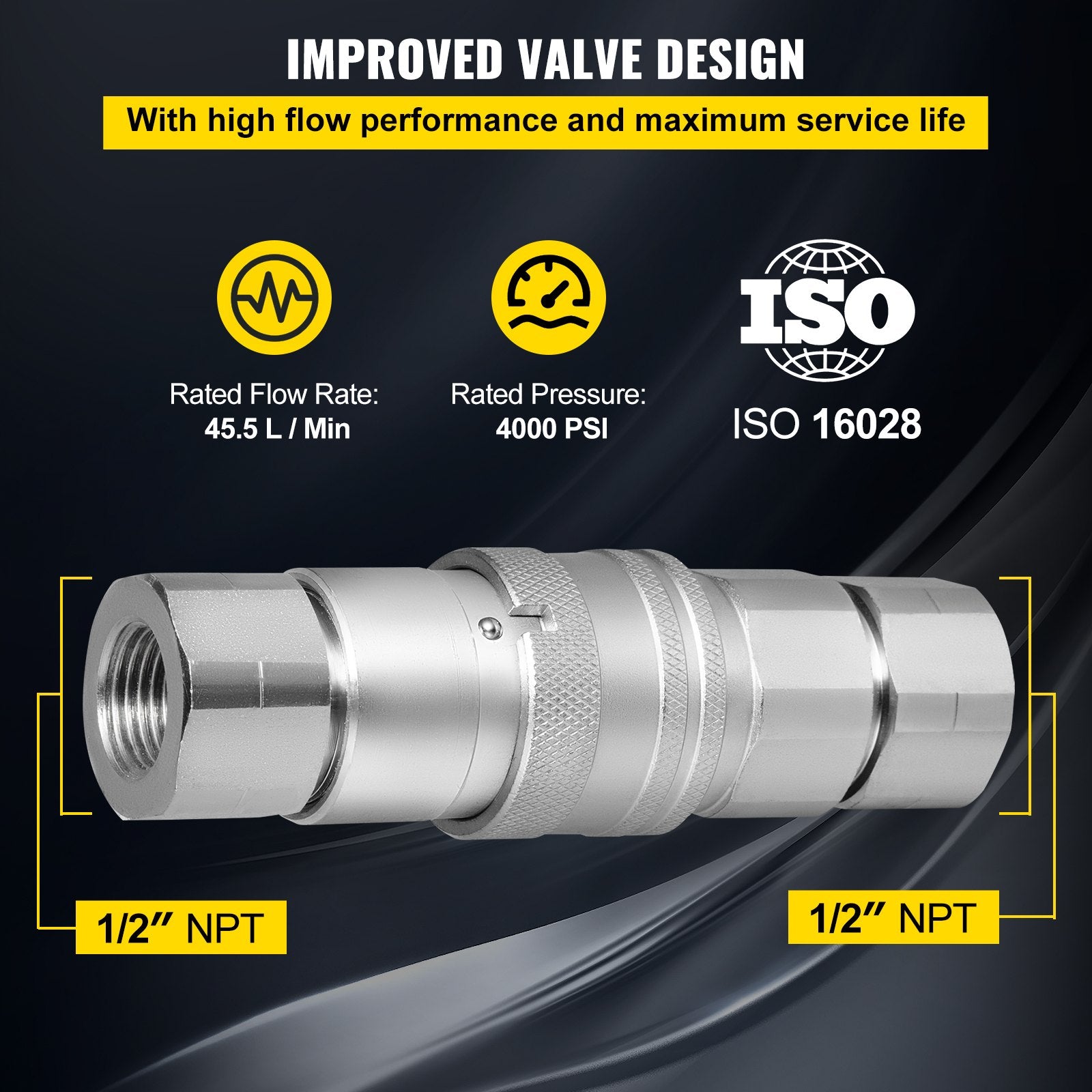

  • Advanced Design: This flat face hydraulic connect coupler set features an improved valve design, which allows for a rated pressure of 4000 PSI, 45/L high-flow, zero fluid loss, and long service life. It meets the standards of ISO 16028, perfect for connecting your hydraulic lines.

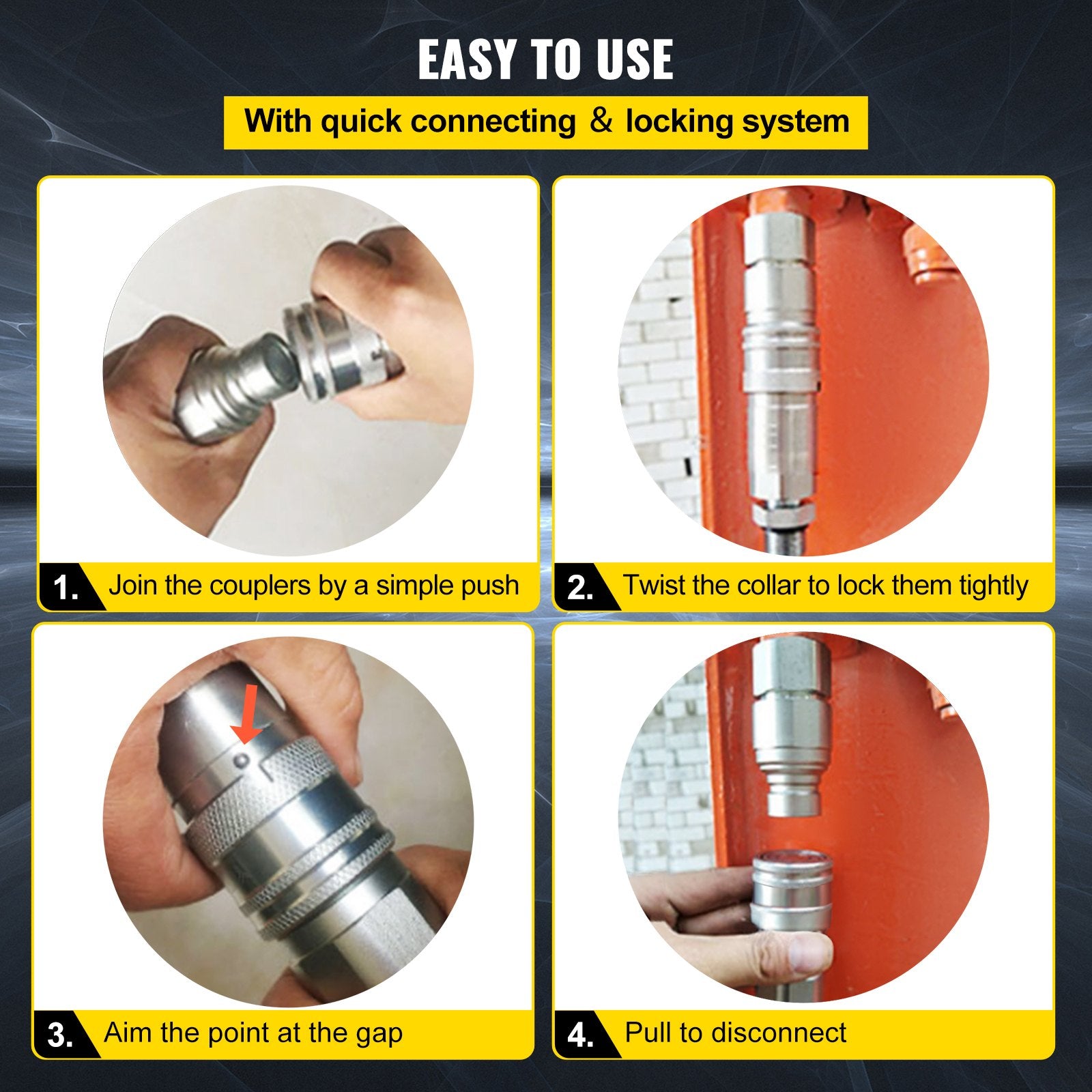

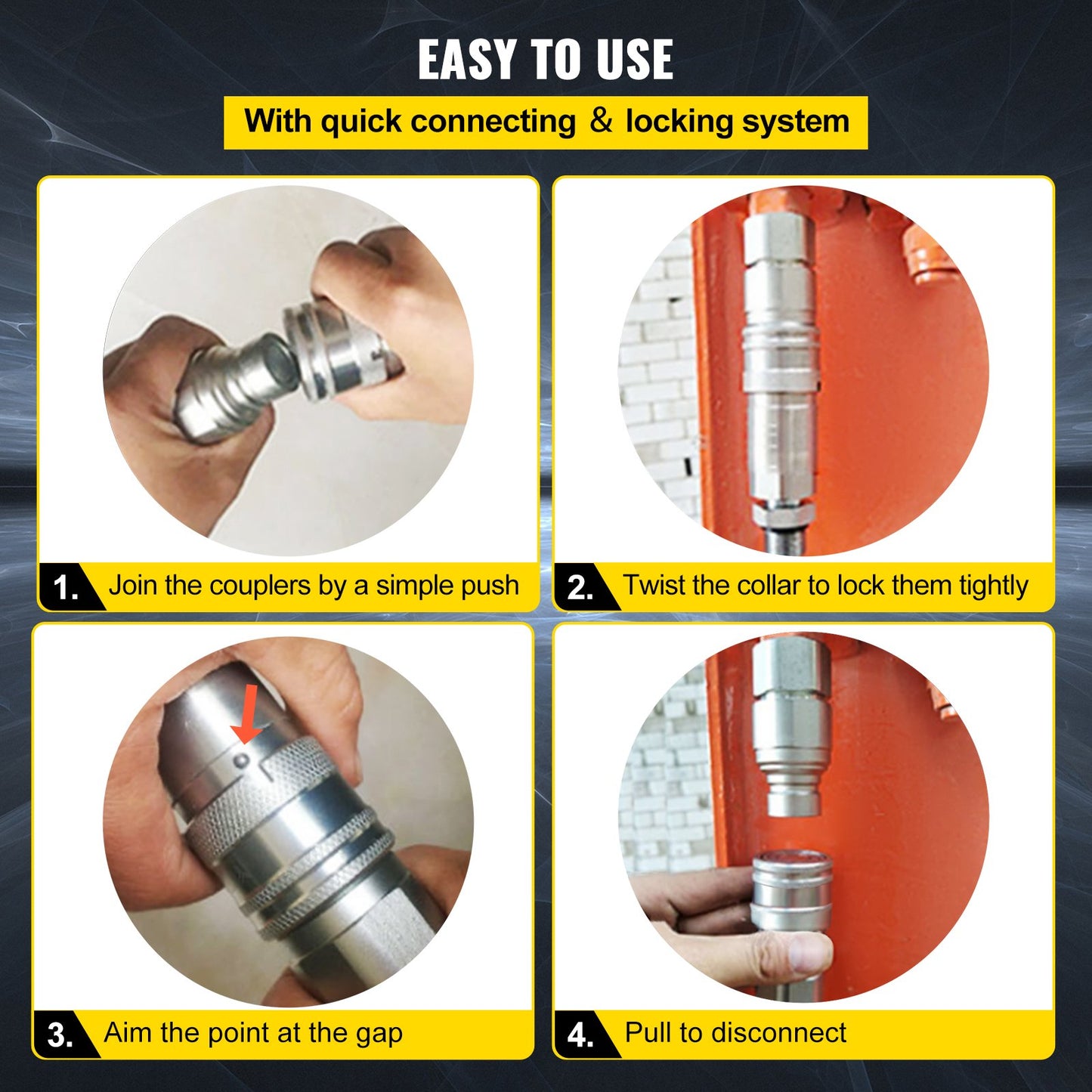

  • Quick Connecting: The sleeve locking mechanism (with 1/2" NPT threads) makes the couplers easy to connect with a simple push. Rotate the collar to lock them tightly, preventing accidental disconnection. If you need to disconnect it, aim the point at the gap, then give a pull. Connection is simple, effortless, and requires minimal force.

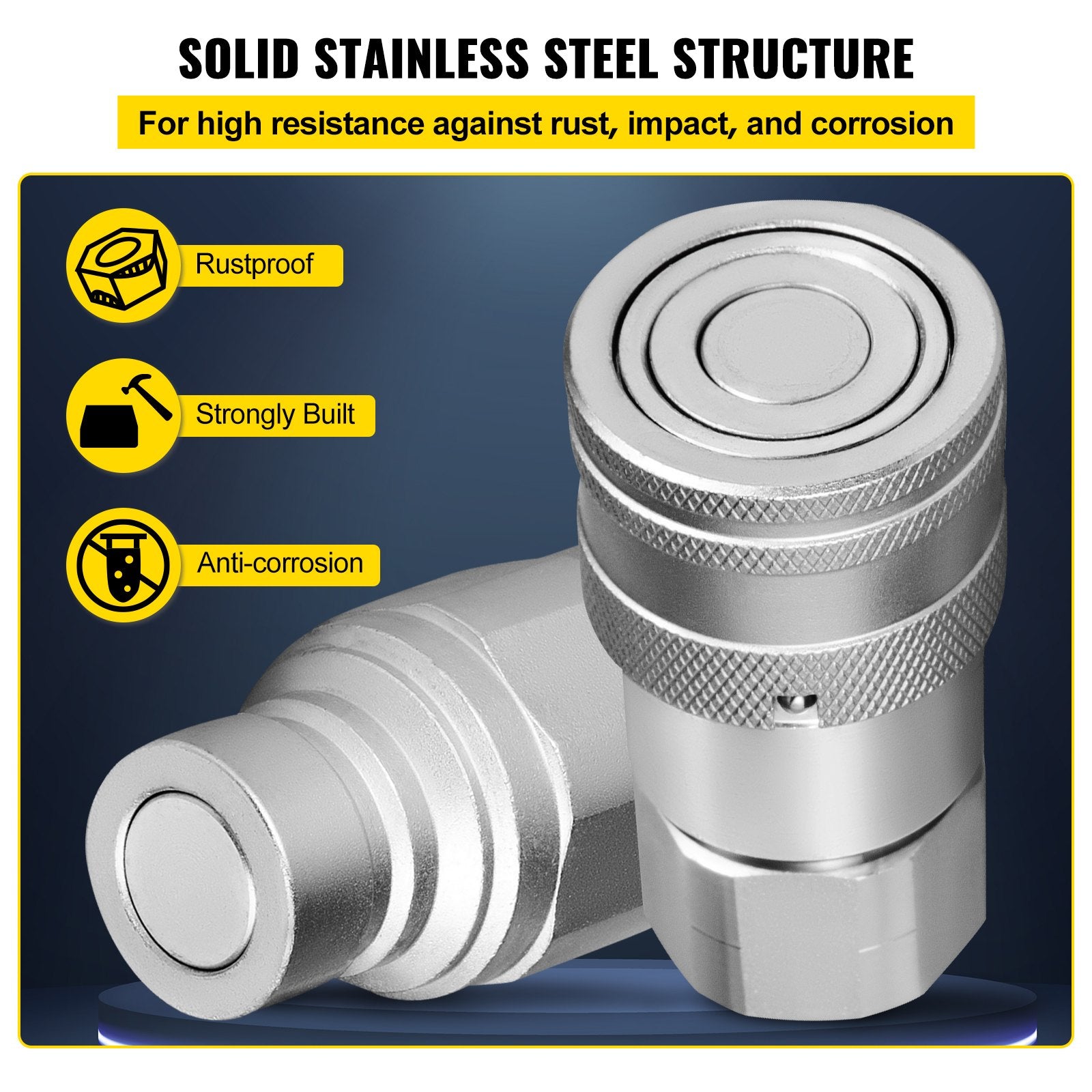

  • Hardened Steel Construction: Our quick couplers are strongly built with hardened stainless steel to resist deformation and high temperatures. The zinc-nickel plating provides high resistance against rust and corrosion. They are built tough to last for years to come.

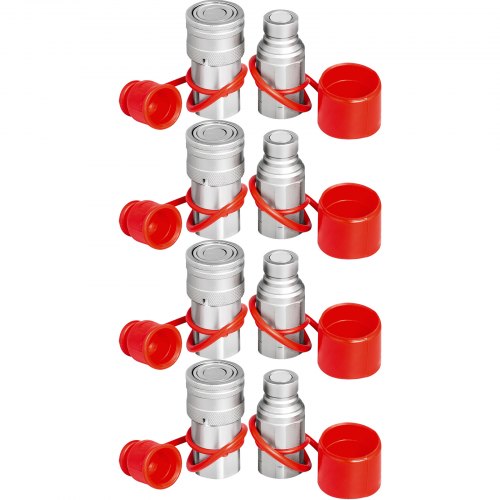

  • Dust Covers Included: Dust caps are included to prevent dirt from disrupting the connecting system, preventing the risk of malfunction. The retaining ring is covered by a sleeve. Additionally, a dust seal is placed within the spring area.
  • High Compatibility: The quick coupler set is designed for applications where hydraulic spillage is likely to occur. It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.

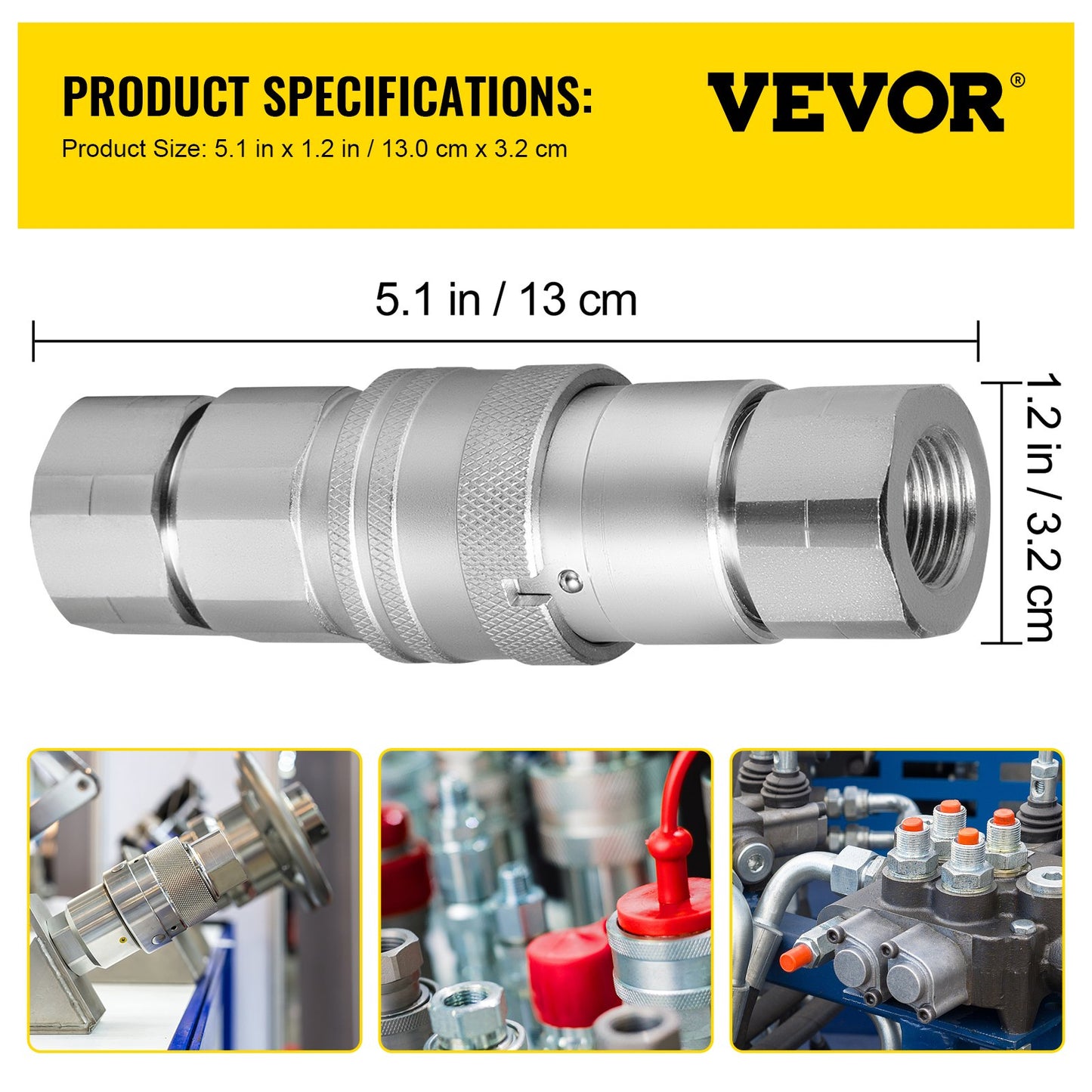

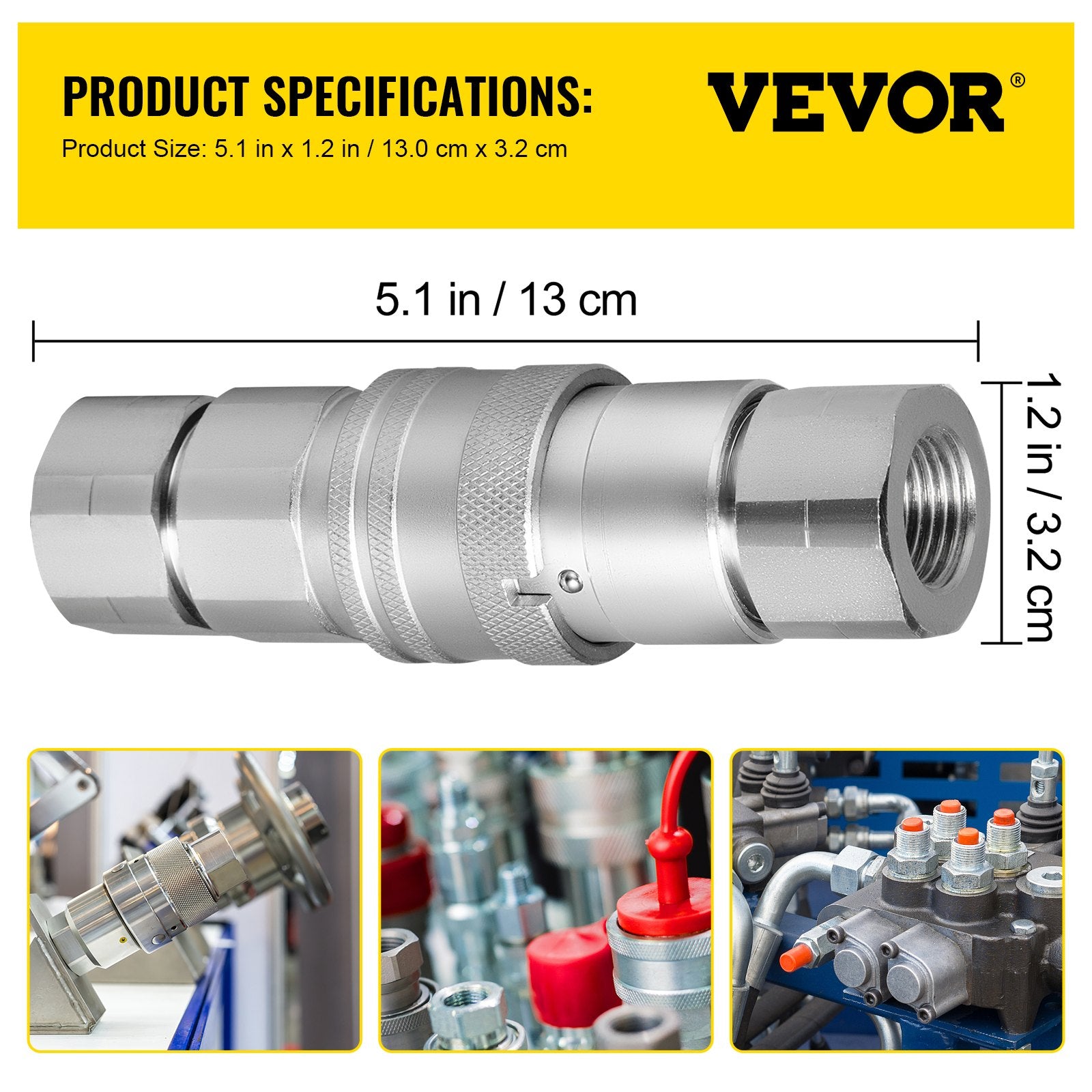

Product Specification
  • Rated Flow: 45.5 L/Min
  • Rated Pressure Of Steel: 27.6 MPa
  • ISO Standards: ISO 16028
  • Body Size: 1/2"
  • Temperature Range（Nbr）: -20℃~+100℃
  • Temperature Range（Fkm）:-20℃~+180℃
  • Rated Pressure Of Stainless Steel: 10.4 MPa
