1HP Electric Motor 1725 rpm, AC 115V/230V, 56C Frame, Air Compressor Motor Single Phase, 5/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
1HP Electric Motor 1725 rpm, AC 115V/230V, 56C Frame, Air Compressor Motor Single Phase, 5/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
Regular price
$211.00 USD
Regular price
Sale price
$211.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details

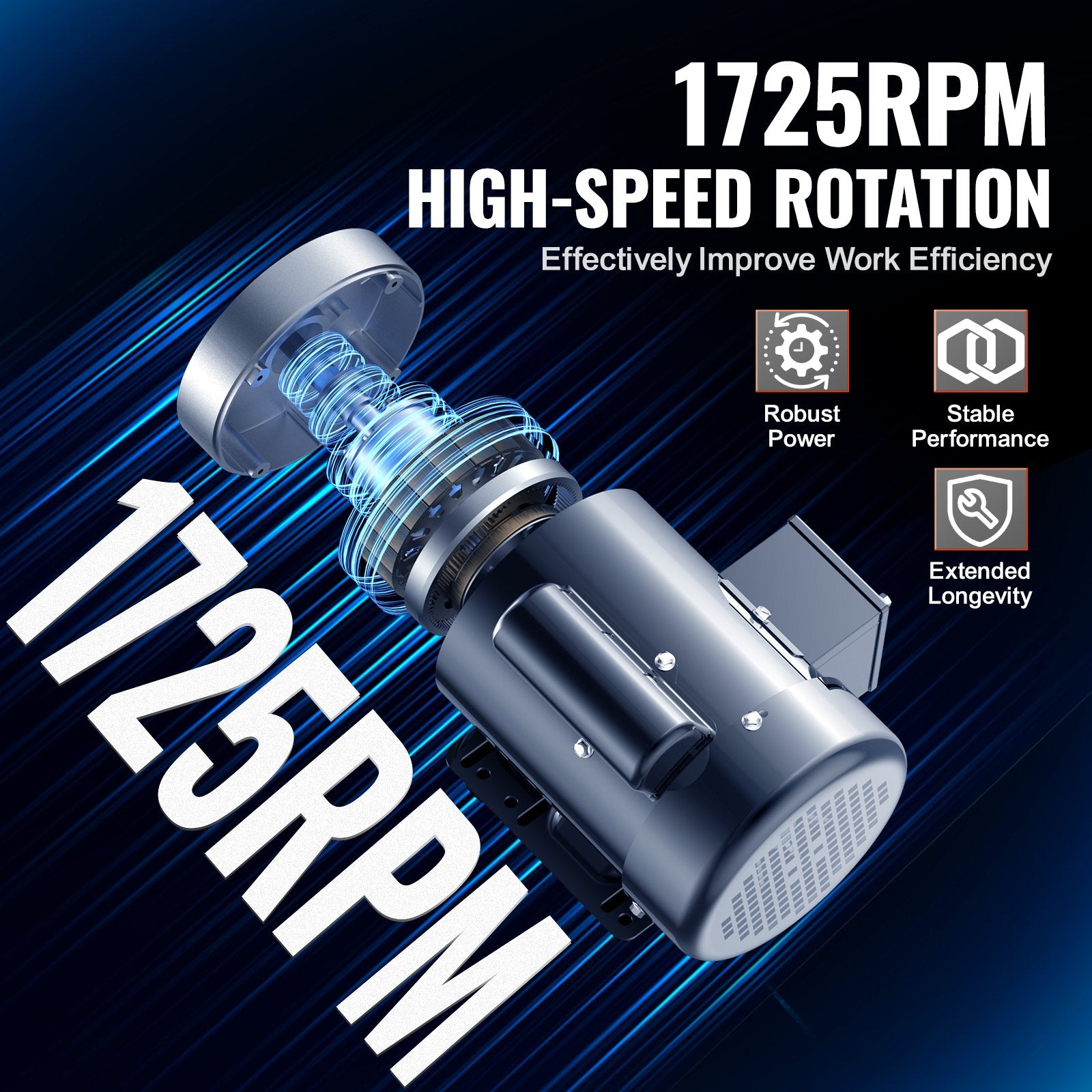

- Powerful Performance: 1HP, Single Phase, Full Load Current: 14.5/7.5A, AC 115V/230V 60Hz, 1725 RPM High Speed, SF: 1.15.

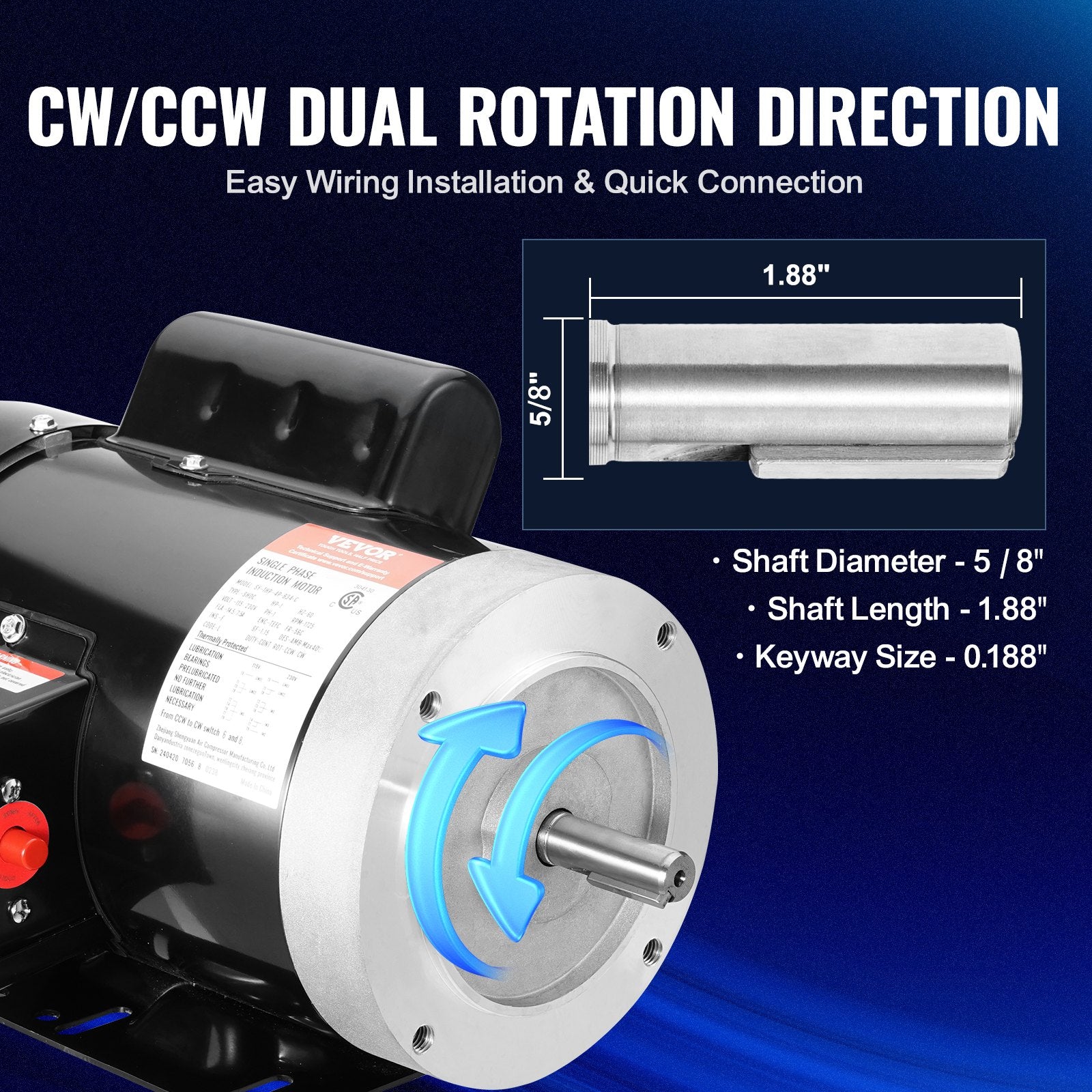

- Sturdy Frame Type: 56C Frame, 5/8" Keyed shaft, Shaft length: 1.88", Keyway size: 0.188".
- Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.

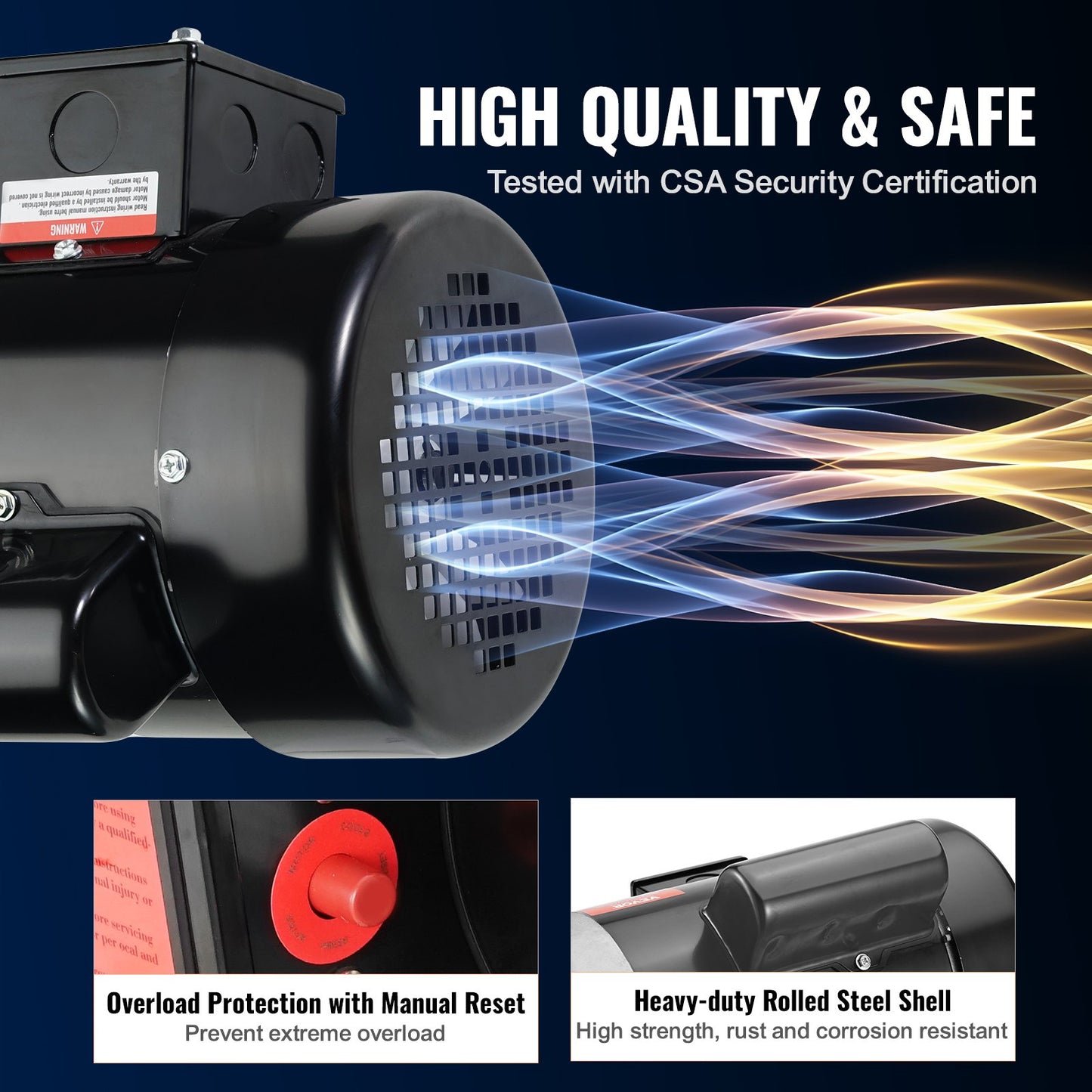

- Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability. It also includes overload protection with manual reset, ensuring longer service life and dependable performance.
- Wide Range of Applications: VEVOR 1HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.

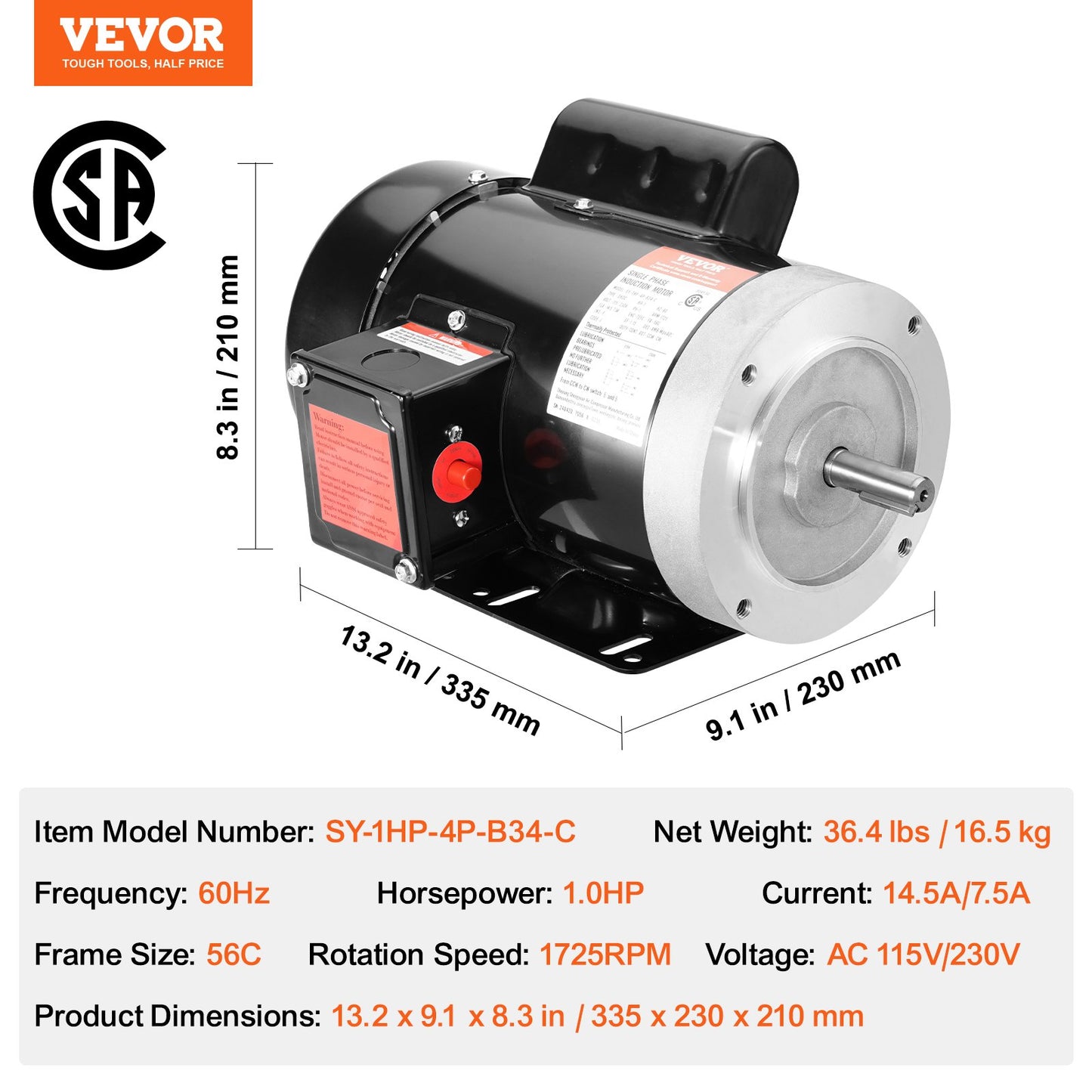

- Horsepower: 1.0HP
- Voltage: AC 115V/230V
- Item Model Number: SY-1HP-4P-B34-C
- Frequency: 60Hz
- Product Dimensions: 13.2 x 9.1 x 8.3 in / 335 x 230 x 210 mm
- Current: 14.5/7.5A
- Net Weight: 36.4 lbs / 16.5 kg
- Frame Size: 56C
- Rotation Speed: 1725RPM
