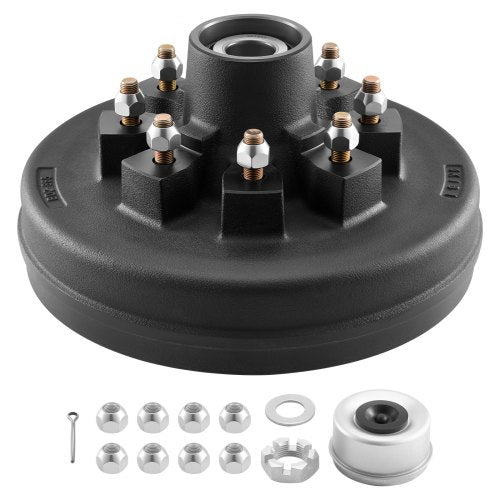

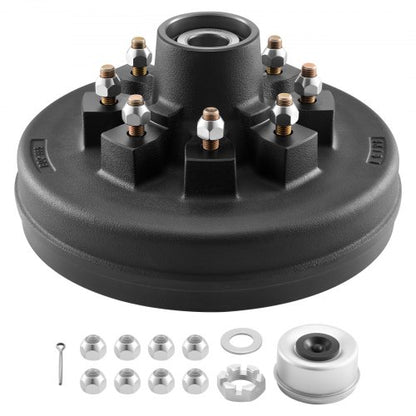

Electric Trailer Brake Drum, 1 Pack, 8-Hole on 4-Inch Bolt Circle Brake Drum for 7000 lbs Trailer Axles, Long Service Life, Replacement of 12 Inch Brake Hub Drums Assembly for Trailers, RVs

Electric Trailer Brake Drum, 1 Pack, 8-Hole on 4-Inch Bolt Circle Brake Drum for 7000 lbs Trailer Axles, Long Service Life, Replacement of 12 Inch Brake Hub Drums Assembly for Trailers, RVs

$118.00 USD
$118.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Upgrade Your Brake System: Designed for trailers and RVs with tapered axles up to 7000 lbs, this electric brake drum has a 12-inch internal diameter with 8 holes on a 6.5 inch bolt circle. Compatible with 12-inch drums and assembled using 7/16-20UNF studs
  • Stable Braking Under Heavy Load: Crafted from heat-conductive gray cast iron, this brake hub drum assembly resists high temperatures and wear, handling long downhill drives, heavy loads, and frequent braking with ease. It provides quick response for secure stopping

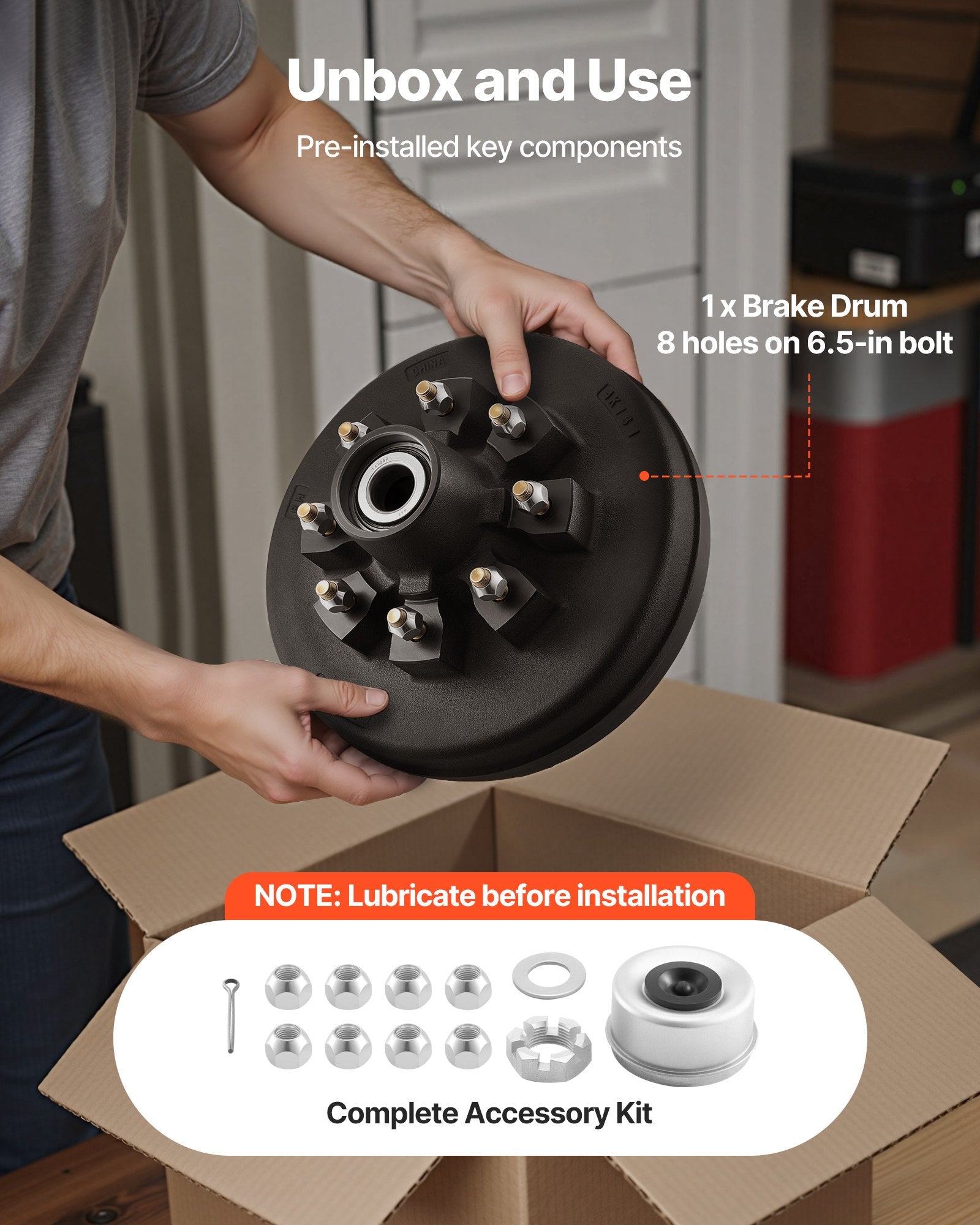

  • Easy Installation: Installing your new brakes is a breeze! Our trailer brake drum it comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
  • ≥30000km Lifespan: These cast iron brake drums are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads
  • Wide Applications: Ideal for upgrading the brake system in trailers, semi-trailers, and RVs, this hub drum kit offers reliable security and helps reduce brake maintenance costs. Keep your vehicle's brakes in top condition for every trip

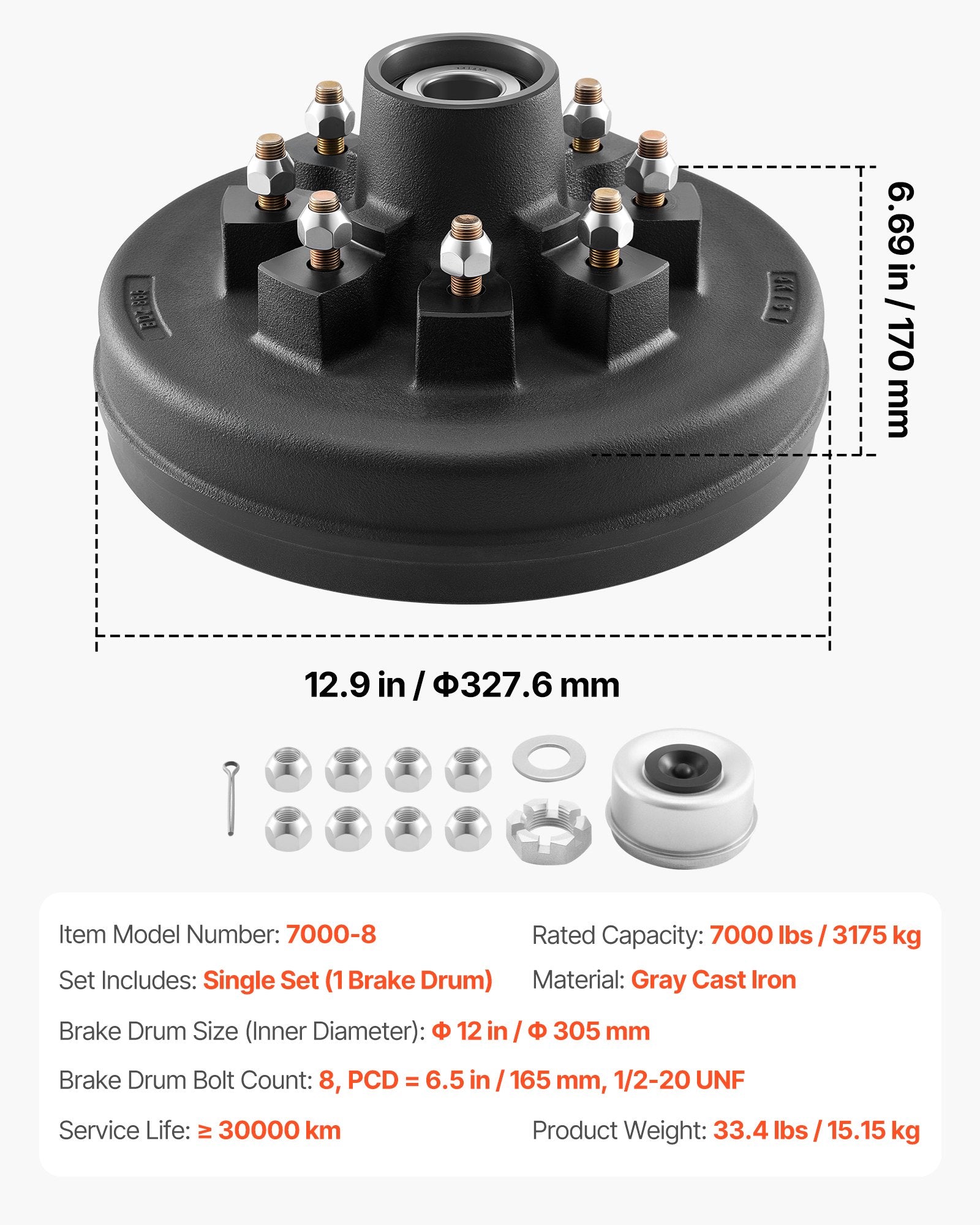

Product Specification
  • Service Life: ≥ 30000 km
  • Rated Capacity: 7000 lbs / 3175 kg
  • Brake Drum Bolt Count: 8, PCD = 6.5 in / 165 mm, 1/2-20 UNF
  • Brake Drum Dimensions: 12.9 x 6.69 in / Φ327.6 x 170 mm
  • Product Weight: 33.4 lbs / 15.15 kg
  • Product Model: 7000-8
  • Set Includes: Single Set (1 Brake Drum)
  • Material: Gray Cast Iron
  • Brake Drum Size (Inner Diameter): Φ 12 in / Φ 305 mm
