Electric Trailer Brake Assembly, 12 x 2 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 6000 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs

Electric Trailer Brake Assembly, 12 x 2 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 6000 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs

$306.00 USD
$306.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Upgrade Your Brake System: Our electric trailer brake kit includes 2 brake assemblies, designed for trailers and RVs with tapered axles up to 6000 lbs. With a 12 x 2 inch brake and a 12 inch drum, it's the ultimate upgrade

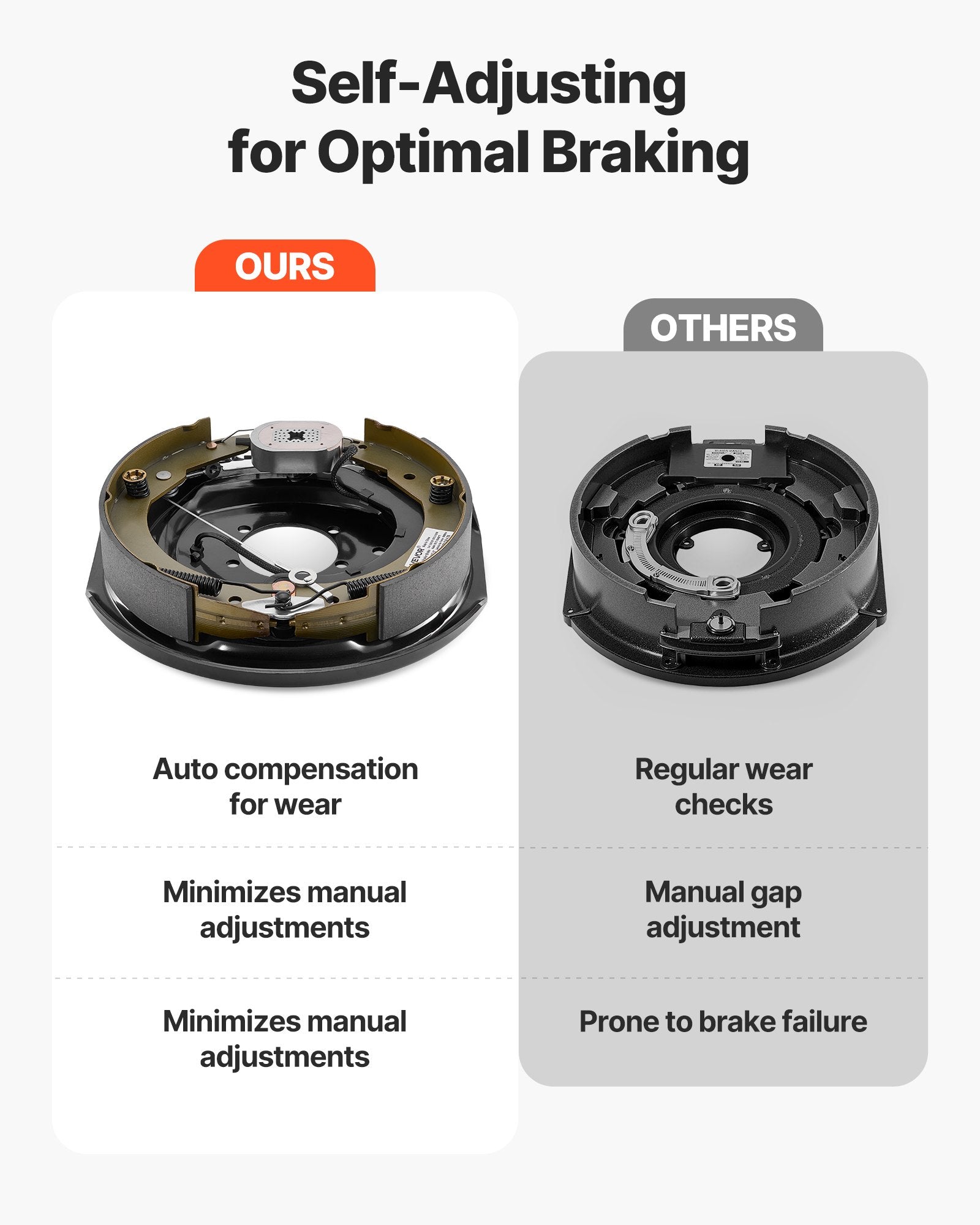

  • Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips

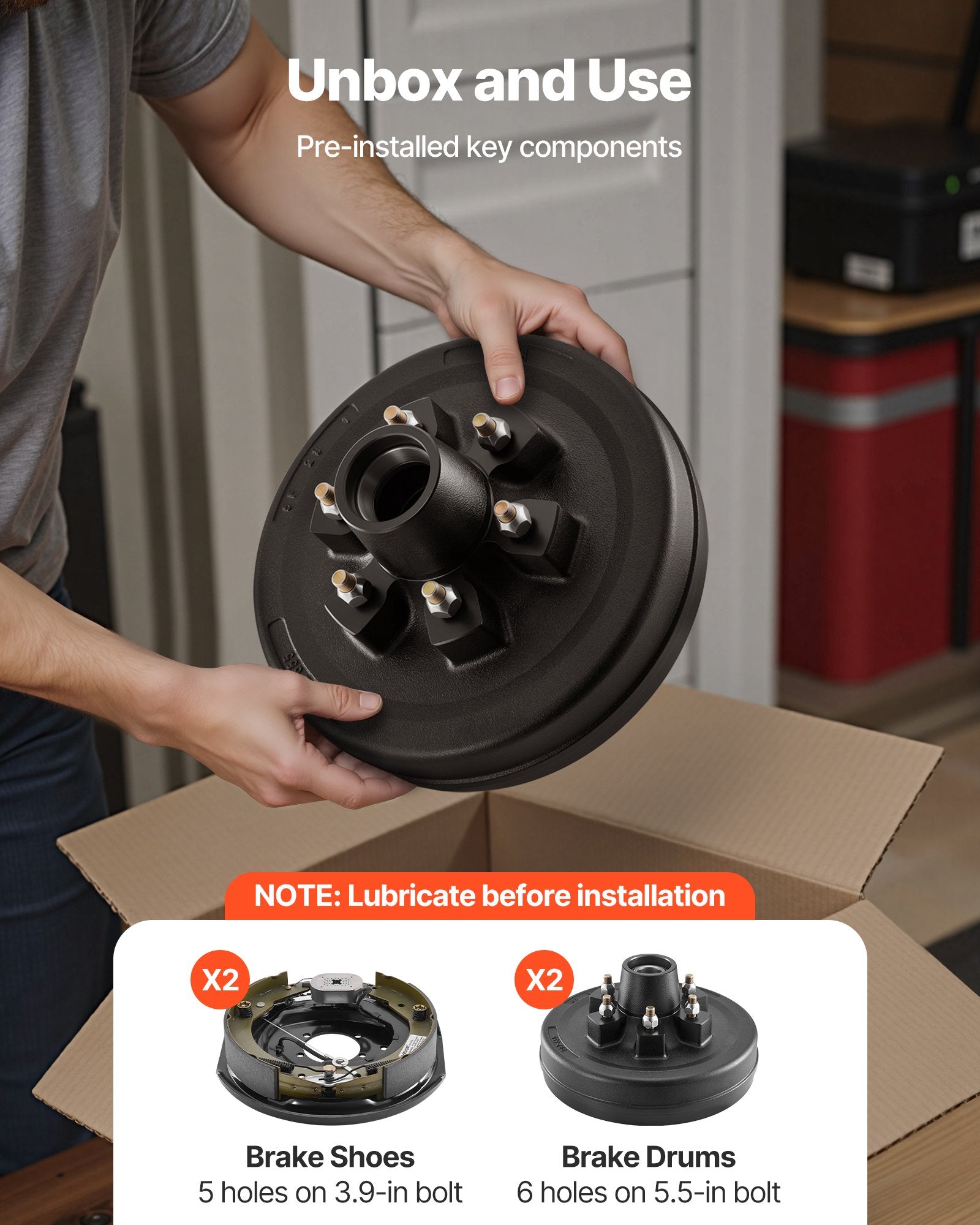

  • Easy Installation: Installing your new brakes is a breeze! Our electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
  • Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking
  • ≥30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads
Product Specification
  • Electromagnet Specifications: 12 in / 304.8 mm
  • Brake Pad Dimensions: 2 x 0.2 in / 50 x 4.7 mm
  • Compatible Trailer Weight: 6000 lbs / 2722 kg
  • Brake Pad Friction Coefficient: 0.48
  • Brake Drum: 12.9 x 6.69 in / Φ327.6 x 170 mm
  • Brake Dimensions: 12 x 2 in / 304.8 x 50.8 mm
  • Product Dimensions:
  • Magnetic Force: ≥600N
  • Brake Drum Dimensions (inner diameter): Φ 12 in / Φ 305 mm
  • Flange Bolt Count: 5, PCD 3.9 in / 99 mm, 5-Φ10
  • Service Life: ≥30000 km

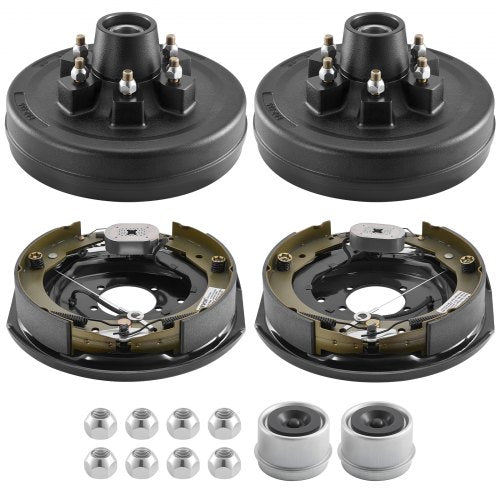

  • Package Contents: Single Set (2 brake shoes + 2 brake drums)
  • Main Materials: Gray Cast Iron & SPHC & Q235
  • Brake Drum Bolt Count: 6, PCD=5.5 in / 139.7 mm, 1/2-20 UNF
  • Item Model Number: BF12-Z03AB*2
  • Product Weight: 91.7 lbs / 41.6 kg
  • Brake Shoe: 13.82 x 2.81 in / Φ351 x 71.5 mm
  • Voltage/Current: DC12V/2.8-4.2A
