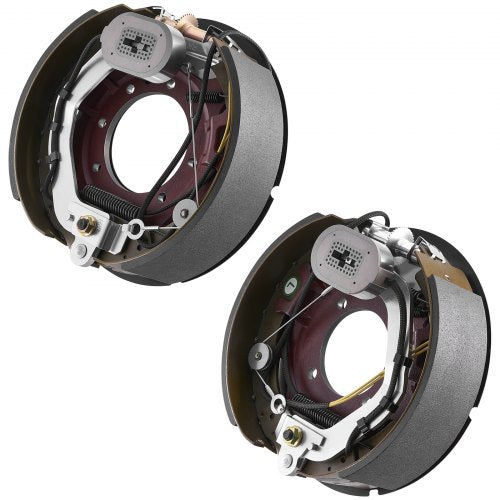

Electric Trailer Brake Kit, 12.25 x 3.375 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 8000 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs

Electric Trailer Brake Kit, 12.25 x 3.375 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 8000 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs

$214.00 USD
$214.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Upgrade Your Brake System: Our electric trailer brake kit includes 2 brake assemblies, designed for trailers and RVs with tapered axles up to 8000 lbs. 12.25 x 3.375 inch brakes, with 4 holes on a 5 inch bolt circle, fit most vehicle installations

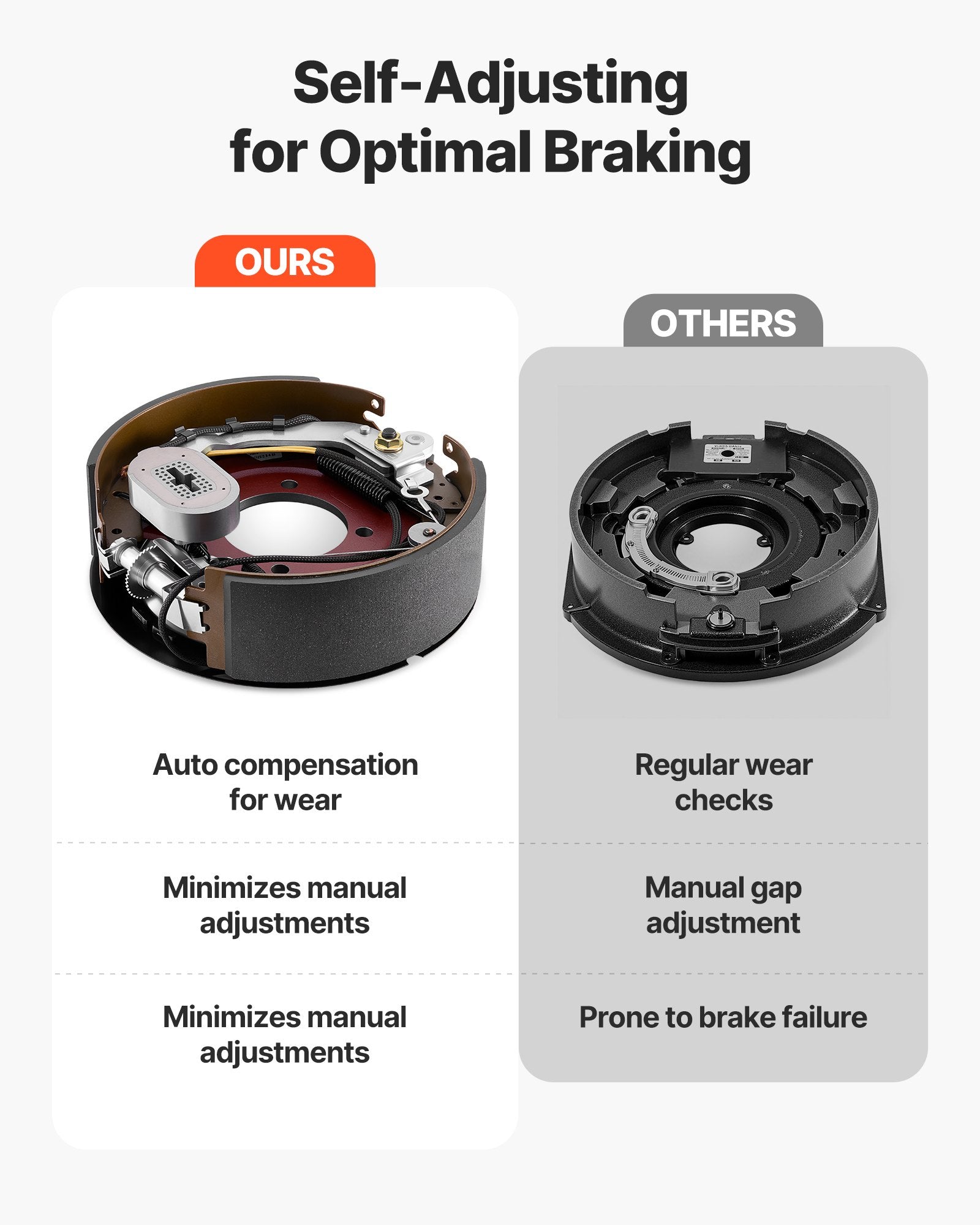

  • Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips
  • Easy Installation: Installing your new brakes is a breeze! Our self-adjusting electric brakes it comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
  • Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking
  • ≥30000km Lifespan: These steel brake assemblies of the self-adjusting electric brakes kit are shock-resistant and built to last. The protective shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

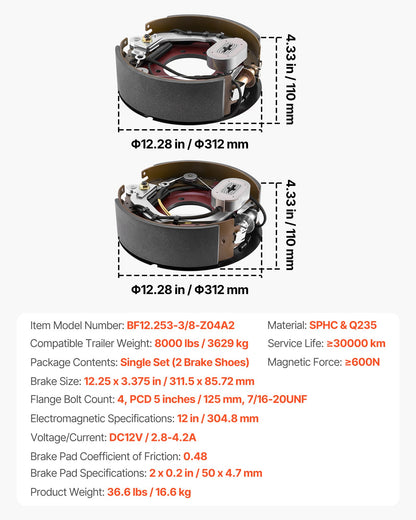

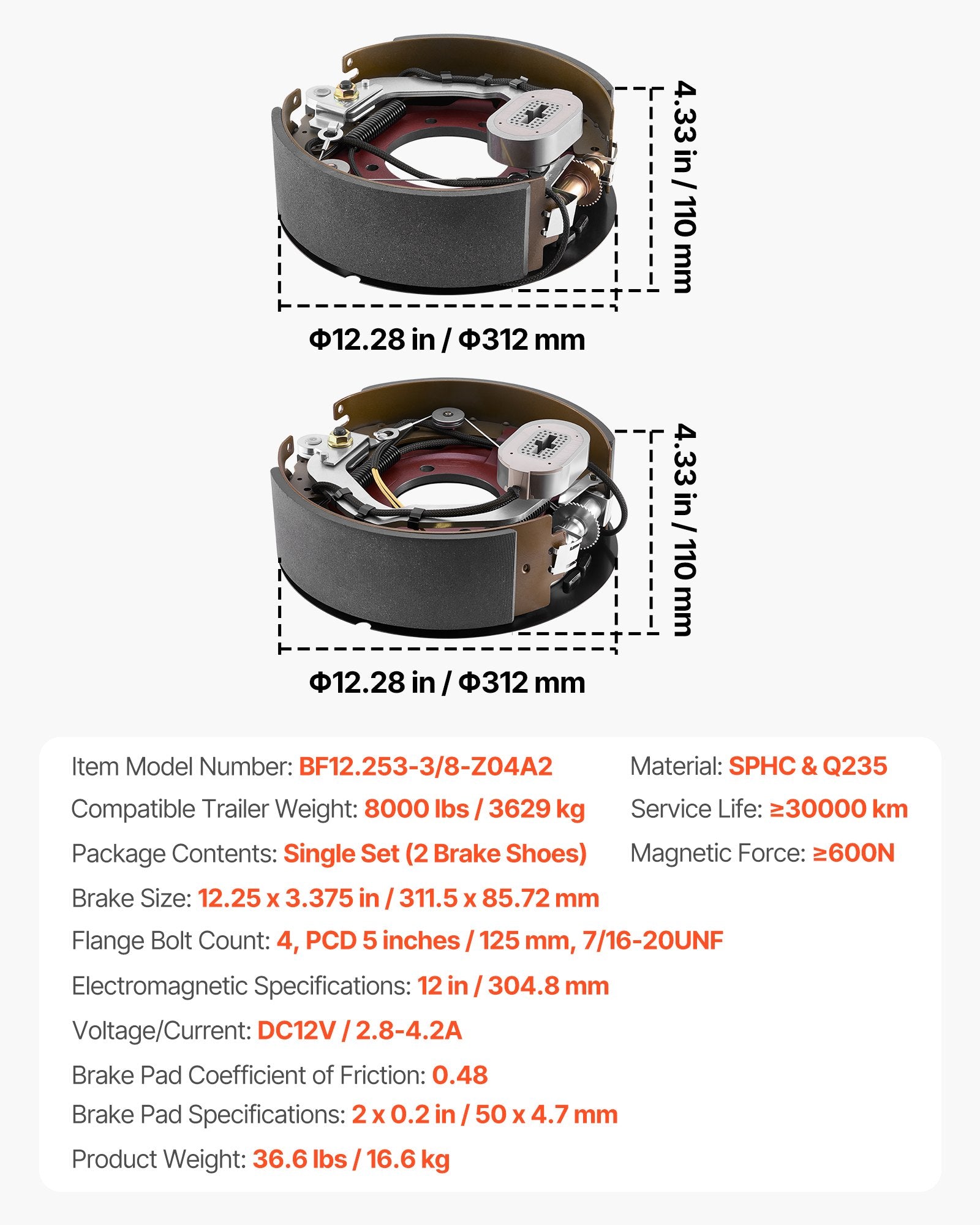

Product Specification
  • Compatible Trailer Weight: 8000 lbs / 3629 kg
  • Material: SPHC & Q235
  • Brake Dimensions: Φ12.28 x 4.33 in / Φ312 x 110 mm
  • Magnetic Force: ≥600N
  • Brake Size: 12.25 x 3.375 in / 311.5 x 85.72 mm
  • Flange Bolt Count: 4, PCD 5 inches / 125 mm
  • 7/16-20UNF (Length: 0.8 in / 20 mm)
  • Brake Pad Specifications: 2 x 0.2 in / 50 x 4.7 mm
  • Service Life: ≥30000 km
  • Electromagnetic Specifications: 12 in / 304.8 mm
  • Package Contents: Single Set (2 Brake Shoes)
  • Brake Pad Coefficient of Friction: 0.48
  • Item Model Number: BF12.253-3/8-Z04A2
  • Product Weight: 36.6 lbs / 16.6 kg
  • Voltage/Current: DC12V / 2.8-4.2A
