Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs

Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 1 Pair Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs

$206.00 USD
$206.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details

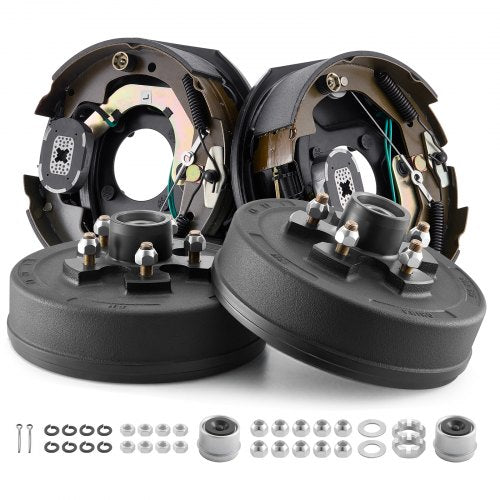

  • Upgrade Your Brake System: Our electric trailer brake kit includes 2 brake assemblies and 2 brake drums, designed for trailers and RVs with tapered axles up to 3500 lbs. With a 10 x 2-1/4 inch brake and a 10 inch drum, it's the ultimate upgrade

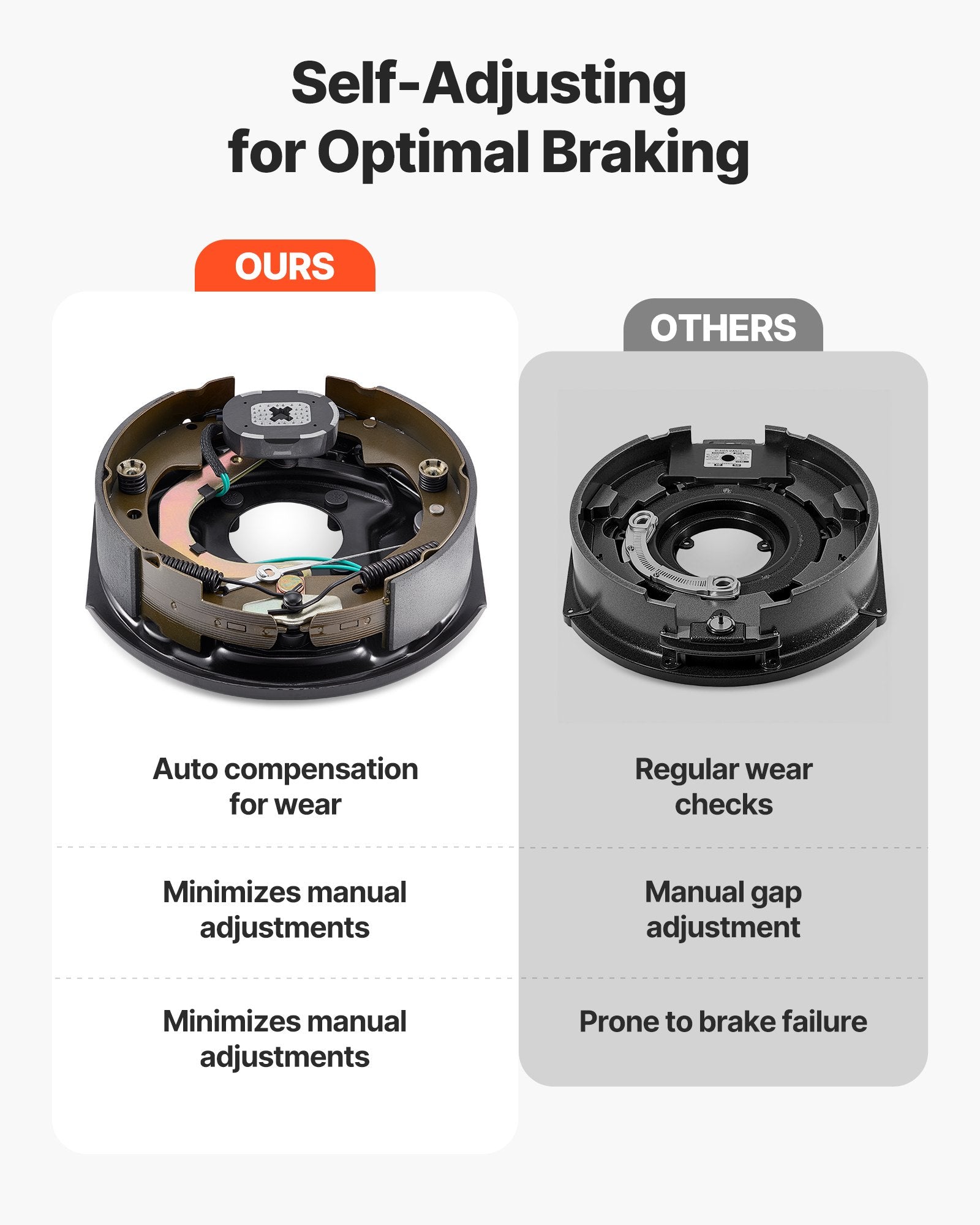

  • Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips

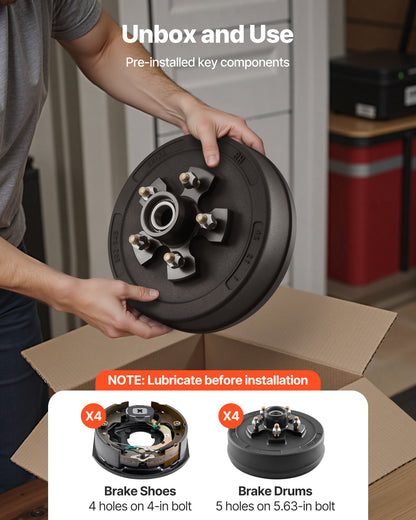

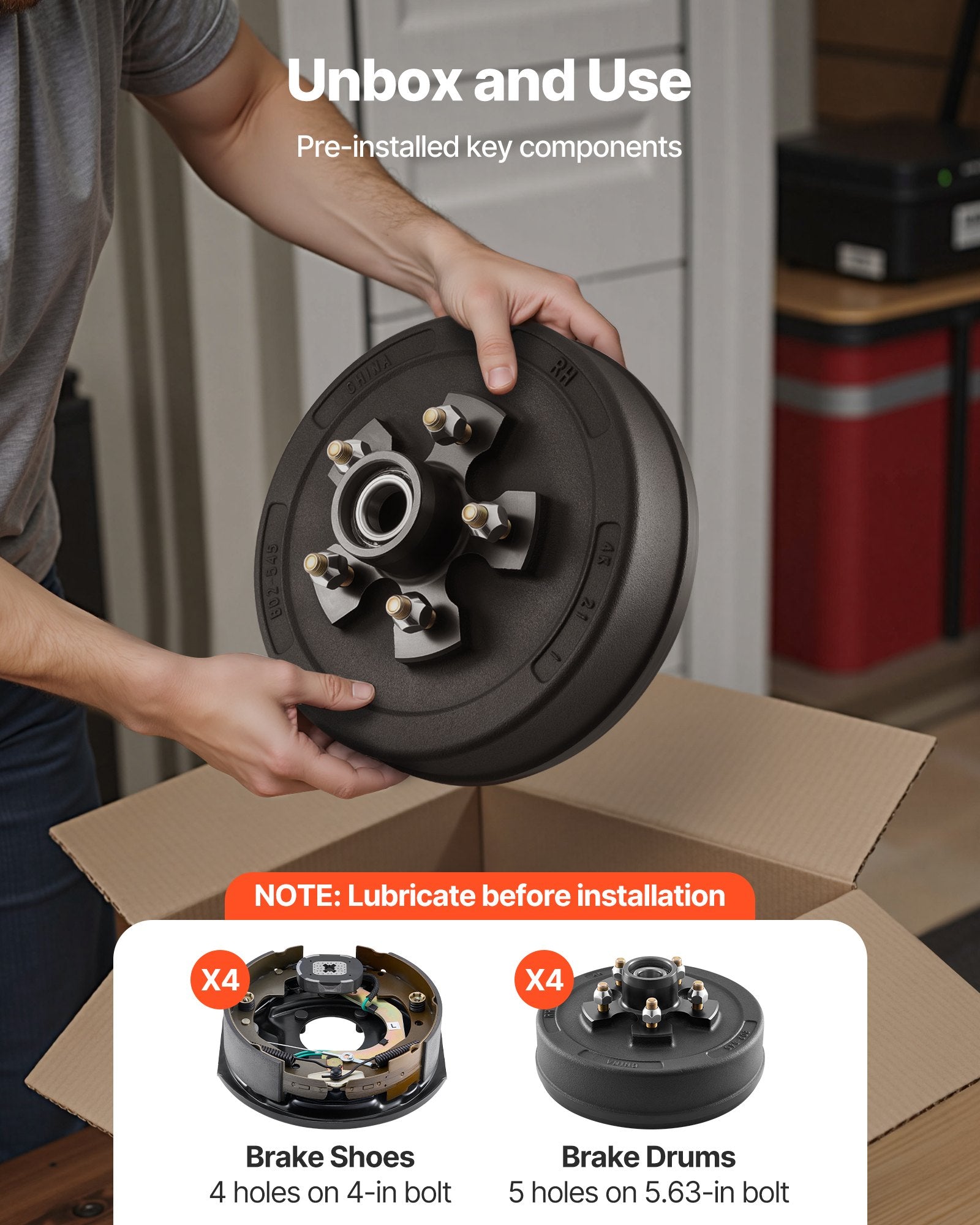

  • Easy Installation: Installing your new brakes is a breeze! Our electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
  • Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking
  • ≥30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

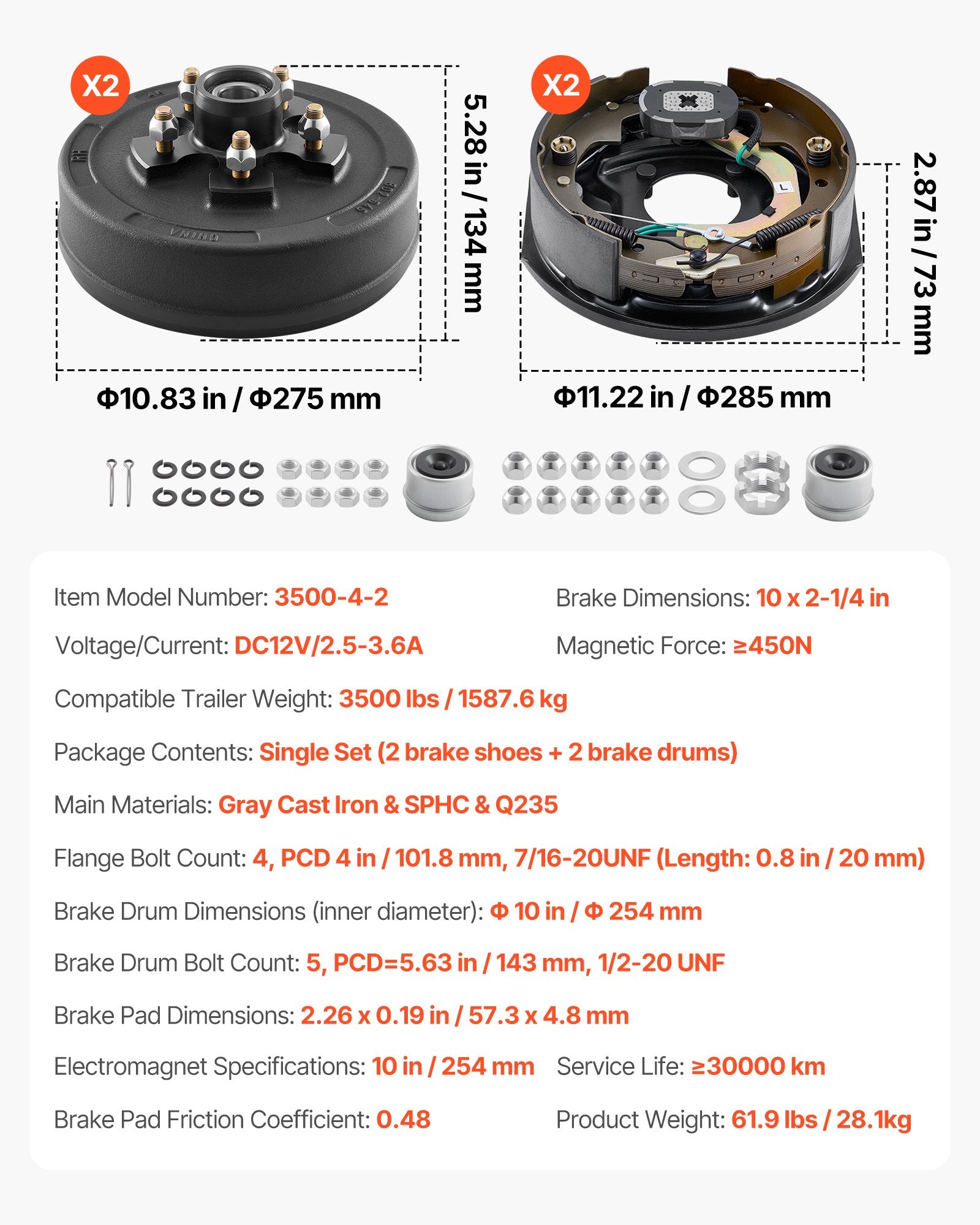

Product Specification
  • Electromagnet Specifications: 10 in / 254 mm
  • Brake Pad Dimensions: 2.26 x 0.19 in / 57.3 x 4.8 mm
  • Product Dimensions (Outer diameter × Height):
  • Compatible Trailer Weight: 3500 lbs / 1587.6 kg
  • Brake Pad Friction Coefficient: 0.48
  • Brake Drum: Φ10.83 x 5.28 in / Φ275 x 134 mm
  • Brake Dimensions: 10 x 2-1/4 inch
  • Magnetic Force: ≥450N
  • Brake Drum Dimensions (inner diameter): Φ 10 in / Φ 254 mm
  • Flange Bolt Count: 4, PCD 4 in / 101.8 mm
  • 7/16-20UNF (Length: 0.8 in / 20 mm)
  • Service Life: ≥30000 km
  • Package Contents: Single Set (2 brake shoes + 2 brake drums)
  • Main Materials: Gray Cast Iron & SPHC & Q235
  • Brake Drum Bolt Count: 5, PCD=5.63 in / 143 mm, 1/2-20 UNF
  • Item Model Number: 3500-4-2
  • Product Weight: 61.9 lbs / 28.1kg
  • Brake Shoe: Φ11.22 x 2.87 in / Φ285 x 73 mm
  • Voltage/Current: DC12V/2.5-3.6A
