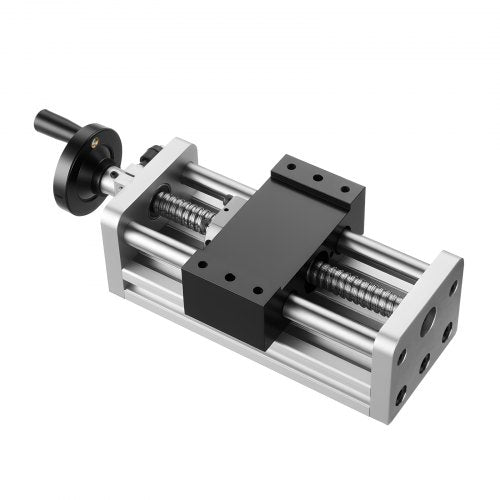

Linear Stage Actuator, 100 mm Effective Stroke, Ball Screw CNC Linear Motion Guide Rail, Double Optical Axis, C7 High-Precision, Bearing Slide Block, Manual Handwheel, for CNC Router X Y Z Axis
Linear Stage Actuator, 100 mm Effective Stroke, Ball Screw CNC Linear Motion Guide Rail, Double Optical Axis, C7 High-Precision, Bearing Slide Block, Manual Handwheel, for CNC Router X Y Z Axis
Regular price
$232.00 USD
Regular price
Sale price
$232.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details
- CNC Linear Stage Actuator: This set includes one linear stage actuator with a 100 mm effective stroke and one handwheel. Compatible with 3D printers, compact CNC machines, and industrial robots

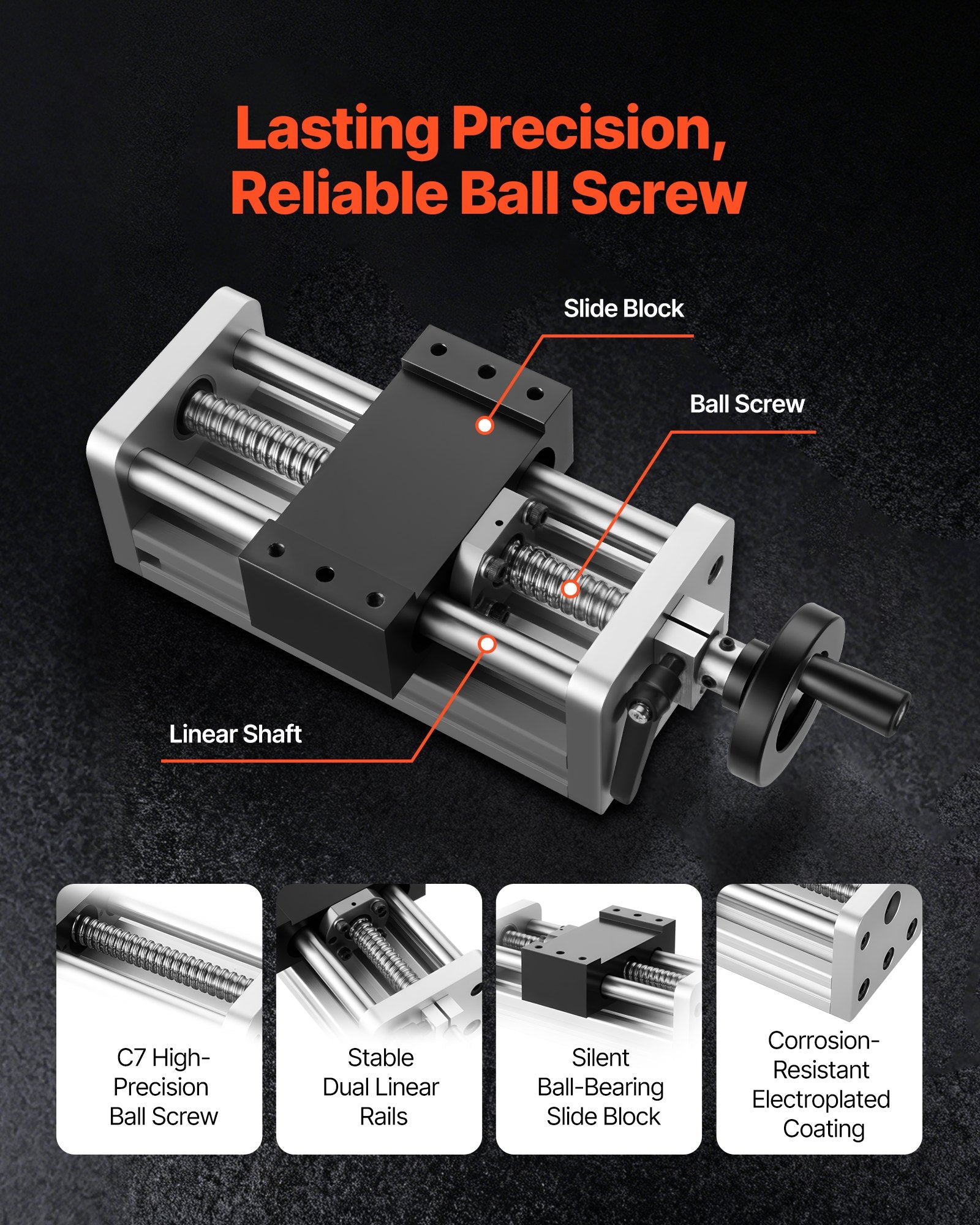

- High-Precision Ball Screw: Features a premium ball screw, dual linear guide rails, and a ball-bearing slide block. Electroplated coating enhances long-term accuracy and durability

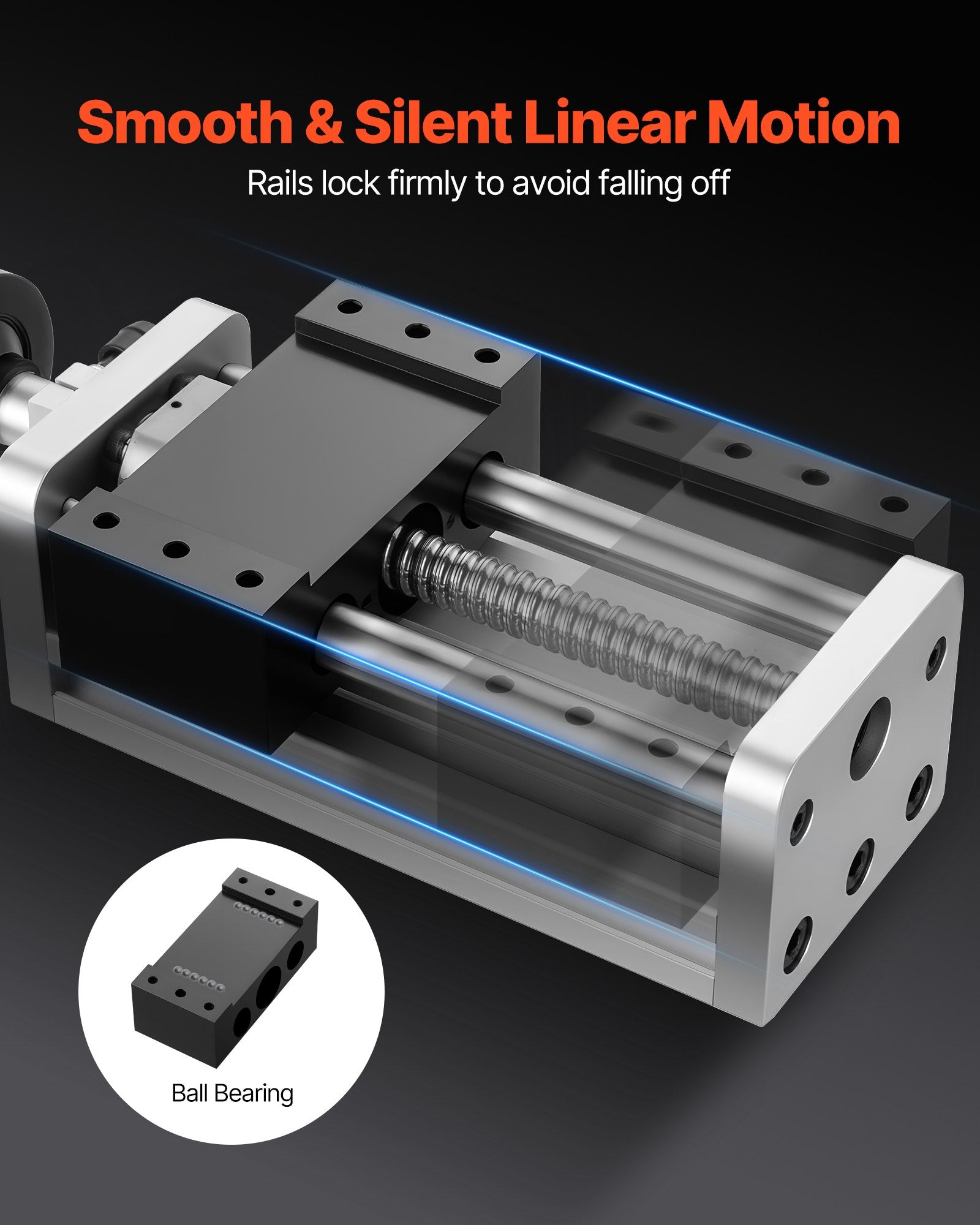

- Silent & Smooth Sliding: Built-in ball-bearing slide blocks deliver quiet, low-friction motion while gripping the shaft tightly for stable linear travel. Less noise, less wear, more precision—every time you move

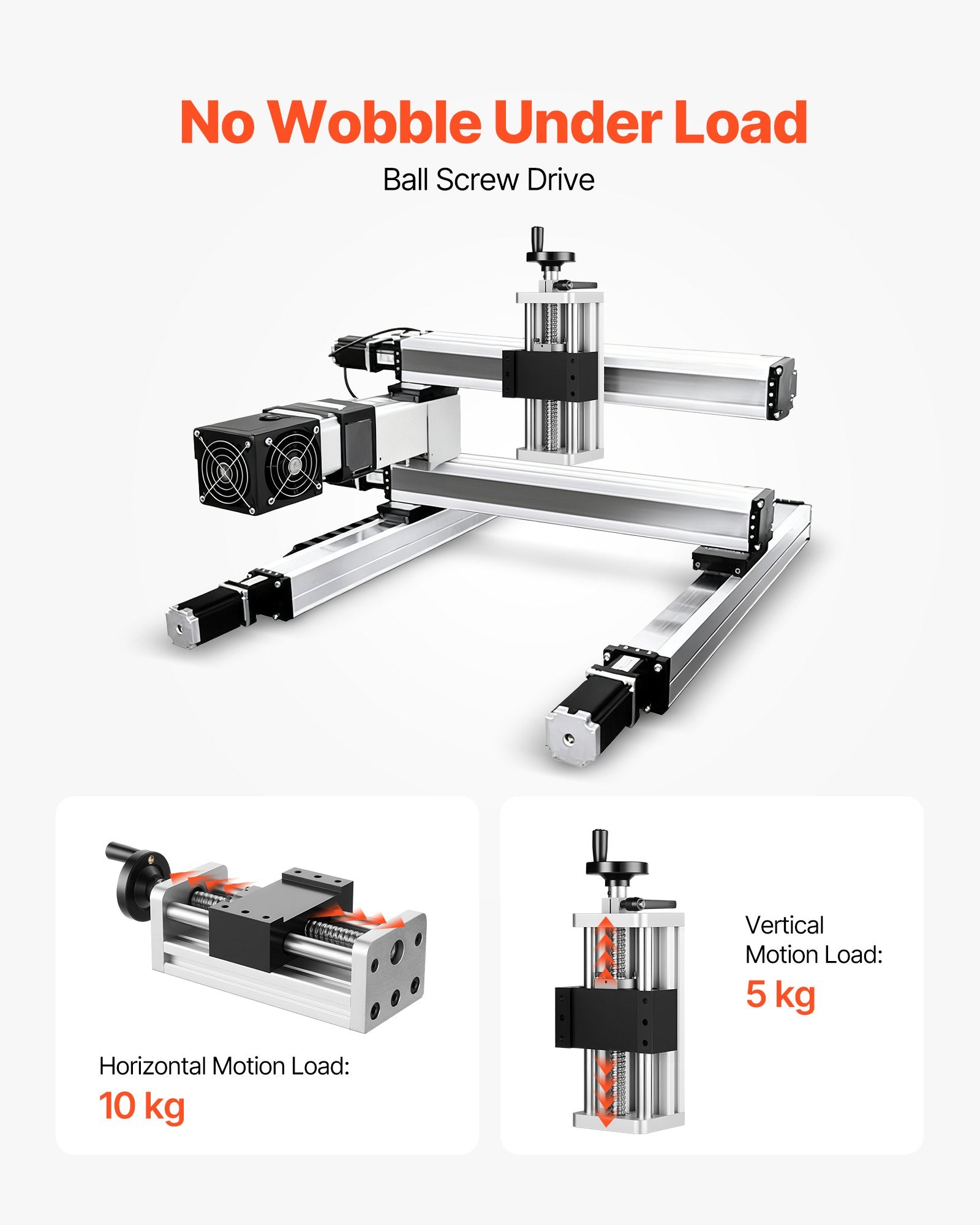

- Reliable Load Capacity: Our CNC linear stage actuator handles both horizontal and vertical motion with ease. Supports up to 10 kg horizontally and 5 kg vertically without wobble
- Handwheel Included: Our CNC linear guide rail comes with an additional handwheel, allowing you to manual fine-tune the position
- Accessories: 1 x Handwheel

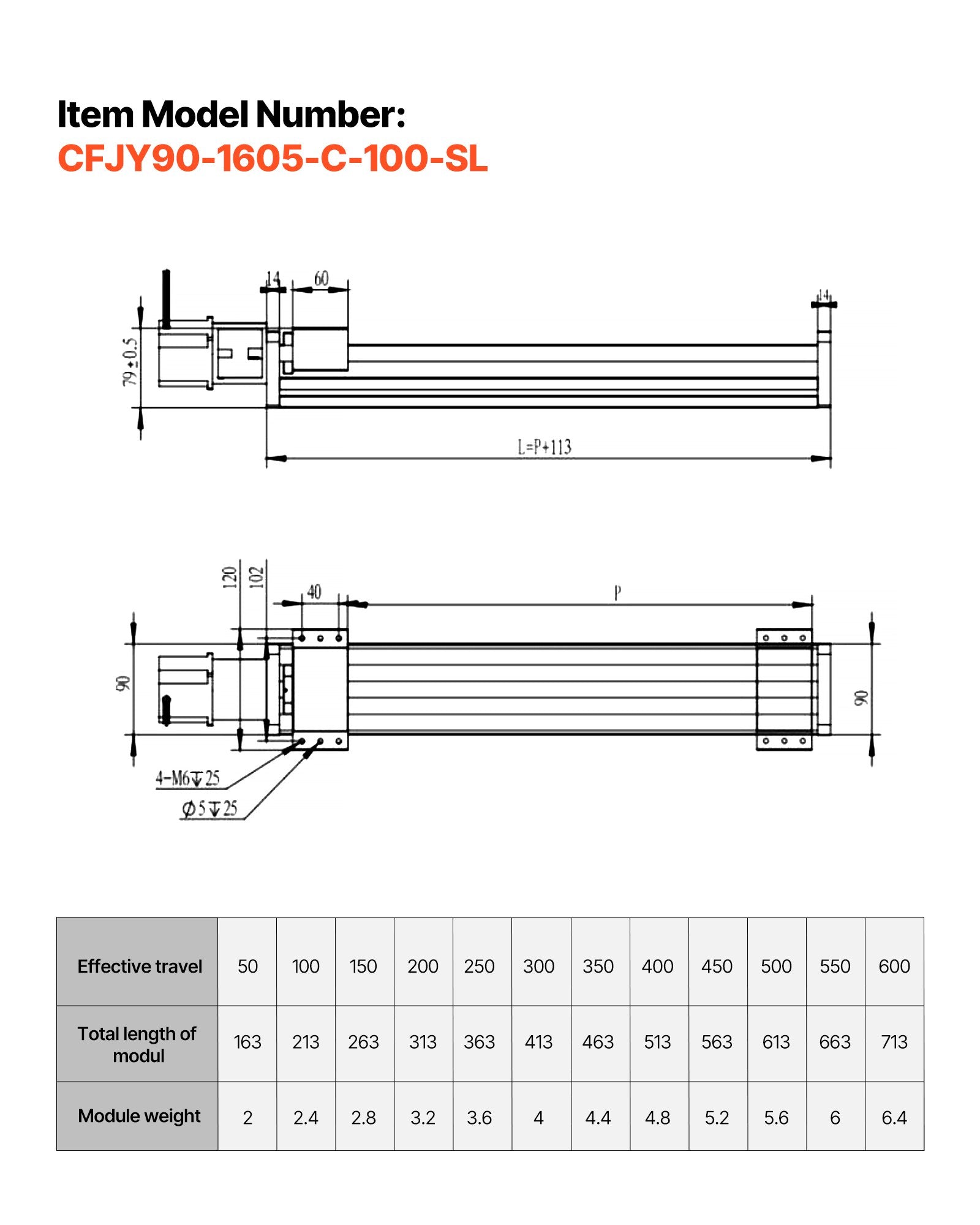

- Item Model Number: CFJY90-1605-C-100-SL
- Motor RatedVoltage: DC 24–75V
- Quantity: 1 pc
- Material: Chrome-Plated Steel & Aluminum
