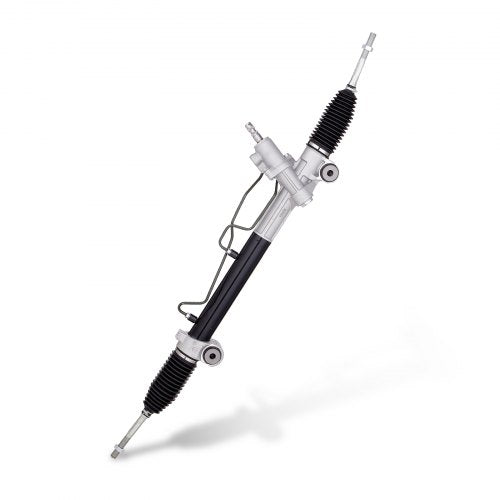

Hydraulic Power Steering Rack and Pinion, Compatible with 2004-2006 Toyota Camry (SE or XLE Model), 2004 Toyota Camry (LE Model with 16" Wheels), 2007-2011 Toyota Camry (Except Hybrid Model)
Hydraulic Power Steering Rack and Pinion, Compatible with 2004-2006 Toyota Camry (SE or XLE Model), 2004 Toyota Camry (LE Model with 16" Wheels), 2007-2011 Toyota Camry (Except Hybrid Model)
Regular price
$224.00 USD
Regular price
Sale price
$224.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details
- Wide Vehicle Compatibility: Our hydraulic power steering rack and pinion fits: 2004-2006 Toyota Camry (SE or XLE Model), 2004 Toyota Camry (LE Model with 16" Wheels), 2007-2011 Toyota Camry (Except Hybrid Model), 2004-2008 Toyota Solara, 2005-2012 Toyota Avalon. Note: For left-hand drive only.
- OE Part Numbers: This steering rack and pinion assembly is a direct replacement for OE part numbers: 44250-33330, 97-2630, 26-2630, 972630, 262630, 4420033480, 4420033530, 4425006340, 4550309420.

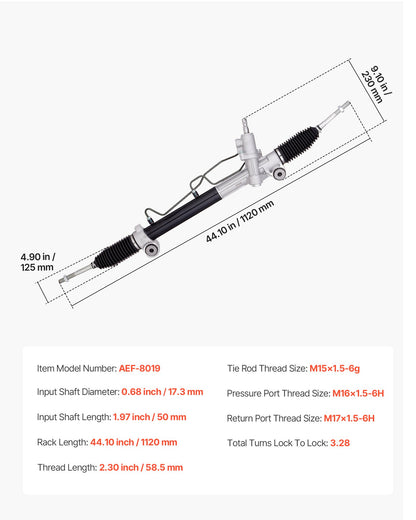

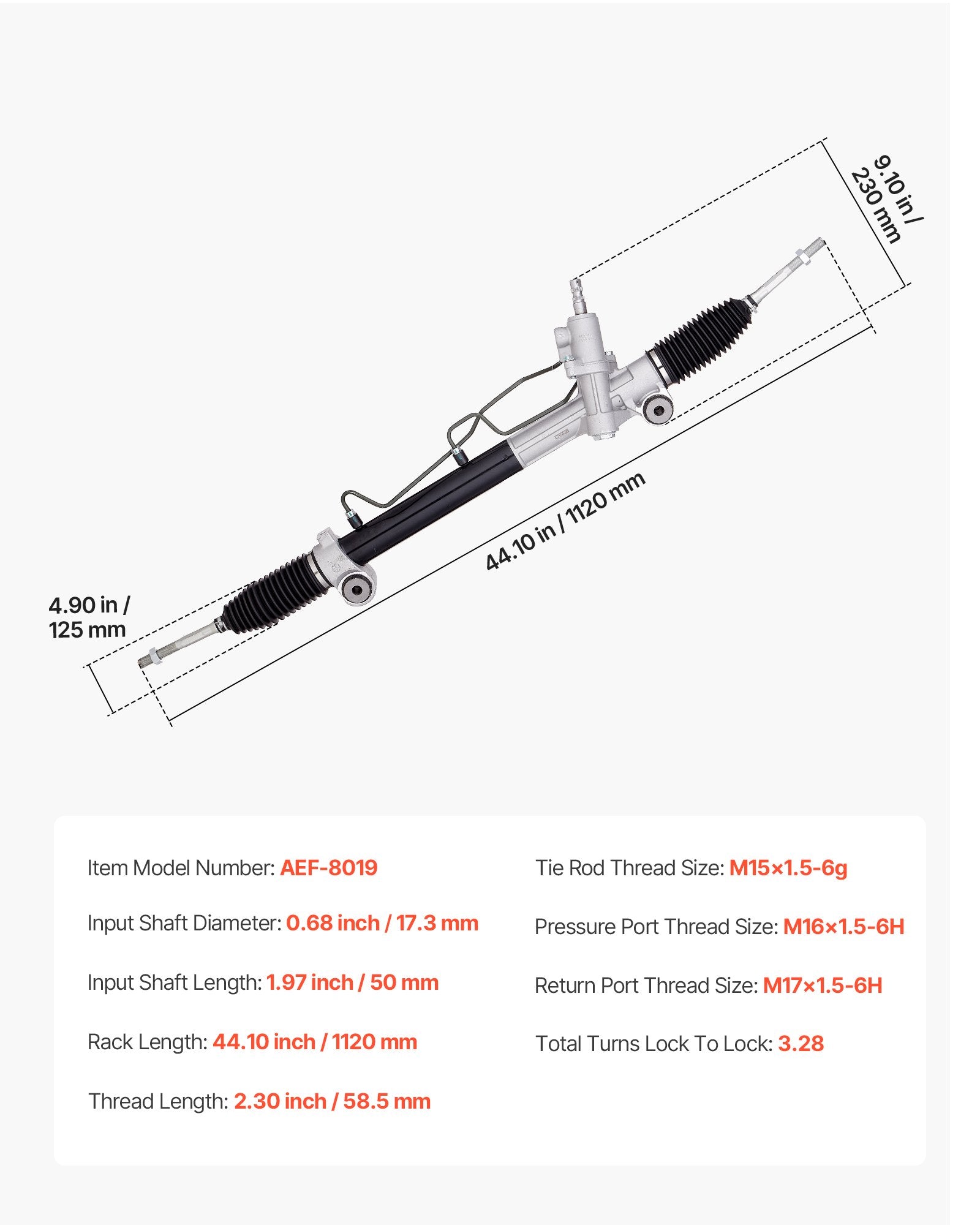

- Specifications: Input shaft diameter: 17.3 mm / 0.68 inch; Input shaft length: 50 mm / 1.97 inch; Rack length: 1120 mm / 44.09 inch; Tie rod thread length: 58.5 mm / 2.30 inch; Tie rod thread size: M15x1.5-6g; Pressure port thread size: M16x1.5-6H; Return port thread size: M17x1.5-6H; Total turns lock to lock: 3.28.

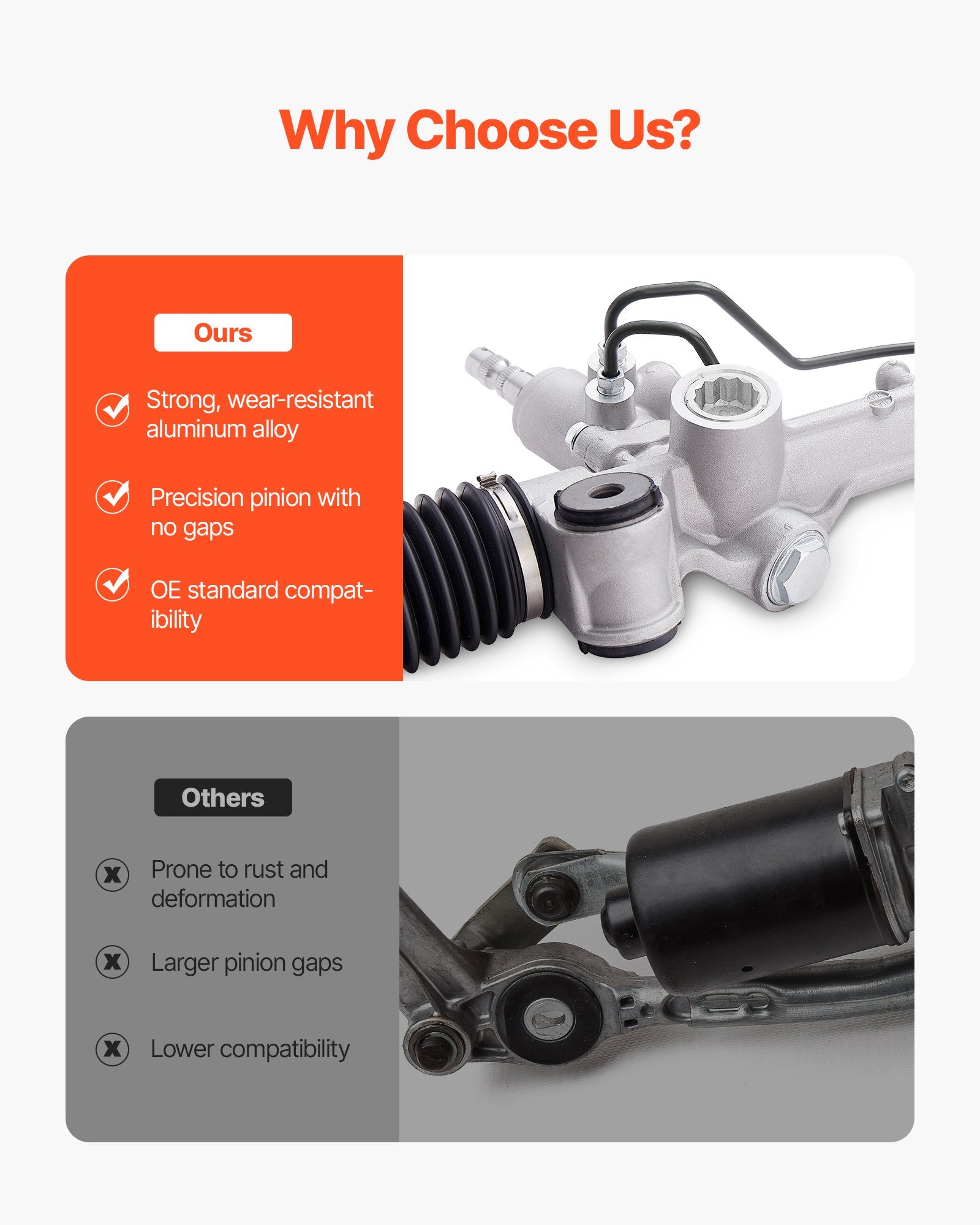

- Corrosion-Resistant Alloy: Crafted from high-quality aluminum alloy, the steering rack and pinion assembly offers exceptional strength and durability for smooth driving on harsh terrains while preventing the steering system from jamming with a leak-free dust boot design.

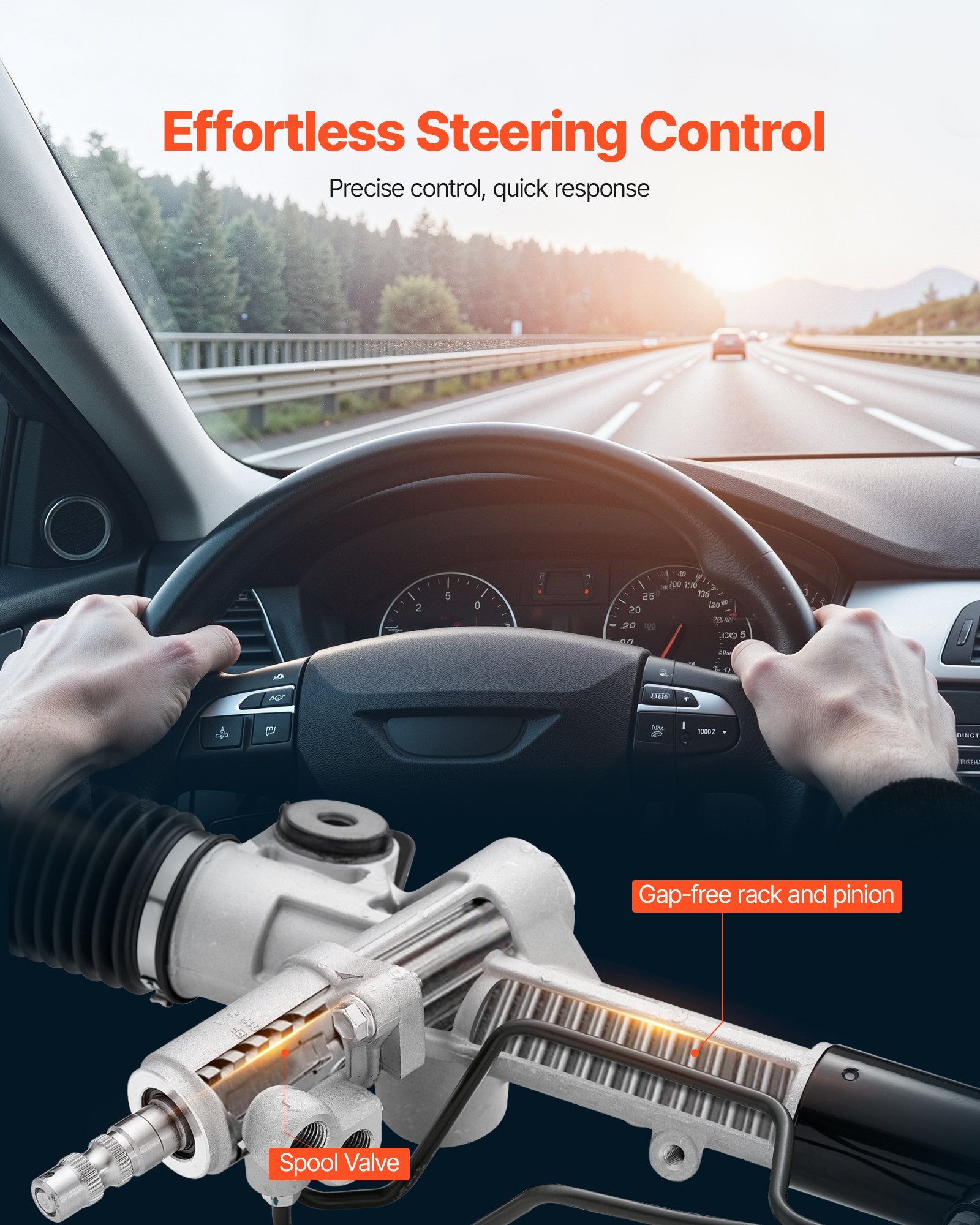

- Agile Steering: Optimized gear and rack meshing technology provides enhanced stability and quick, responsive steering, ensuring smooth and precise control for a superior driving experience.
- Item Model Number: AEF-8019
- Product Dimensions: 44.1 x 4.9 x 9.1 in / 1120 x 125 x 230 mm
- Net Weight: 18.74 lbs / 8.5 kg
