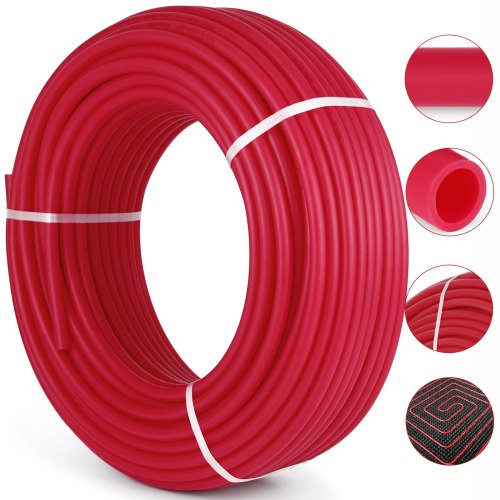

Oxygen Barrier PEX Tubing - 1/2 Inch X 900 Feet Tube Coil - EVOH PEX-B Pipe for Residential Commercial Radiant Floor Heating Pex Pipe (1/2\" O2-Barrier, 900Ft/Red)

Oxygen Barrier PEX Tubing - 1/2 Inch X 900 Feet Tube Coil - EVOH PEX-B Pipe for Residential Commercial Radiant Floor Heating Pex Pipe (1/2\" O2-Barrier, 900Ft/Red)

$248.00 USD
$248.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • 【RELIABLE MATERIAL】- Type: Oxygen-Barrier; Color: Red; Nominal Diameter: 1/2"; Total Length: 900ft. Outside Diameter: 0.625"; Inner Diameter: 0.475"; Tube Thickness: 0.07"; Keep quick & constant hot/cold water flows. Made of PEX material, non-toxic, crack-resistant, leak-proof. Perfect for potable water or radiant floor water use.

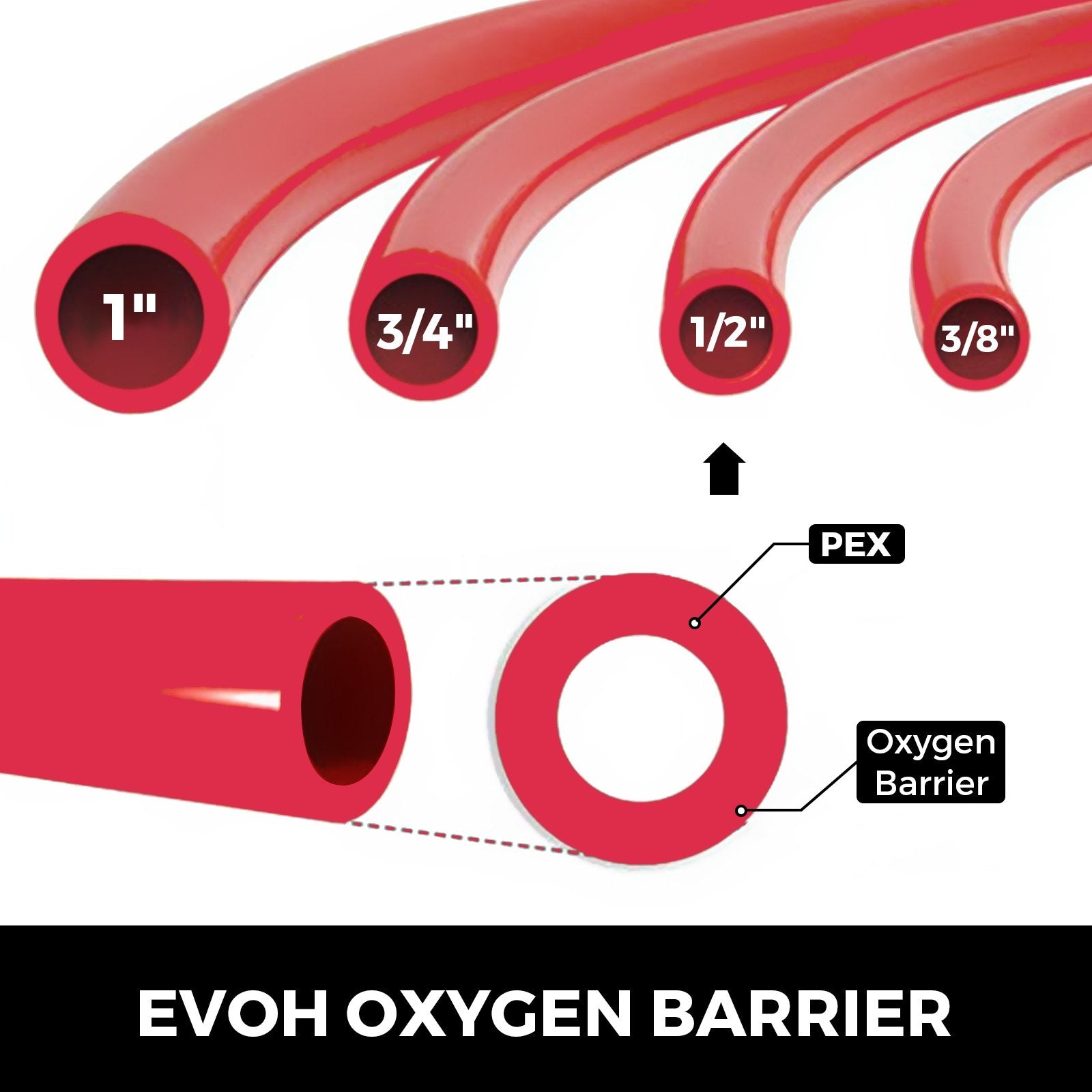

  • 【ROBUST O2 RESISTANT】- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion. Heating system's service time can be greatly lengthened. Smooth inner pipe, anti- scaling quality, increase heat dissipation efficiency & speed for energy-saving.

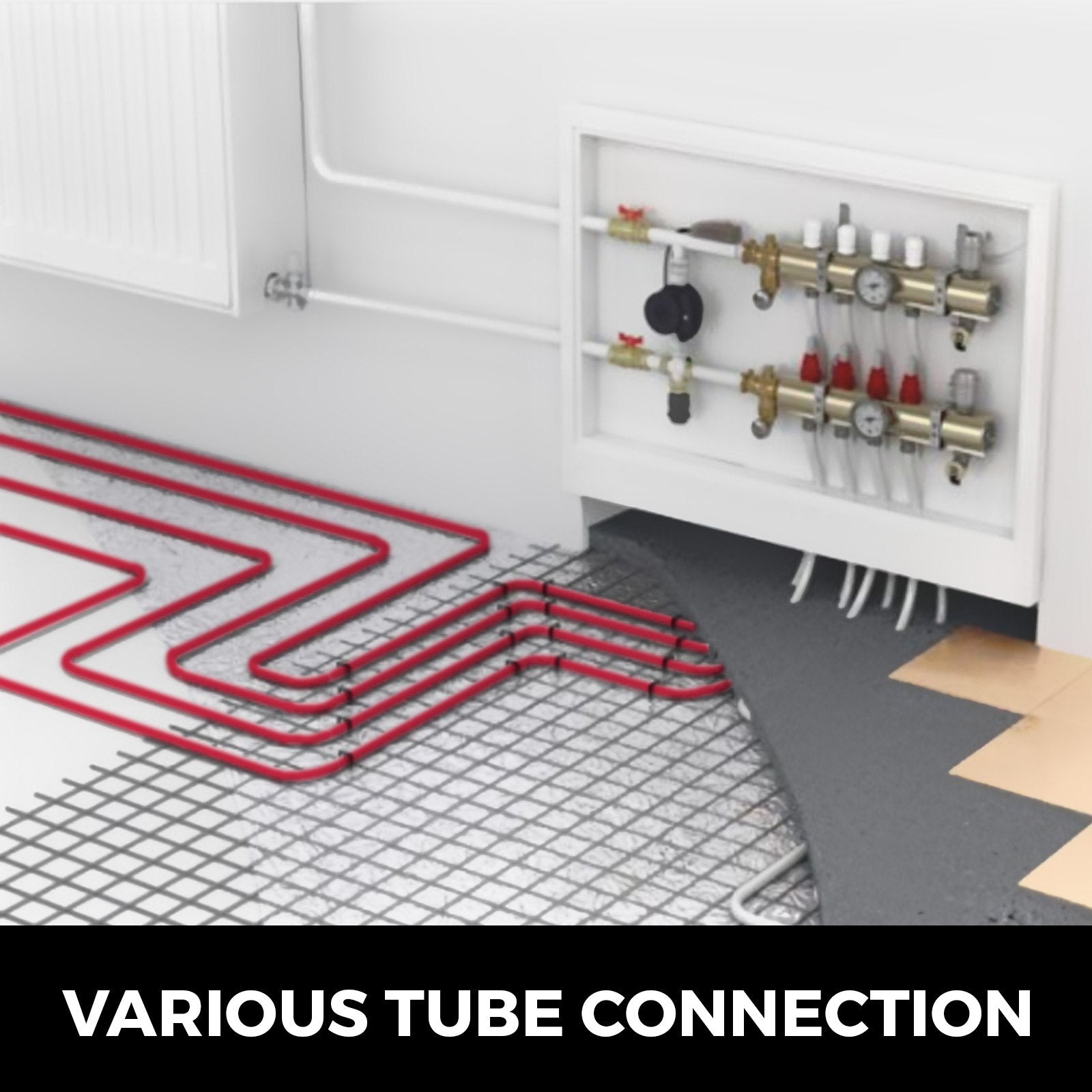

  • 【EFFORTLESS INSTALLATION】- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings); Cinch (clamp) connection system (cinch tool + St. steel clamps + crimp fittings); Press system (by Viega); Compression PEX Fittings.

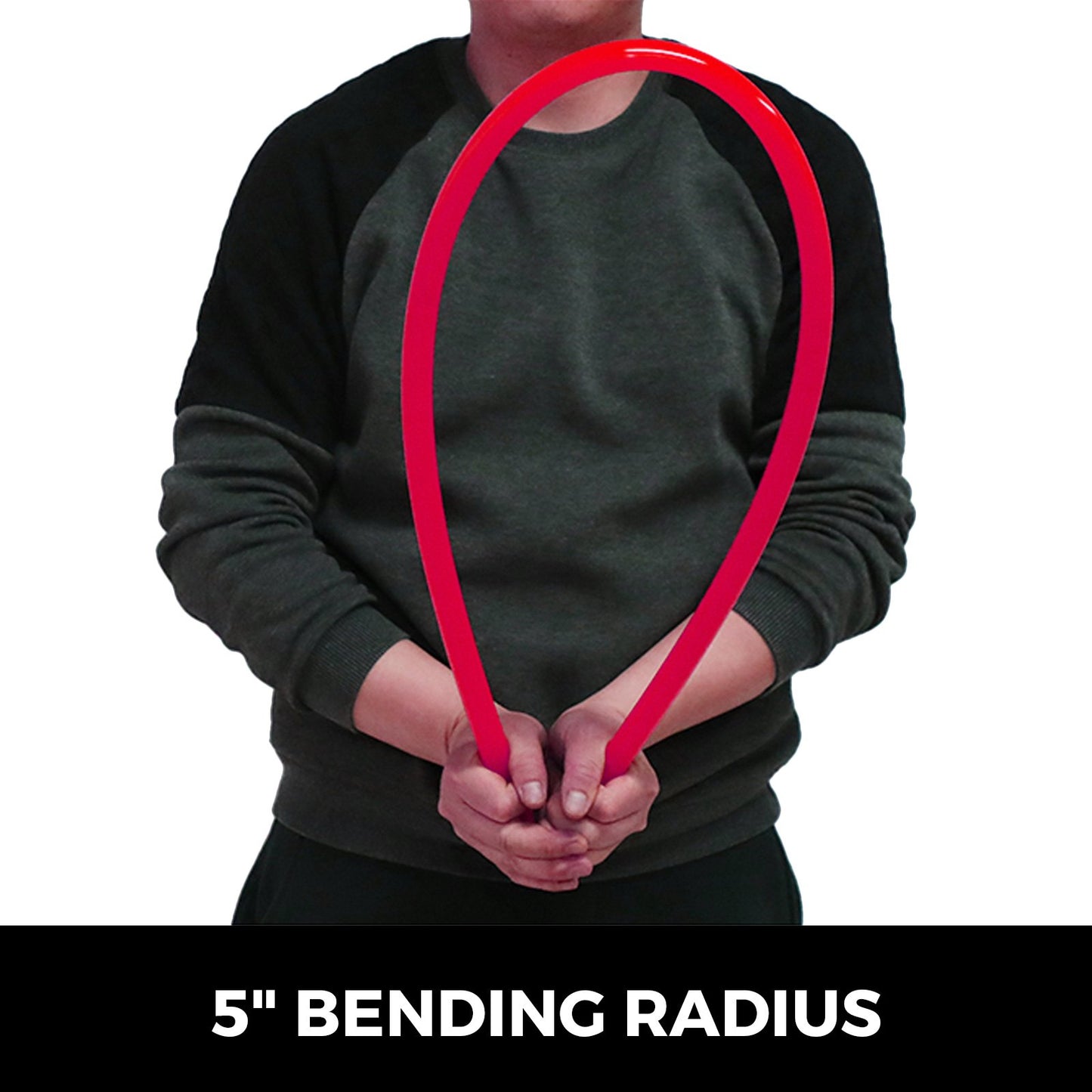

  • 【PREMIUM FLEXIBILITY】- Min.5" bending radius, easy to bend for different ground situation. Big pressure capacity: 188-217psi at 20℃; 101-108psi at 95℃. Thus to ensure its good temperature resistant, crack- & leakage-proof.

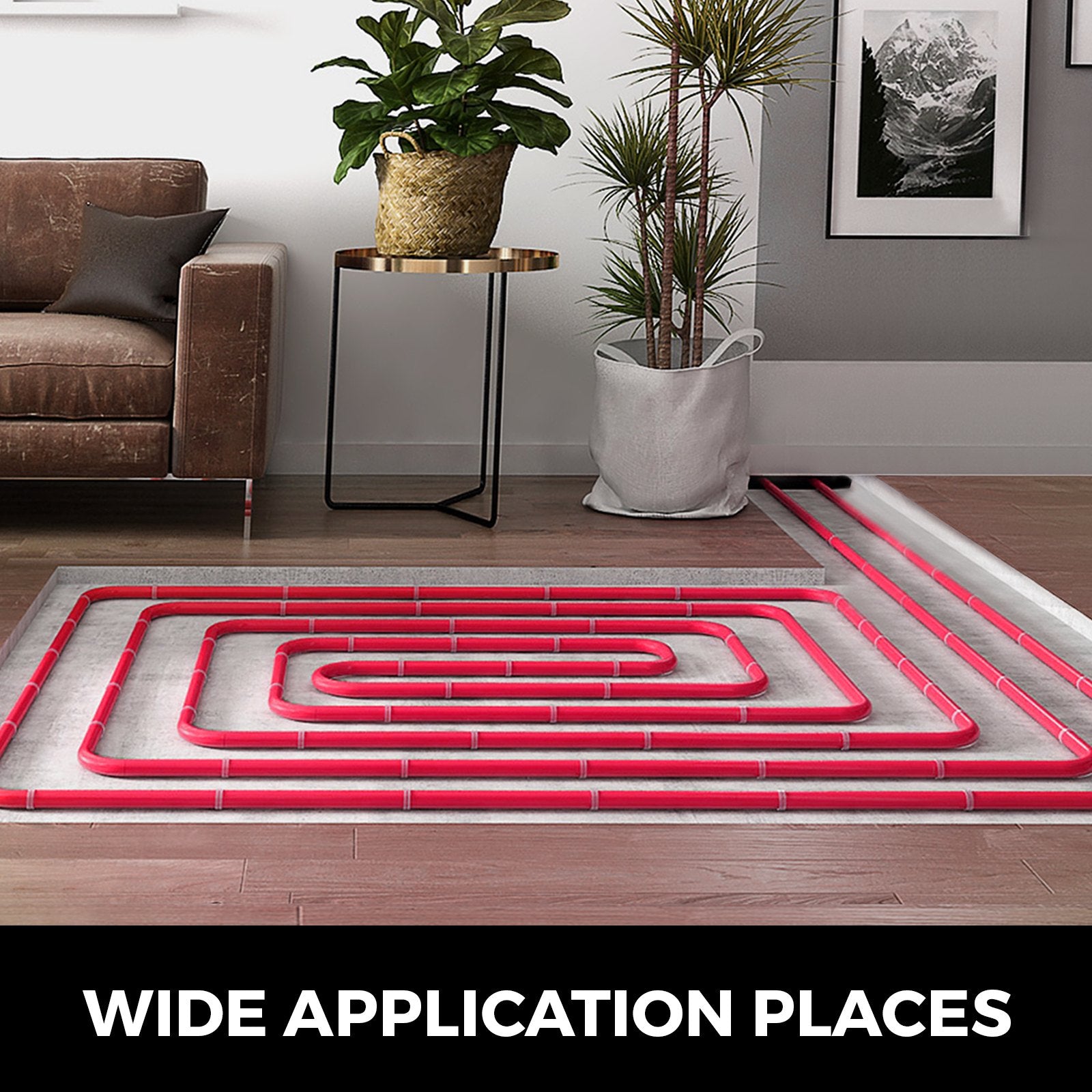

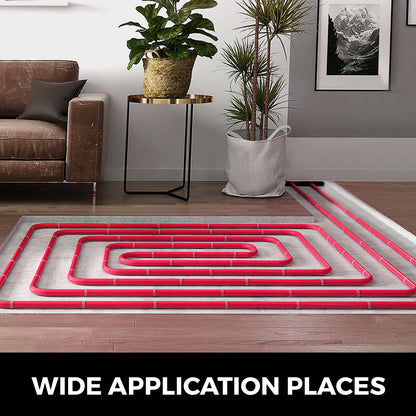

  • 【DIVERSE USE SCENARIO】- Suit for home & commercial use, like: radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, "Sandwich" type radiant heating (between sub floor and finished floor), Snow & ice melting systems etc.
Product Specification
  • Total Length: 900ft
  • Type: PEX Tube(Oxygen Barrier), ANSI/NSF 14, ANSI/NSF61
  • NSF-Pw (certified for radiant heating applications).:
  • SDR-9 dimensional standards.:
  • Inside Diameter: 0.475"
  • Pressure Ratings: 188-217psi at 20℃; 101-108psi at 95℃
  • UPC listed by IAPMO.:
  • Temperature Range: -45 to 110℃( -47℉ to 230℉)
  • Min.Bending Radius: 5"
  • Nominal Diameter: 1/2"
  • Outside Diameter: 0.625"
  • Tube Thickness: 0.07"
