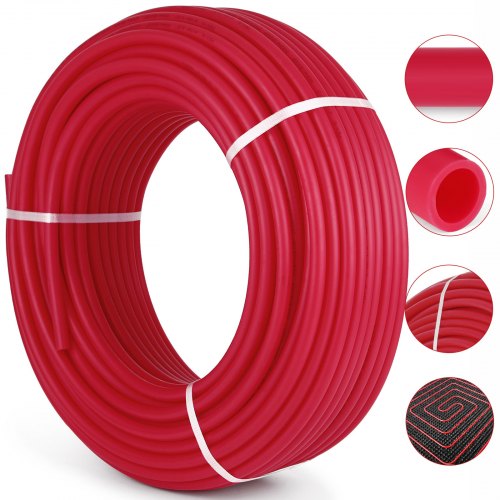

3/4\" X 500Ft PEX Tubing Oxygen Barrier O2 EVOH Pex-B Red Hydronic Radiant Floor Heat Heating System Pex Pipe Pex Tube (3/4\" O2-Barrier, 500Ft/Red)

3/4\" X 500Ft PEX Tubing Oxygen Barrier O2 EVOH Pex-B Red Hydronic Radiant Floor Heat Heating System Pex Pipe Pex Tube (3/4\" O2-Barrier, 500Ft/Red)

$245.00 USD
$245.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • 【RELIABLE MATERIAL】- Type: Oxygen-Barrier; Color: Red; Nominal Diameter: 3/4"; Total Length: 500ft. Outside Diameter: 0.86"; Inner Diameter: 0.66"; Tube Thickness: 0.1"; Keep quick & constant hot/cold water flows. Made of PEX material, non-toxic, crack-resistant, leak-proof. Perfect for potable water or radiant floor water use.

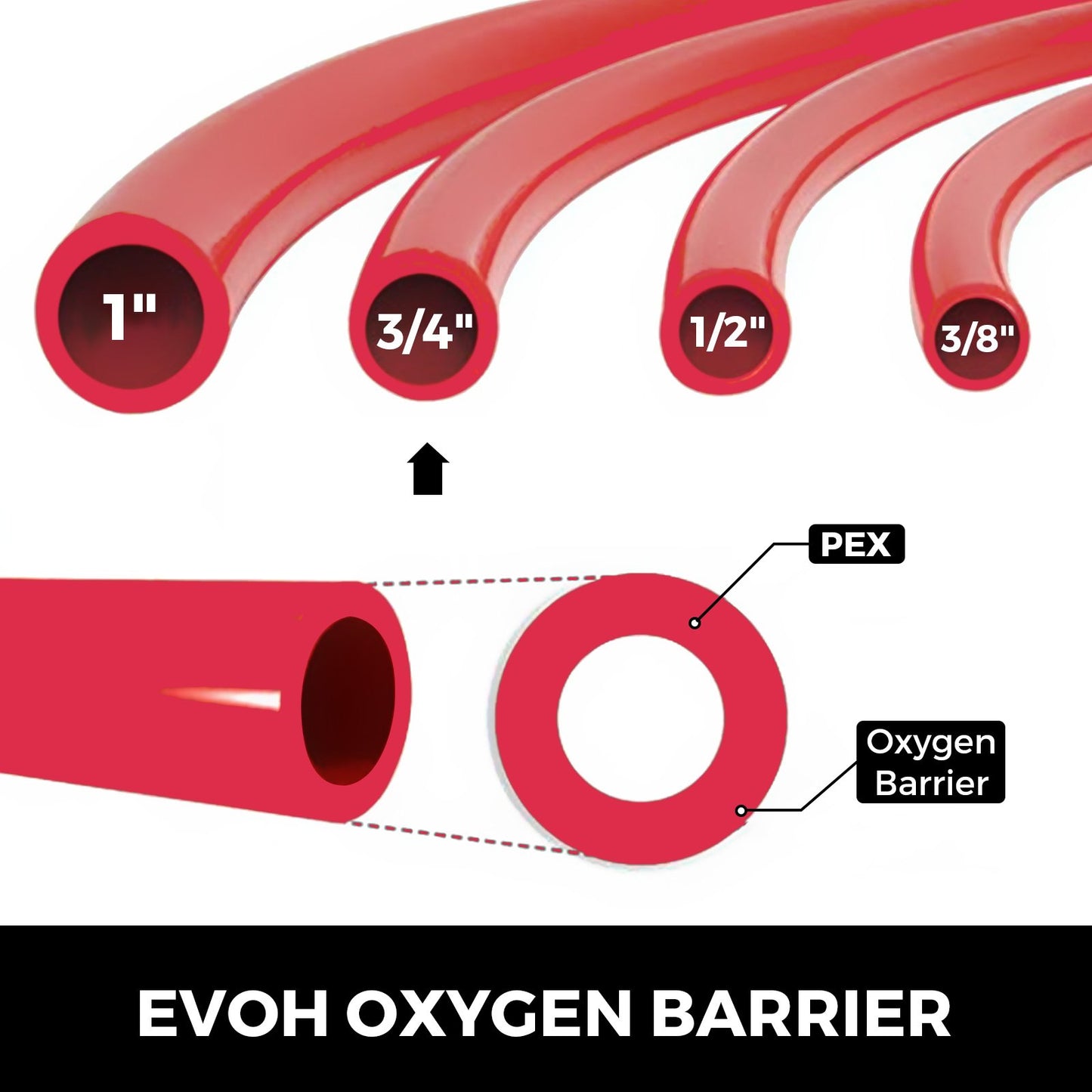

  • 【ROBUST O2 RESISTANT】- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion. Heating system's service time can be greatly lengthened. Smooth inner pipe, anti- scaling quality, increase heat dissipation efficiency & speed for energy-saving.

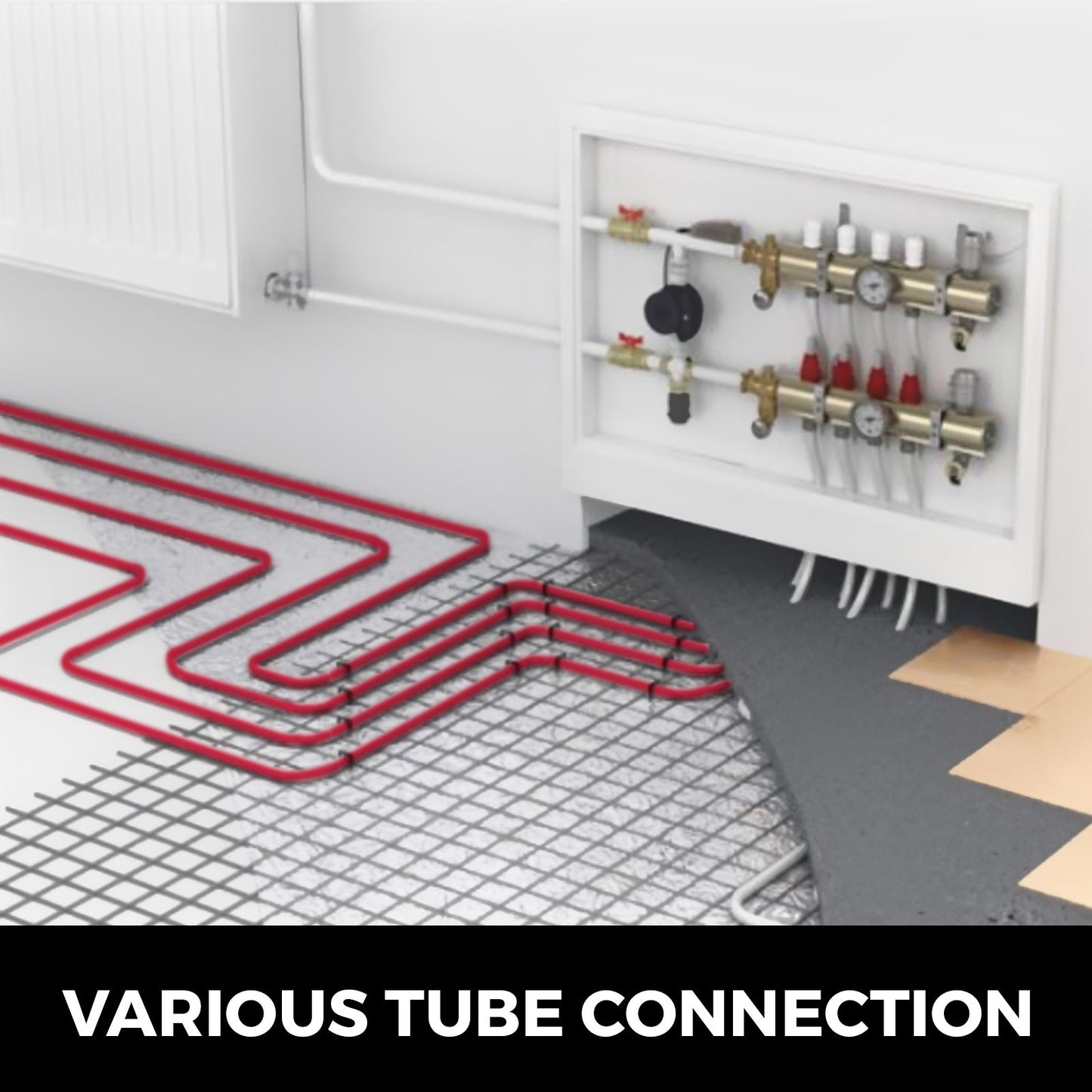

  • 【EFFORTLESS INSTALLATION】- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings); Cinch (clamp) connection system (cinch tool + St. steel clamps + crimp fittings); Press system (by Viega); Compression PEX Fittings.

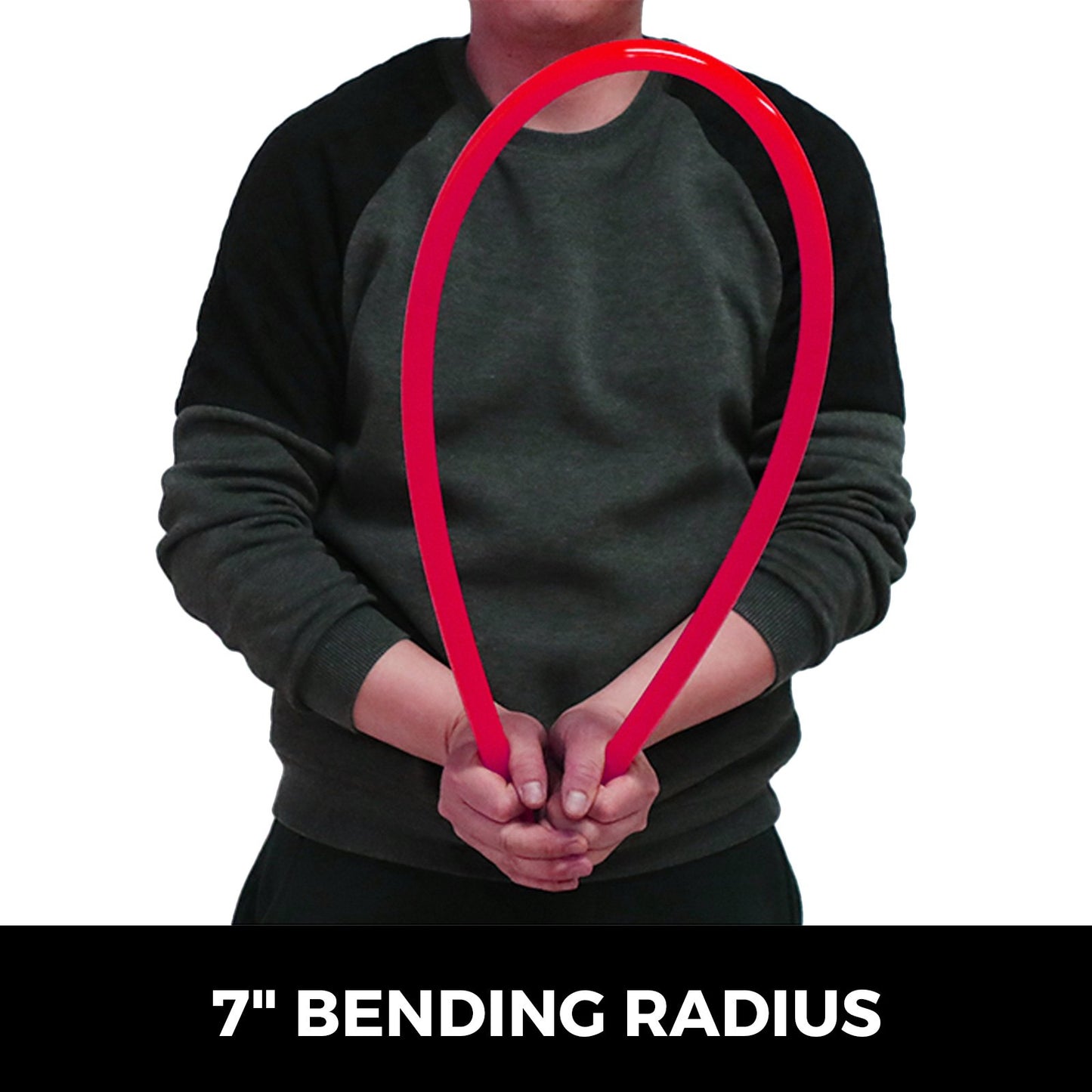

  • 【PREMIUM FLEXIBILITY】- Min.7" bending radius, this radiant floor heating system is easy to bend for different ground situation. Big pressure capacity: 188-217psi at 68℉; 101-108psi at 203℉. Temperature Range: -45 to 110℃(-47℉ to 230℉).

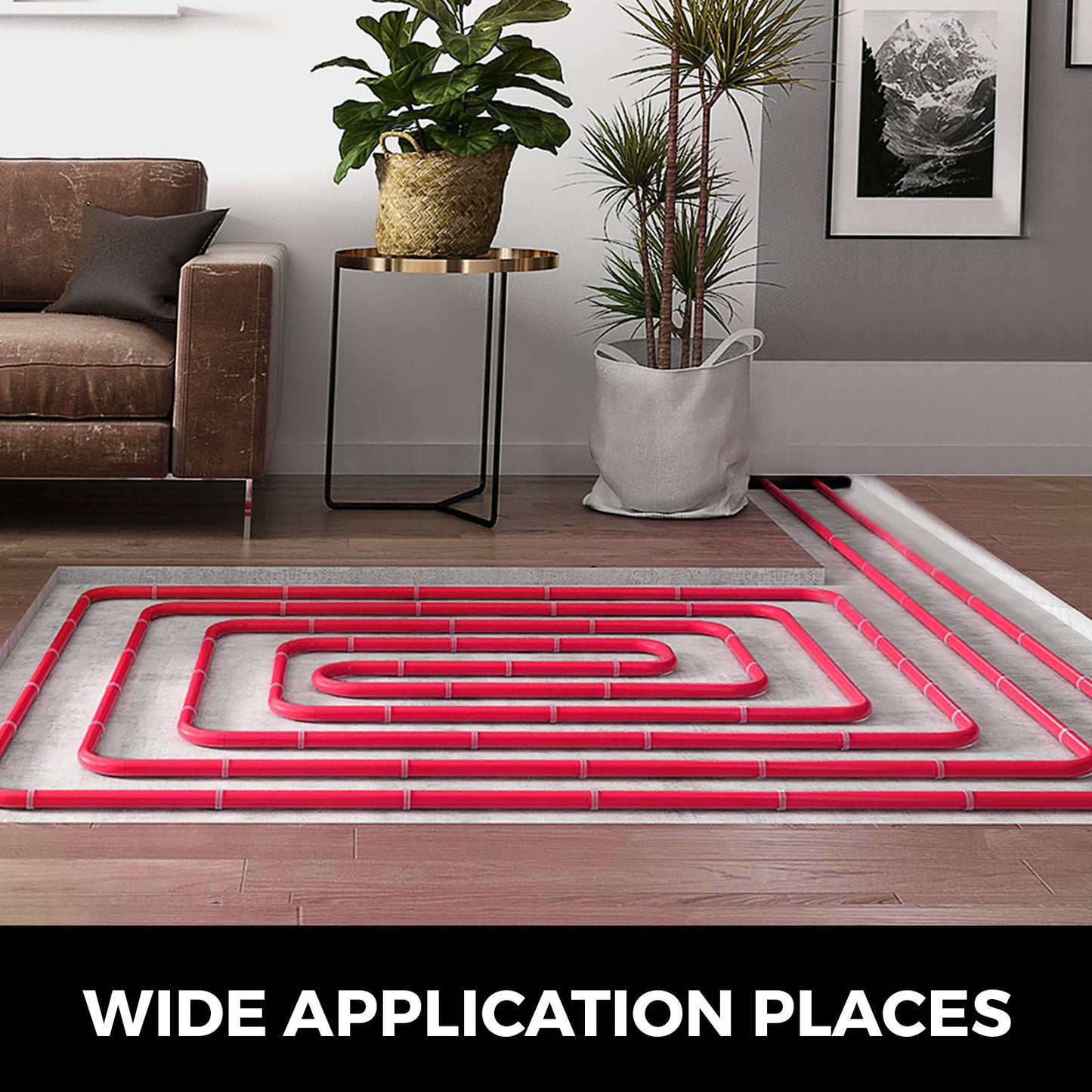

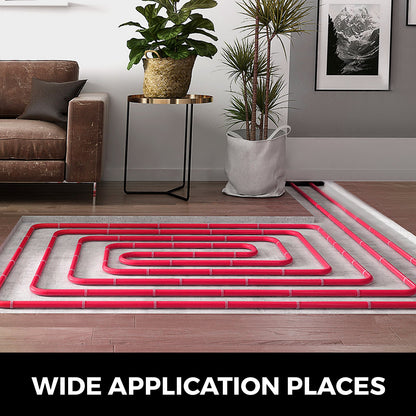

  • 【DIVERSE USE SCENARIO】- Suit for home & commercial use, like: radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, "Sandwich" type radiant heating (between sub floor and finished floor), Snow & ice melting systems etc.
Product Specification
  • Total Length: 500ft
  • Type: PEX Tube(Oxygen Barrier), ANSI/NSF 14, ANSI/NSF61
  • NSF-Pw (certified for radiant heating applications).:
  • SDR-9 dimensional standards.:
  • Inside Diameter: 0.66"
  • Pressure Ratings: 188-217psi at 65℉; 101-108psi at 203℉
  • UPC listed by IAPMO.:
  • Temperature Range: -45 to 110℃( -47℉ to 230℉)
  • Min.Bending Radius: 7" (industry standard for 3/4" PEX)
  • Nominal Diameter: 3/4"
  • Outside Diameter: 0.86"
  • Tube Thickness: 0.1"
