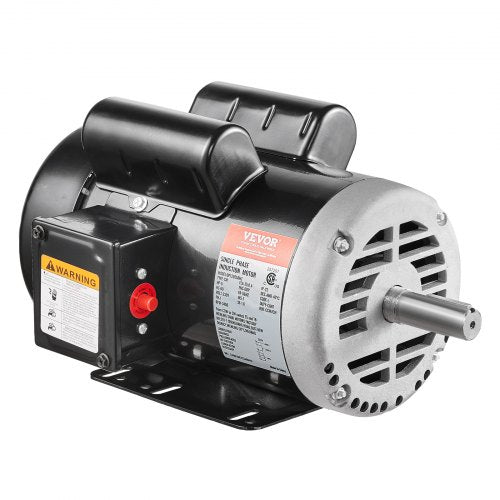

5HP Air Compressor Electric Motor, 230V 25 Amps, 56HZ Frame 3450RPM, 7/8" Keyed Shaft, 2.25" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Name: 5HP Air Compressor Electric Motor, 230V 25 Amps, 56HZ Frame 3450RPM, 7/8" Keyed Shaft, 2.25" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)
Brand: ExtraShop
SKU: USODPKYJDJ5HP54XUYVV7
Price: 257.00 USD
Availability: InStock

$257.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Features & Details

High Performance: 5HP 3450 RPM, Single Phase, Full Load Amps: 25Amp, 230V 60Hz, SF: 1.0.
Frame Type: 56Hz Frame, 7/8" Keyed shaft, 2.25" Shaft length, 0.188" Keyway Size.
Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.)

Product Specification

Shaft Length: 2.25"
SF: 1.0
Voltage: 230V
Item Model Number: DP120556HZ
Frequency: 60HZ
Shaft Diameter: 7/8" Keyed Shaft
Enclosure: ODP
Current: 25A
Net Weight: 40.8 lbs / 18.5 Kg
Keyway Size: 0.188"
Rotation Speed: 3450rpm
Frame Size: 56HZ
