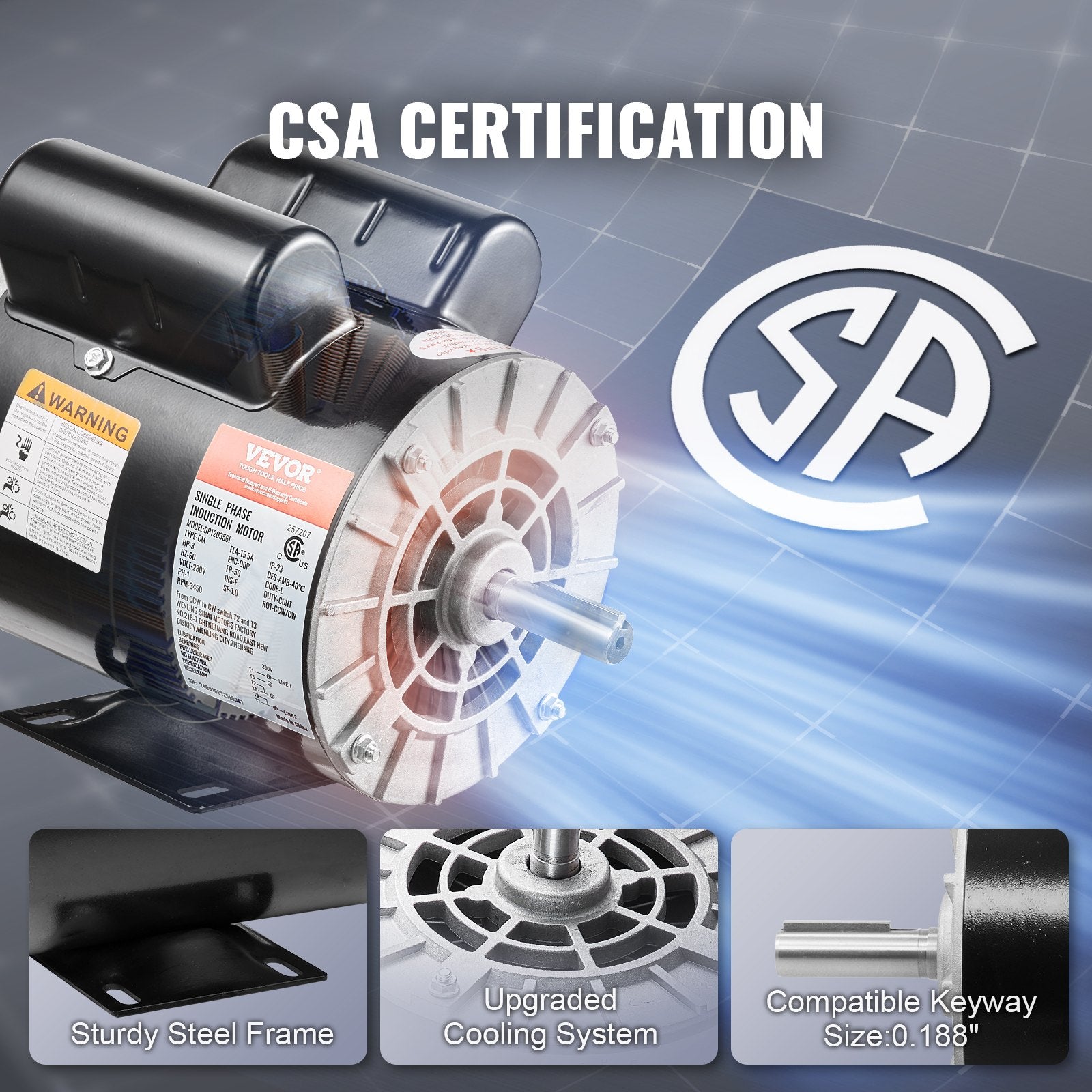

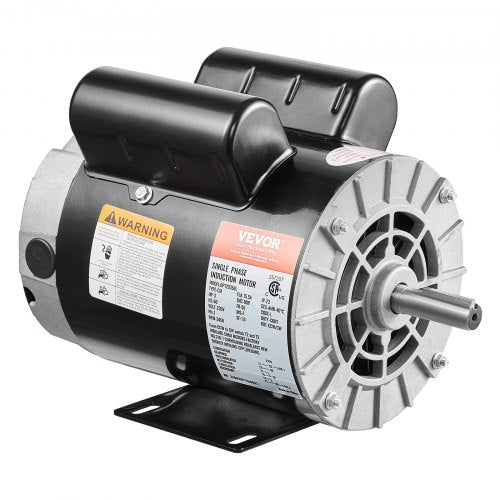

3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)

3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)

$166.00 USD
$166.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • High Performance: 3HP 3450 RPM, Single Phase, Full Load Amps: 15.5Amp, 230V 60Hz, SF: 1.0.
  • Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
  • Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
  • Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
  • Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 40 amps.)
Product Specification
  • Shaft Length: 1.88"
  • SF: 1.0
  • Voltage: 230V
  • Item Model Number: DP120356L
  • Frequency: 60HZ
  • Shaft Diameter: 5/8" Keyed Shaft
  • Enclosure: ODP
  • Current: 15.5A
  • Net Weight: 29.3 lbs/ 13.25 Kg
  • Keyway Size: 0.188"
  • Rotation Speed: 3450rpm
  • Frame Size: 56
