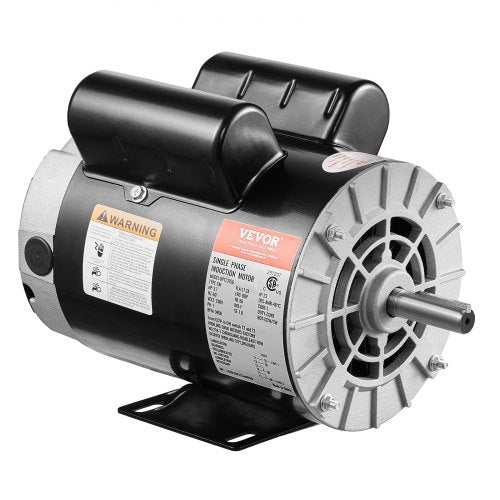

3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Name: 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
Brand: ExtraShop
SKU: USODPKYJDJ37HPGH6USV7
Price: 211.00 USD
Availability: InStock

$211.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Features & Details

High Performance: 3.7HP 3450 RPM, Single Phase, Full Load Amps: 17.2Amp, 230V 60Hz, SF: 1.0.
Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

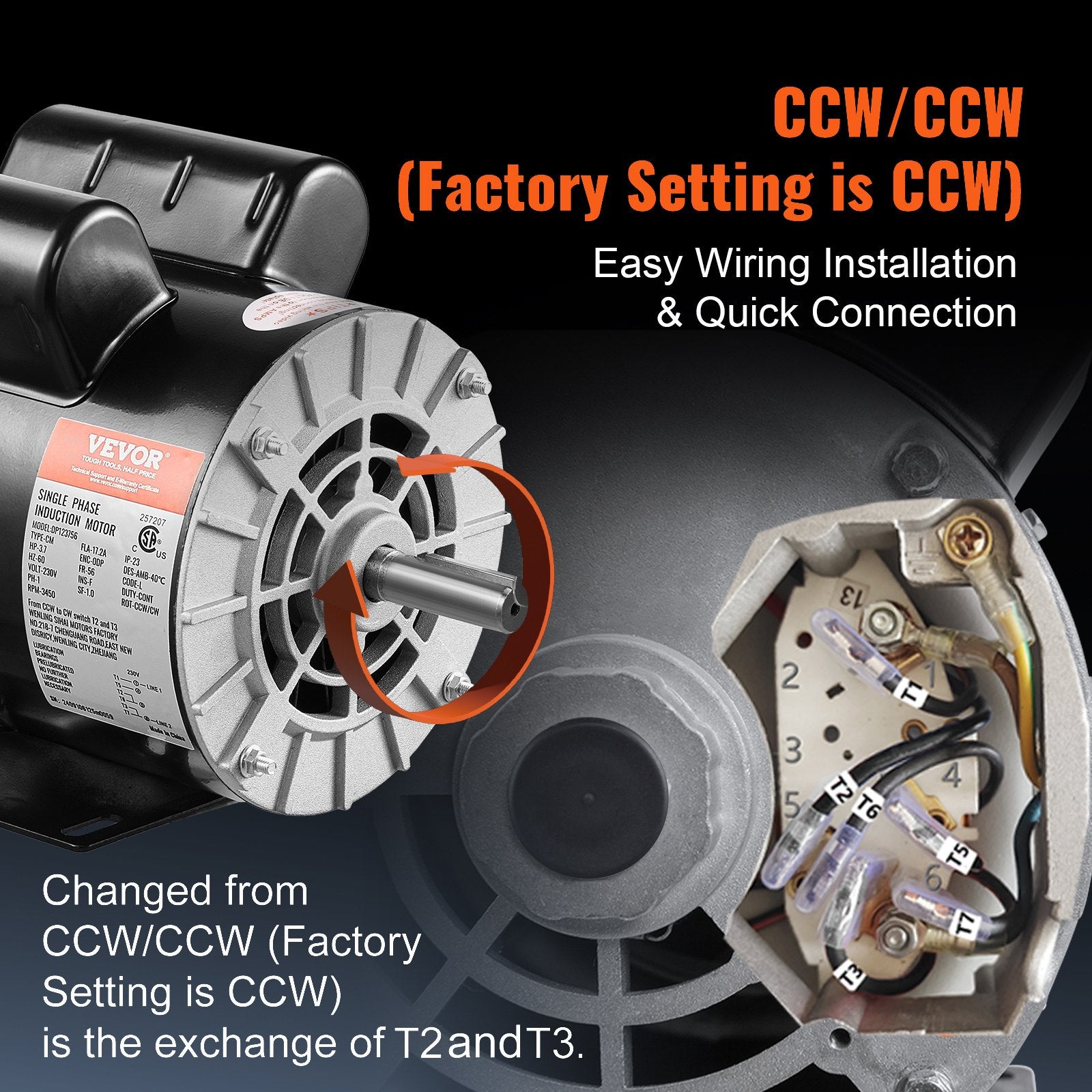

Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps.)

Product Specification

Shaft Length: 1.88"
SF: 1.0
Voltage: 230V
Item Model Number: DP123756
Frequency: 60HZ
Shaft Diameter: 5/8" Keyed Shaft
Enclosure: ODP
Current: 17.2A
Net Weight: 34.3 lbs / 15.55 Kg
Keyway Size: 0.188"
Rotation Speed: 3450rpm
Frame Size: 56
