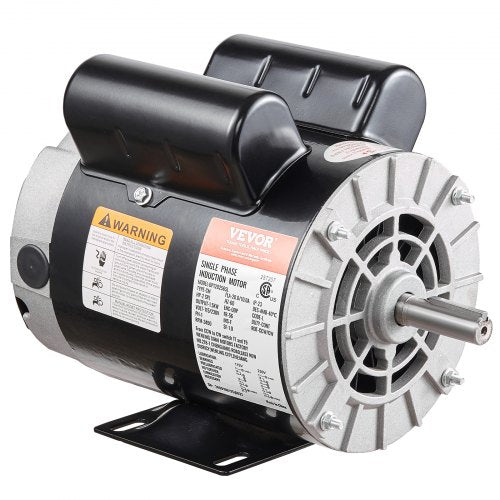

2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Name: 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)
Brand: ExtraShop
SKU: USODPKYJDJ2HP5IAB9QV7
Price: 155.00 USD
Availability: InStock

$155.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Features & Details

High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10Amp, 115V/230V, SF: 1.0.

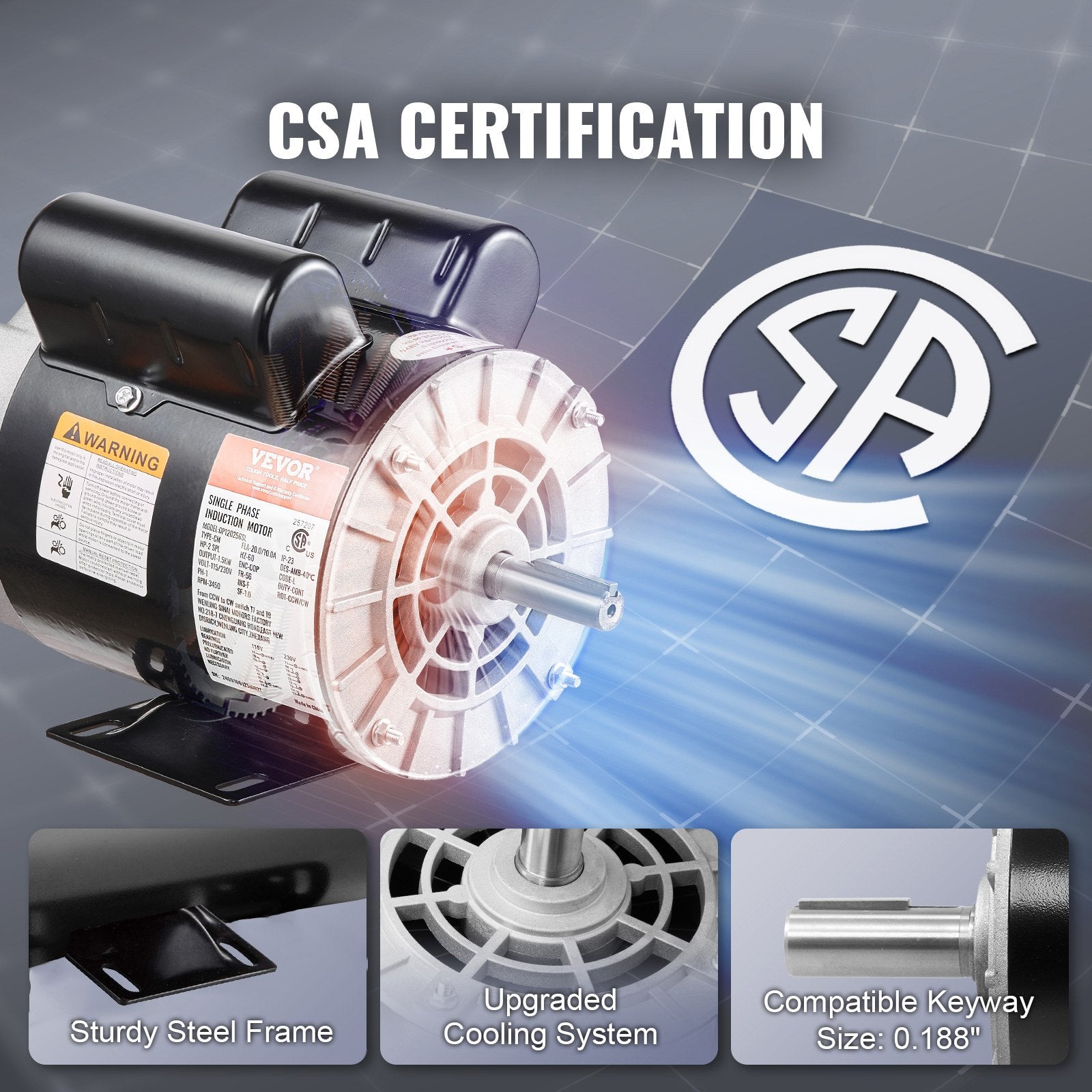

Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

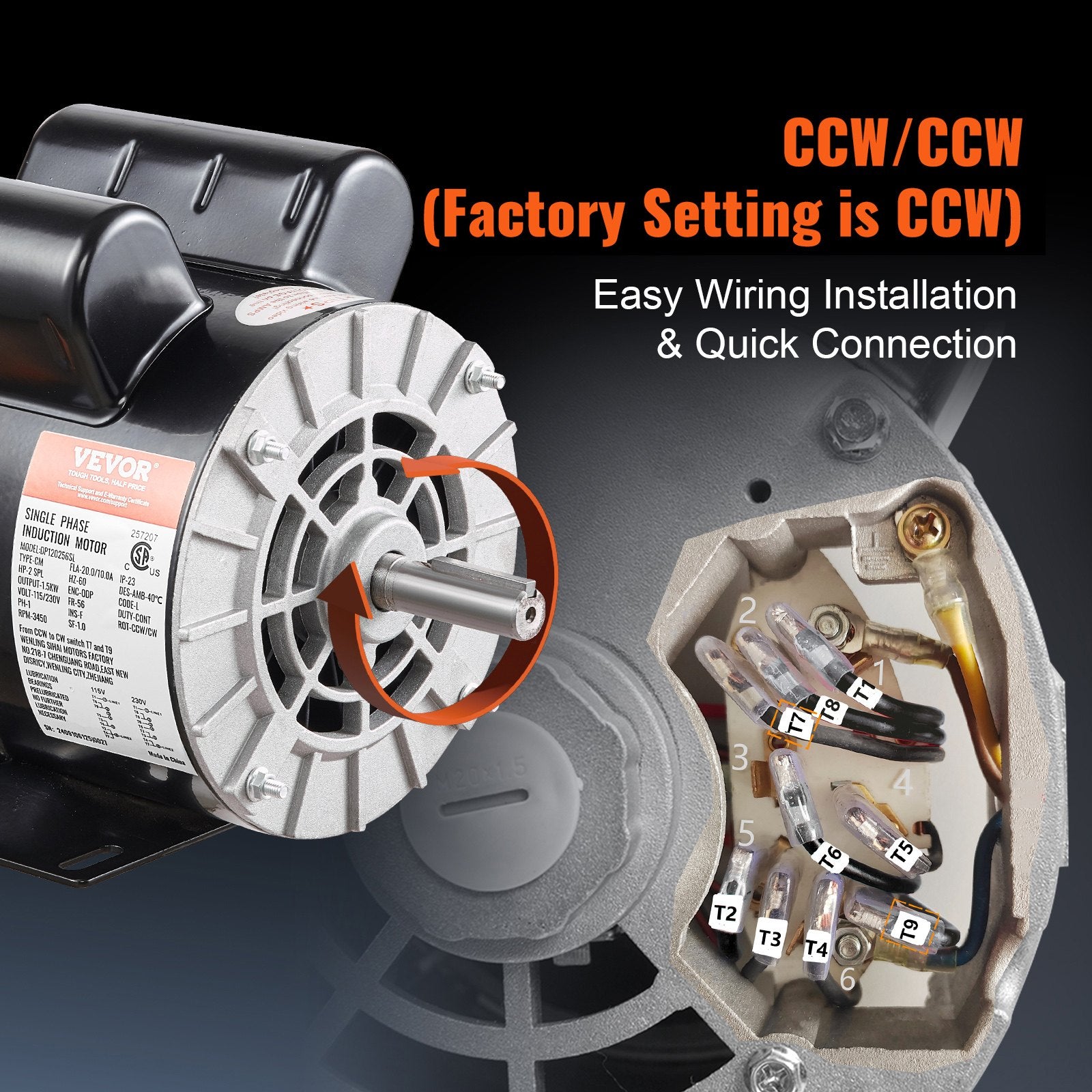

Dual Rotation Direction: Motor is Reversible for CCW/CW rotation (Factory Setting is CCW), provides easier wiring operations.

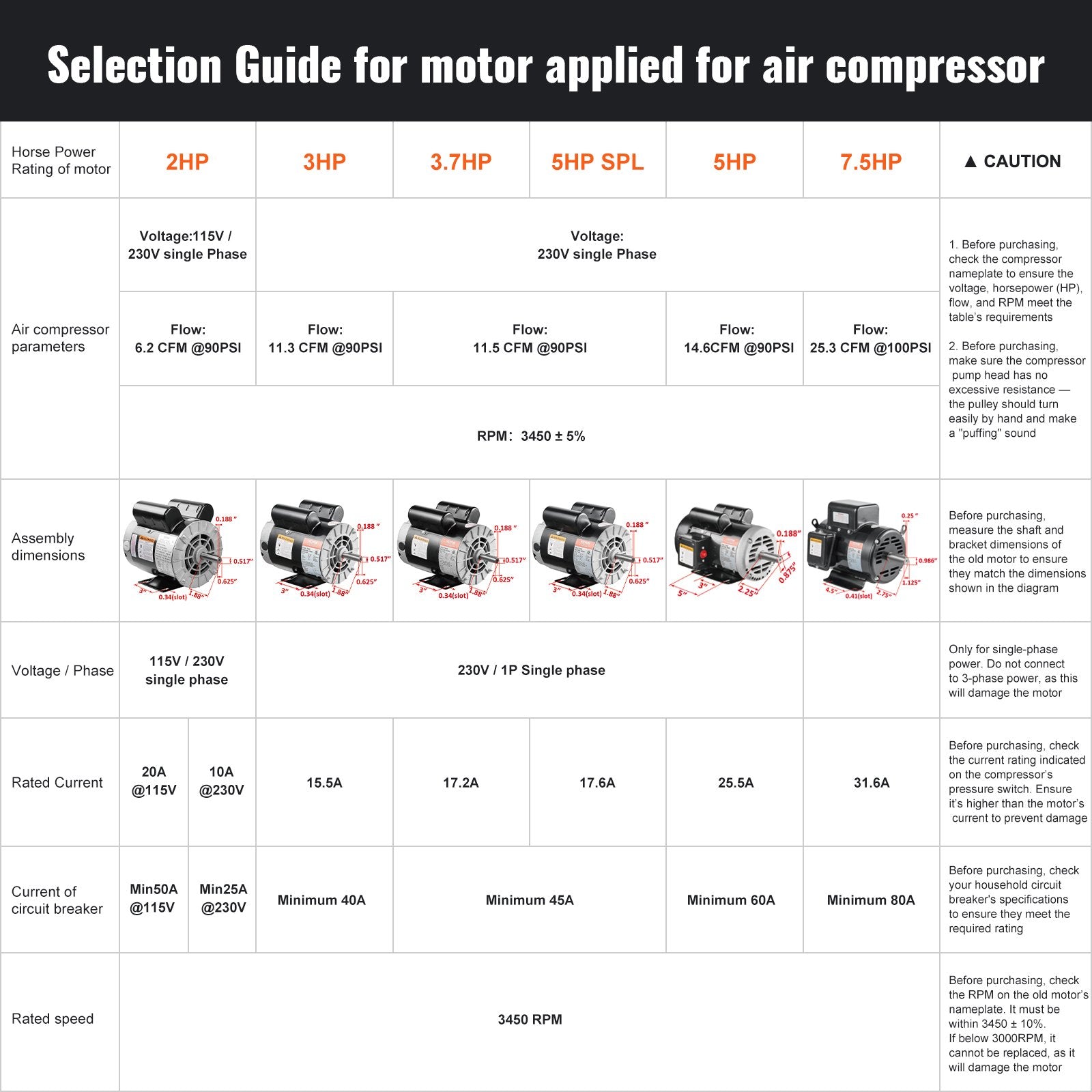

Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 50 amps at 115V, 25 amps at 230V.)

Product Specification

Shaft Length: 1.88"
SF: 1.0
Voltage: 115V / 230V
Item Model Number: DP120256SL
Frequency: 60HZ
Shaft Diameter: 5/8" Keyed Shaft
Enclosure: ODP
Current: 20 A / 10 A
Net Weight: 25.2 lbs / 11.45 kg
Keyway Size: 0.188"
Frame Size: 56
