Dial Test Indicator and Bore Gauge Measuring Tool Set, Dial Indicator 0.001 inch Accuracy, 2-6 inch Bore Range with Rod, Storage Case, Anvils for Industrial Machining Measurements
Dial Test Indicator and Bore Gauge Measuring Tool Set, Dial Indicator 0.001 inch Accuracy, 2-6 inch Bore Range with Rod, Storage Case, Anvils for Industrial Machining Measurements
Regular price
$93.00 USD
Regular price
Sale price
$93.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details
- Accurate Measurement: This dial indicator delivers 0.001 inch precision with clear readings and stable zero return. Ideal for lathes, milling machines, and other demanding industrial applications, helping reduce errors and improve efficiency
- Premium Materials: Crafted from stainless steel and aluminum alloy, this dial test indicator maintains structural stability and corrosion resistance. Designed for heavy-use environments such as production lines and repair stations

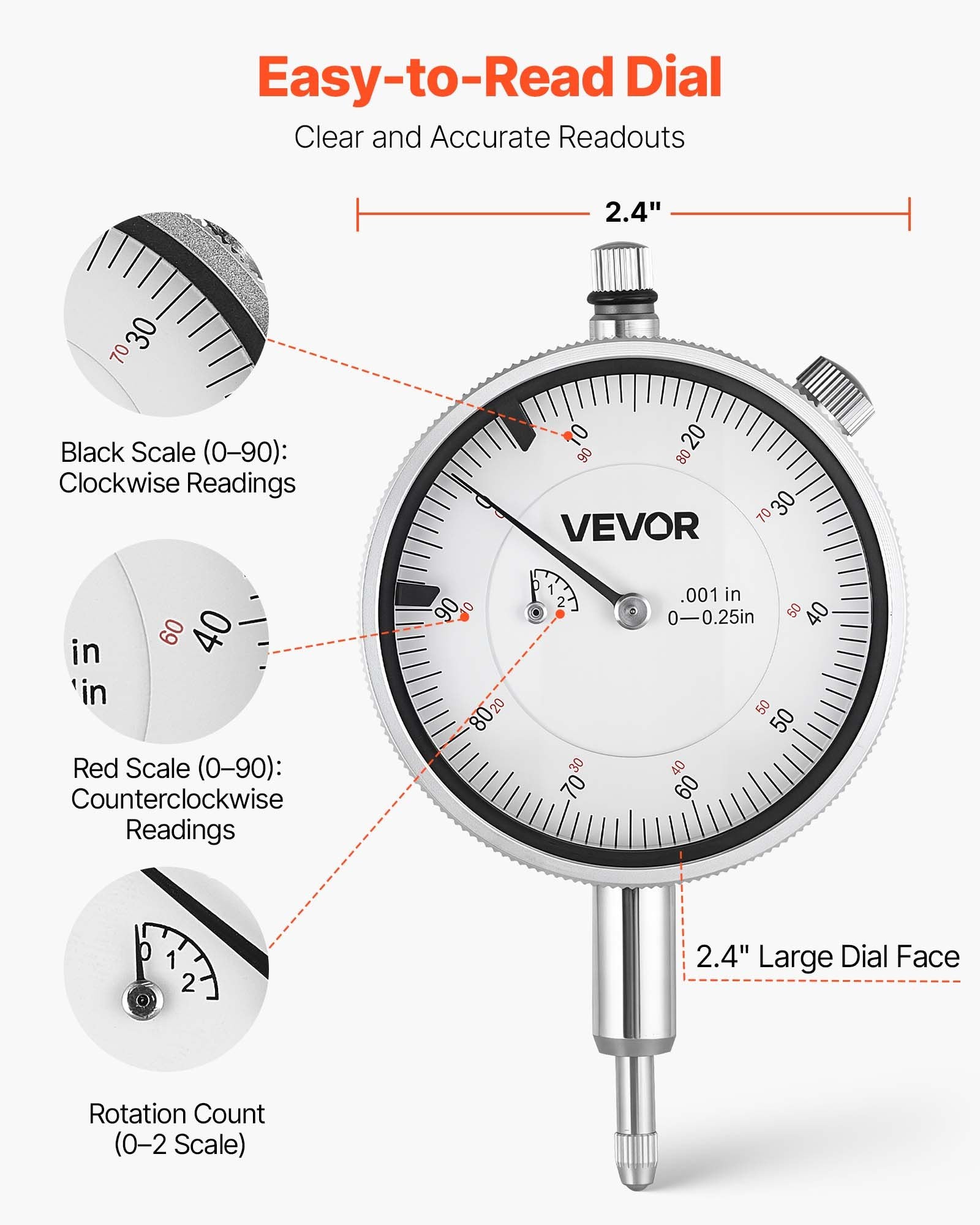

- Clear Readings: A 2.4 inch oversized dial with high-contrast black and white design keeps dial indicators easy to read, even in low light or while wearing gloves. Fine graduations meet the clarity needed for frequent precision tasks
- User-Friendly Operation: The magnetic base allows quick mounting and smooth zeroing, letting the machinist dial indicator complete measurements in just four steps. Supports both standard readings and micro adjustments for versatile use
- Multi-Scene Application: A dual-rod design keeps the dial indicator gauge firmly supported on workbenches or platforms. With stable positioning, it ensures precise alignment of measuring points for long-duration, high-frequency inspection
- Dial Diameter: 2.4 inch / 60 mm
- Inner Box Dimensions: 14.57 x 5.71 x 2.36 inch / 370 x 145 x 60 mm
- Measuring Range: 0–0.25 inch / 0–6.35 mm
- Measuring Accuracy: 0.001 inch / 0.03 mm
- Item Model Number: IG520-210
- Net Weight: 2.2 lbs / 1 kg
- Base Type: Not Included
