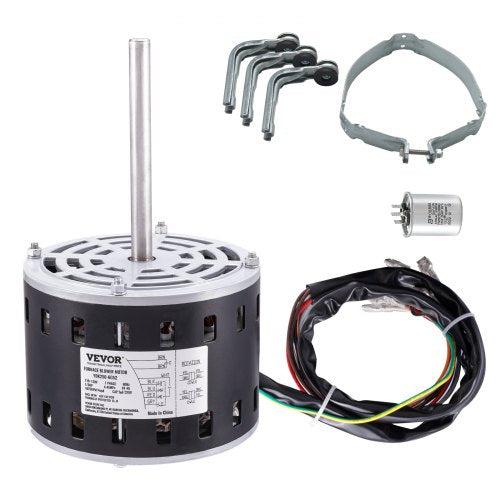

1/3HP Furnace Blower Motor, 110/120V 4.4Amps, 1075RPM 4 Speeds, CW/CCW Rotation, 48 Frame 5.2" Shaft Length, 5μF/370V Capacitor + 11" Hold Hoop

1/3HP Furnace Blower Motor, 110/120V 4.4Amps, 1075RPM 4 Speeds, CW/CCW Rotation, 48 Frame 5.2" Shaft Length, 5μF/370V Capacitor + 11" Hold Hoop

$109.00 USD
$109.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Ensure the horsepower(HP) and the specifications on the nameplate for a precise match. It is important to match the required horsepower and specifications for your motor. Installing a lower horsepower motor can result in overheating and improper functioning. While the replacement parts are compatible with major brands, always verify the fitment with your specific application.
  • 1/3HP Furnace Blower Motor: This motor has a power rating of 1/3HP and operates at 1075 RPM with 4 different speeds. It requires a Full Load Amps of 4.4A and operates on a power supply of 110-120V. It is designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers, and packaging systems.
  • Frame Type: The motor belongs to the 48 Frame Size category and features a 0.5" shaft diameter with a shaft length of 5.2". It operates with strong and powerful performance, running at high speed while maintaining low noise levels.

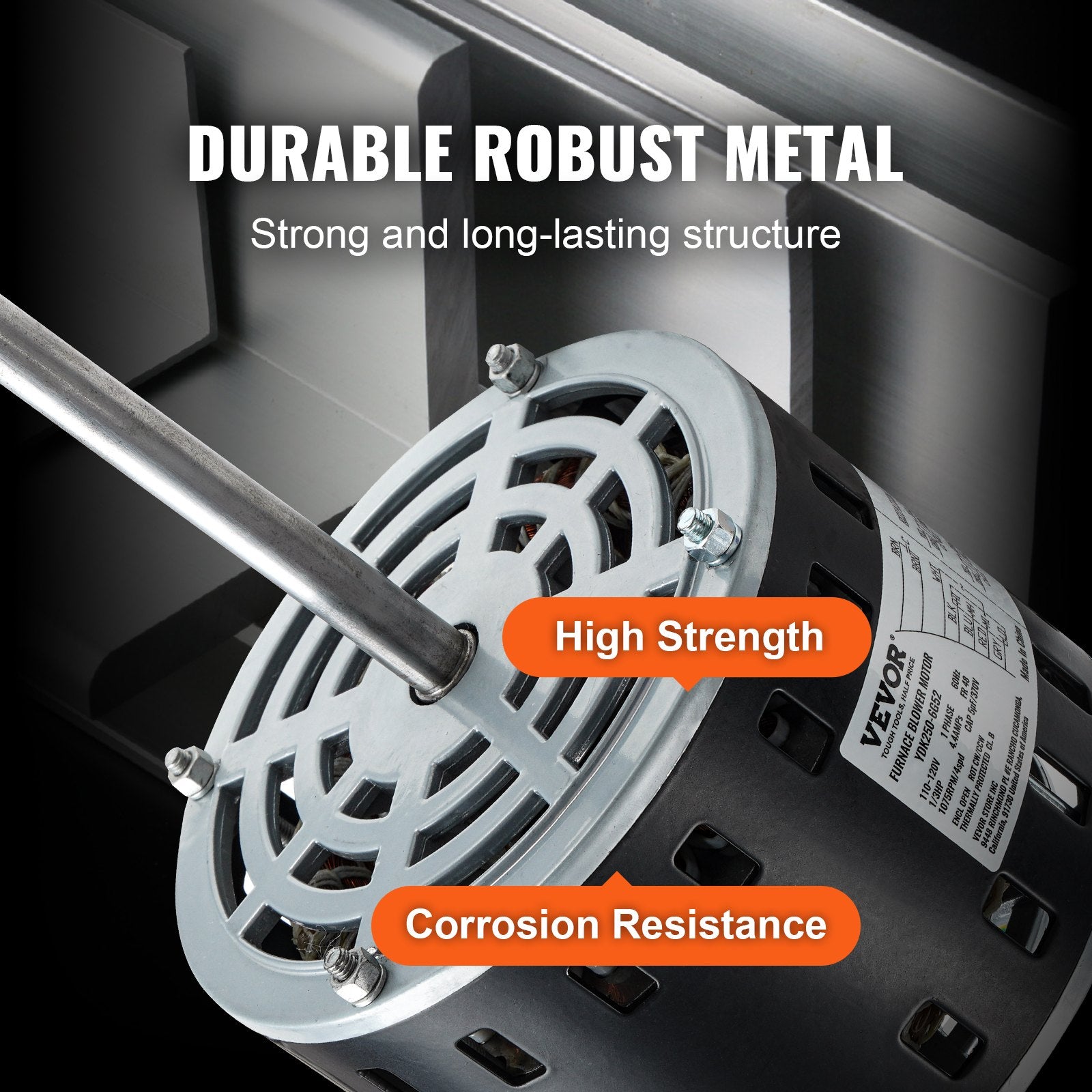

  • Safety and Durability: The motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance. This robust construction effectively protects the engine, ensuring a longer service life.

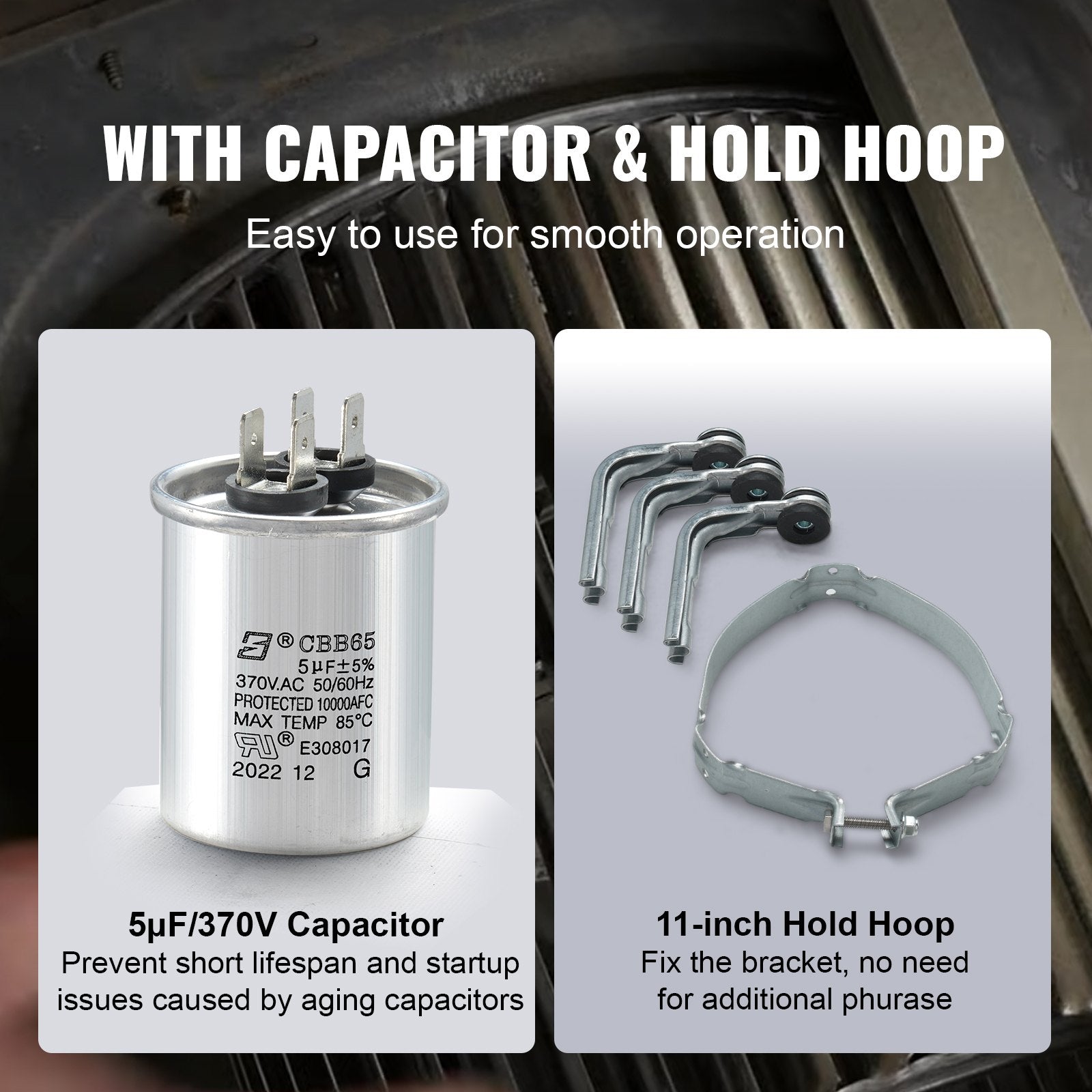

  • Convenient Accessories Included: The motor comes with convenient accessories, including the CBB65 5μF/370V capacitor. This capacitor helps prevent issues such as a shortened lifespan, overheating, and motor startup failure caused by an old capacitor. Additionally, an 11-inch hold hoop is provided as an installation bracket, reducing the need for additional mounting hardware purchases.

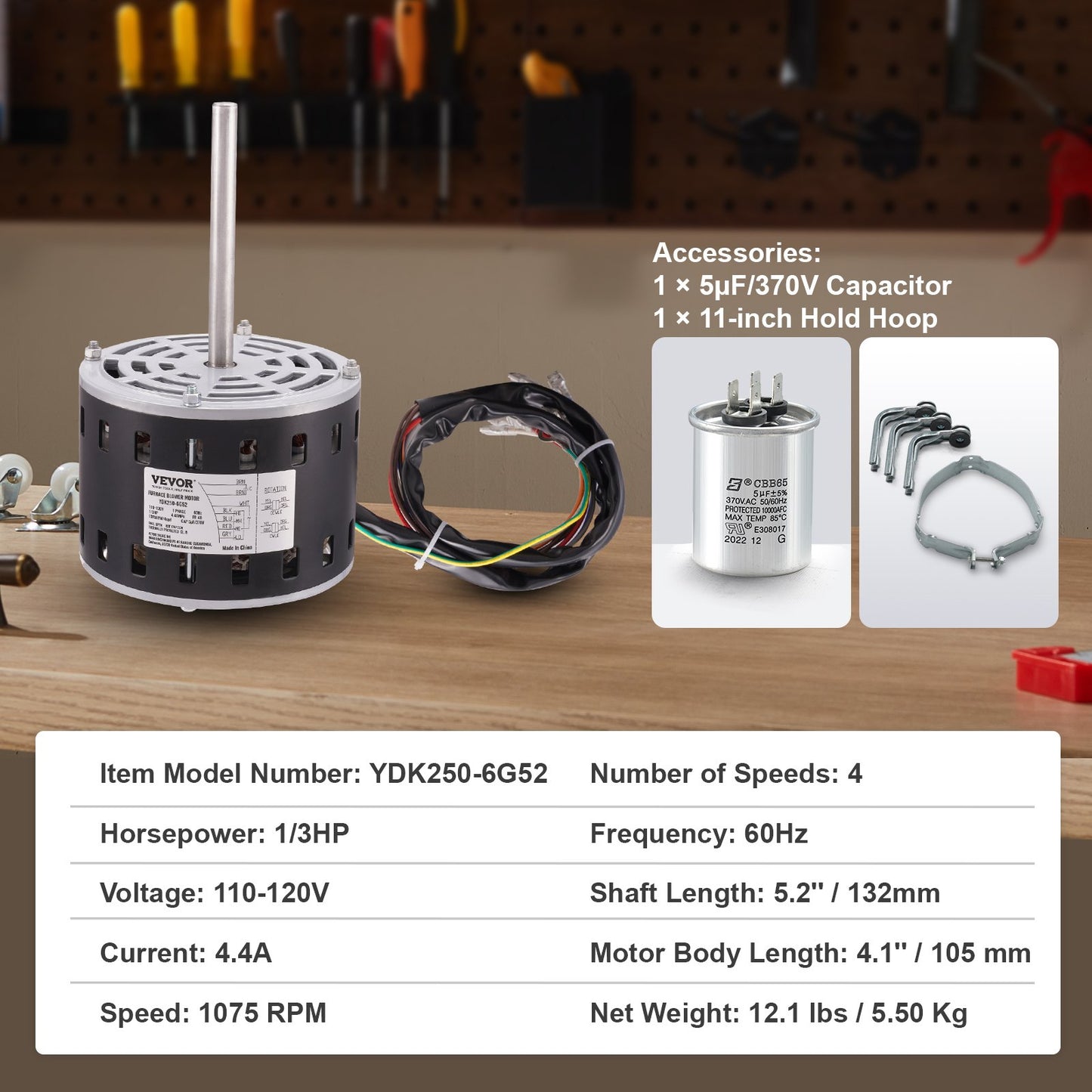

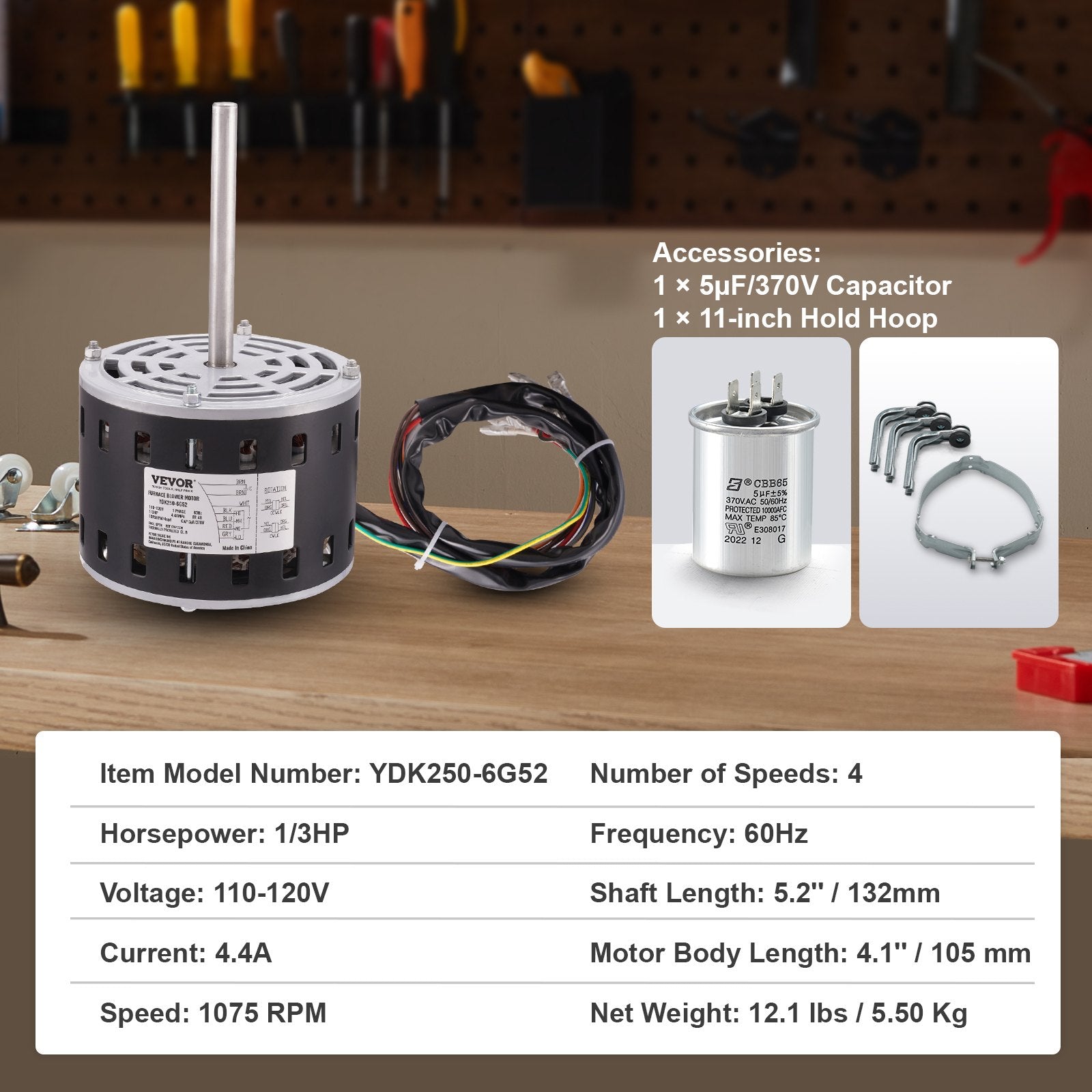

Product Specification
  • Shaft Length: 5.2"
  • Horsepower: 1/3HP
  • Voltage: 110-120V
  • Frequency: 60Hz
  • Shaft Diameter: 0.5"
  • Rated Current: 4.4A
  • Number of Speeds: 4

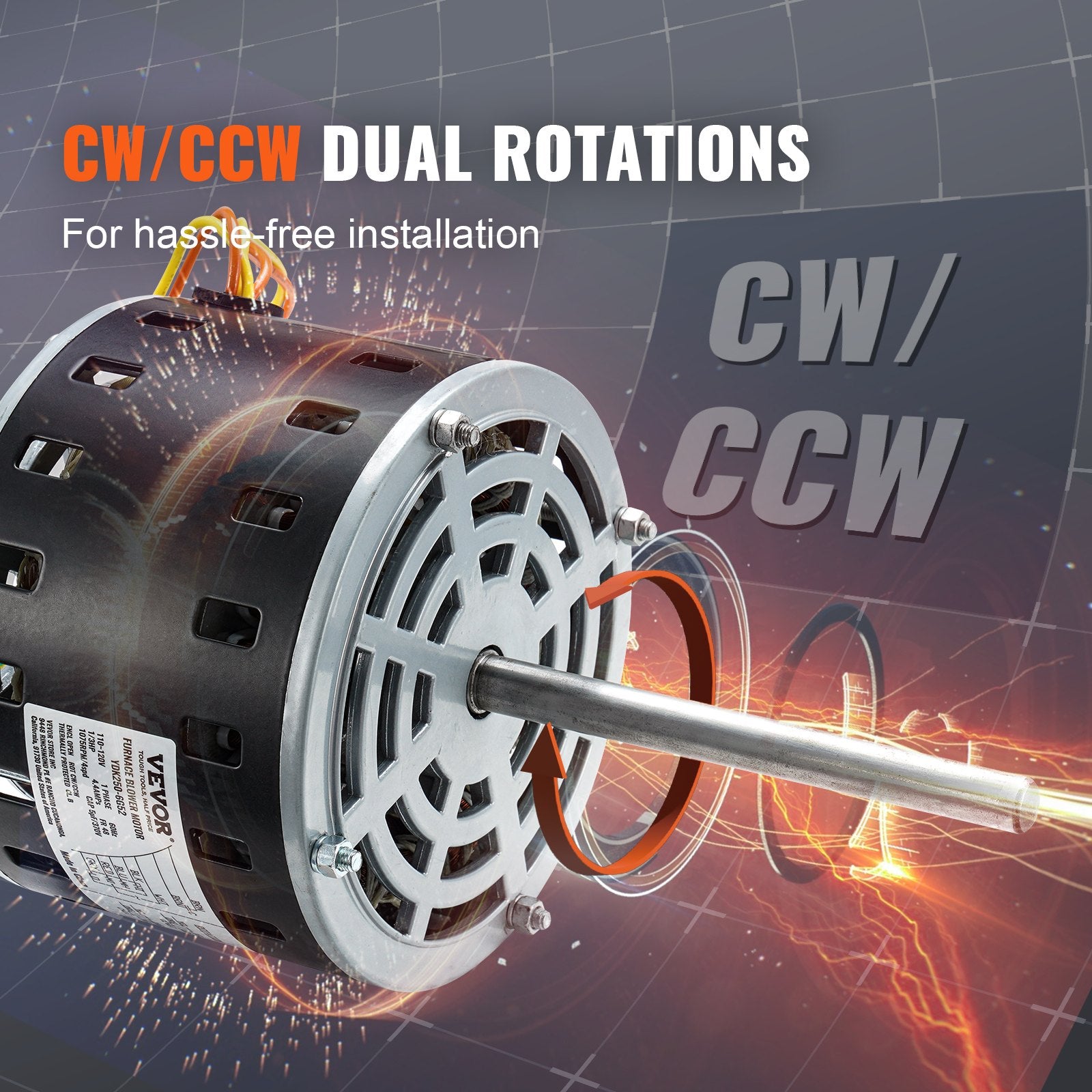

  • Rotation: CW / CCW
  • Rotation Speed: 1075RPM
  • Frame Size: 48
