100ft Mini Split Line Set, 1/4” & 1/2” OD AC Copper Tubing Pipe, 3/8 White PE Thickened Insulated Coil with Flared Nuts, Strapping Tapes, for Mini Split Air Conditioner HVAC or Heat Pump System
100ft Mini Split Line Set, 1/4” & 1/2” OD AC Copper Tubing Pipe, 3/8 White PE Thickened Insulated Coil with Flared Nuts, Strapping Tapes, for Mini Split Air Conditioner HVAC or Heat Pump System
Regular price
$463.00 USD
Regular price
Sale price
$463.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details
- Premium 100ft Copper Lines: Made with 99.9% Pure C12200 Copper and Thick-Wall for bend-resistant, leak-free installation of your mini split line set even when routing through walls

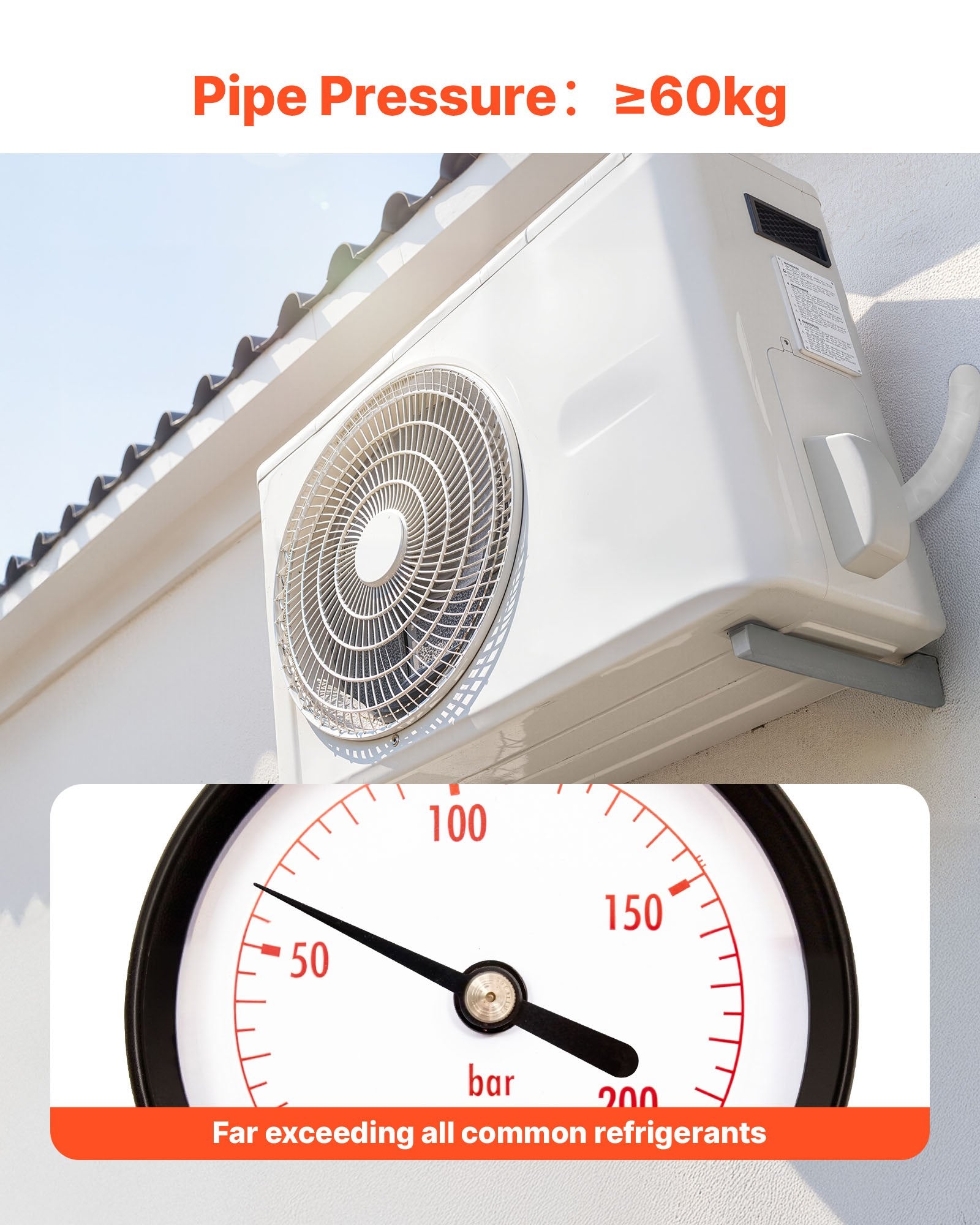

- Extreme Reliability: 850 PSI pressure rating well above R410A operating range ensures stable performance for mini split ac line set in extreme heat, reducing burst risk

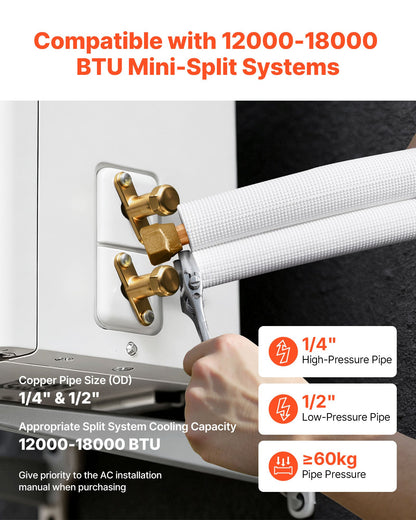

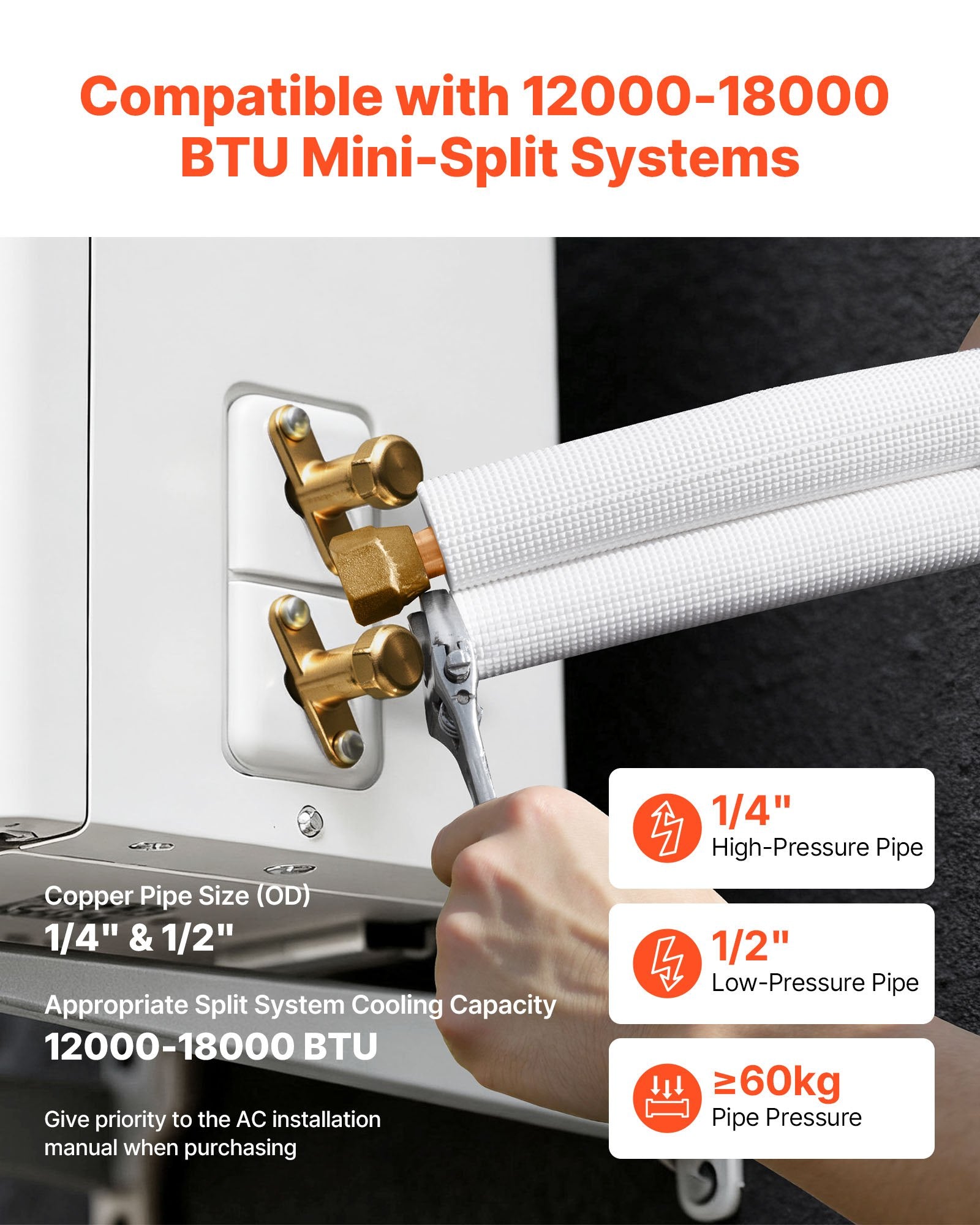

- Compatible with All Models: Standard 1/2 inch liquid line + 1/4 inch suction line configuration matches all 12000-18000 BTU mini split copper line set for hassle-free installation

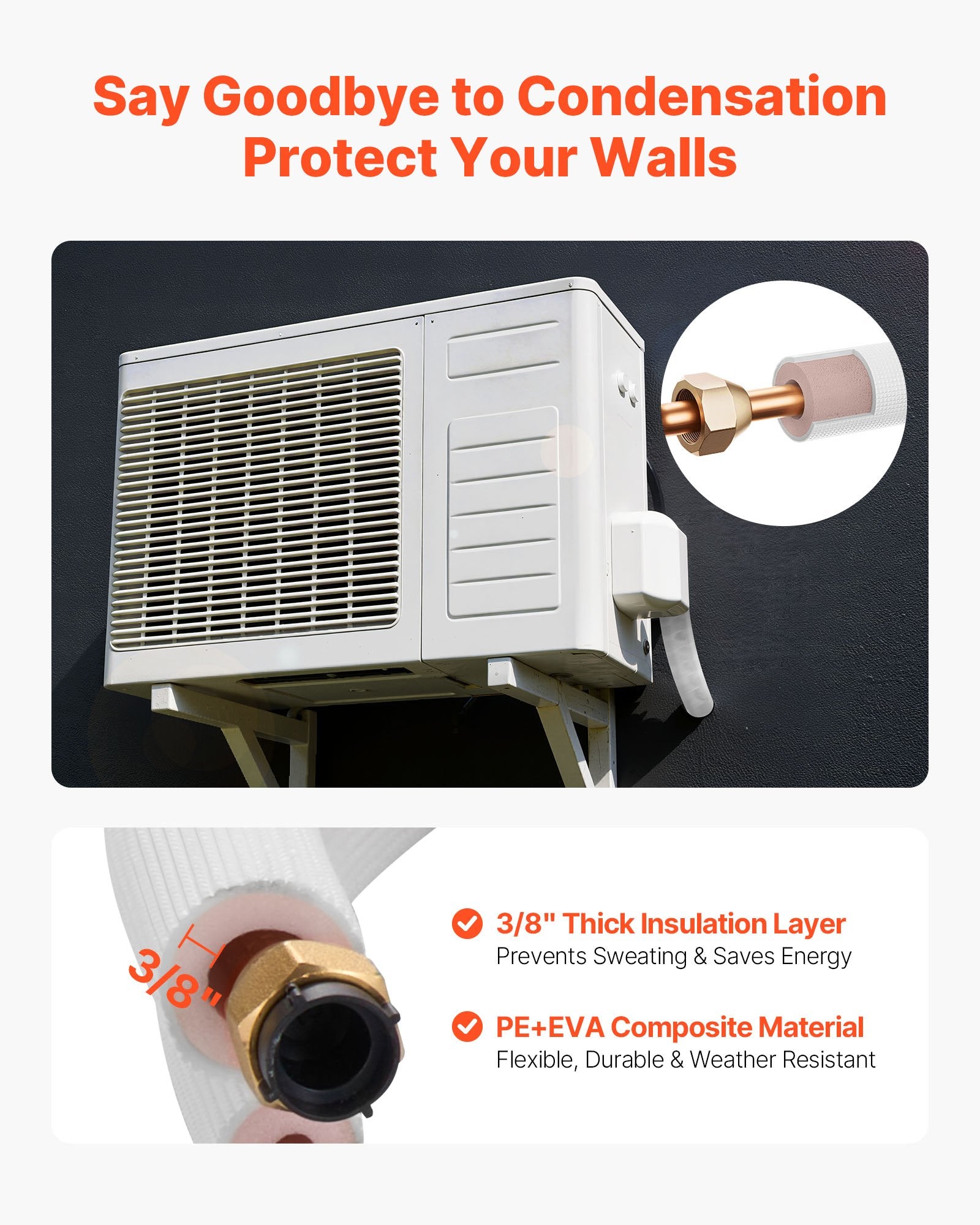

- Energy Saving Insulation: 3/8 thick PE+EVA composite insulation is stronger and weather-resistant than standard, effectively lowering cooling loss in your mini split installation kit and condensation
- Outdoor Protection: Includes 2 Weather-resistant strapping tapes for long-lasting outdoor performance and quick secure installation of mini split tubing for a neat, professional-looking setup

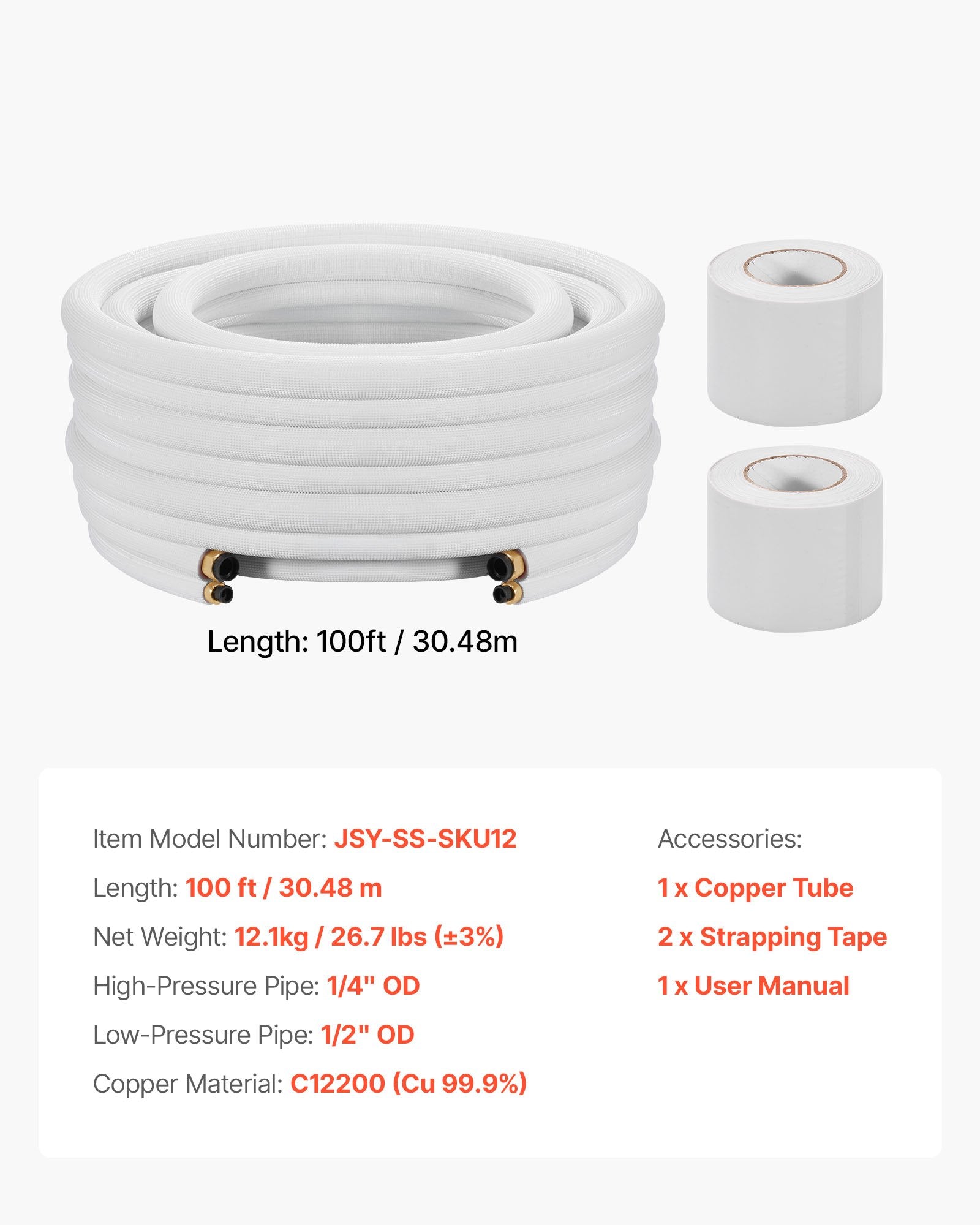

- Outer Material: PE Insulation Tube (PE + EVA)
- Low Pressure Hose OD: 0.5 in / 12.7 mm
- Length: 100.0 ft / 30.5 m
- Item Model Number: JSY-SS-SKU12
- Insulation Thickness: 0.4 in / 9.5 mm
- Material: Copper C12200 (Cu 99.9%)
- High Pressure Hose OD: 0.3 in / 6.4 mm
- Item Size (Expanded): 1200.0 x 1.2 x 2.2 in / 30480 x 31 x 57 mm
- Net Weight: 26.7 lbs / 12.1 kg ±3% (with accessories)
