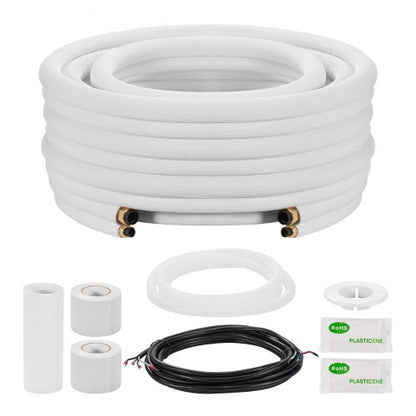

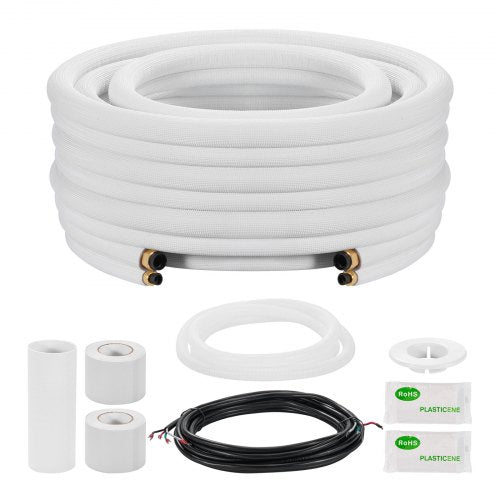

50ft Mini Split Line Set, 1/4” & 3/8” OD AC Copper Tubing Pipe, 3/8 White PE Thickened Insulated Coil with Flared Nuts, Rich Fittings, for Mini Split Air Conditioner HVAC or Heat Pump System

50ft Mini Split Line Set, 1/4” & 3/8” OD AC Copper Tubing Pipe, 3/8 White PE Thickened Insulated Coil with Flared Nuts, Rich Fittings, for Mini Split Air Conditioner HVAC or Heat Pump System

$257.00 USD
$257.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Premium 50-Foot Copper Lines: Made with 99.9% Pure C12200 Copper and thick-walls for bend-resistant, leak-free installation even when routing through walls. Ideal for anyone needing a mini split copper line set that delivers strength and reliability

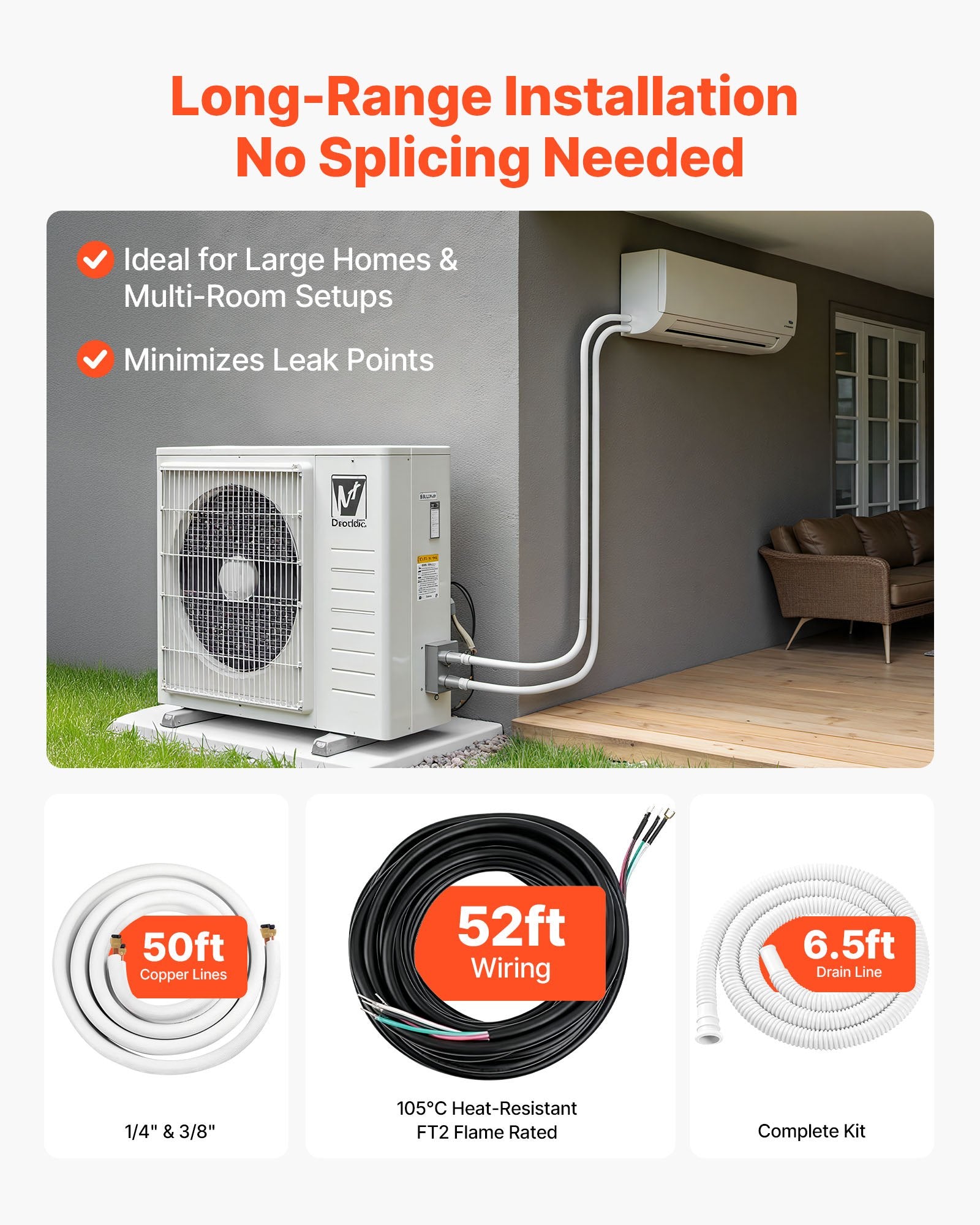

  • 52ft Extra-Long Wiring: 2 feet longer than copper lines, no splicing required, reduces leak points. Great for garage conversions, backyard studios, and multi-story home installations where a mini split line set offers extended reach and secure performance

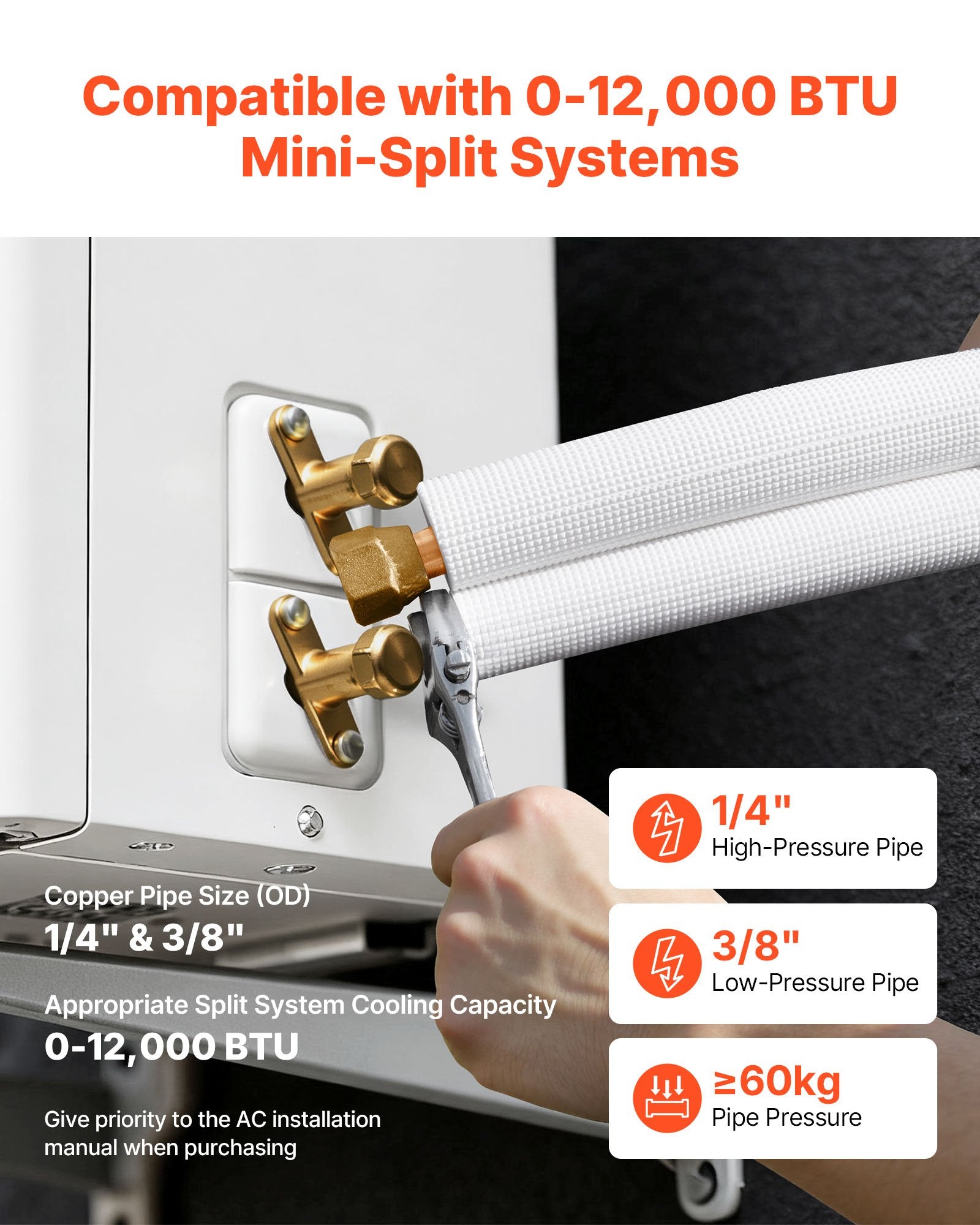

  • Fit for Multiple Models: Standard 1/4" liquid line + 3/8" suction line configuration matches all 0–12,000 BTU mini-split systems for hassle-free installation. This mini split ac line set is designed for wide compatibility and easy setup

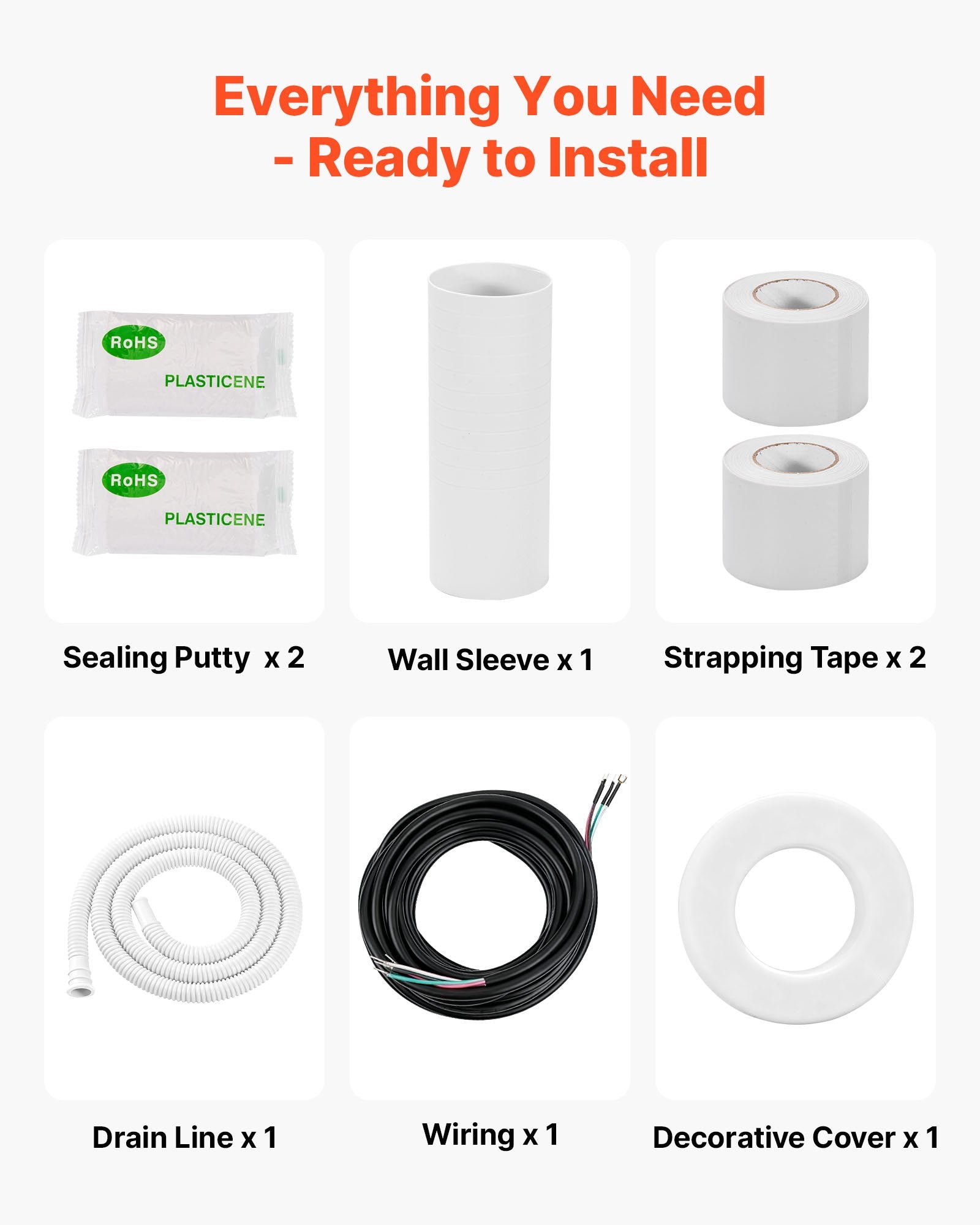

  • Complete Professional Kit: 6.5-foot drain line, wall sleeve, decorative cover, strapping tape, sealant putty. Ready to install out of the box, no additional purchases needed. A true mini split installation kit that simplifies the entire process
  • Energy Saving Insulation: 3/8" thick PE+EVA composite insulation is weather-resistant and built to last, effectively reduces cooling loss and limits condensation. Reliable mini split tubing for long-term energy efficiency

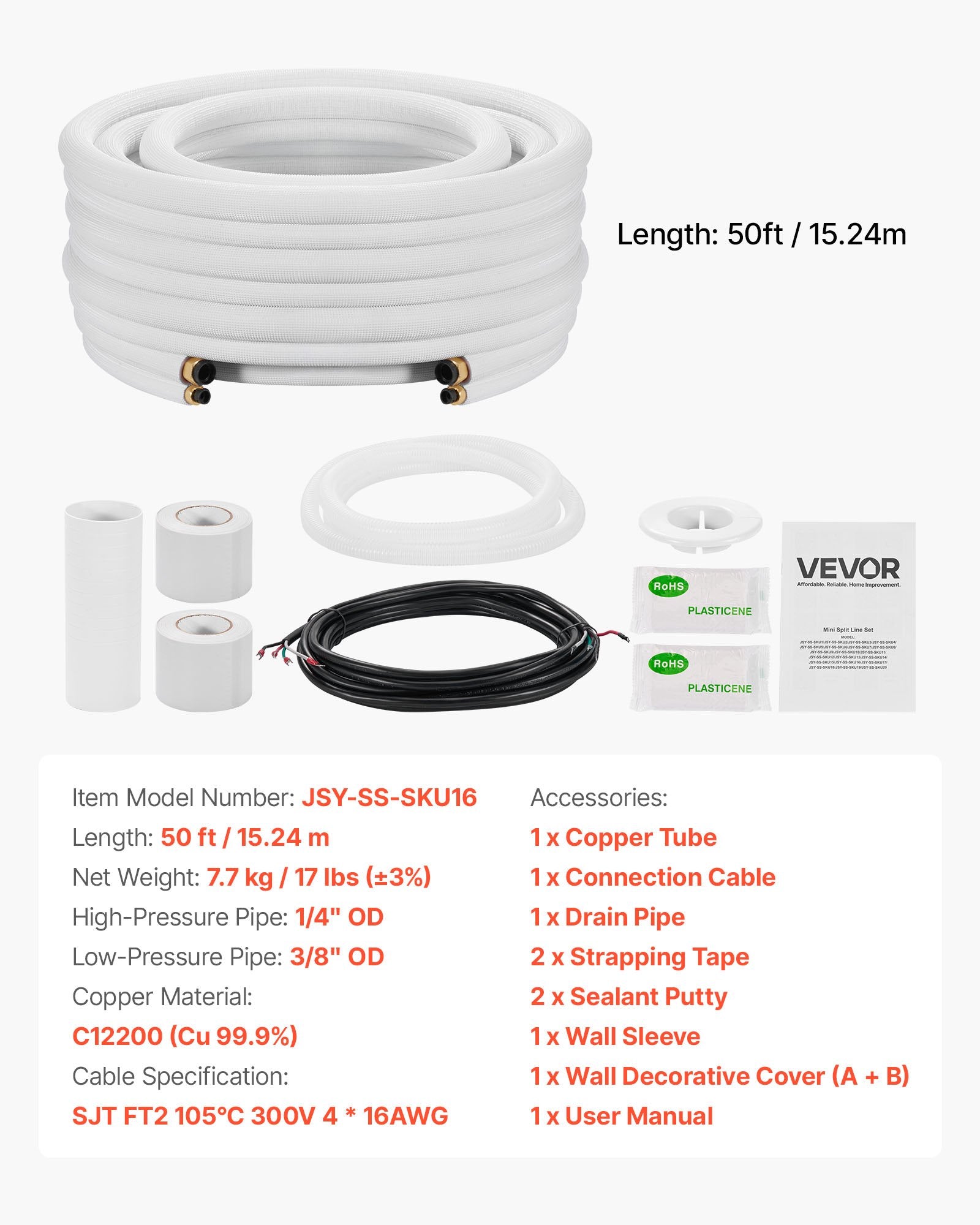

Product Specification
  • Outer Material: PE Insulation Tube (PE + EVA)
  • Cable Specification: SJT FT2 105℃ 300V 4*16AWG
  • Low Pressure Hose OD: 0.4 in / 9.5 mm
  • Length: 50.0 ft / 15.2 m
  • Item Model Number: JSY-SS-SKU16
  • Insulation Thickness: 0.4 in / 9.5 mm
  • Material: Copper C12200 (Cu 99.9%)
  • High Pressure Hose OD: 0.3 in / 6.4 mm
  • Item Size (Expanded): 600.0 x 1.1 x 2.1 in / 15240 x 28 x 54 mm
  • Net Weight: 17.0 lbs / 7.7 kg ±3% (with accessories)
