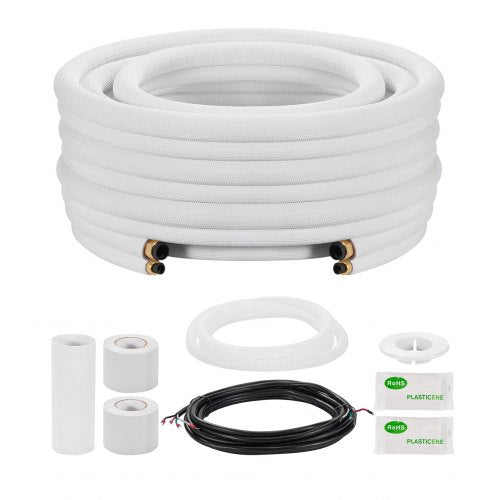

25ft Mini Split Line Set, 3/8” & 5/8” OD AC Copper Tubing Pipe, 3/8 White PE Thickened Insulated Coil with Flared Nuts, Rich Fittings, for Mini Split Air Conditioner HVAC or Heat Pump System

25ft Mini Split Line Set, 3/8” & 5/8” OD AC Copper Tubing Pipe, 3/8 White PE Thickened Insulated Coil with Flared Nuts, Rich Fittings, for Mini Split Air Conditioner HVAC or Heat Pump System

$224.00 USD
$224.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Premium 25-Foot Copper Lines: Made with 99.9% Pure C12200 Copper and thick-walls for bend-resistant, leak-free installation even when routing through walls. Ideal for anyone needing a mini split copper line set that delivers strength and reliability

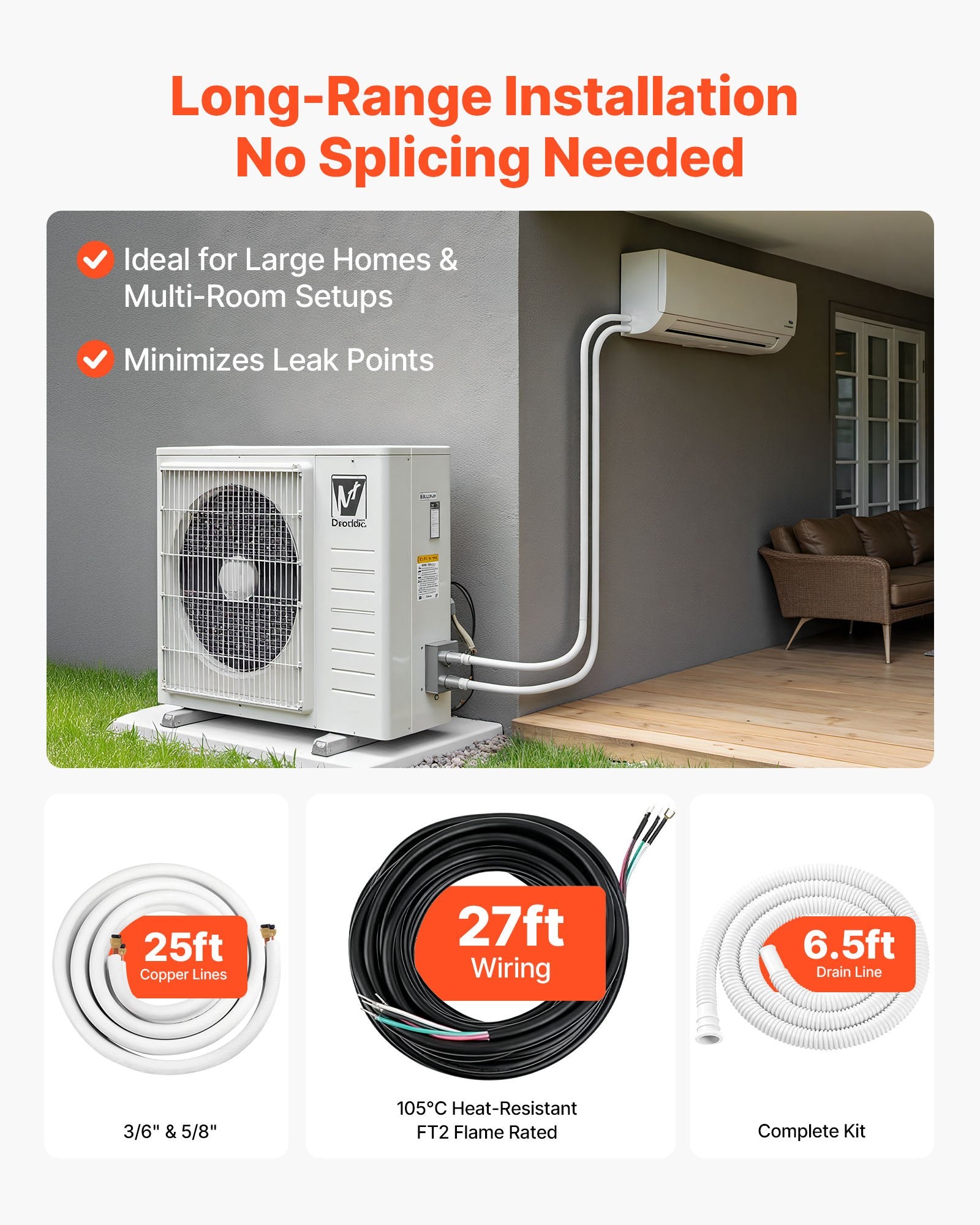

  • 27ft Extra-Long Wiring: 2 feet longer than copper lines, no splicing required, reduces leak points. Great for garage conversions, backyard studios, and multi-story home installations where a mini split line set offers extended reach and secure performance

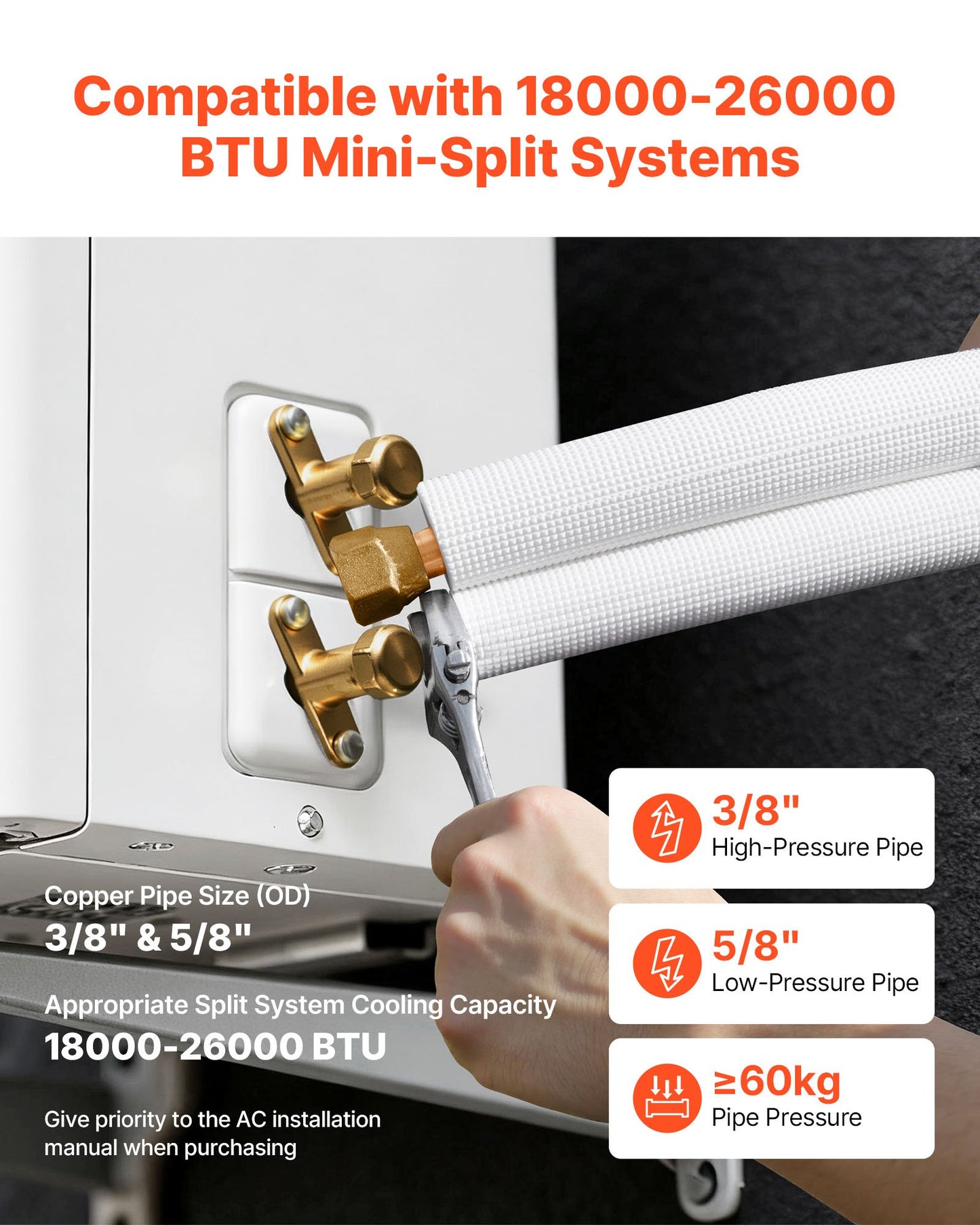

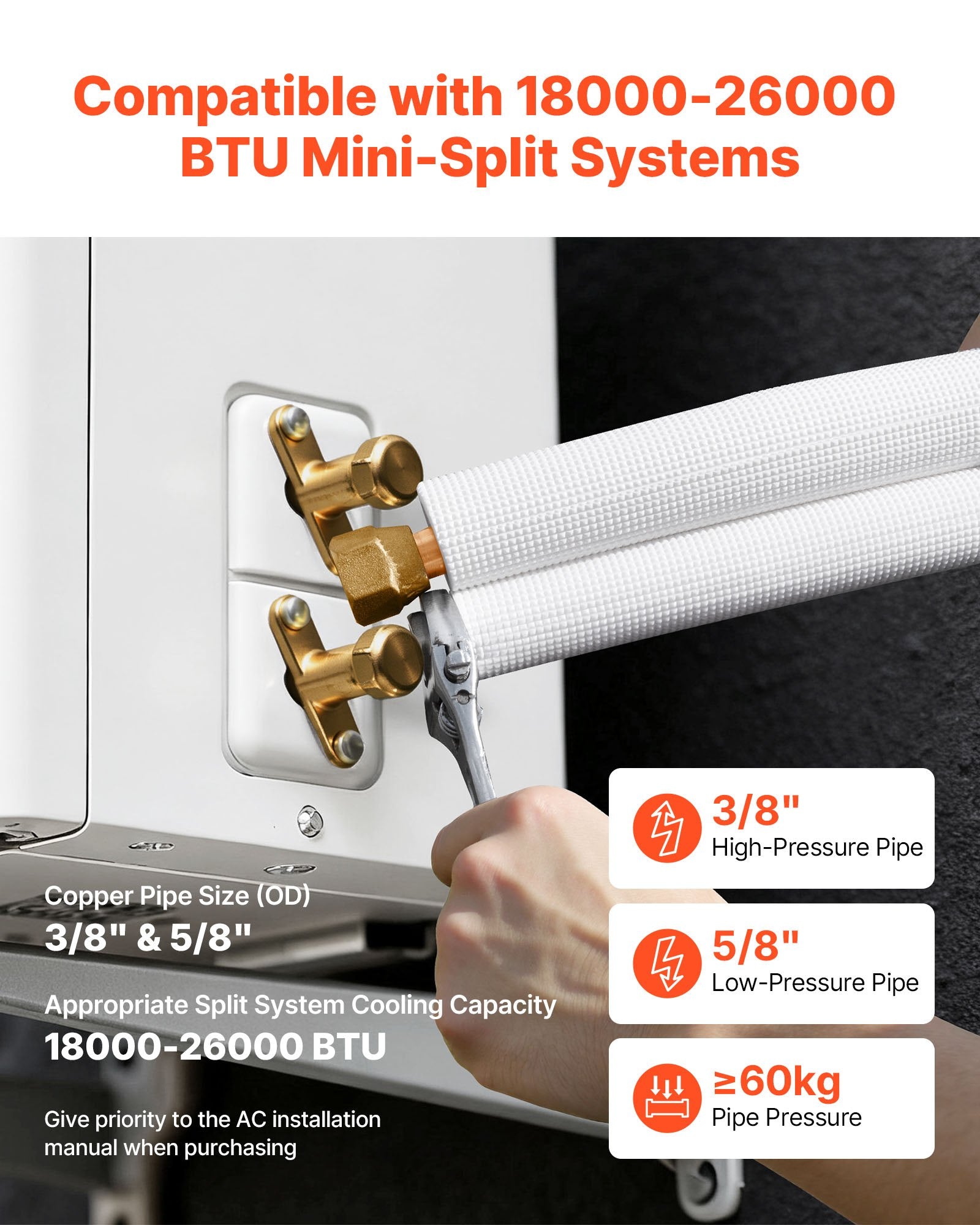

  • Fit for Multiple Models: Standard 3/8" liquid line + 5/8" suction line configuration matches all 18000-26000 BTU mini-split systems for hassle-free installation. This mini split ac line set is designed for wide compatibility and easy setup

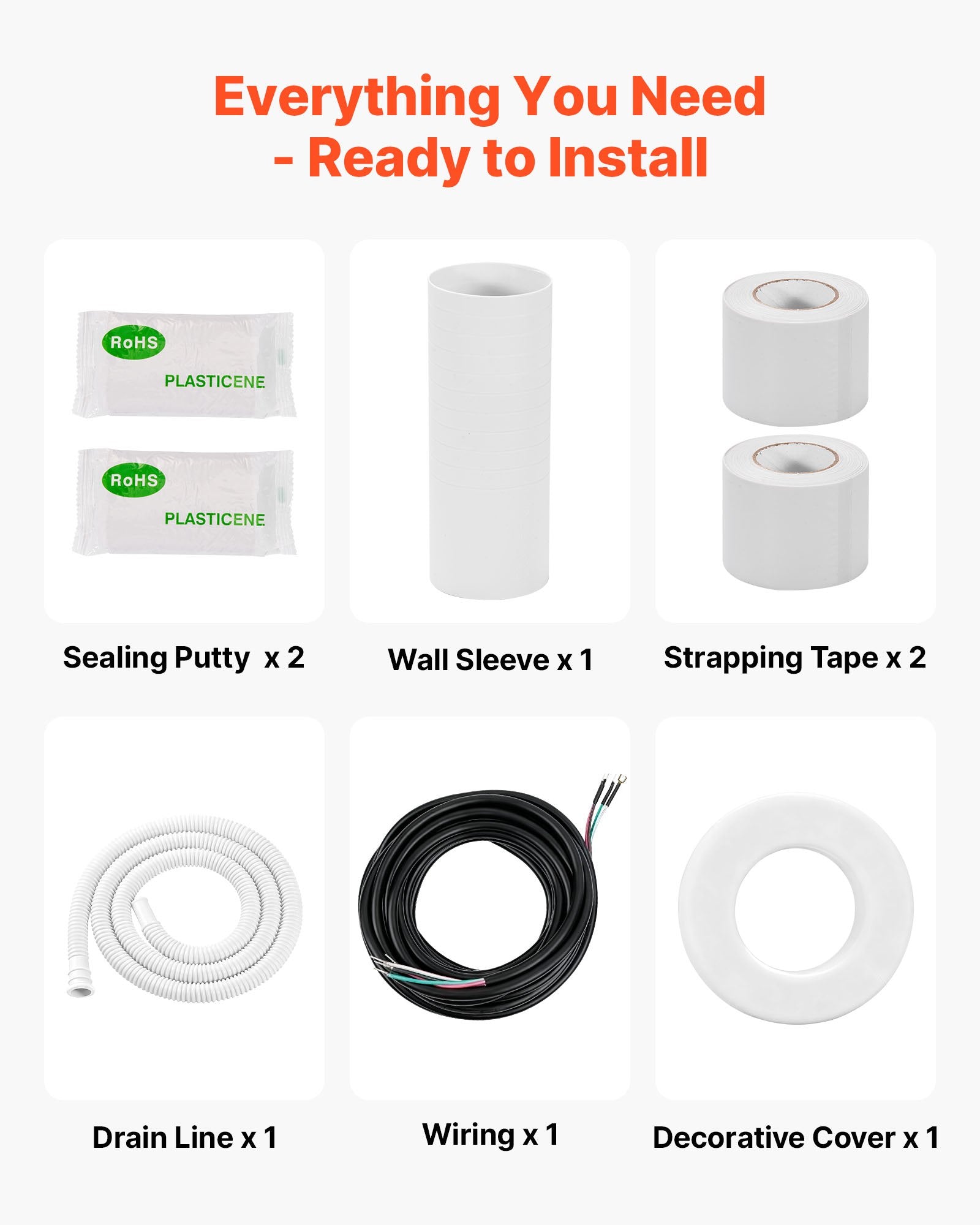

  • Complete Professional Kit: 6.5-foot drain line, wall sleeve, decorative cover, strapping tape, sealant putty. Ready to install out of the box, no additional purchases needed. A true mini split installation kit that simplifies the entire process
  • Energy Saving Insulation: 3/8" thick PE+EVA composite insulation is weather-resistant and built to last, effectively reduces cooling loss and limits condensation. Reliable mini split tubing for long-term energy efficiency

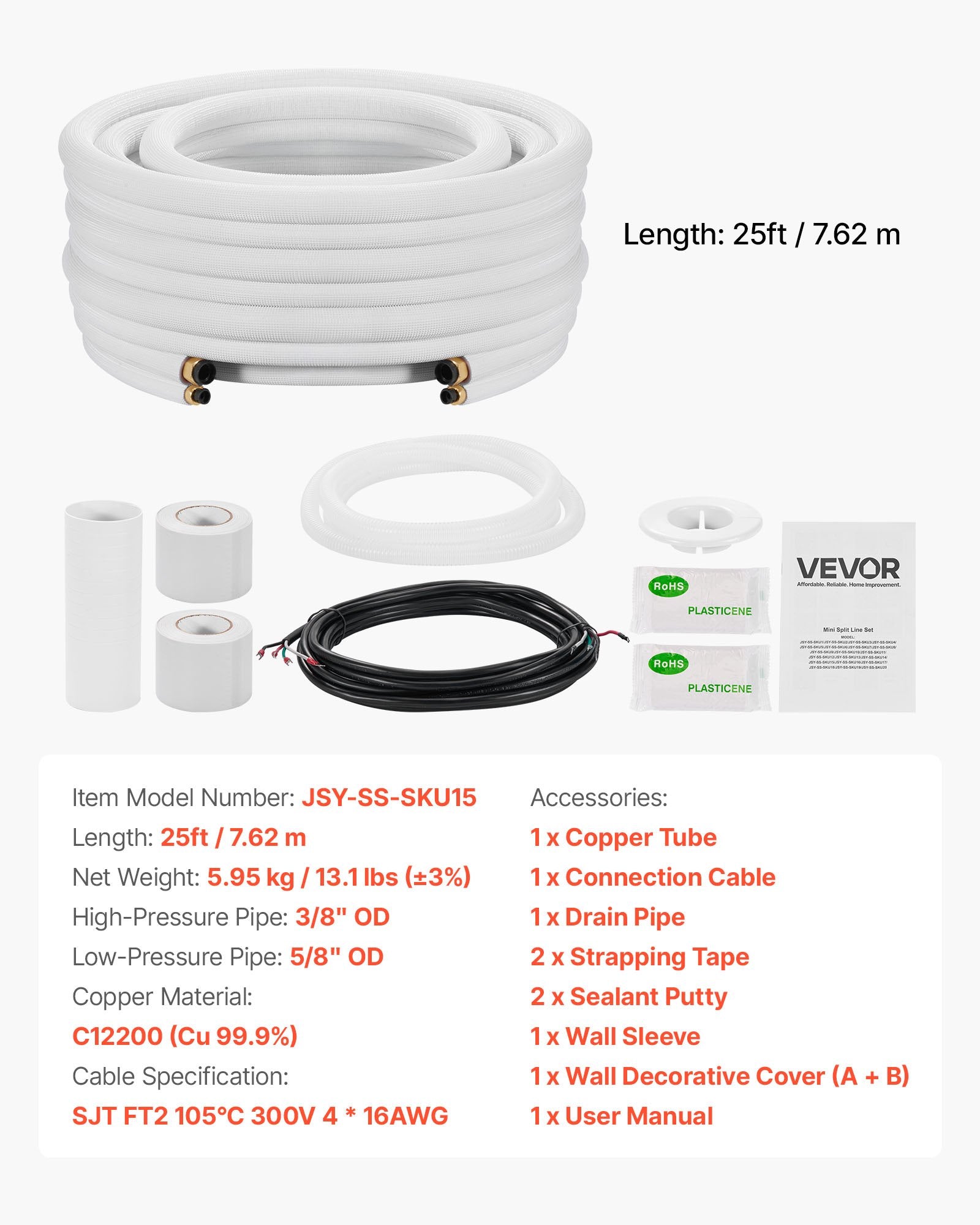

Product Specification
  • Outer Material: PE Insulation Tube (PE + EVA)
  • Cable Specification: SJT FT2 105℃ 300V 4*16AWG
  • Low Pressure Hose OD: 0.6 in / 15.9 mm
  • Length: 25.0 ft / 7.6 m
  • Item Model Number: JSY-SS-SKU15
  • Insulation Thickness: 0.4 in / 9.5 mm
  • Material: Copper C12200 (Cu 99.9%)
  • High Pressure Hose OD: 0.4 in / 9.5 mm
  • Item Size (Expanded): 300.0 x 1.4 x 2.5 in / 7620 x 35 x 63 mm
  • Net Weight: 13.1 lbs / 5.9 kg ±3% (with accessories)
