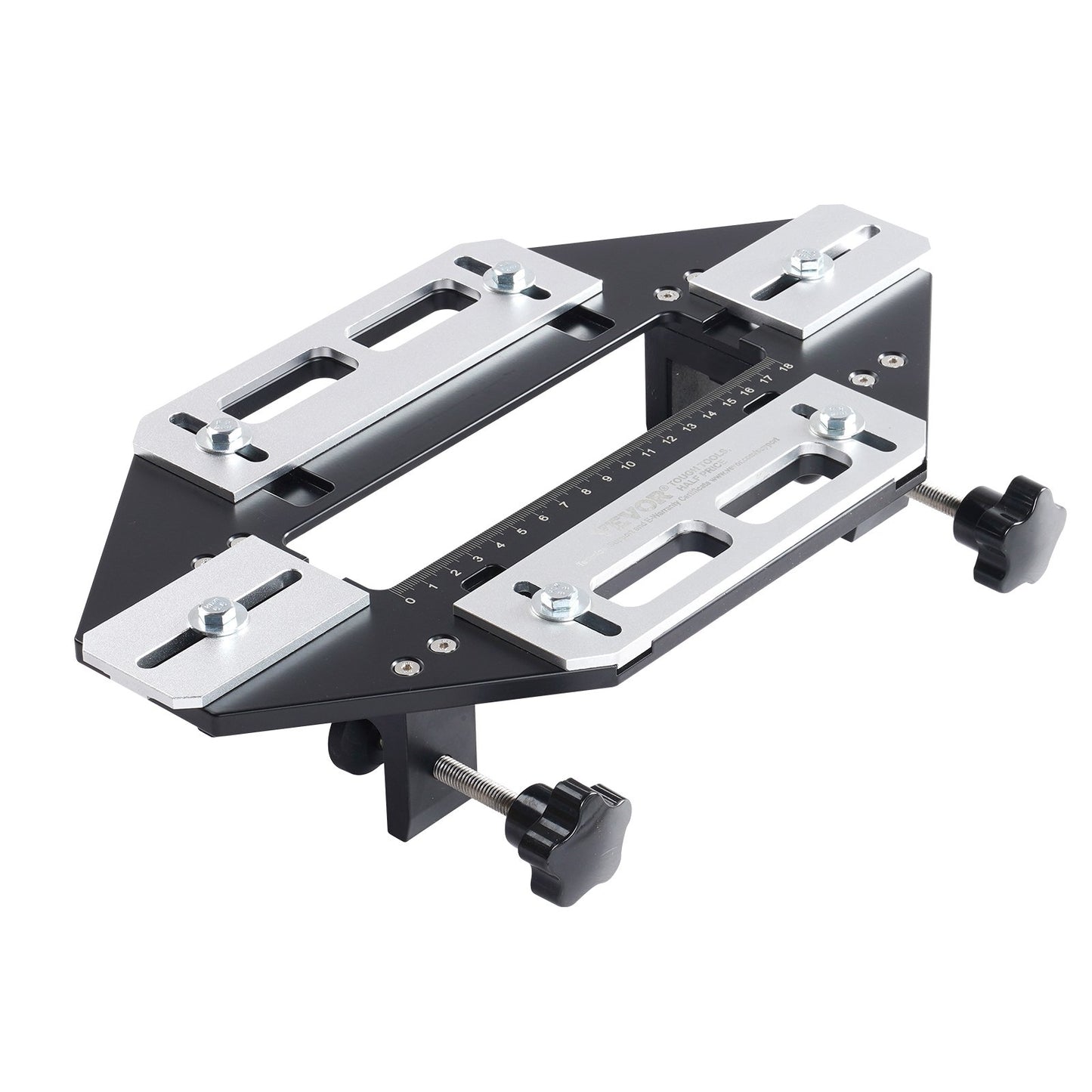

Door Hinge Jig, Aluminum Alloy Woodworking Hole Opener, Slotting Locator, Flexible Wooden Door Hinge Hole Guide, Hinge Template Jig for Door Hinge Groove and Door Lock Installation
Two-in-One Functionality: This hinge jig is designed for both hinge groove and door lock fixture installation, catering to different usage needs. With a dual-purpose design, it allows you the freedom to choose based on specific requirements without the need for other devices. This brings a more efficient and convenient slotting and positioning experience.
Sturdy and Durable: The entire door hinge jig is constructed using high-strength materials, with the main panel made of aluminum alloy 6061. It is wear-resistant, rust-resistant, and features a stable structure, ensuring excellent durability. It can withstand various environmental conditions, including harsh weather, high temperatures, and humidity. It is resistant to deformation or damage even with prolonged use.
Precision Slotting: This tabletop hinge jig kit supports flexible adjustments in four directions, with adjustable length and width positioning for precise alignment. It has built-in scales to provide specific slotting positions, enabling accurate and rapid hinge slotting and lock plate installation.
User-Friendly: The concealed hinge jig is simple and convenient to operate, requiring no tools. Tighten the screws manually for quick clamping. The clamping parts feature a rubber anti-slip design to prevent damage to wooden door surfaces. Just follow the instructions, and you can complete the installation in minutes.

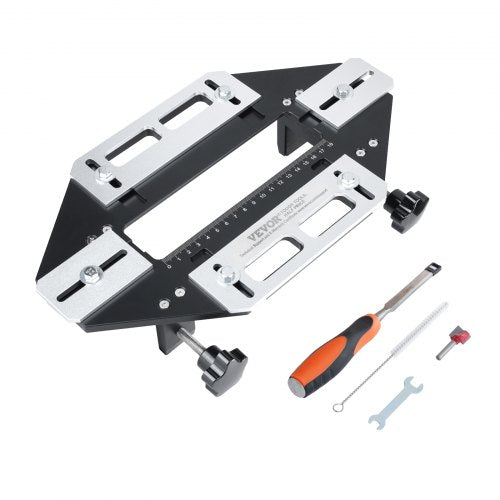

Complete Accessories: This cabinet hinge jig comes with a comprehensive set of accessories, including 1 x slotting locator, 1 x side cutter(clamping diameter: 0.25''/6.3 mm), 1 x woodworking chisel (0.47''/12mm), 1 x open-end wrench, 1 x hairbrush, and 1 x user manual. This all-in-one kit makes hinge slotting positioning a breeze.

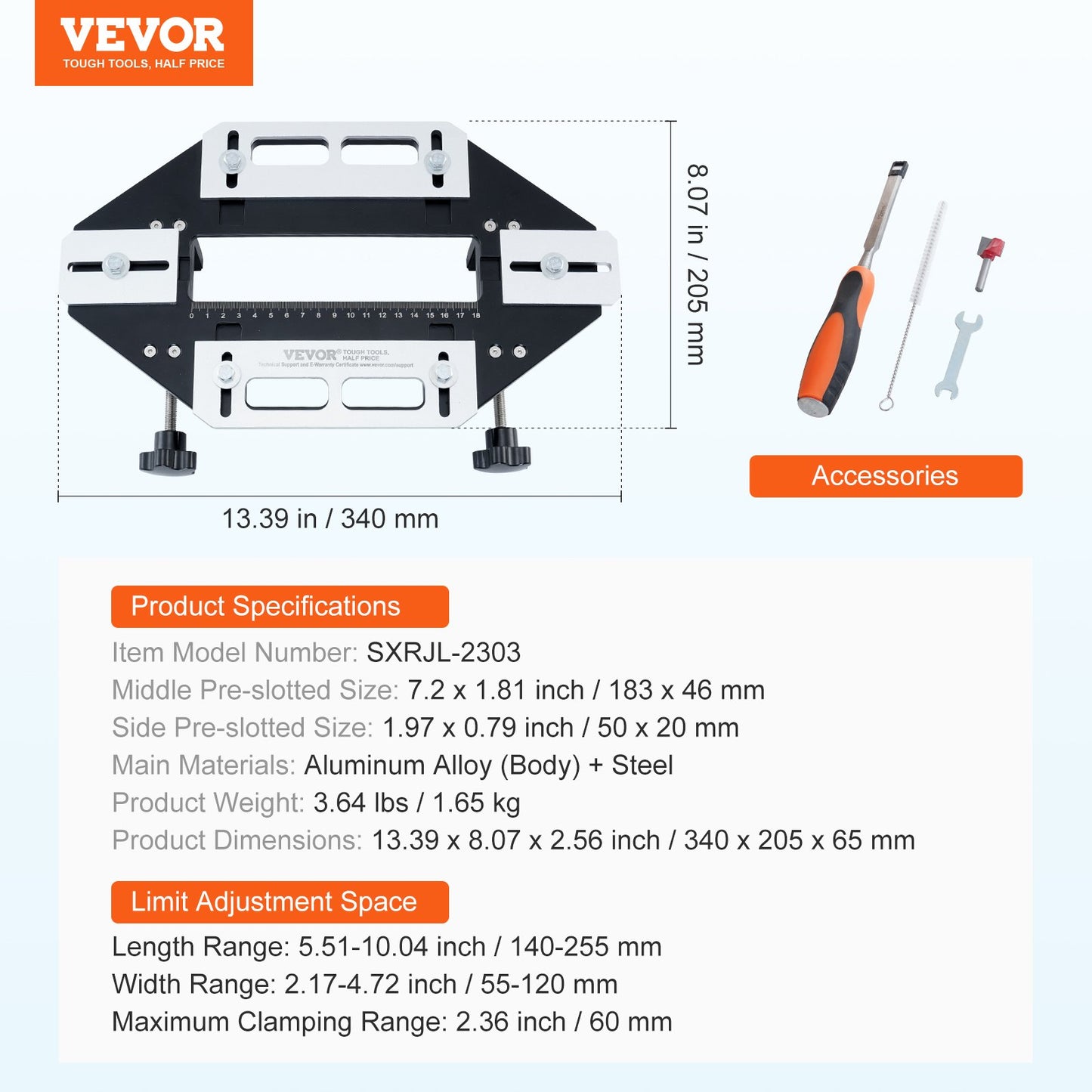

Product Specification
Width Range: 2.17-4.72 inch / 55-120 mm
Main Materials: Aluminum Alloy (Body) + Steel
Limit Adjustment Space:
Item Model Number: SXRJL-2303
Length Range: 5.51-10.04 inch / 140-255 mm
Product Weight: 3.64 lbs / 1.65 kg
Middle Pre-slotted Size: 7.2 x 1.81 inch / 183 x 46 mm
Side Pre-slotted Size: 1.97 x 0.79 inch / 50 x 20 mm
Product Dimensions: 13.39 x 8.07 x 2.56 inch / 340 x 205 x 65 mm
