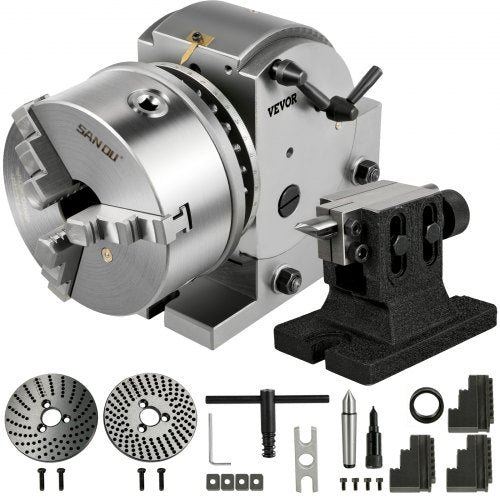

Dividing Head BS-1 Dividing Head Set 6\" 3-jaw Chuck Semi Universal Milling Set with 6\" Chuck+Tailstock+Dividing Plates for Milling Grinding Drilling Machine

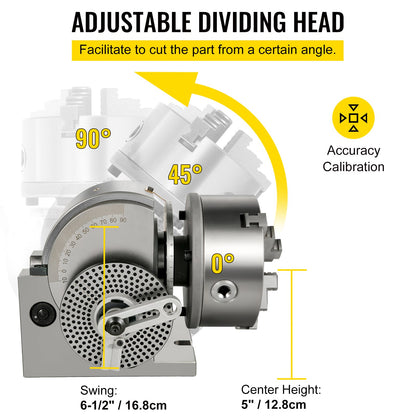

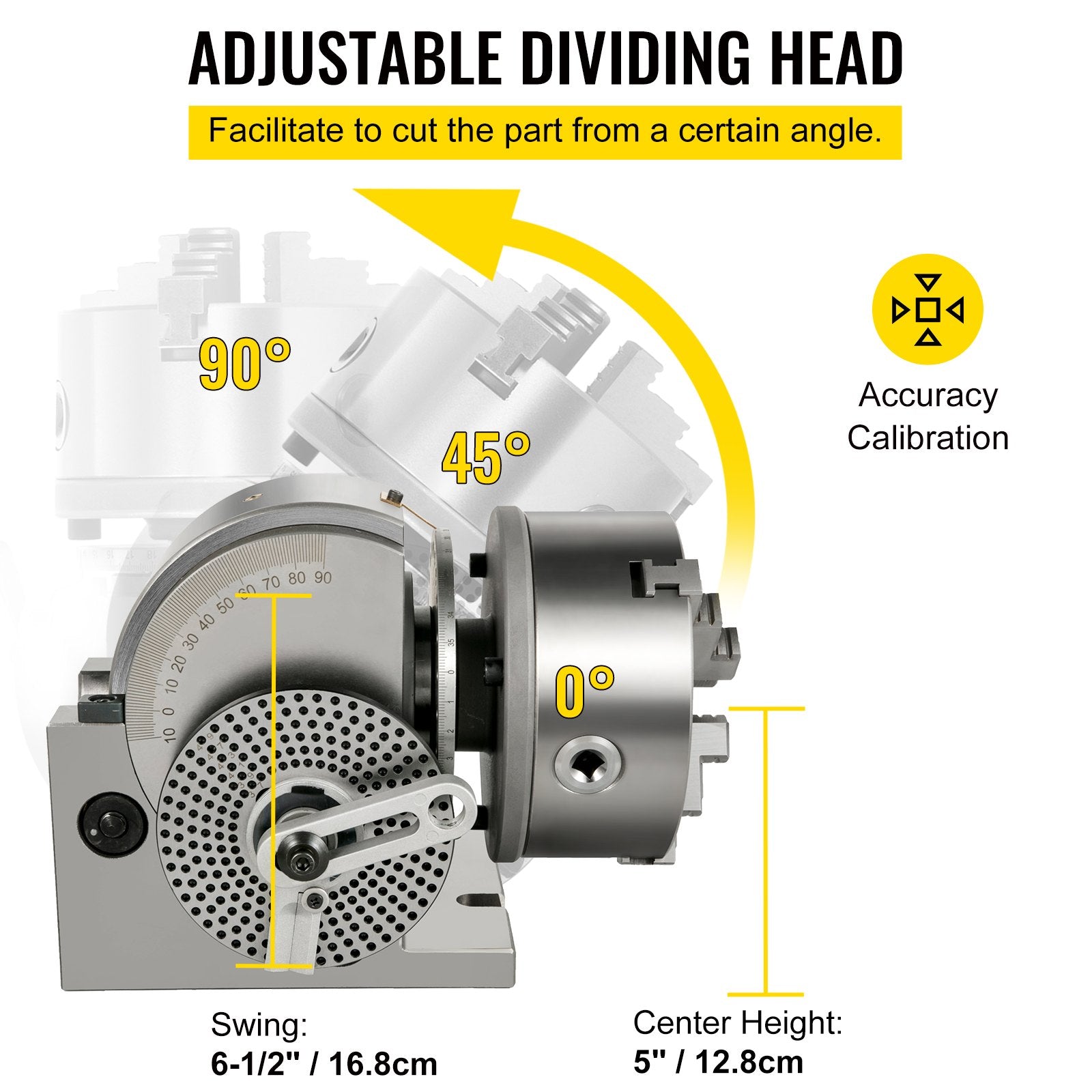

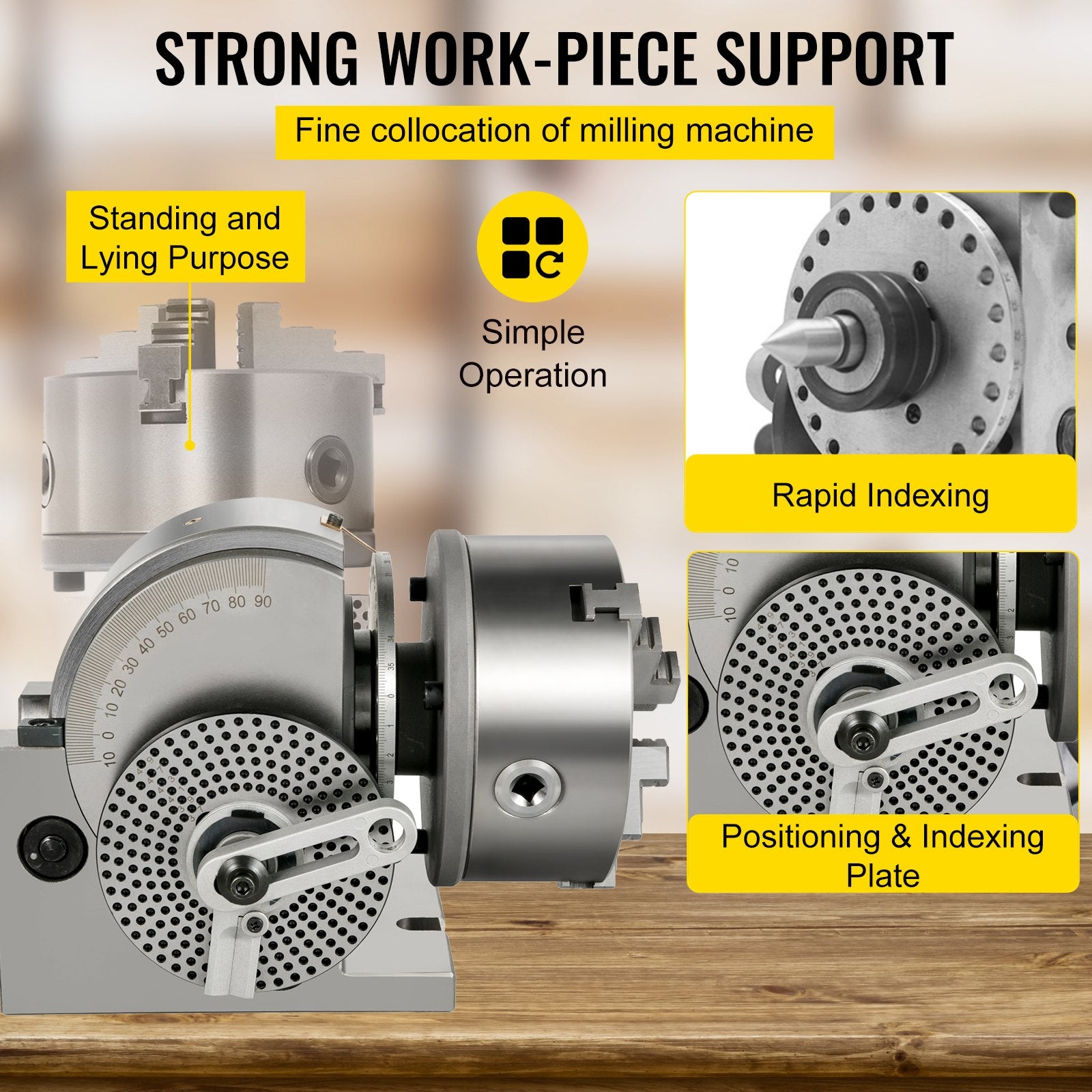

Adjustable Angle: The semi-universal dividing head features a 6" 3-jaw chuck, Spindle Speed: 2500 RPM. The headstock is adjustable from the horizontal position to 90 degrees upward. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm. Free 3 more jaws for 6" chuck.

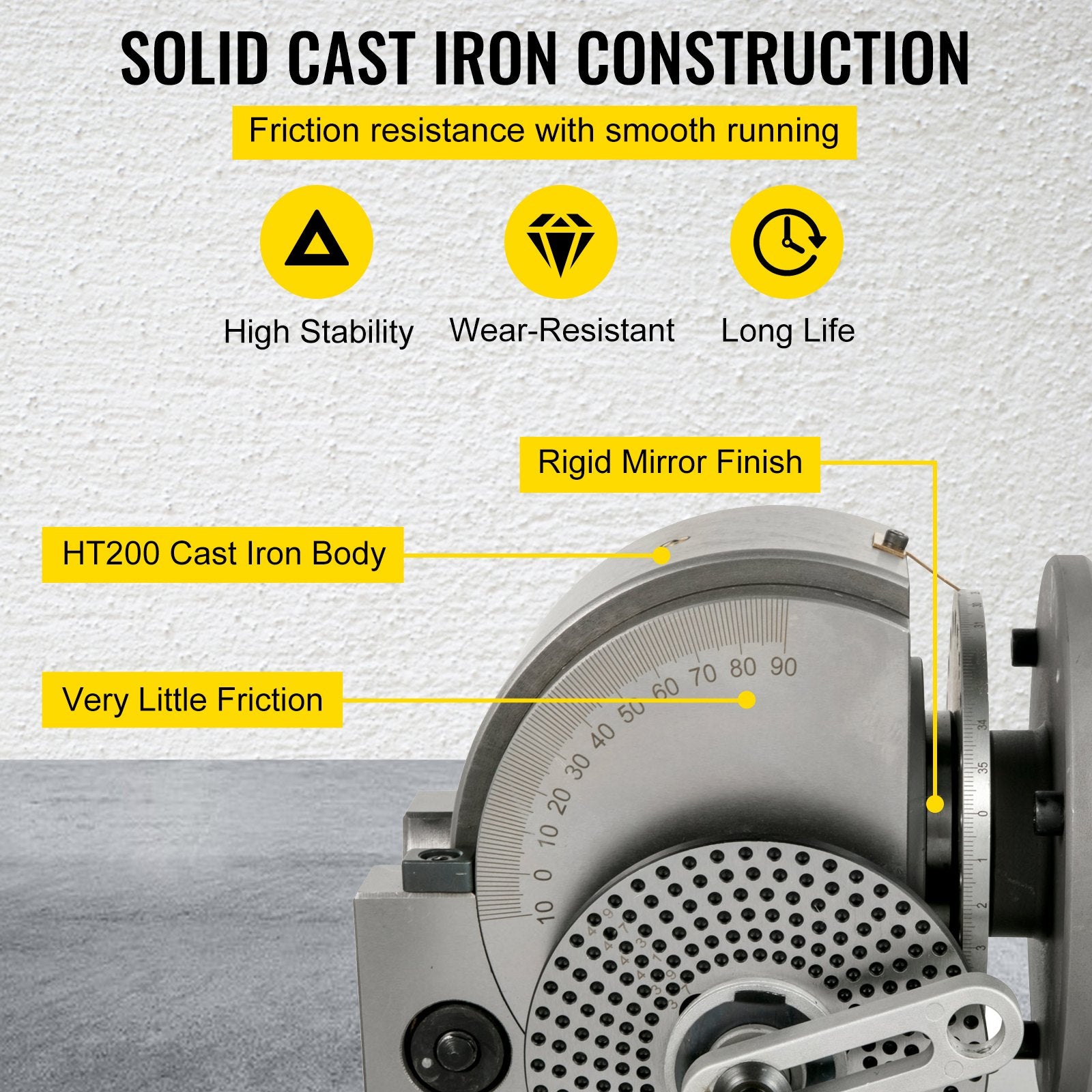

Solid Construction: This indexing head is made of HT 200 to be a long life. A rigid frame provides high accuracy with little backlash for a smooth rotation. The reduction ratio is 1:40.
Precise & Accurate: Dividing head milling machine with laser engraving scales. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
MT3 Tailstock Adjustable: Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. The model of the tailstock is MT3. One extra dead center is included.

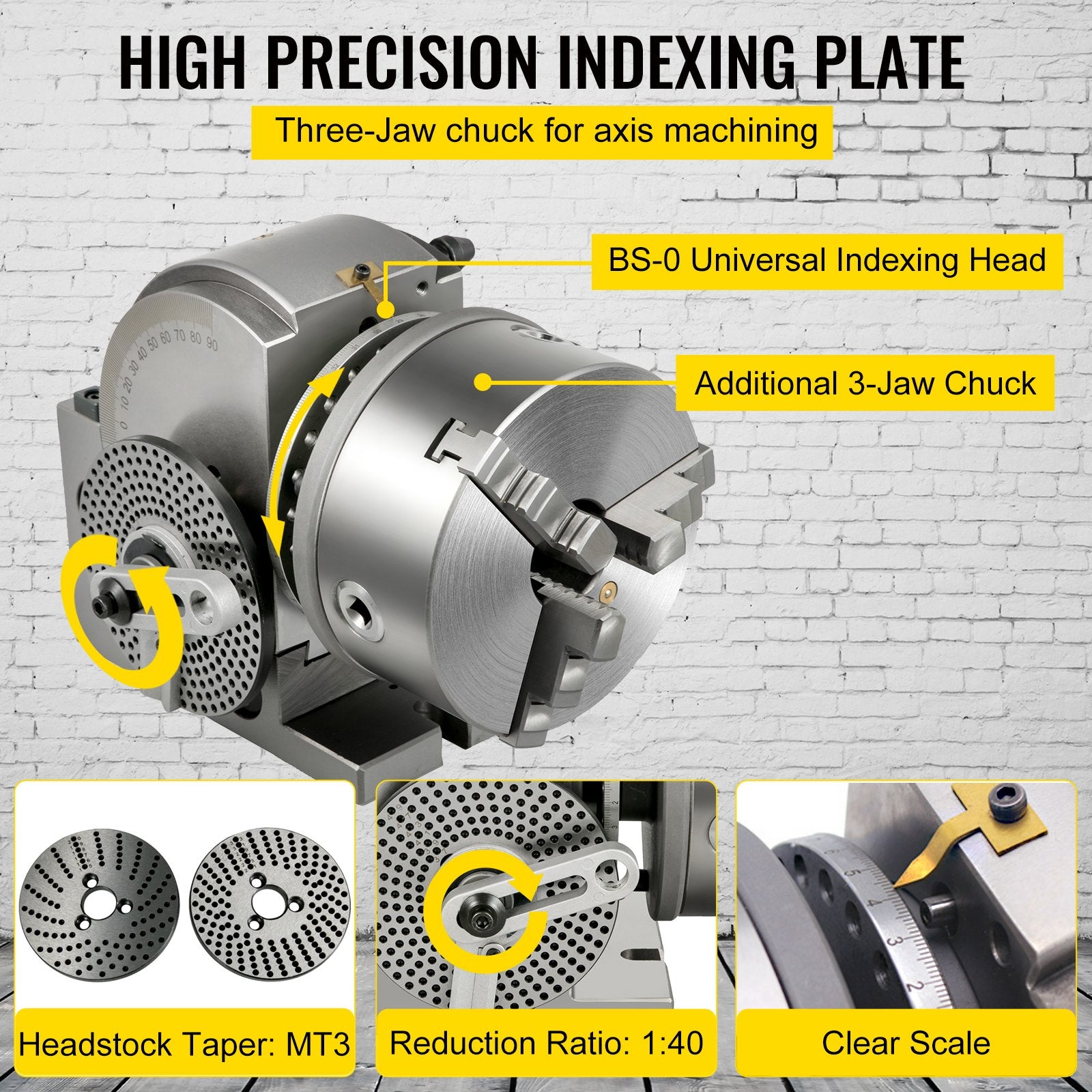

Rich Dividing Head Set: 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and specific other numbers.
Product Specification
Spindle Speed: 2500 RPM
Reduction Ratio: 1:40
Center Height: 5" / 12.8 cm

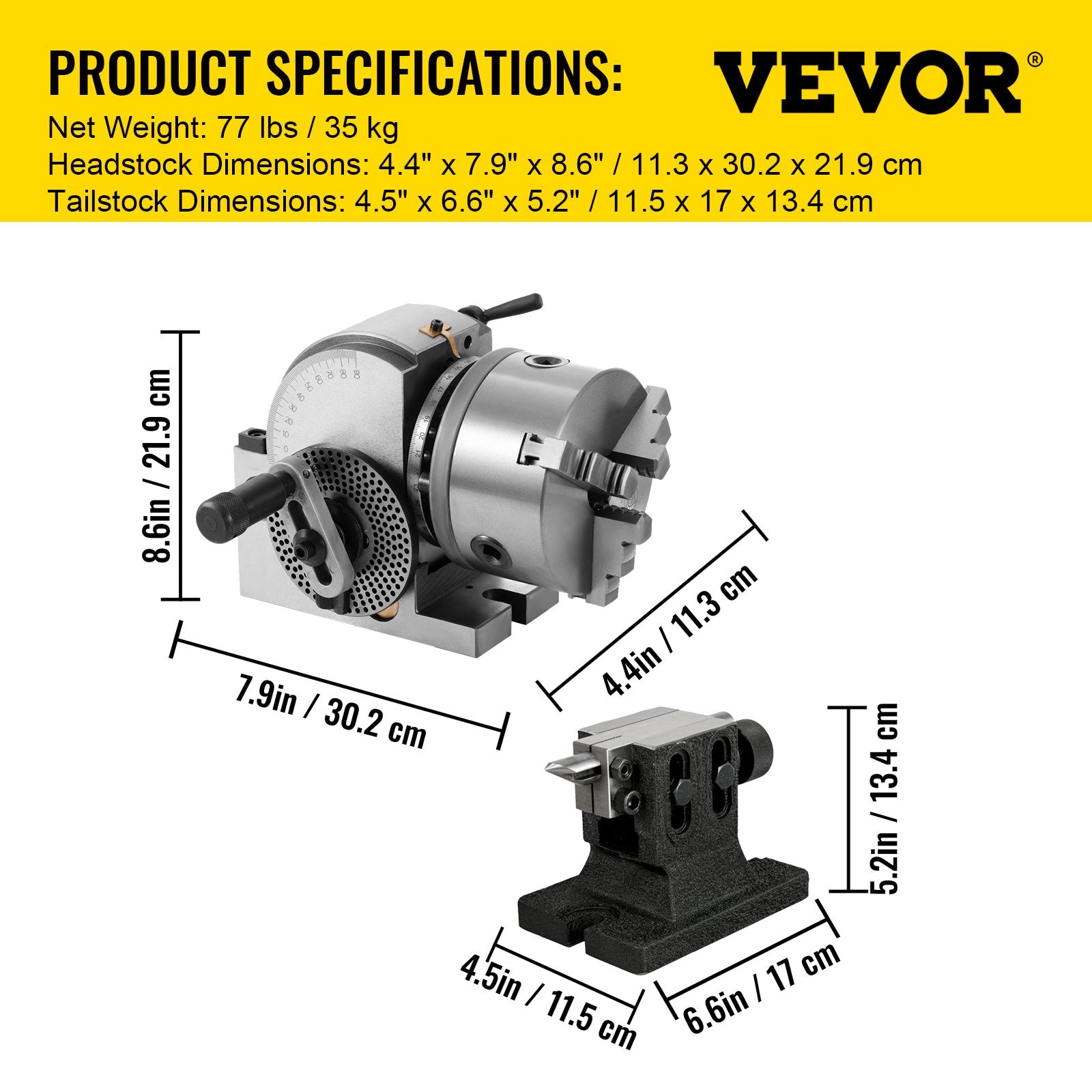

Headstock Dimensions: 4.4" x 7.9" x 11.8" / 11.3 x 30.2 x 21.9 cm
Swing: 6-1/2" / 16.8 cm
Chuck Diameter: 6" / 16 cm
Tailstock Dimensions: 4.5" x 6.6" x 5.2" / 11.5 x 17 x 13.4 cm
