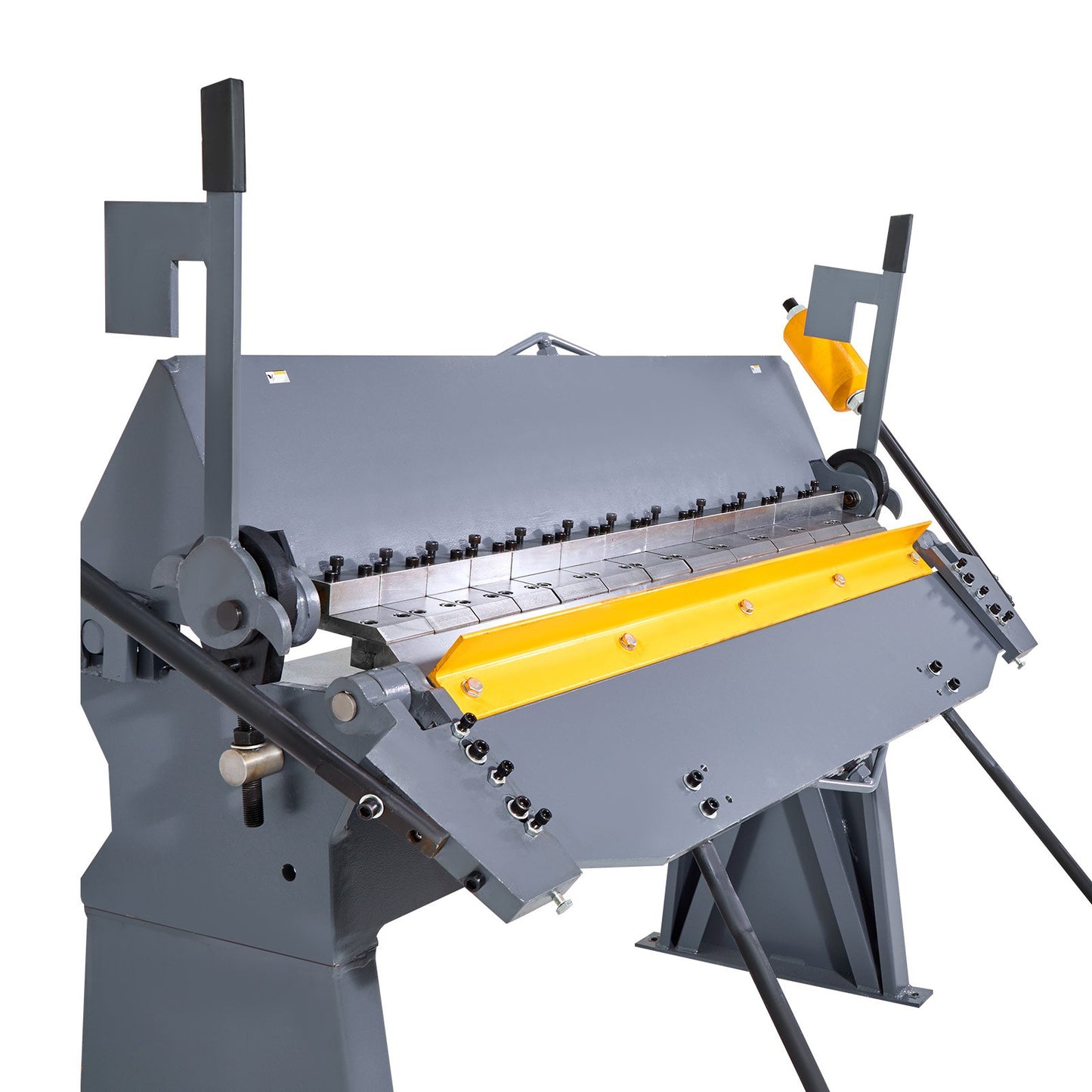

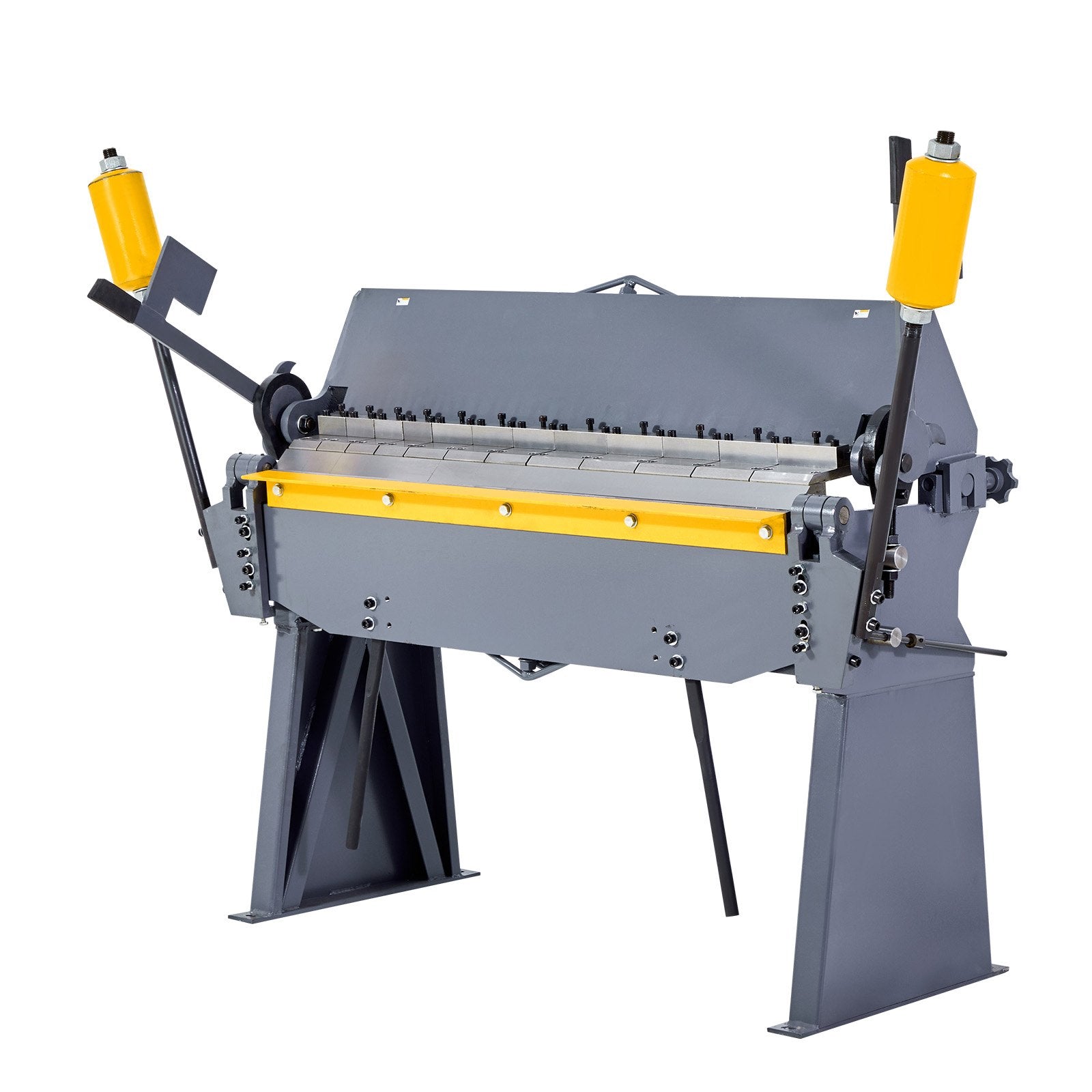

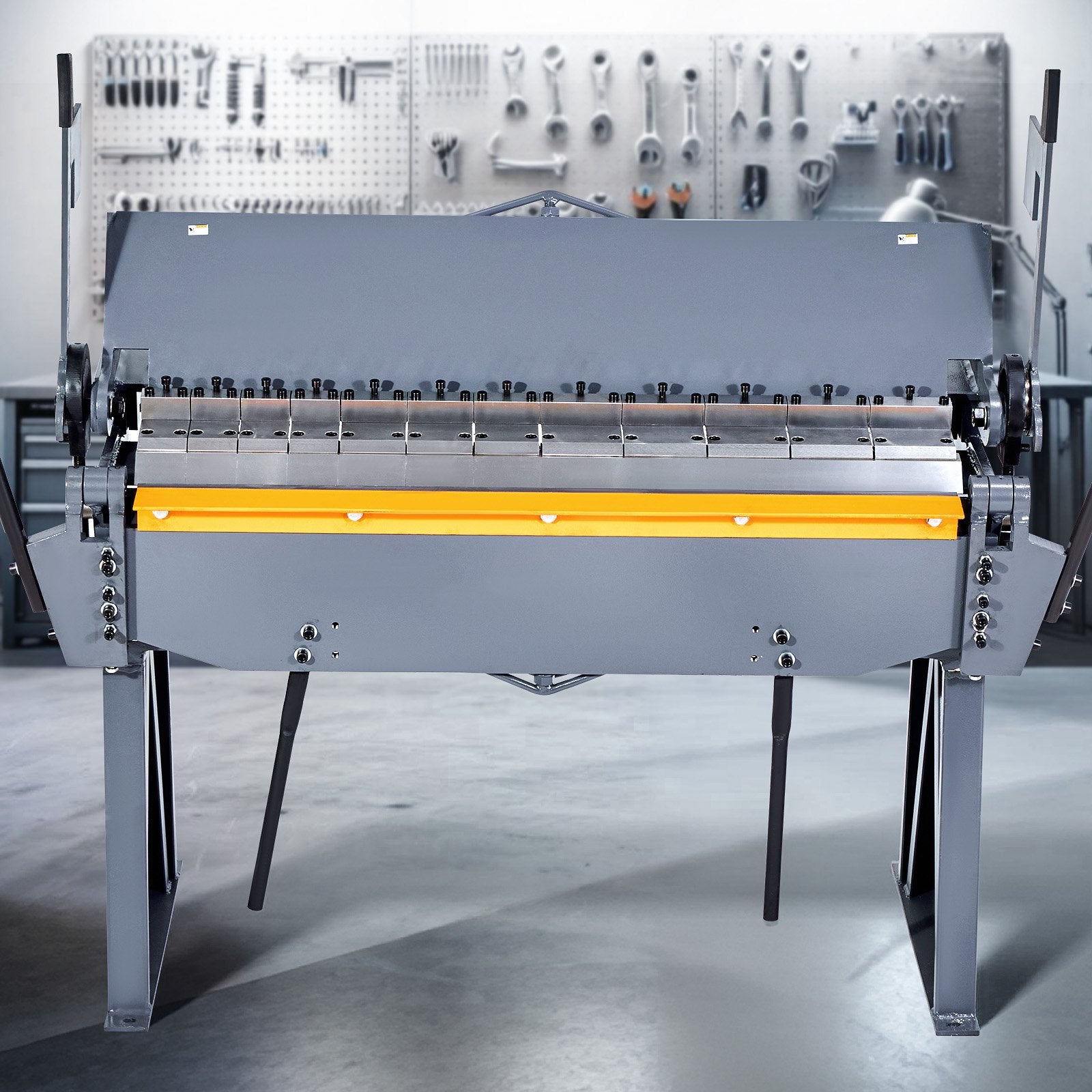

Box and Pan Brake, 48 in Sheet Metal Bending Brake, 12-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 8 Fingers, Heavy-Duty Aluminum Folder for Precise Bending

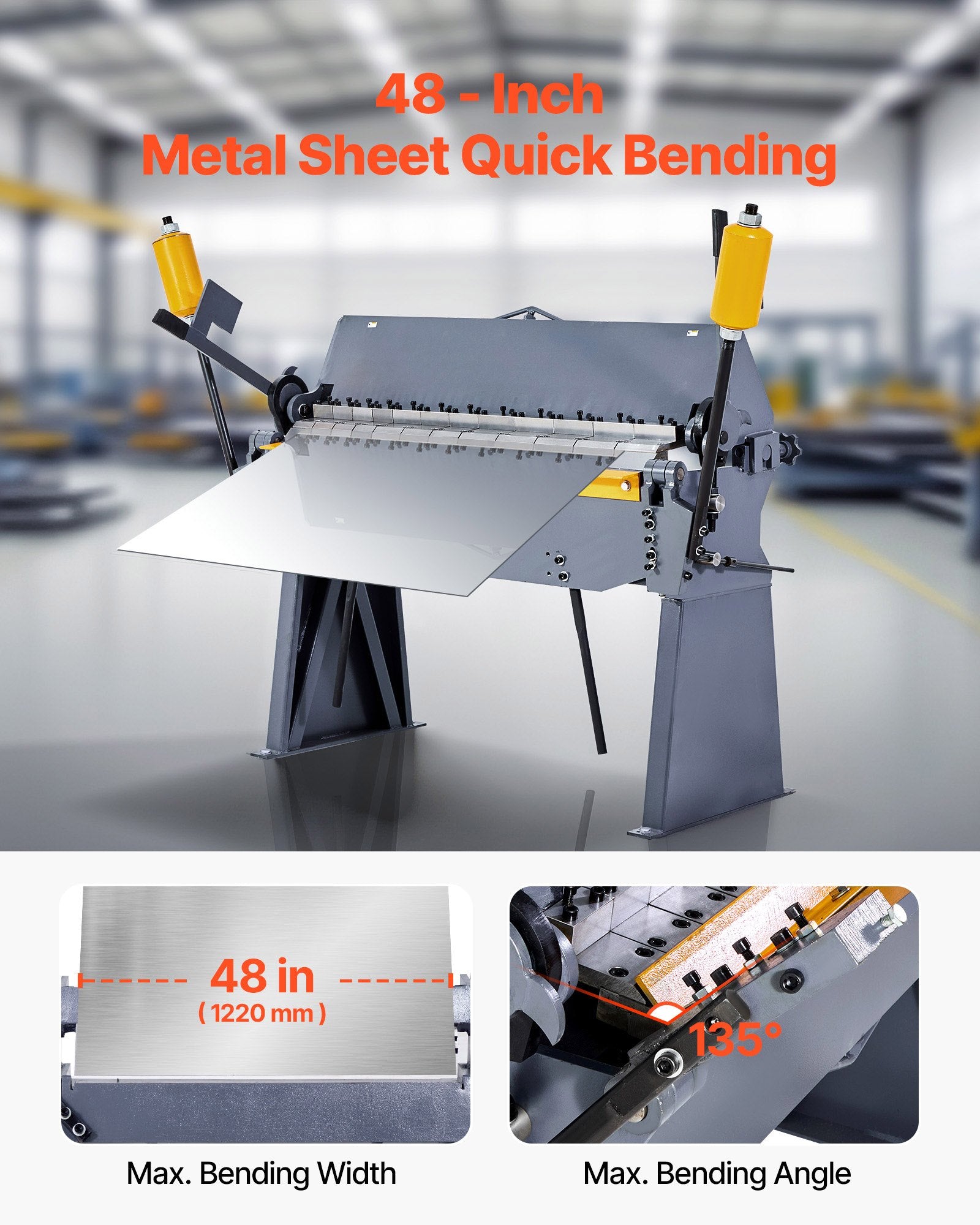

48-Inch Heavy-Duty Bending: This sheet metal brake handles metal sheets up to 48" wide with bending angles from 0° to 135°, making it ideal for medium-size fabrication shops and heavy-gauge projects.
Versatile Material Compatibility: Our box and pan brake is compatible with mild steel, stainless steel, copper, and aluminum. Capable of bending 12-gauge (2.5 mm) mild steel—built for demanding jobs.

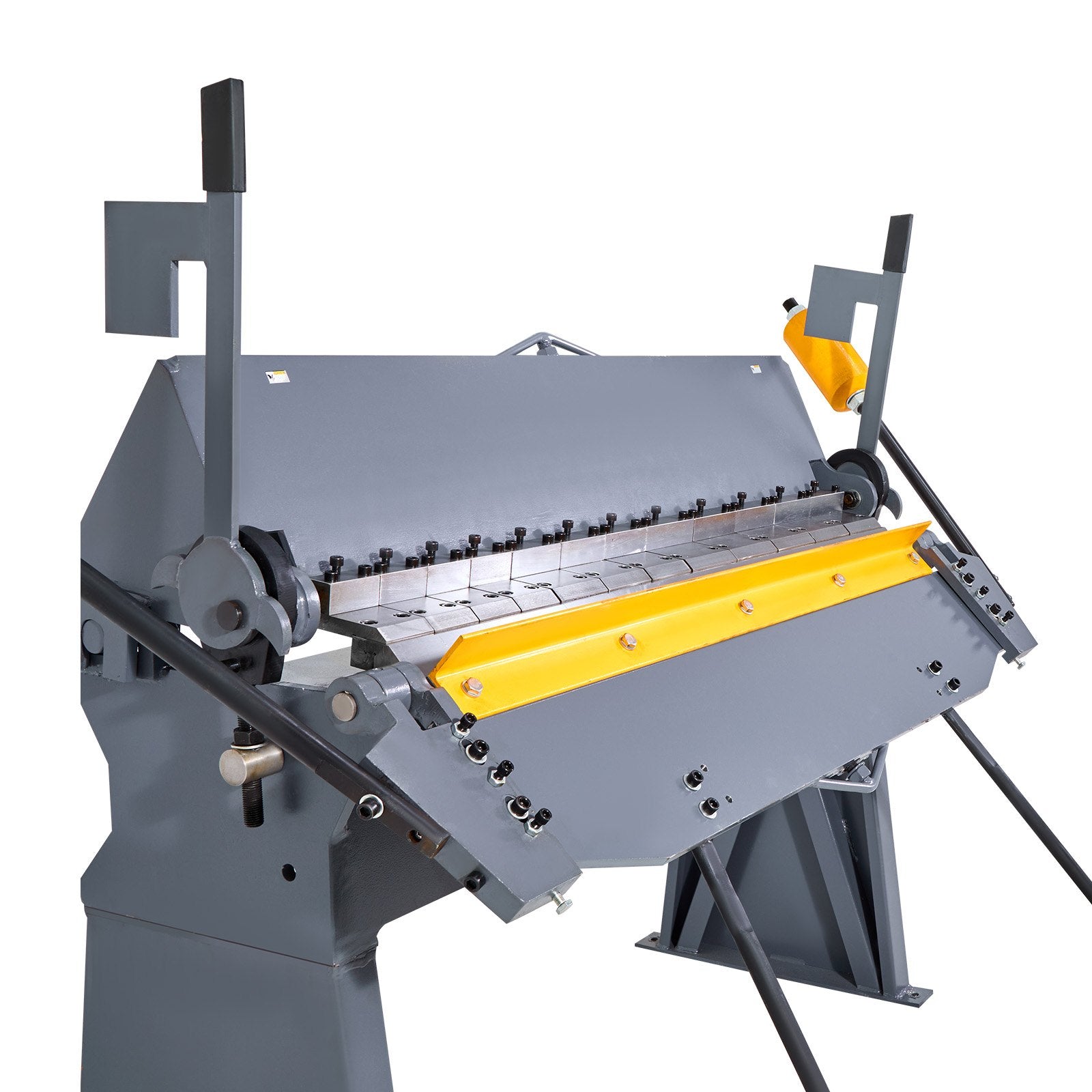

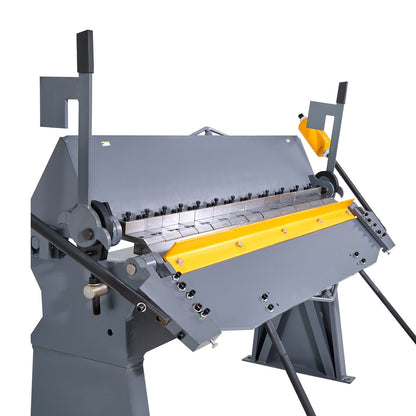

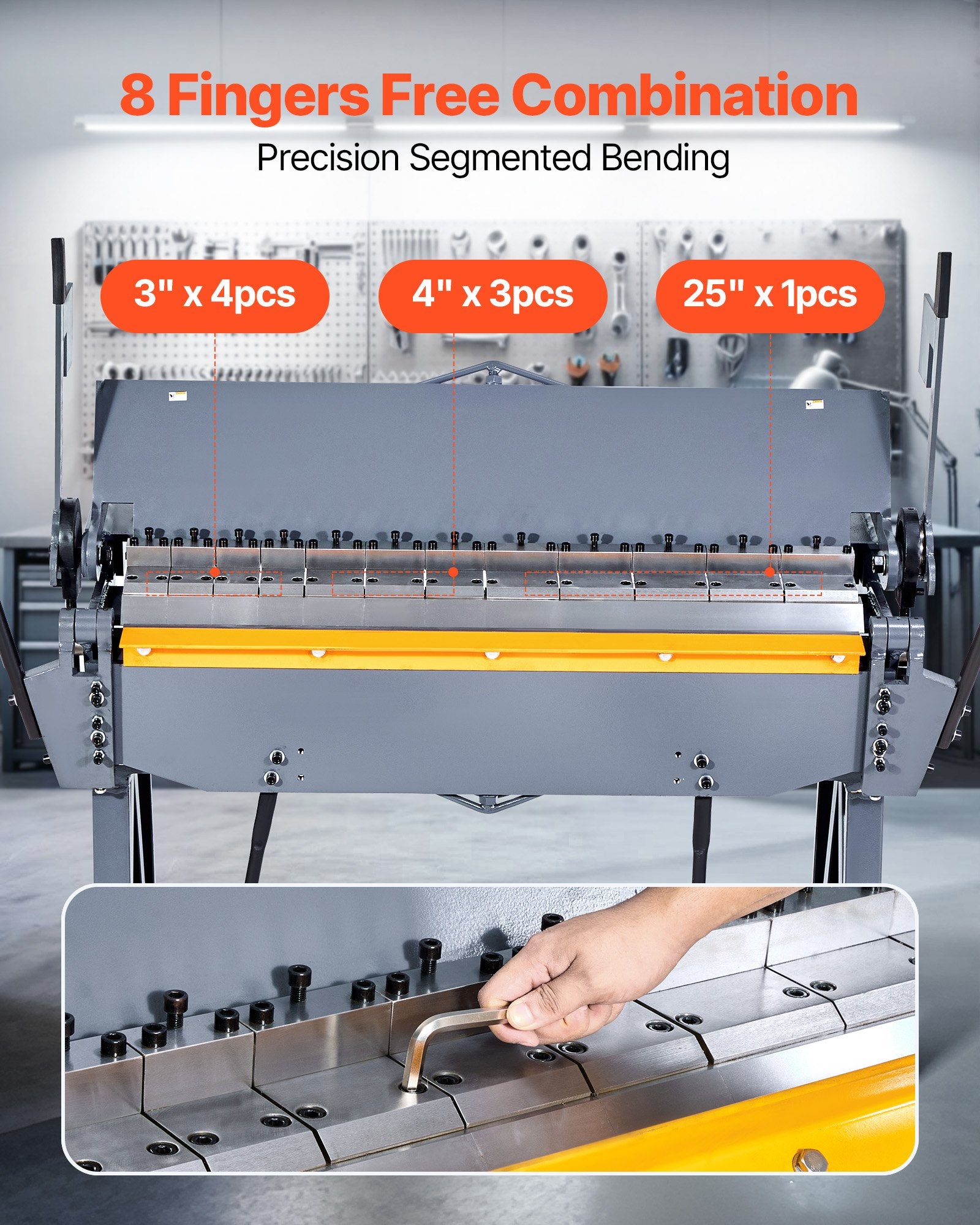

Customizable Die Setup: This sheet metal bender includes 8 segmented fingers (3" x 4 pcs, 4" x 3 pcs, 25" x 1 pc) that can be freely arranged for precise, segmented bends. Perfect for fabricating electrical enclosures, casings, HVAC components, and complex flanged panels.

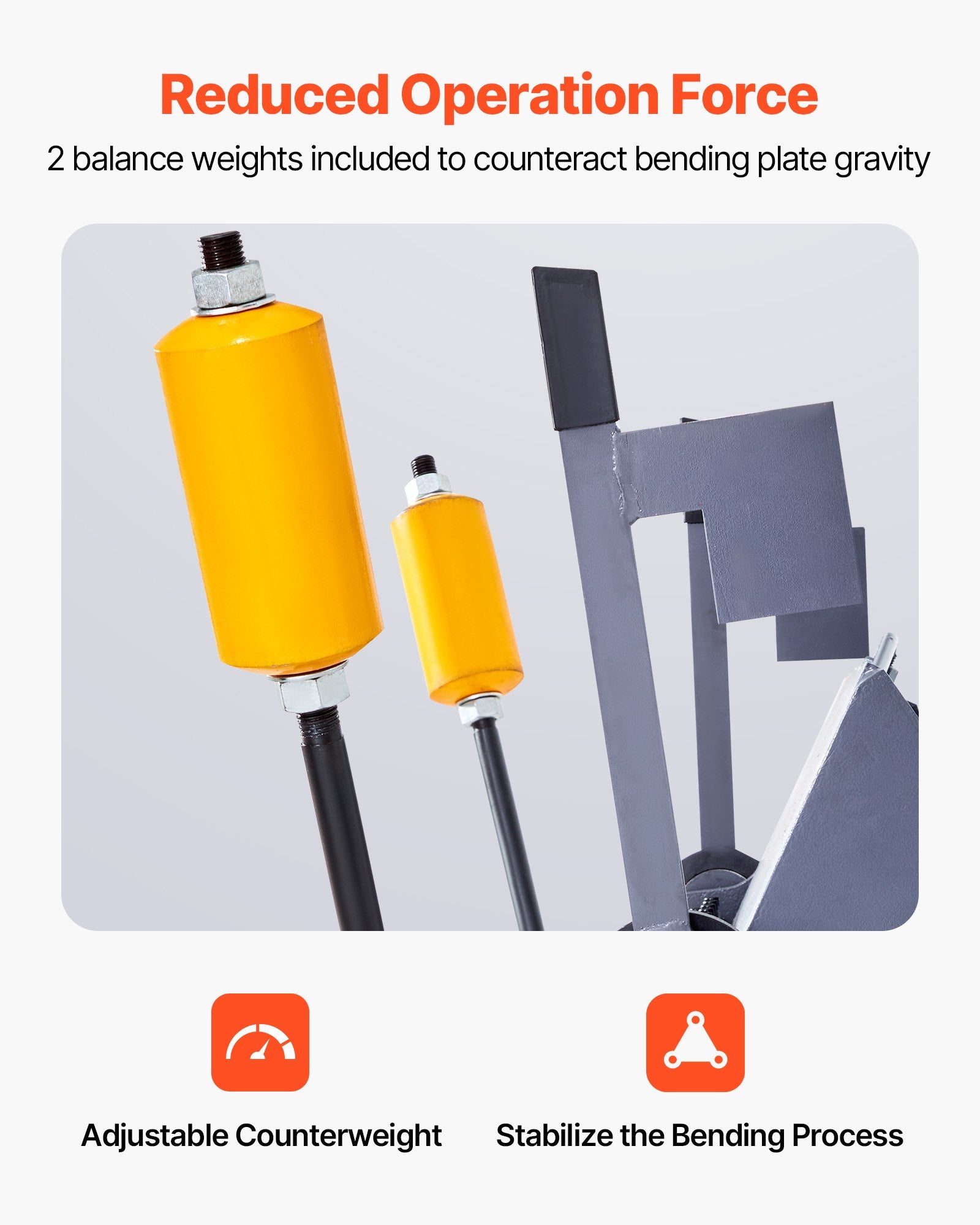

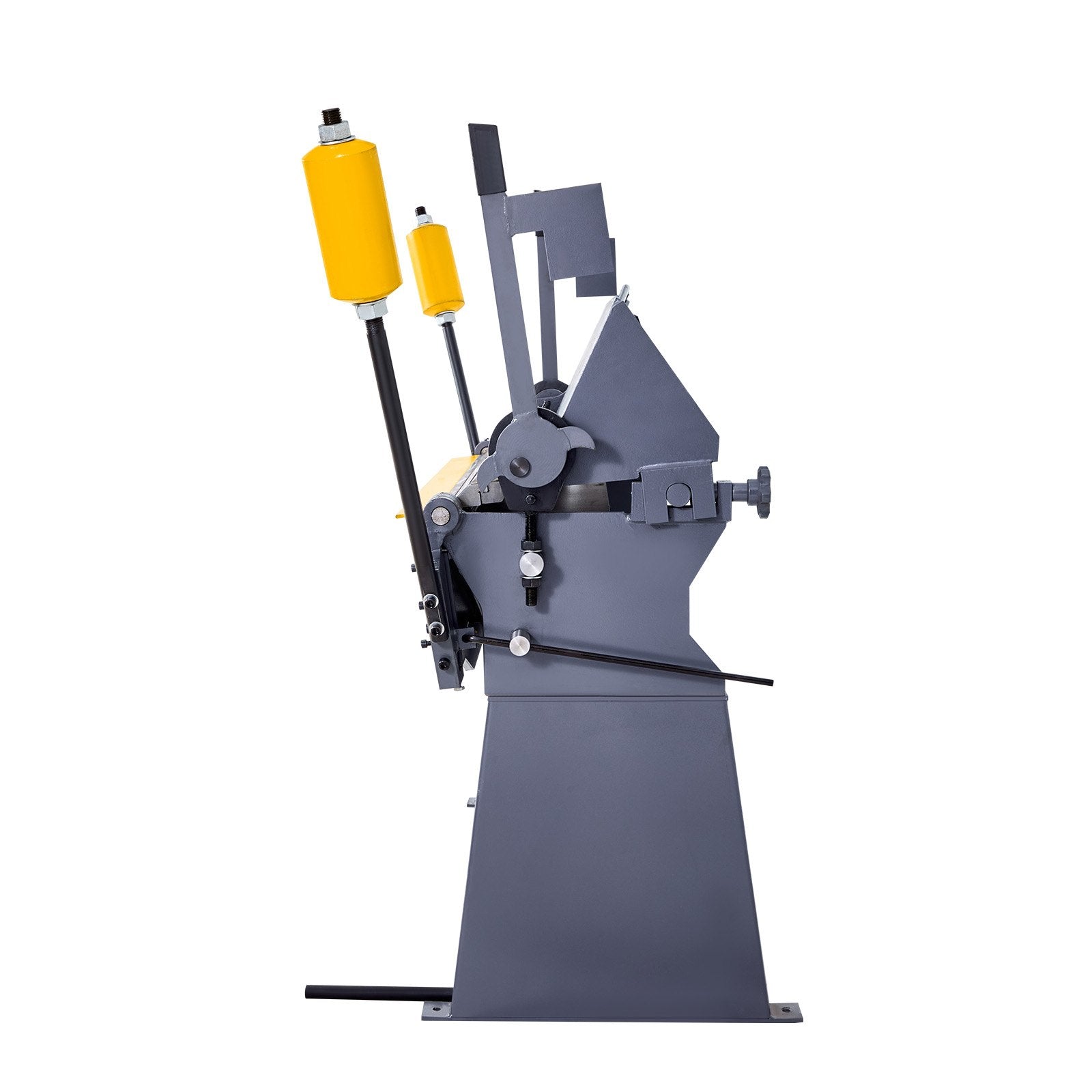

Dual Counterweights for Stability: Designed with dual balancing hammers, this metal bending machine offers stronger, more stable clamping of large sheets while reducing operator effort—ideal for heavy-duty bending tasks.

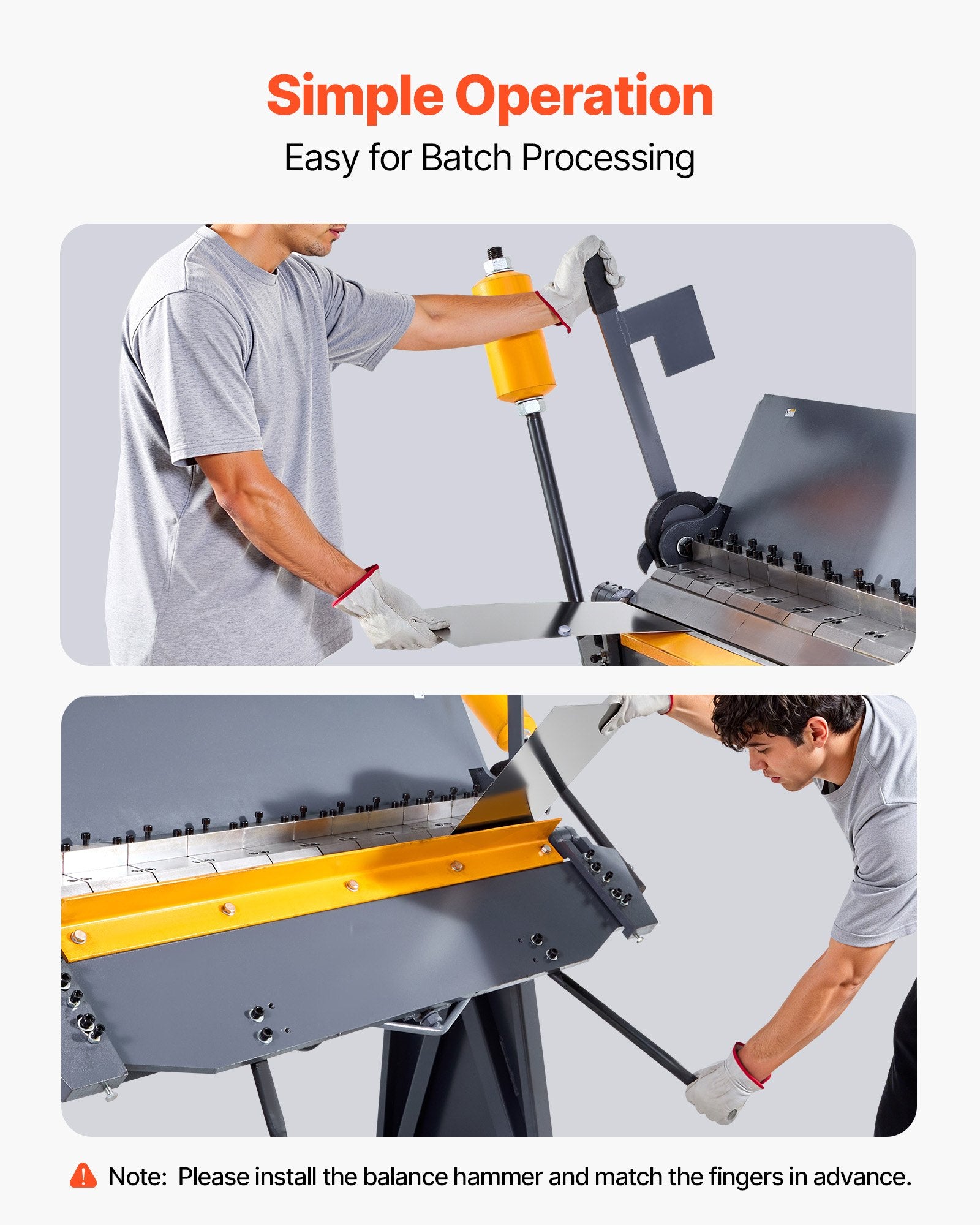

Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90° bend, set the angle to 92°).
Product Specification
Press Plate Mechanism: Manual
Item Model Number: W2.5×1220
Max. Bending Thickness: 12 Ga (2.5 mm) Low Carbon Steel
Max. Bending Angle: 135°
Segments: 8 (3" x 4pcs, 4" x 3pcs, 25" x 1pcs)
Material: Low Carbon Steel
Max. Bending Width: 48 in (1220 mm)
Material Yield Strength: : ≤235 MPa
Mounting Type: Desktop-Mounted, Manual Flanging
Auxiliary Bending Method: Dual Balance Hammers
Weight: 1105.6 lbs (501.5 kg)

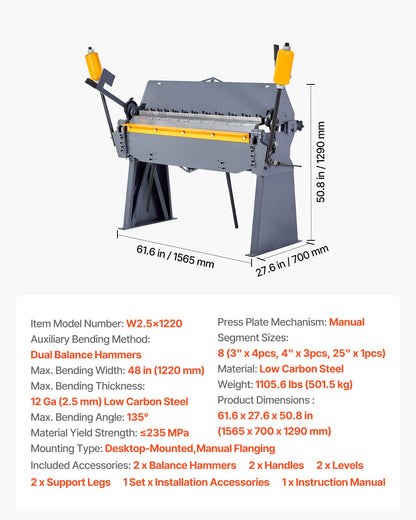

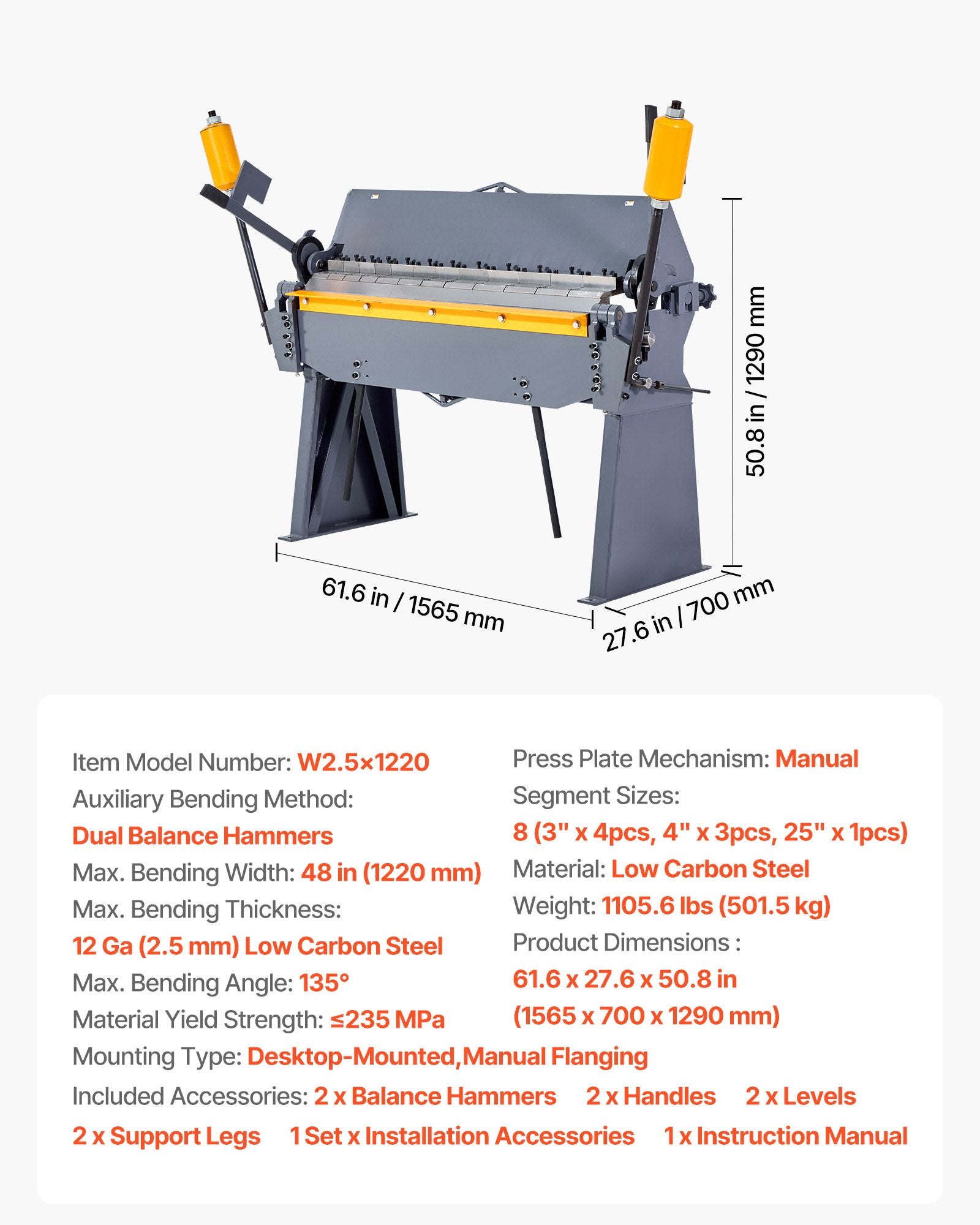

Product Dimensions (with Balance Hammer): 61.6 x 27.6 x 50.8 in (1565 x 700 x 1290 mm)
