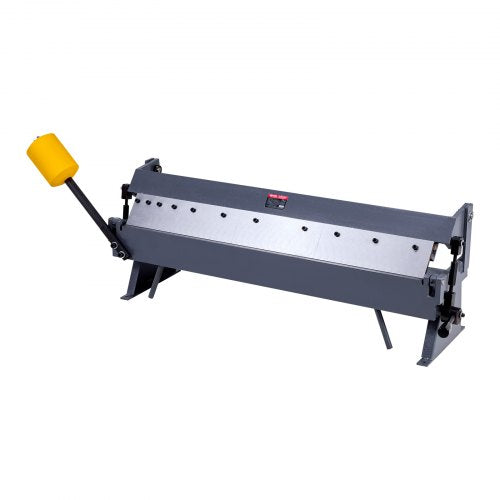

Box and Pan Brake, 36 in Sheet Metal Bending Brake,16-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 6 Fingers, Heavy-Duty Aluminum Folder for Precise Bending

Box and Pan Brake, 36 in Sheet Metal Bending Brake,16-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 6 Fingers, Heavy-Duty Aluminum Folder for Precise Bending

$861.00 USD
$861.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • 36-Inch Bending Capacity: This sheet metal brake can easily bend metal sheets up to 36 in wide with bending angles ranging from 0° to 135°, ideal for medium to large scale pieces in workshop.
  • Versatile Material Compatibility: Our box and pan brake supports a variety of materials, including mild steel, stainless steel, copper, and aluminum. It can efficiently bend 16 gauge (1.5 mm) mild steel sheets.

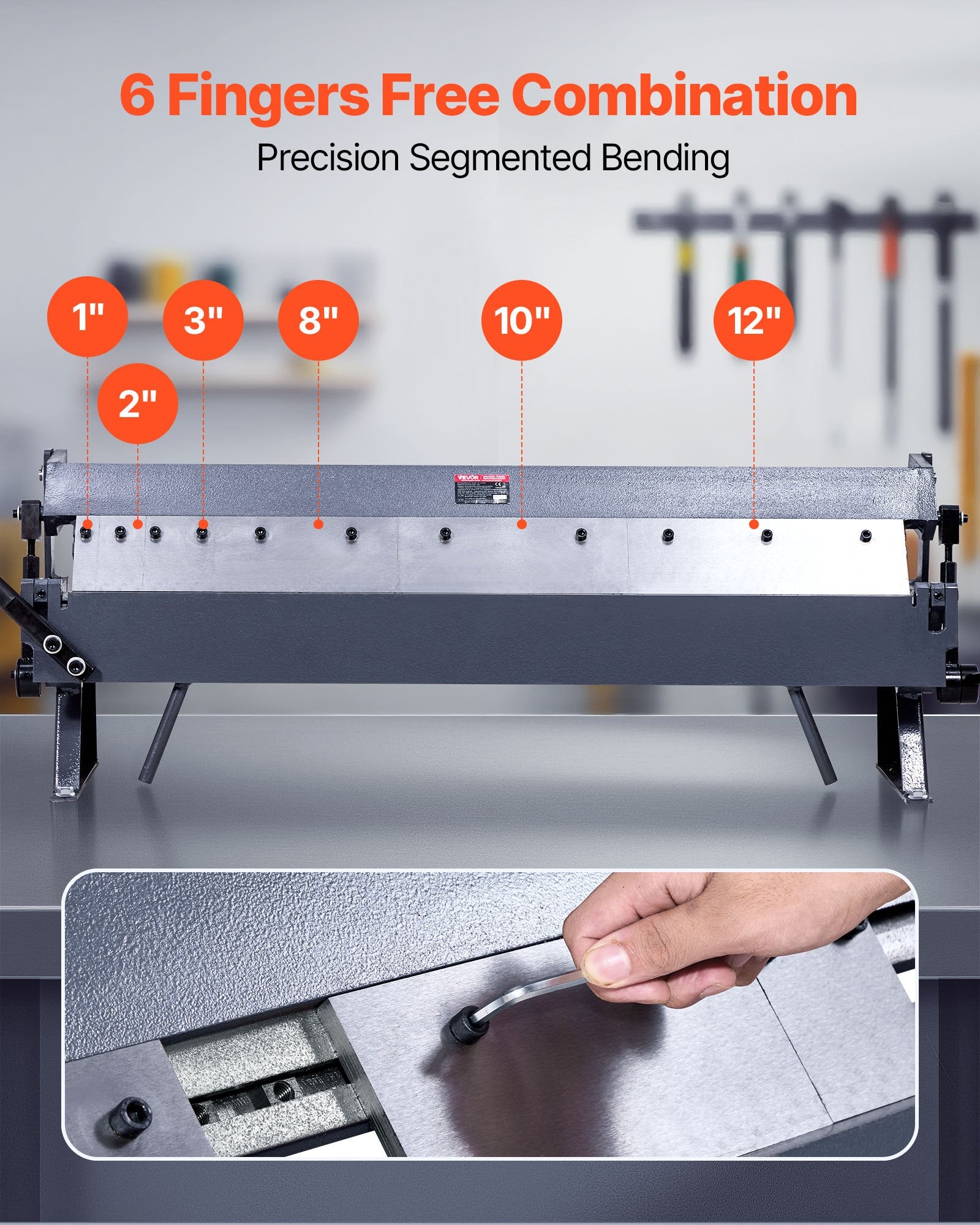

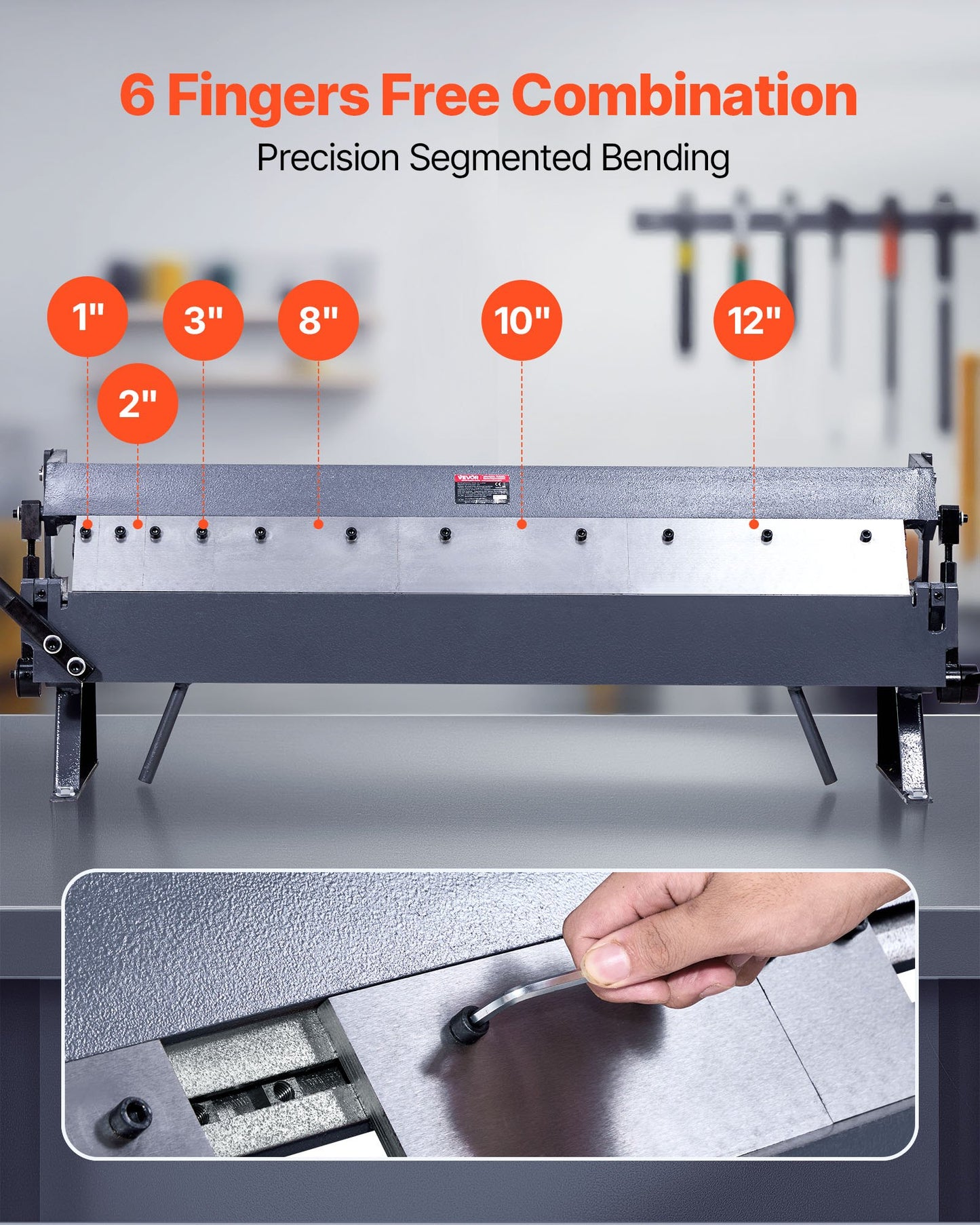

  • Modular Bending Dies: Equipped with six different segment fingers (1", 2", 3", 8", 10", 12"), the sheet metal bender allows for customizable bending to handle complex projects like electrical enclosures, instrument housings, and ventilation ducts.

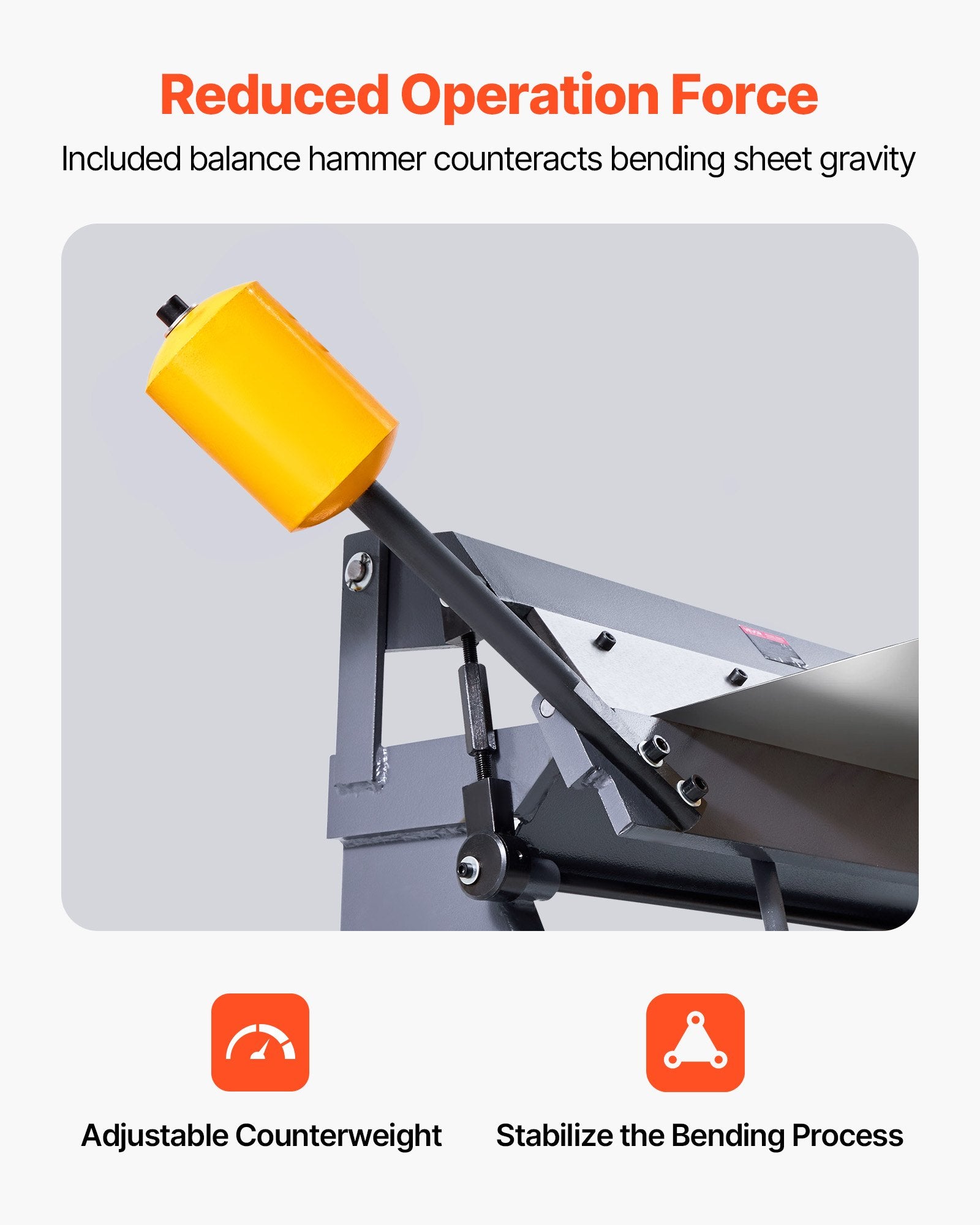

  • Effortless and Stable Operation: The metal bending machine features a single balancing hammer for secure clamping, reducing the force needed for bending and improving work efficiency. The pre-drilled holes at the base allow for easy mounting on a workbench or floor.
  • Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90° bend, set the angle to 92°).

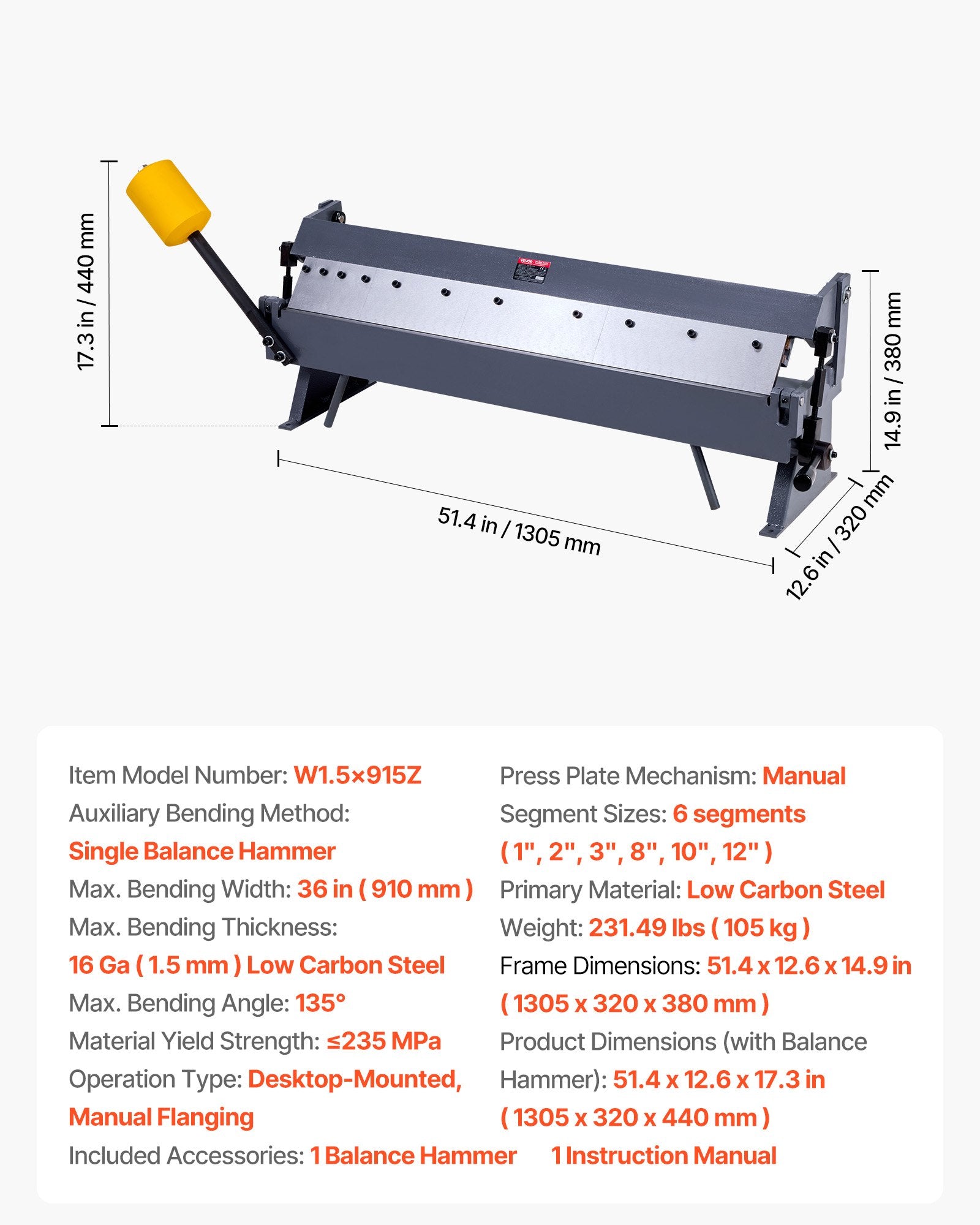

Product Specification
  • Product Dimensions(with Balance Hammer): 51.4 x 12.6 x 17.3 in (1305 x 320 x 440 mm)
  • Press Plate Mechanism: Manual
  • Item Model Number: W1.5×915Z
  • Max. Bending Thickness: 16 Ga (1.5 mm) Low Carbon Steel
  • Max. Bending Angle: 135°
  • Segments: 6 (1", 2", 3", 8", 10", 12")
  • Material: Low Carbon Steel
  • Max. Bending Width: 36 in (910 mm)
  • Material Yield Strength: ≤235 MPa
  • Mounting Type: Desktop-Mounted, Manual Flanging
  • Auxiliary Bending Method: Single Balance Hammer
  • Weight: 10.2 lbs (4.62 kg)
