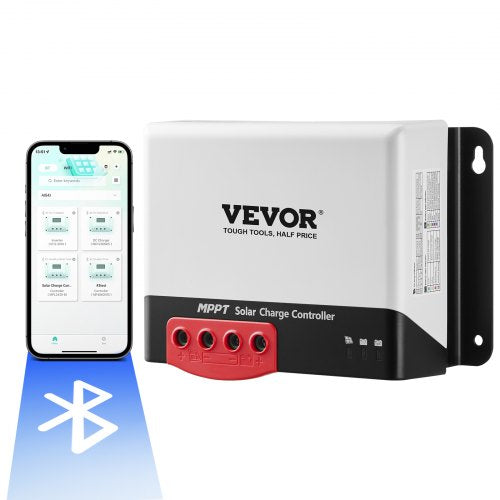

50A MPPT Solar Charge Controller, 12V / 24V Auto DC Input, Solar Panel Regulator Charger with Bluetooth Module, 98% Charging Efficiency for Sealed(AGM), Gel, Flooded and Lithium Battery Charging

50A MPPT Solar Charge Controller, 12V / 24V Auto DC Input, Solar Panel Regulator Charger with Bluetooth Module, 98% Charging Efficiency for Sealed(AGM), Gel, Flooded and Lithium Battery Charging

$179.00 USD
$179.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Efficient Charging: Utilizing advanced MPPT technology, surpassing traditional PWM charging technology by 15-30%, and achieving an ideal conversion efficiency of up to 98%. This means faster charging times, higher energy utilization, and longer-lasting operation for your devices.

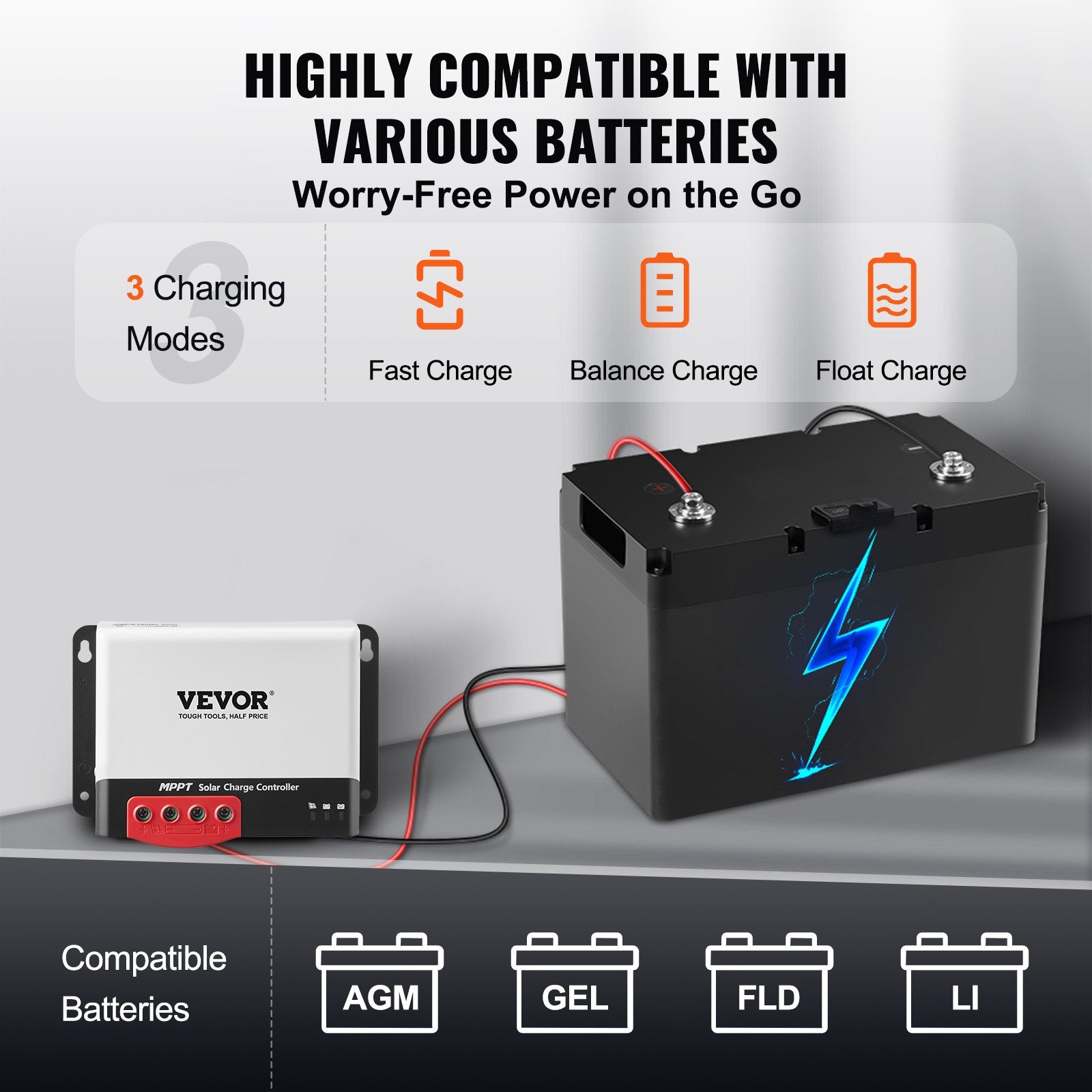

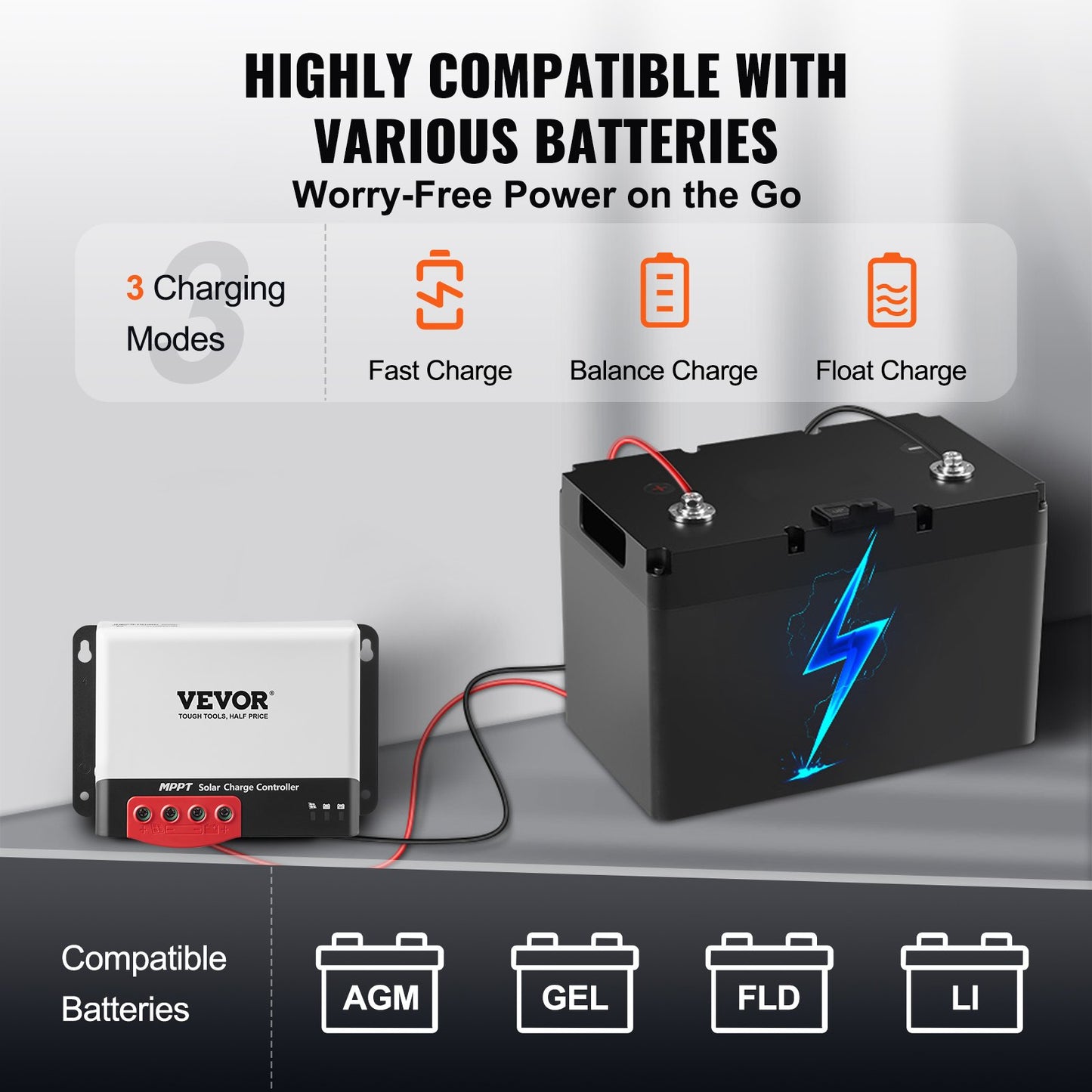

  • Versatile Compatibility: Suitable for various environments and devices, from home solar power systems to mobile photovoltaic systems. The solar charge controller can handle charging currents of up to 50A and supports a maximum solar panel power of 12V 660W / 24V 1320W. It's compatible with various common deep-cycle sealed batteries (AGM), gel batteries, flood batteries, and lithium batteries.

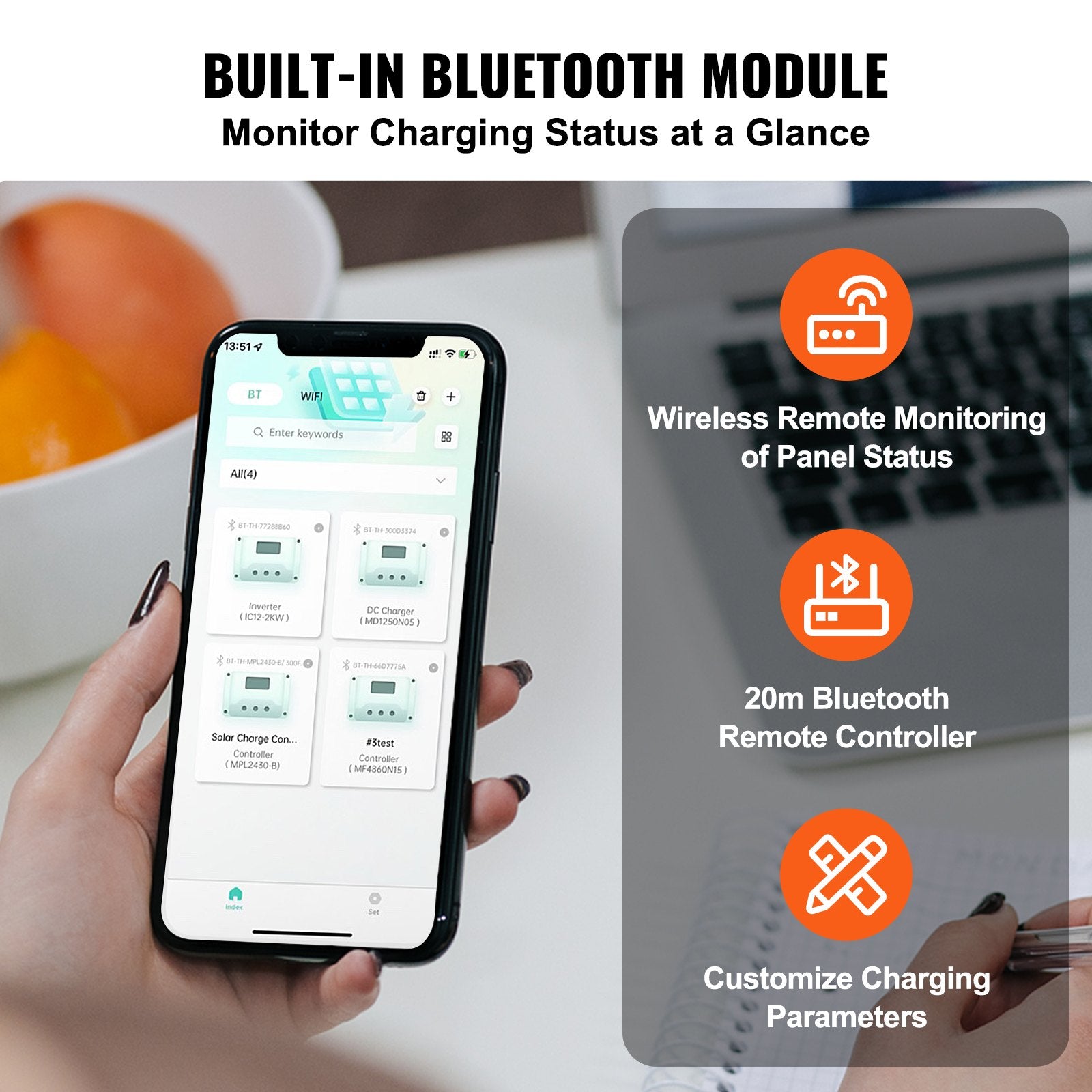

  • Easy to Use & Control: Equipped with a built-in Bluetooth module, allowing remote monitoring of important data for user convenience. The mppt solar controller helps users easily monitor and adjust the device's operating status. Additionally, it comes with a TTL communication interface, supporting the Modbus communication protocol for versatile functionality expansion and meeting various communication needs.

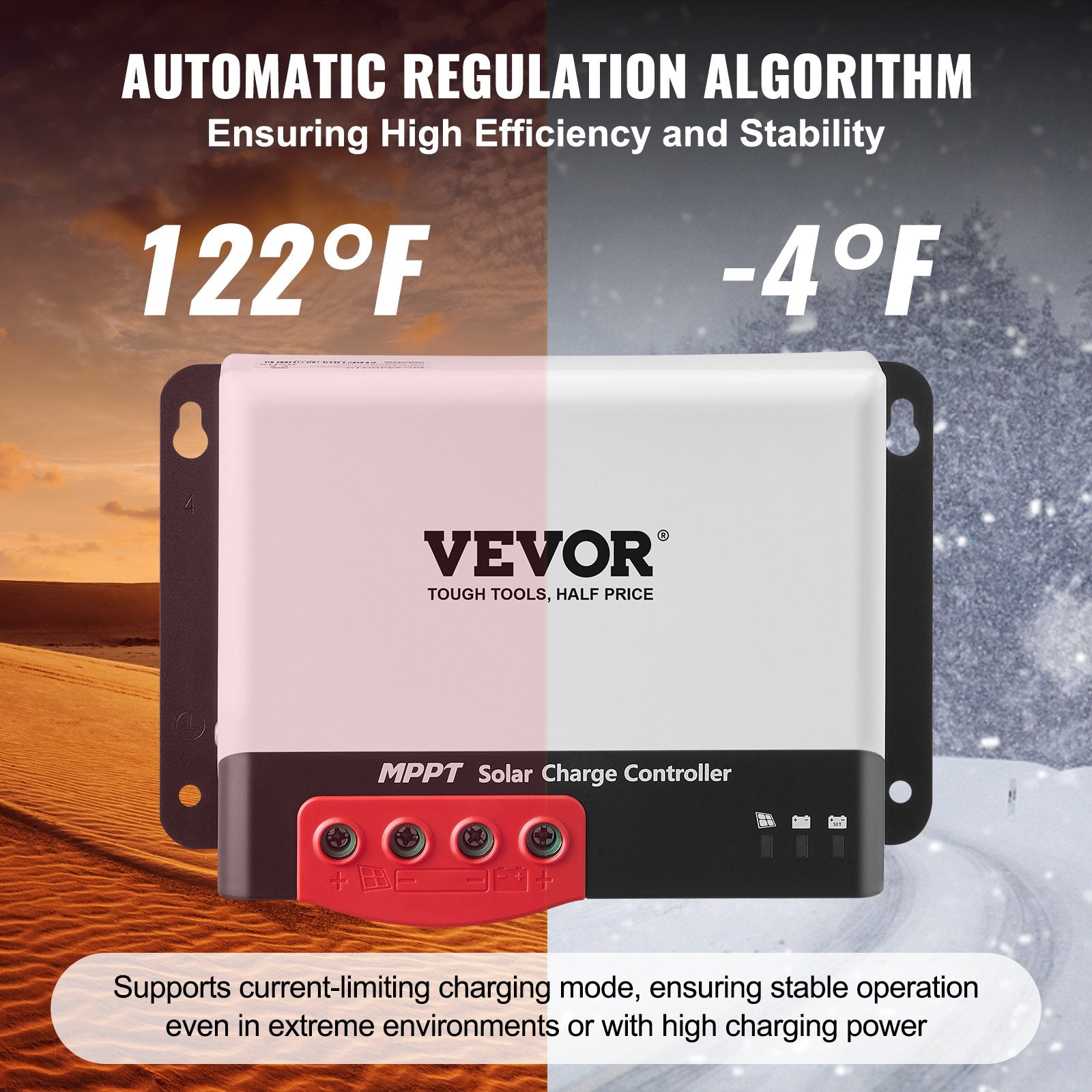

  • High Stability: Automatic adjustment algorithms and support for current-limiting charging mode ensure stable operation even in extreme conditions, such as high temperatures up to 50°C (122°F) or low temperatures down to -20°C (-4°F), as well as during high charging power situations.
  • Enhanced Security: Offers all-around electronic protection features, including battery reverse protection, PV reverse protection, PV short-circuit protection, overcurrent protection during charging, and TVS lightning protection. These features ensure the security and long-term use of the device.

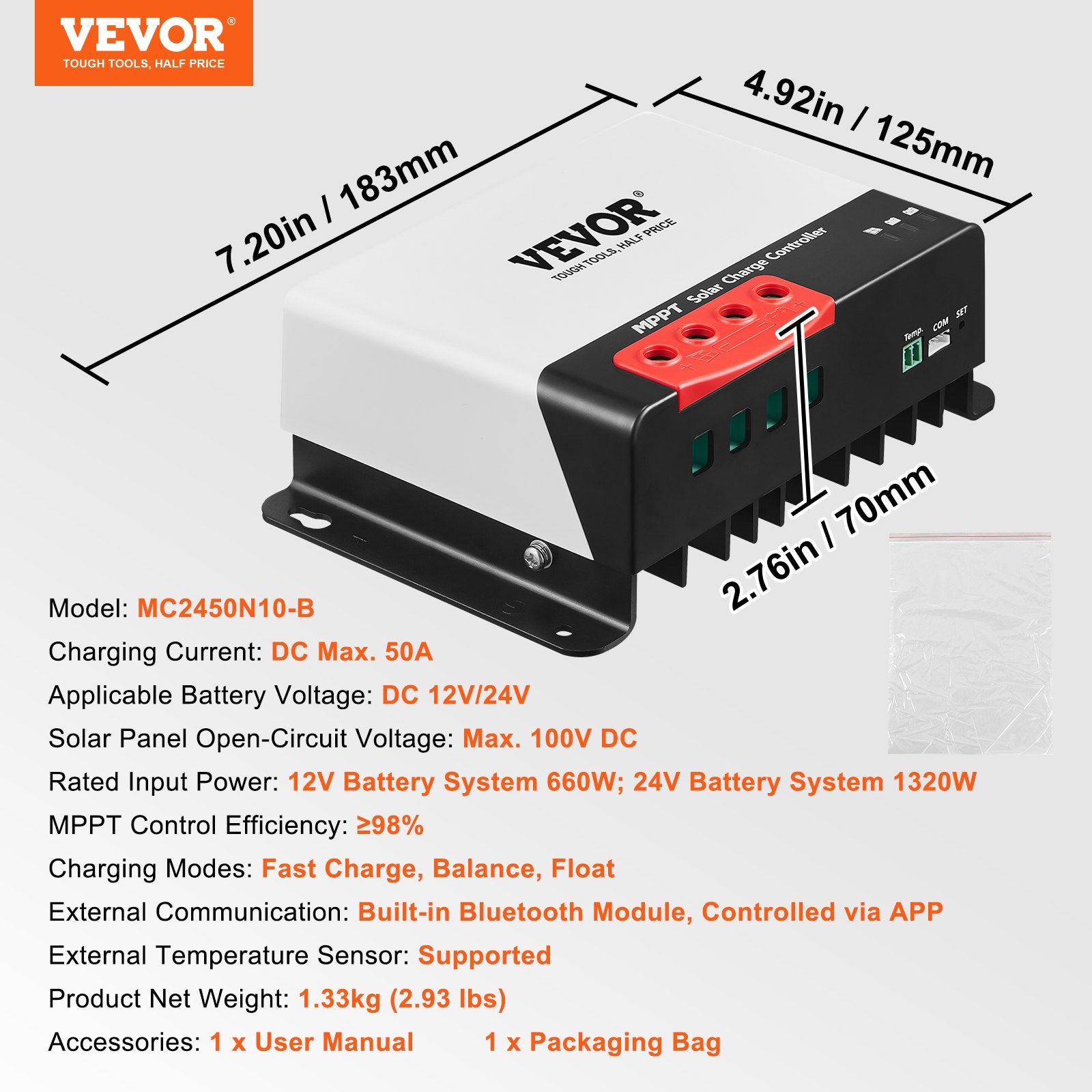

Product Specification
  • Primary Material: ABS+PC
  • Package Dimensions: 240 x 190 x 130 mm/9.45 x 7.48 x 5.1 inches
  • Solar Panel Open-Circuit Voltage: Max. 100V DC
  • Operating Temperature Range: -20°C to 50°C/-4°F to 122°F
  • Applicable Battery Voltage(DC): 12V/24V Auto
  • Product Dimensions: 183 x 125 x 70 mm/7.2 x 4.92 x 2.76 inches
  • Rated Input Power: 12V/660W; 24V/1320W
  • MPPT Control Efficiency: ≥98%
  • Item Model Number: MC2450N10-B
  • External Communication: Built-in Bluetooth Module, Controlled via Neutral APP
  • Product Net Weight: 1.33 kg/2.93 lbs
  • External Temperature Sensor: Supported
  • Charging Modes: Fast Charge, Balance, Float
  • Charging Current(DC): Max. 50A
