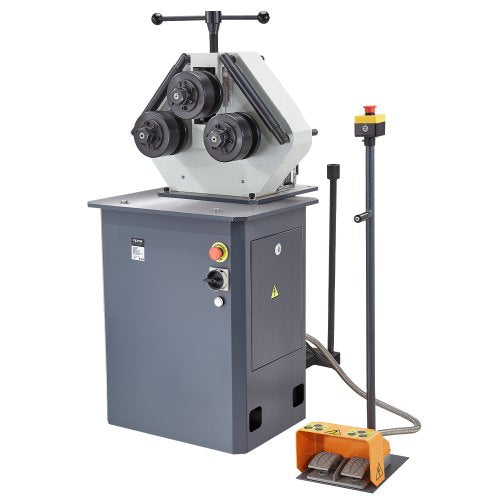

750W Electric Roll Bending Machine, 3-Roller Electric Pipe Bender Machine with 180° Maximum Bending Angle & Reversible Foot Switch, Support Horizontal/Vertical Operation (220V 60Hz 3-Phase)

750W Electric Roll Bending Machine, 3-Roller Electric Pipe Bender Machine with 180° Maximum Bending Angle & Reversible Foot Switch, Support Horizontal/Vertical Operation (220V 60Hz 3-Phase)

$2,714.00 USD
$2,714.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Efficient Pipe Bending: Our 1HP/750W powerful electric roll bending machine is designed to bend pipes with a maximum thickness of up to 5mm, offering a maximum bending angle of 180°. (NOTE: The machine does not come with a plug and need to be wired for use.) (Compatible Voltage: 220V 60Hz 3-Phase)
  • Bending Capacity: This roll tube bending machine supports bending operations for various sizes, including square tubes ranging from 16 x 16 mm to 40 x 40 mm, square steel of 25 x 25 mm, and steel strips of 40 x 10 x 10 mm.

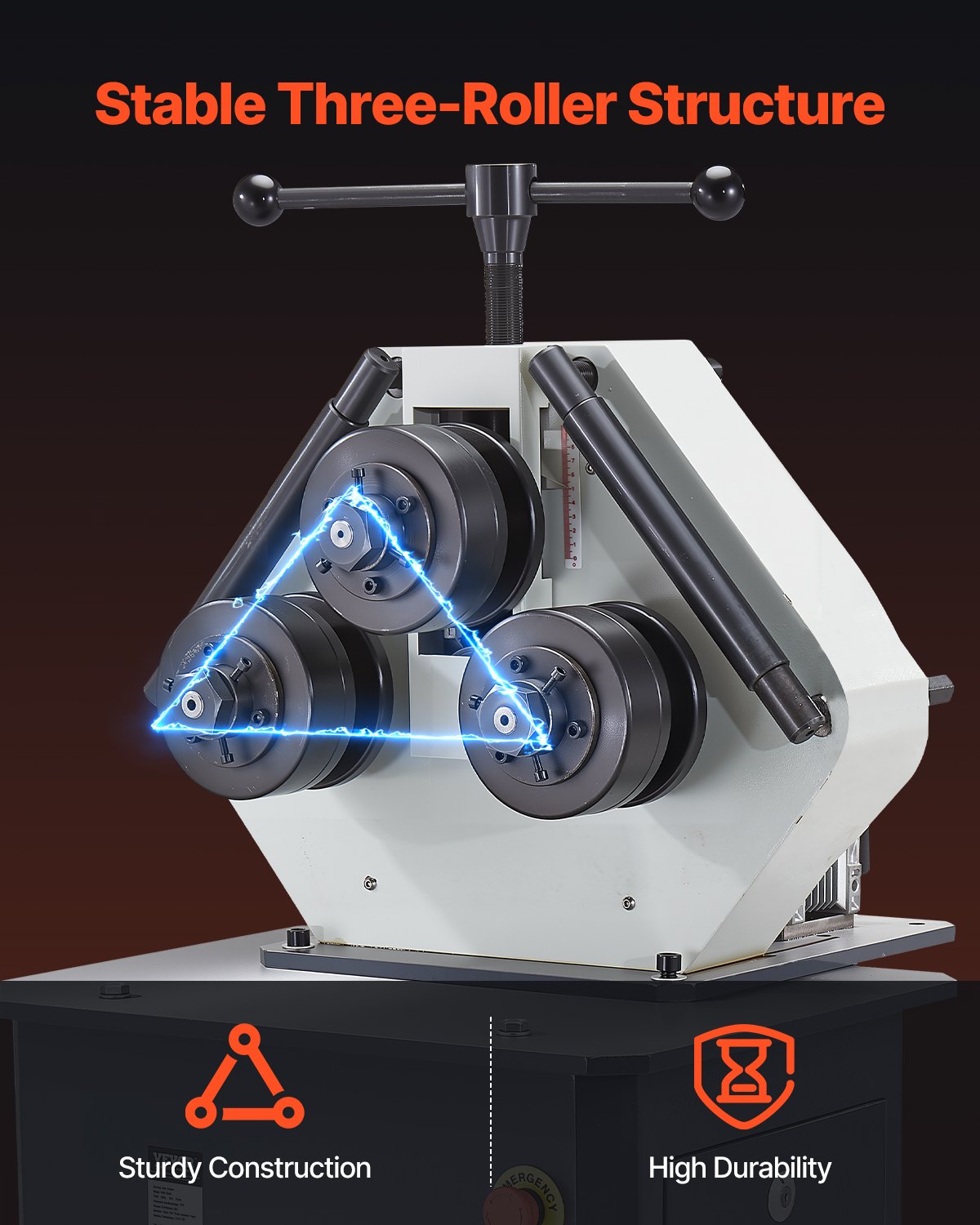

  • Electric 3-Roller Structure: Featuring an electric three-roller wheel mechanism, the pipe tube roll bending machine offers robust construction and high durability. It contributes to a smooth and consistent bending action, which is crucial for maintaining the integrity of the materials being processed.

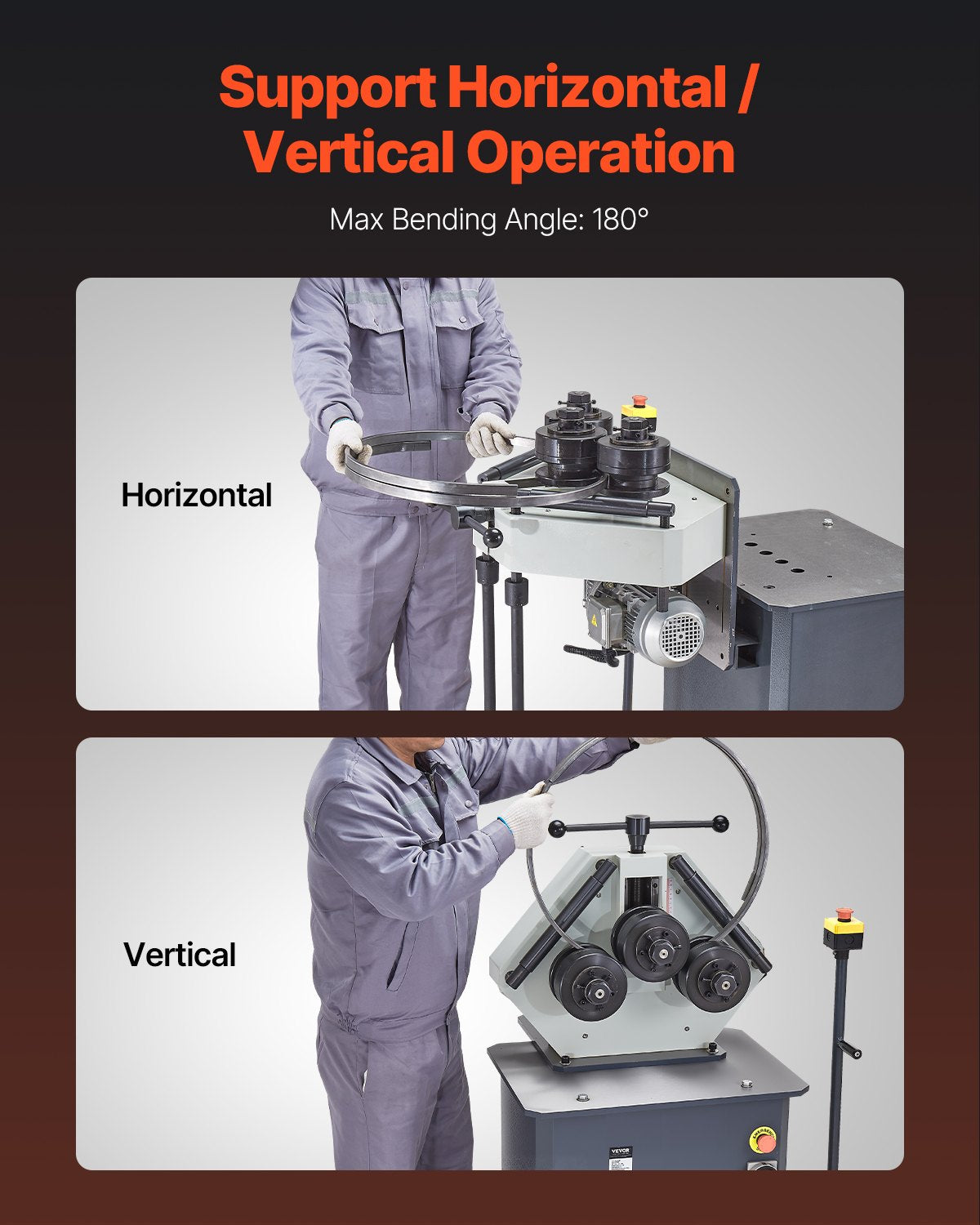

  • Flexible Operation: Our tube bending machine supports operation in both horizontal and vertical directions, allowing for flexible adjustments based on specific task requirements. It features a reversible foot switch to free your hands, enhancing convenience and safety.

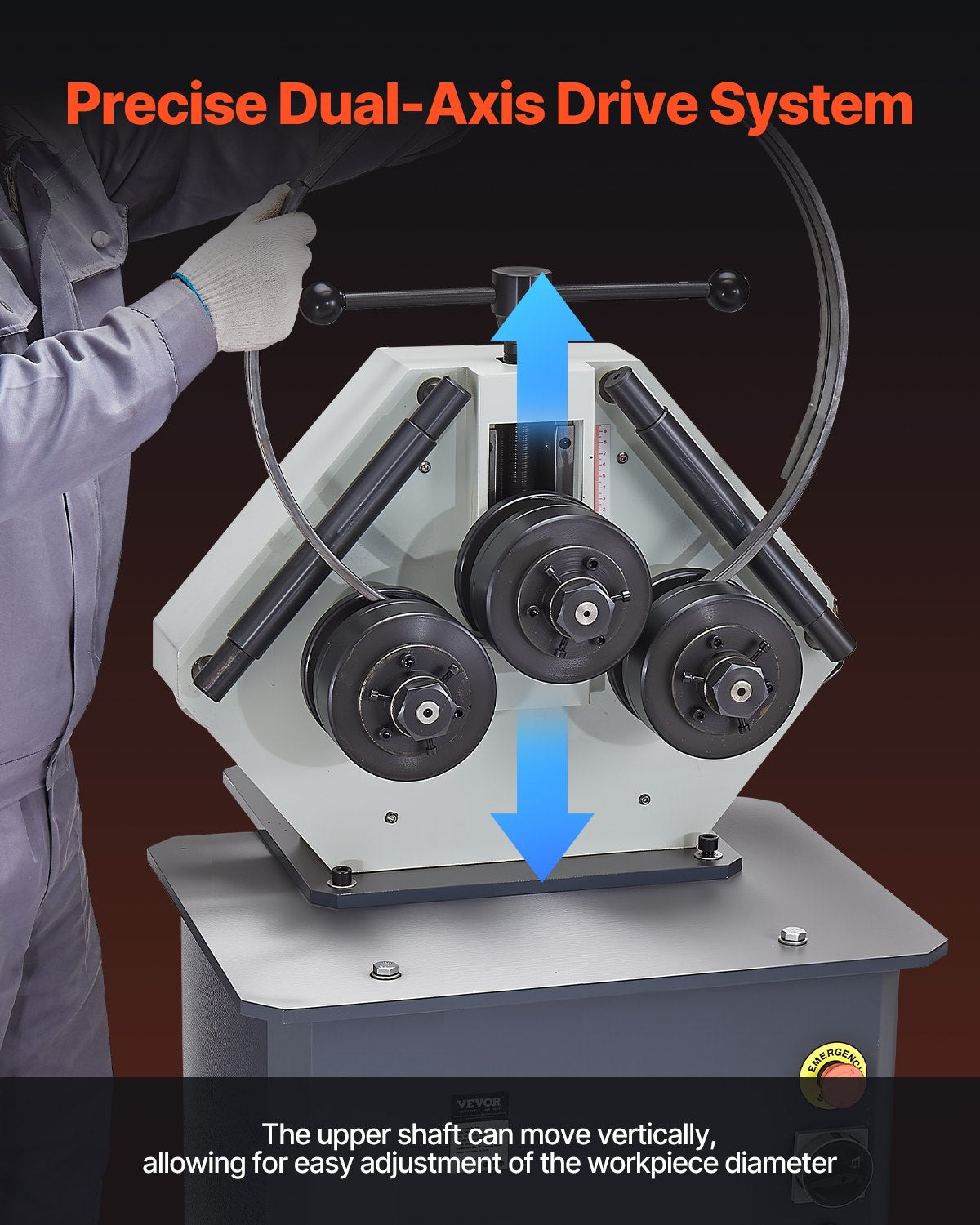

  • Dual-Axis Drive System: The upper shaft can move vertically, allowing for easy adjustment of the processed workpiece diameter. This pipe tube bender is widely used in steel processing, automotive maintenance, and construction sites, ensuring efficient and effortless pipe bending.

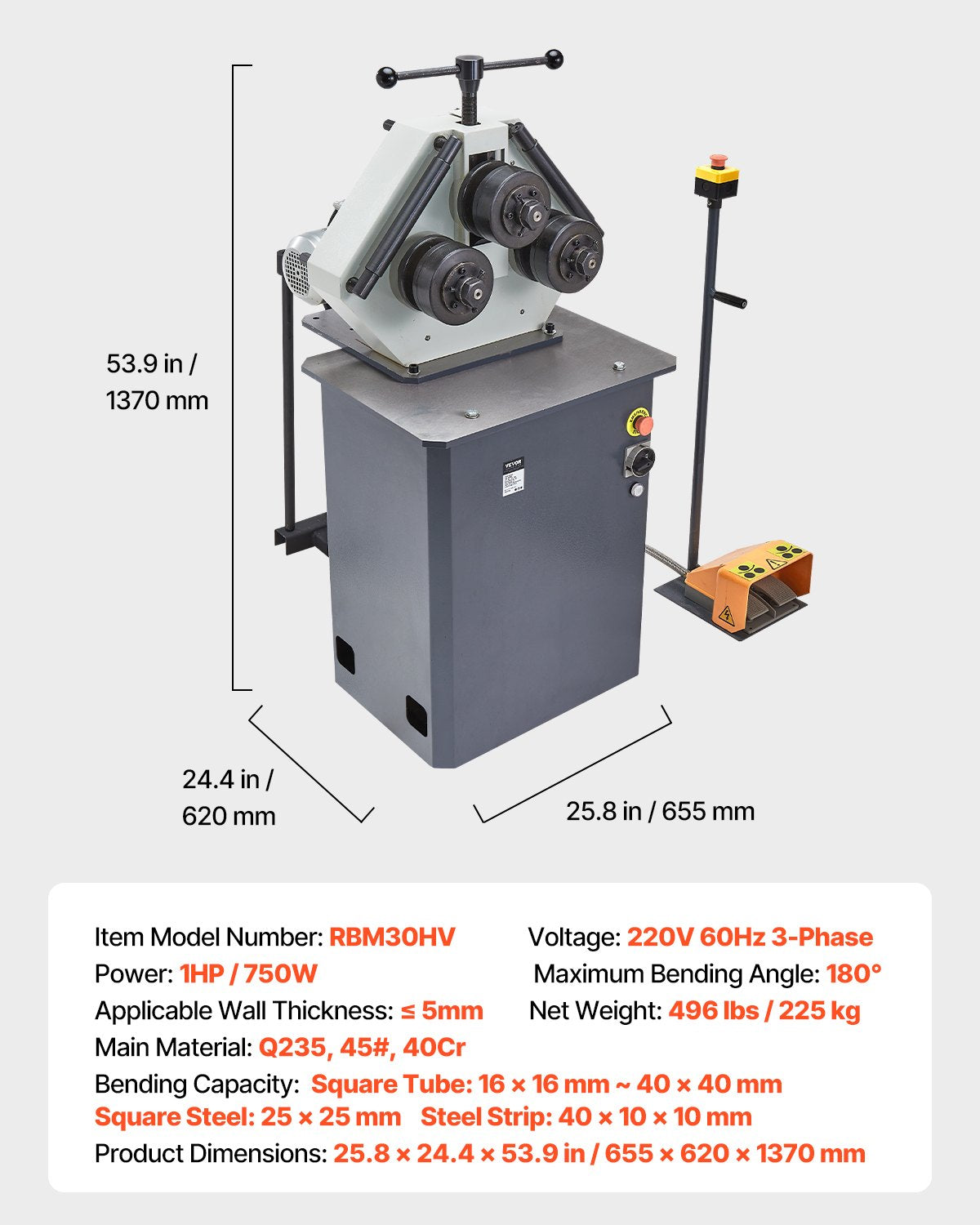

Product Specification
  • Voltage: 220V 60Hz 3-Phase
  • Item Model Number: RBM30HV
  • Maximum Bending Angle: 180°
  • Product Dimensions: 25.8 x 24.4 x 53.9 in / 655 x 620 x 1370 mm
  • Net Weight: 496 lbs / 225 kg
  • Power: 1HP / 750W
  • Applicable Wall Thickness: ≤ 5mm
  • Main Material: Q235, 45#, 40Cr
