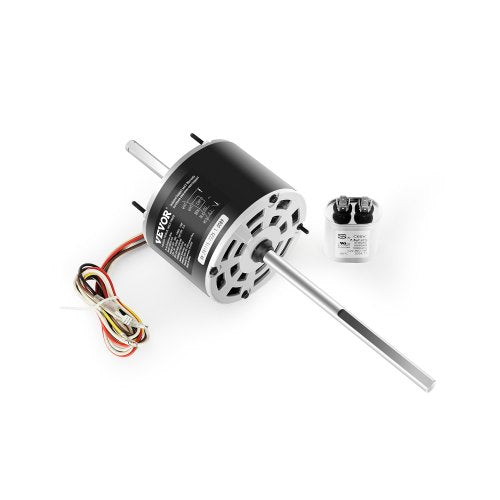

1/3HP RV Air Conditioner Motor with Capacitor, AC115V 3A, 1675 RPM, Replacement for Coleman Mach RV AC Fan Motor, Replaces Fasco D1092, 1468-306, 1468-3068, 1468-3069, 7184-0156, 7184-0432

1/3HP RV Air Conditioner Motor with Capacitor, AC115V 3A, 1675 RPM, Replacement for Coleman Mach RV AC Fan Motor, Replaces Fasco D1092, 1468-306, 1468-3068, 1468-3069, 7184-0156, 7184-0432

$107.00 USD
$107.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Key Features: 1/3 HP, Single Phase, Full Load Amp: 3.0A, Voltage: AC115V 60Hz, 2 Speeds - 1675/1350 RPM, 0.5-inch Shaft Diameter.
  • Replacement Part #: D1092, 1468-306, 1468-3069, 1468-3068, 1468A3069, 1468-3109, 7855MVA-A11U, 7184-0156, 7184-0432, 7184-0196, Y6L-457D01L, Y6L45C21.
  • Wide Compatibility: Compatible with Coleman-MACH 3, for MACH 3 Plus, for MACH 15, for 6000/8000 Series A/C. Compatible with Coleman Mach Air Conditioner Models: 48004, 48014, 48064, 48203, 48204, 48213, 48253, 48254, 48263, 48264, 8332, 8333, 8335, 8433, 8534, 8535, 8632, 8633, Airxcel 48254C966.

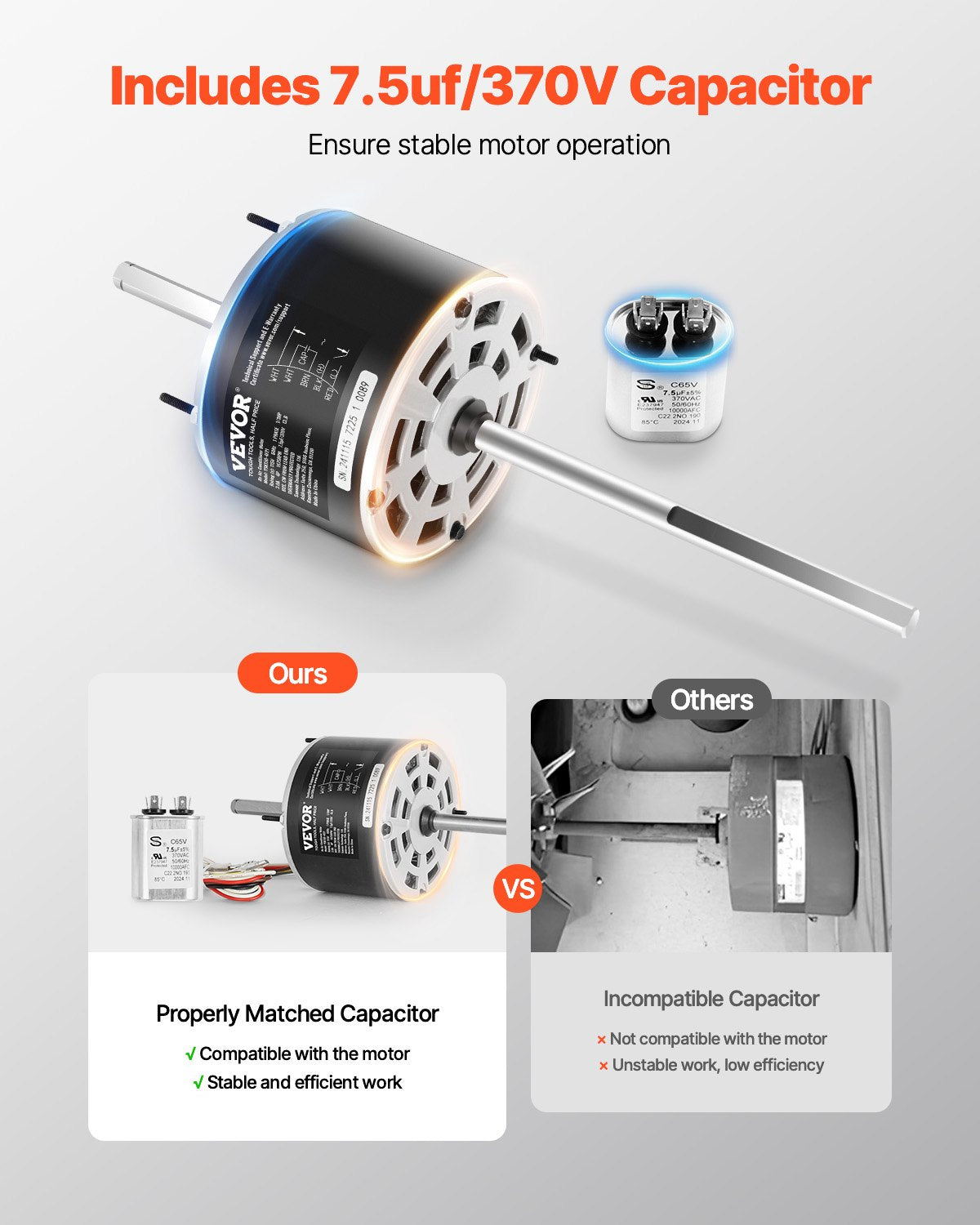

  • Convenient Accessory: This RV rooftop air conditioner motor comes with a CBB65 7.5uf/370V capacitor, eliminating the need to purchase a compatible unit separately, ensuring stable and efficient operation of the motor.
  • Safety and Durability: VEVOR RV AC fan motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance, providing reliable protection and extending its service life.

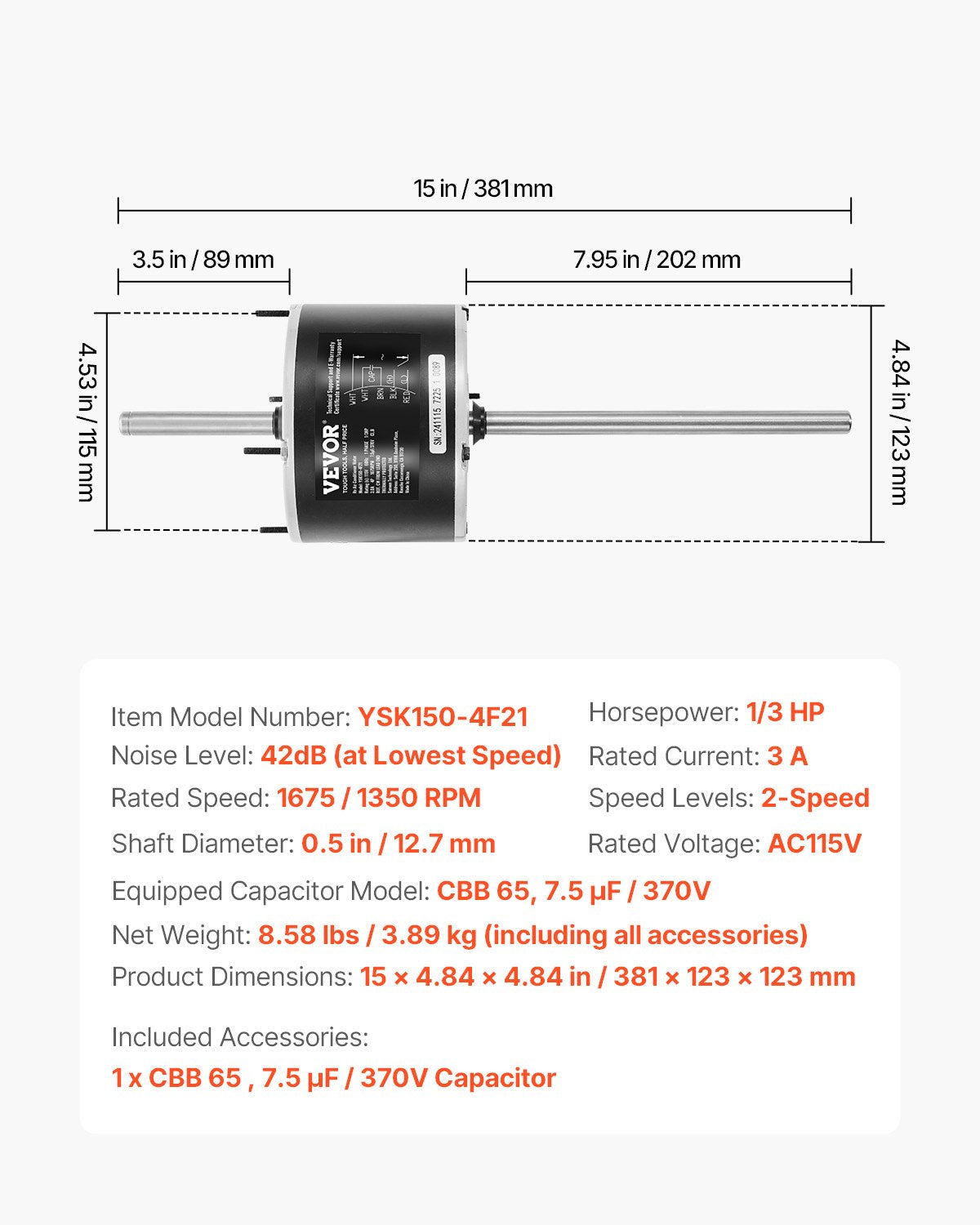

Product Specification
  • Equipped Capacitor Model: CBB 65, 7.5 µF / 370V
  • Rated Speed: 1675 / 1350 RPM
  • Horsepower: 1/3 HP
  • Item Model Number: YDK150-4F21
  • Shaft Diameter: 0.5 in / 12.7 mm
  • Rated Current: 3 A
  • Speed Levels: 2-Speed

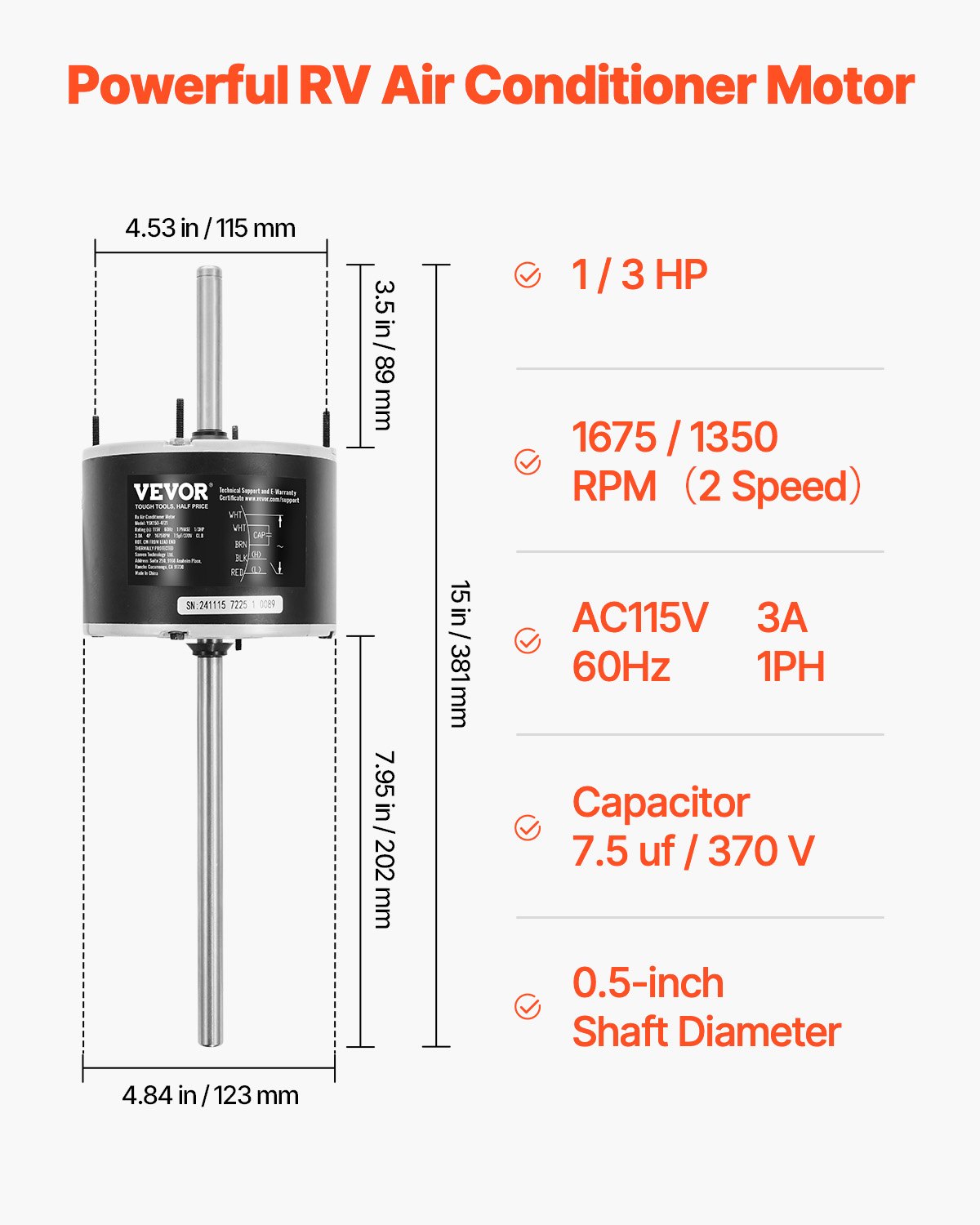

  • Product Dimensions: 15 x 4.84 x 4.84 in / 381 x 123 x 123 mm
  • Net Weight: 8.58 lbs / 3.89 kg (including all accessories)
  • Rated Voltage: AC115V
