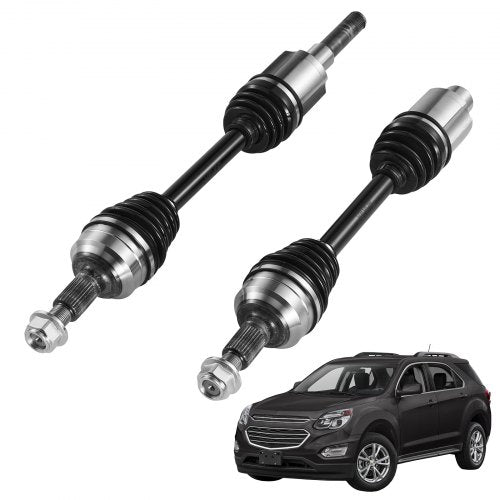

CV Axle Shaft Assembly, 2 Pieces Front Left & Right (Driver and Passenger Side), Automotive Replacement Joint Axles Pair Compatible with 2010-2017 Chevrolet Equinox, Alloy Steel & Carbon Steel

CV Axle Shaft Assembly, 2 Pieces Front Left & Right (Driver and Passenger Side), Automotive Replacement Joint Axles Pair Compatible with 2010-2017 Chevrolet Equinox, Alloy Steel & Carbon Steel

$125.00 USD
$125.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Vehicle-Specific Fit: This front CV axle shaft assembly fits driver and passenger sides, compatible with 2010-2017 Chevrolet Equinox. A go-to choice for replacing axles on SUVs

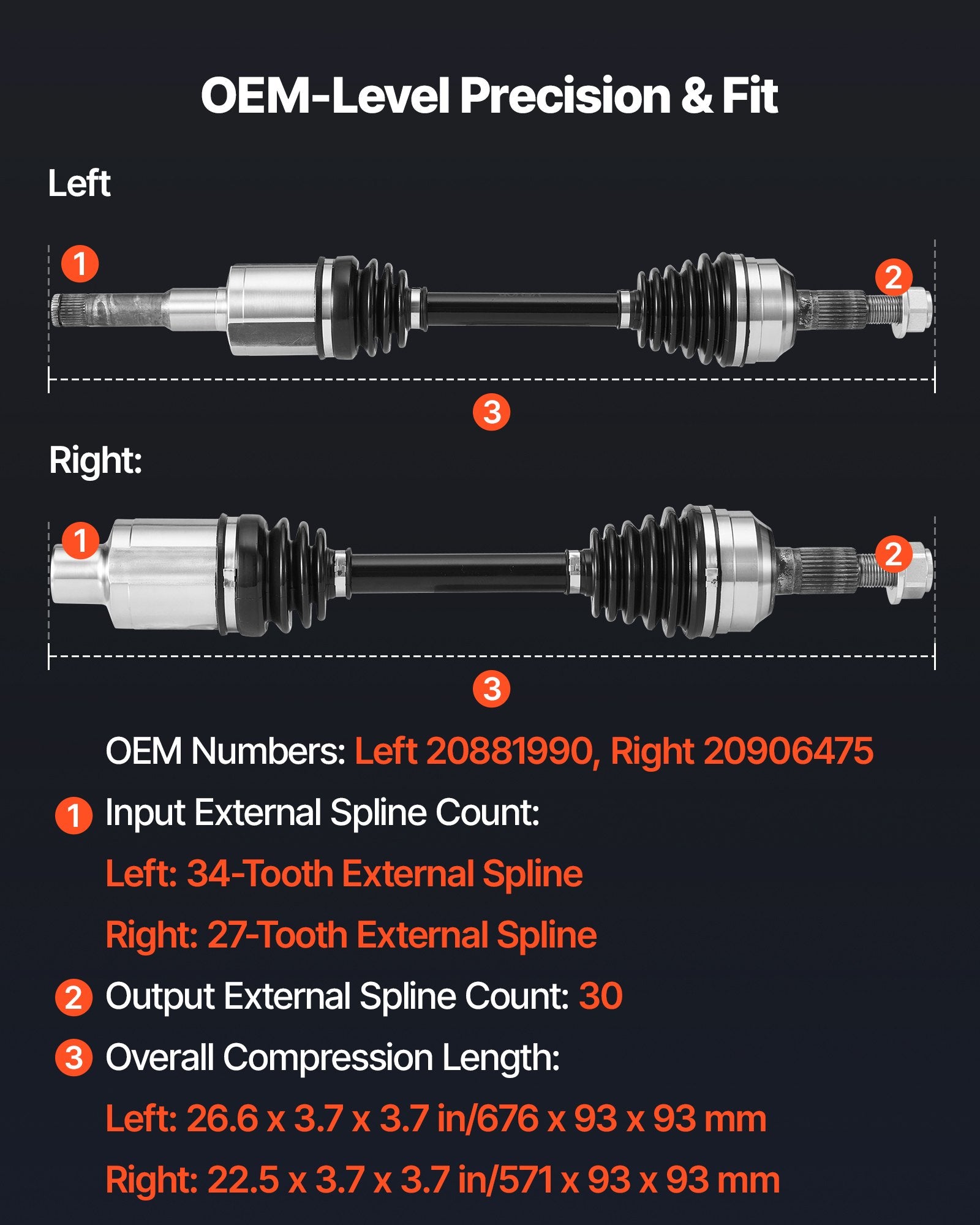

  • OEM-Level Precision: OEM Numbers: Left 20881990, Right 20906475; Overall Compressed Length: Left 26.6–28.8 in, Right 22.5–24.6 in. Input Splines: 34 Teeth (Left), 27 Teeth (Right); Output Splines: 30 Teeth. The CV joint axle ensures a precise hub fit
  • Sealed Neoprene Boot: The tough neoprene boot seals the joint from dirt, sand, and road mess. It is pre-greased with high-temp moly grease that stays put, even under heat and stress, so your front passenger CV axle stays running smoothly and quietly
  • Built to Last: Our CV axle is made with alloy steel and carbon steel for strength you can count on. It handles commutes, long highway hauls, and a bit of light off-roading without flinching. No more worrying about early wear or annoying shakes
  • Easy Installation: We pre-installed the output shaft nut—less hassle for you. Just pop the old front CV axle out, adjust the new one into place, lock it in, and you're good to go

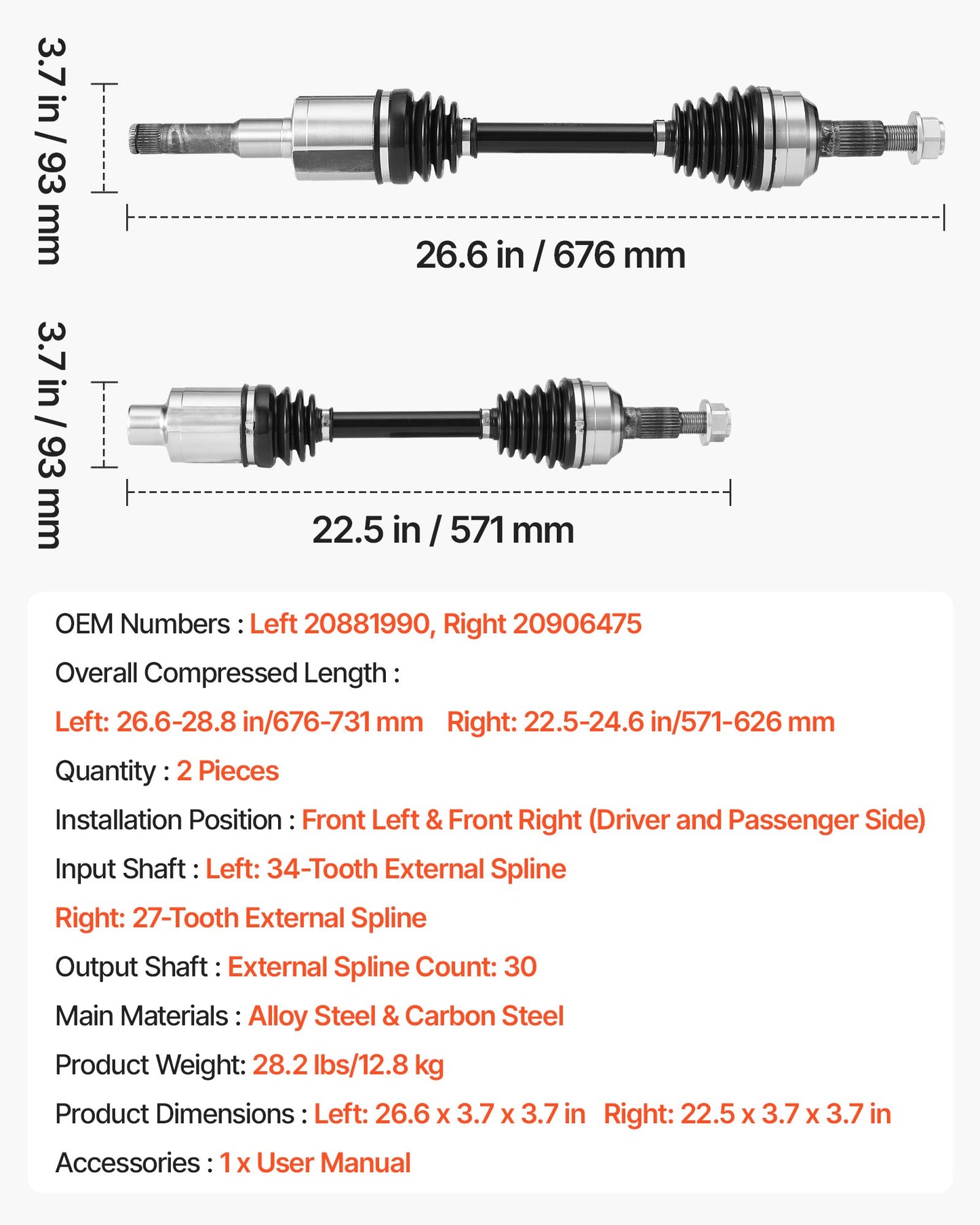

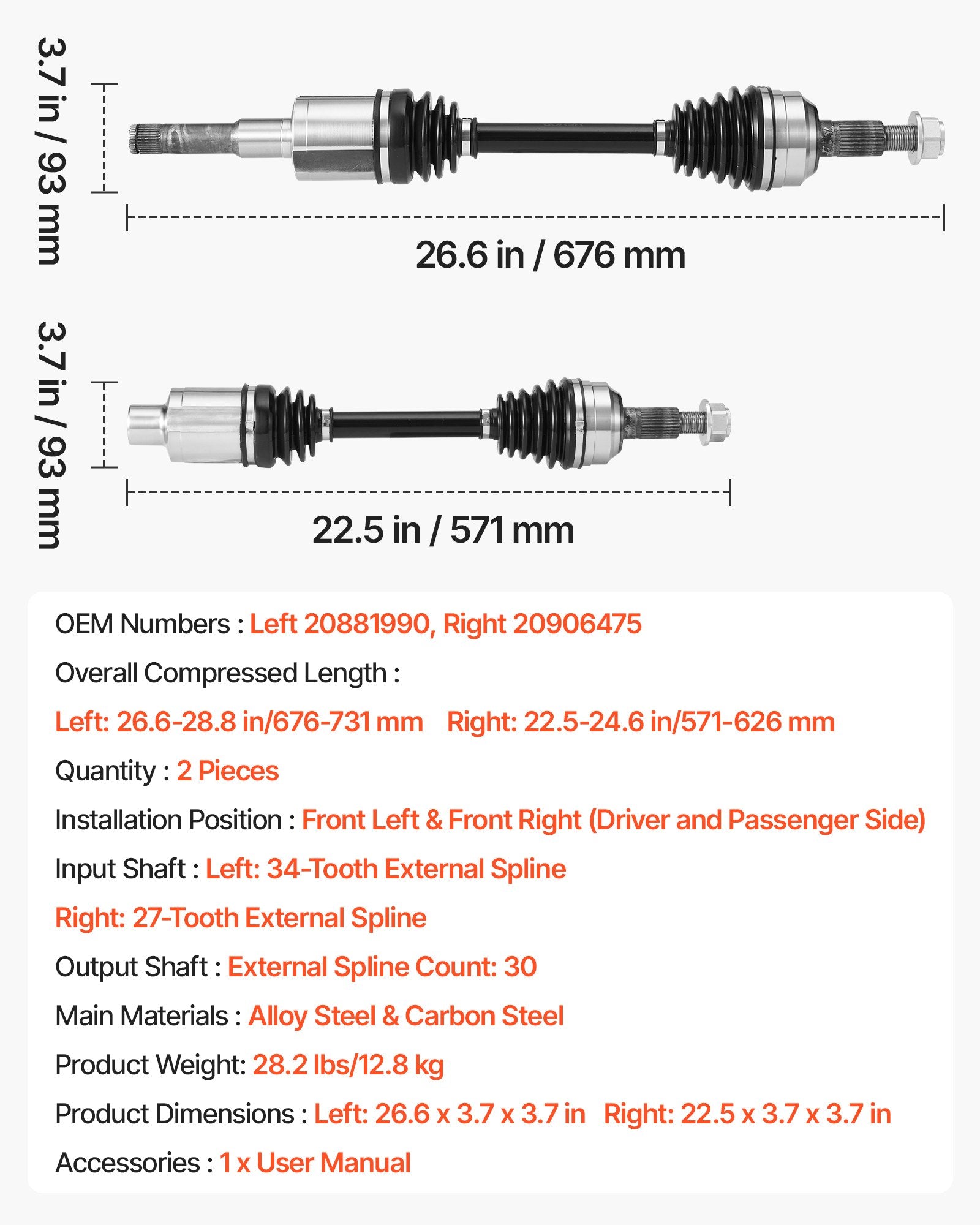

Product Specification
  • Product Dimensions (Left): 26.6 x 3.7 x 3.7 in/676 x 93 x 93 mm
  • Installation Position: Front Left & Front Right (Driver and Passenger Side)
  • Output Shaft External Spline Count: 30 (Left); 30 (Right)
  • Main Materials: Alloy Steel & Carbon Steel
  • Product Dimensions (Right): 22.5 x 3.7 x 3.7 in/571 x 93 x 93 mm
  • OEM Numbers: Left 20881990, Right 20906475
  • Item Model Number: A1-8-352, A1-8-351
  • Product Weight: 28.2 lbs/12.8 kg
  • Input Shaft External Spline Count: 34 (Left); 27 (Right)
  • Overall Compressed Length: 26.6-28.8 in/676-731 mm (Left); 22.5-24.6 in/571-626 mm (Right)
