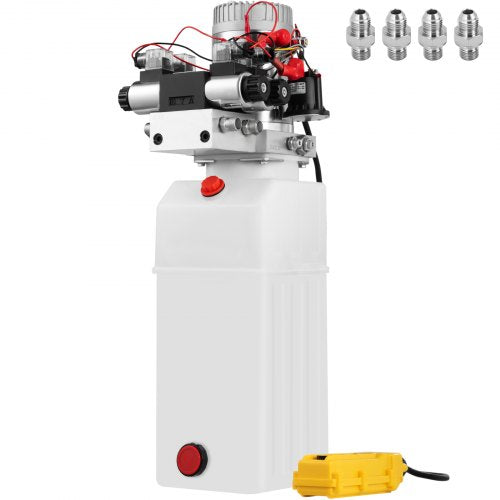

Hydraulic Pump, 8 Quart/2 Gal Double Acting Dump Trailer Pump DC 12V, 3200 PSI Max Relief Pressure, Electric Hydraulic Power Unit for Dump Trailer Car Lifting (with 4pcs SAE #6 Connectors)
Hydraulic Pump, 8 Quart/2 Gal Double Acting Dump Trailer Pump DC 12V, 3200 PSI Max Relief Pressure, Electric Hydraulic Power Unit for Dump Trailer Car Lifting (with 4pcs SAE #6 Connectors)
Regular price
$358.00 USD
Regular price
Sale price
$358.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details

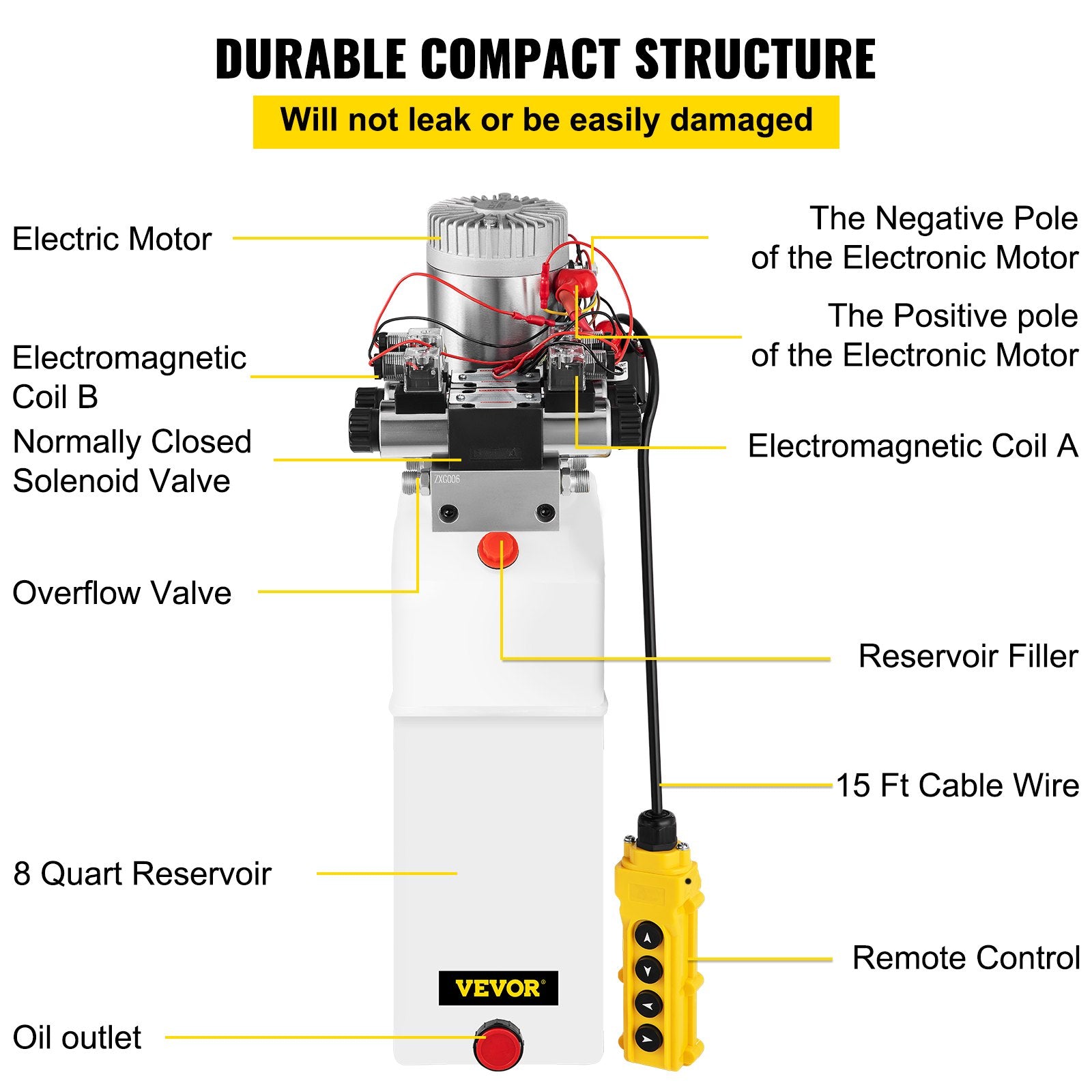

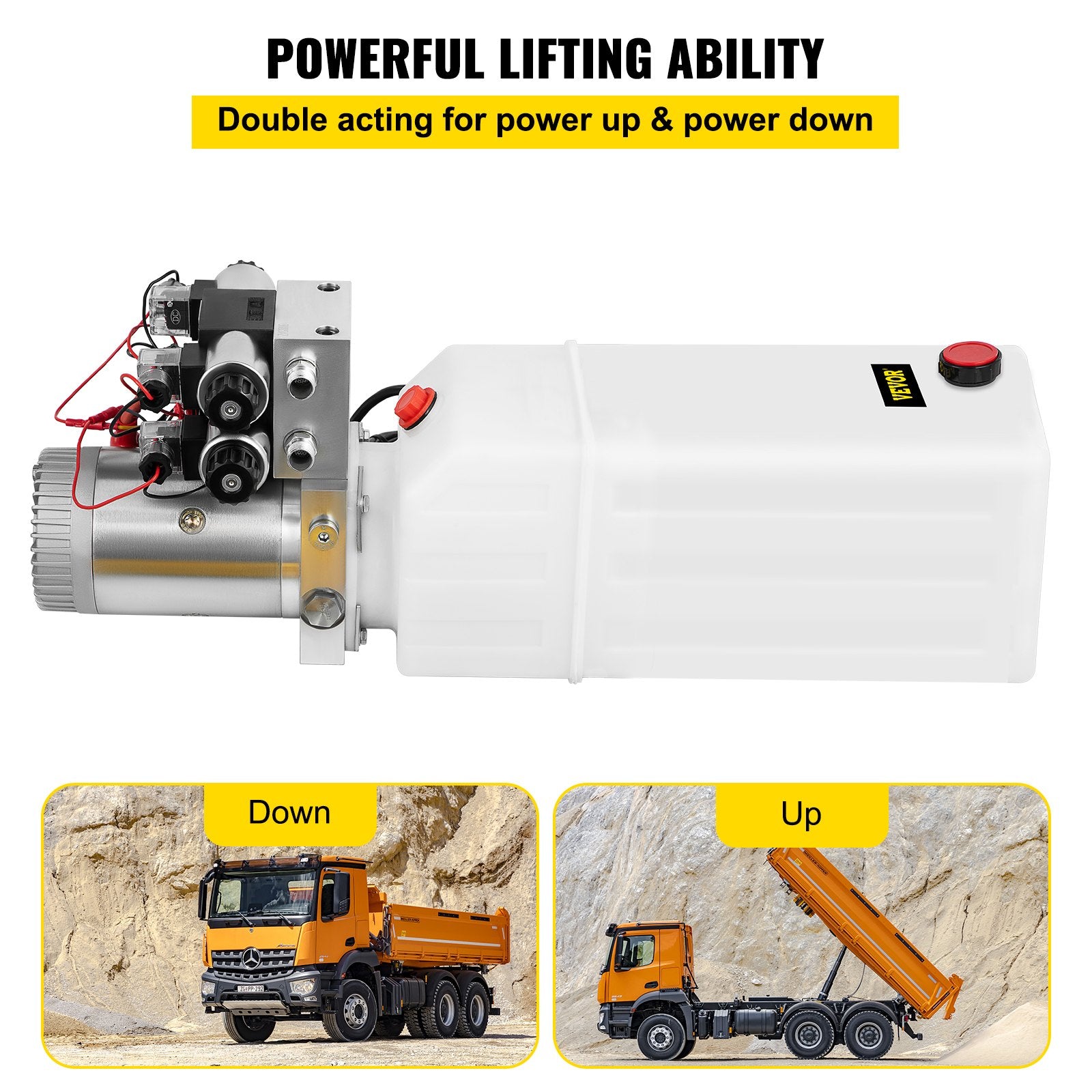

- Premium Hydraulic Pump: Our hydraulic pump is designed with a 12V DC 1.6-3.0kw motor, an 8-quart reservoir and a start solenoid. The max relief pressure is 3200 PSI, and it is a double-acting pump for both power up and power down.
- Reliable & Stable: The dump trailer pump is made of sturdy plastic, thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems.
- Rapid Start: With the powerful motor, this hydraulic electric pump is quick to start and output oil; it can provide strong power for hydraulic systems like dump trailer.

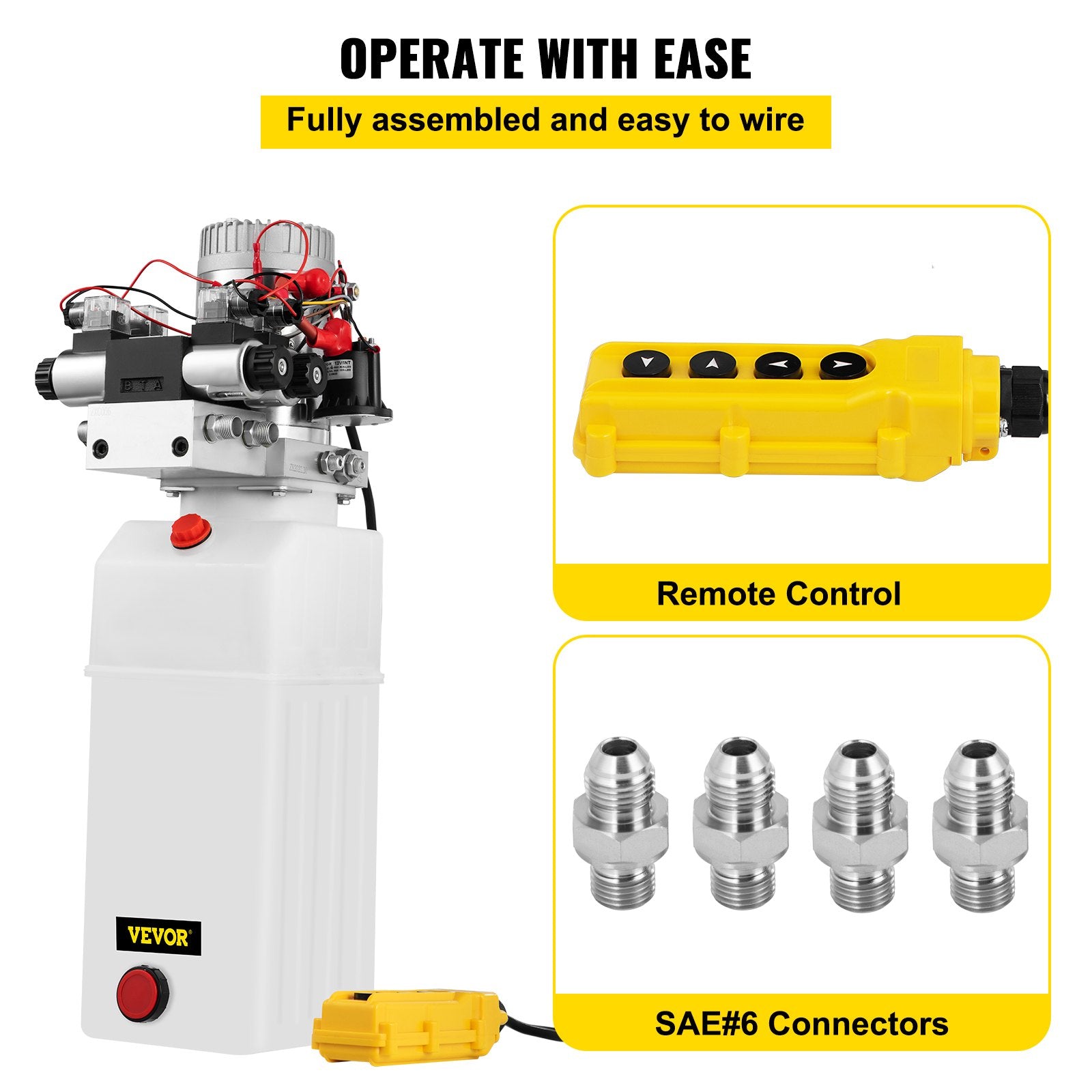

- Easy to Use: The wiring is simple and comes with operating instructions. It comes with a 15 ft remote for long-distance control and 4 SAE#6 connectors.
- Wide Application: This power unit is widely used in stackers. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
- Motor: 12VDC electric motor c/w relay with motor coat
- Max flow: 5L/min
- 8-liter reservoir c/w drain plug:
- Reservoir Capacity: 8L
- Port size 3/8" BSP:
- Delivery Rate at 160 bar: approx. 5 L / min (adjustable from 40-200 bar as standard)
- Voltage: 12V DC
- Features: Powerpack complete with suction strainer, return oil conveyer and filler breather
- Double acting:
- Mounting Orientation: Horizontal mounting
- 2.1cc/rev gear pump:
- Power: 1.6-3KW
- Max pressure: 200 bar
