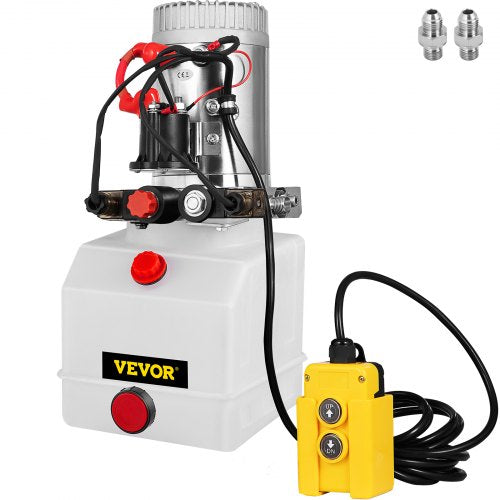

Hydraulic Pump Electric Hydraulic Pump 3 Quart Double Acting Metal Reservoir for Dump Trailer

Hydraulic Pump Electric Hydraulic Pump 3 Quart Double Acting Metal Reservoir for Dump Trailer

$251.00 USD
$251.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details

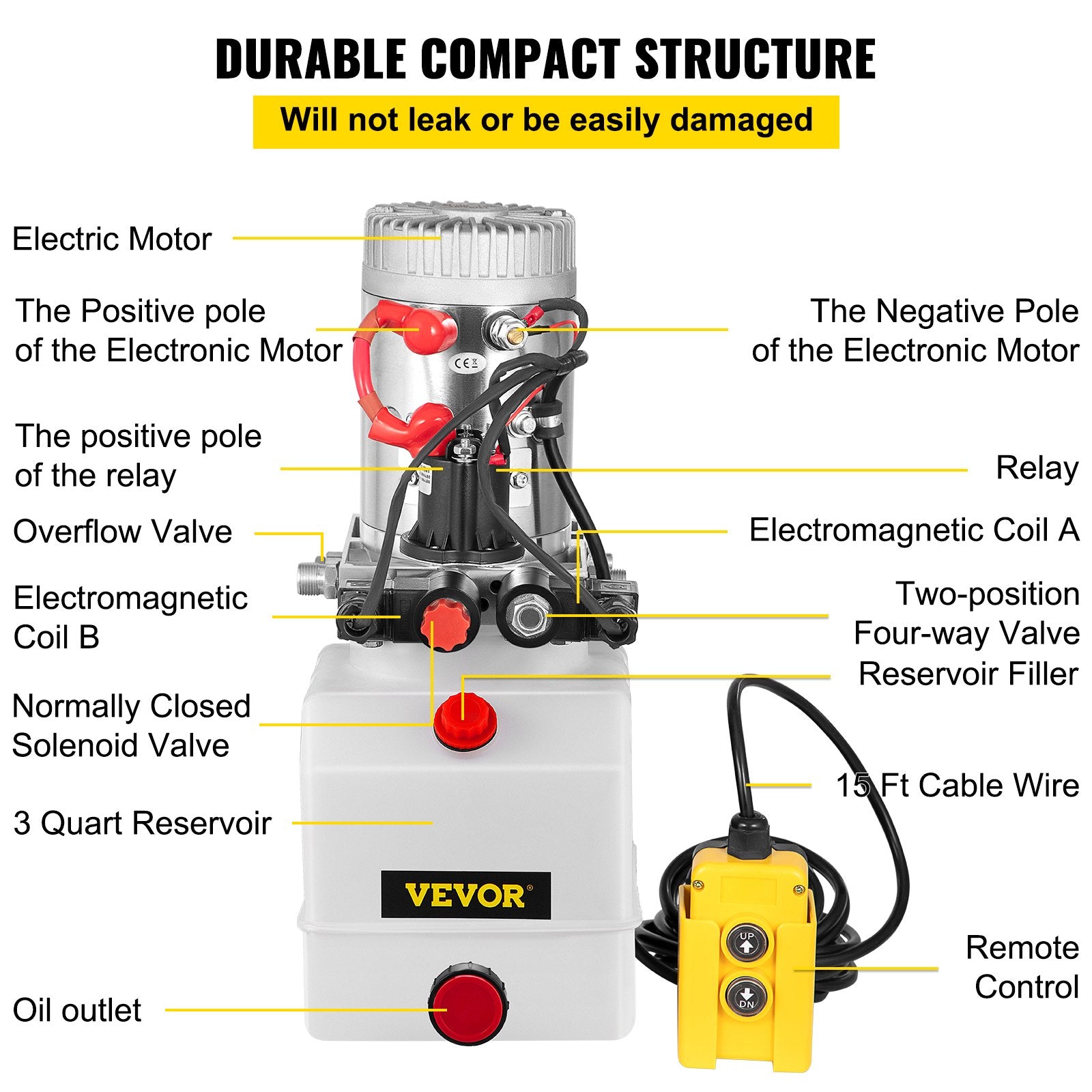

  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 3-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; and it is a double-acting pump for both power up and power down.

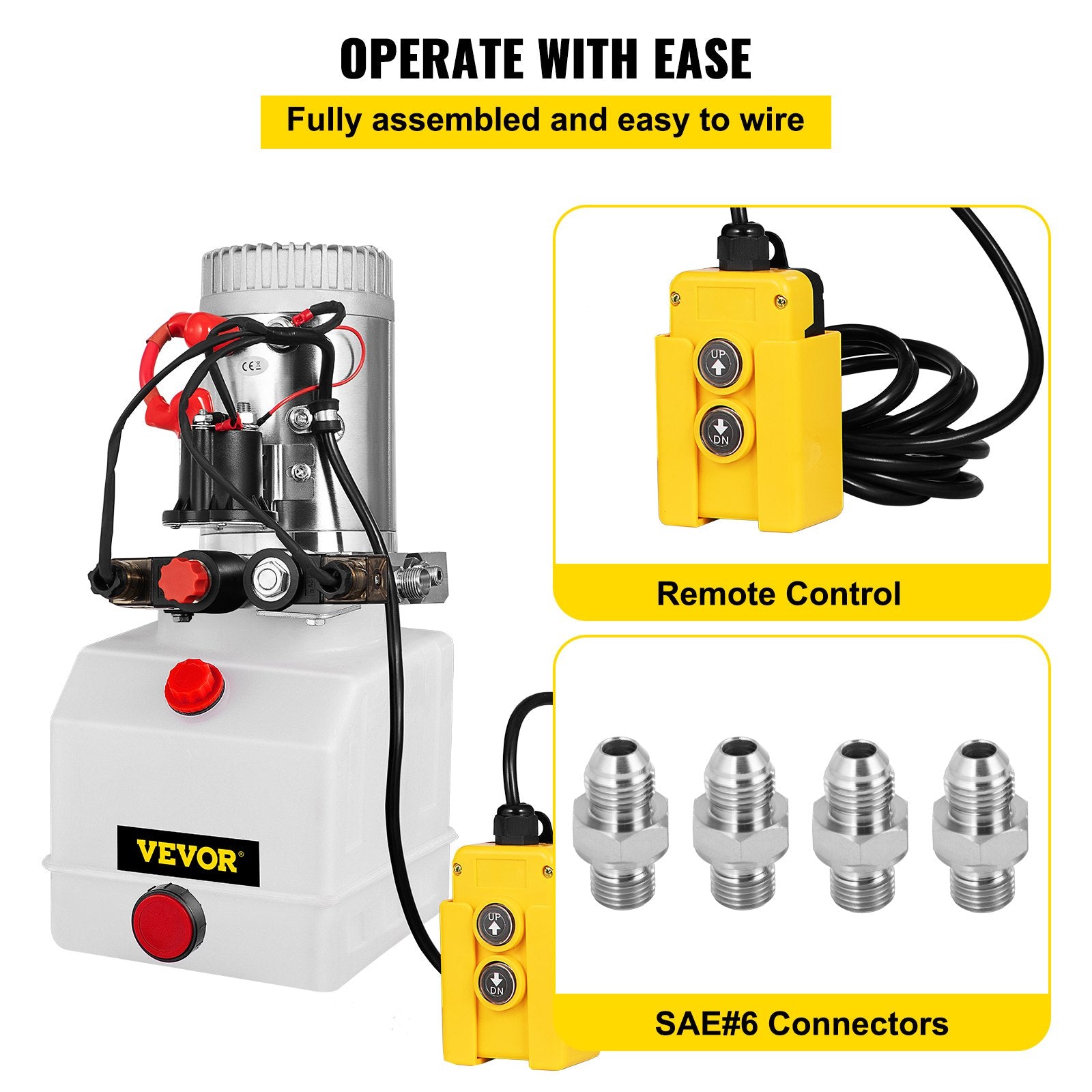

  • Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. 4 SAE#6 connectors and one 15 ft remote control are included in the package.
  • Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with relief valves, it avoids overpressure, safer and reliable.

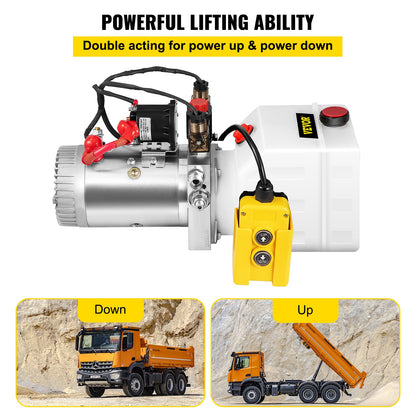

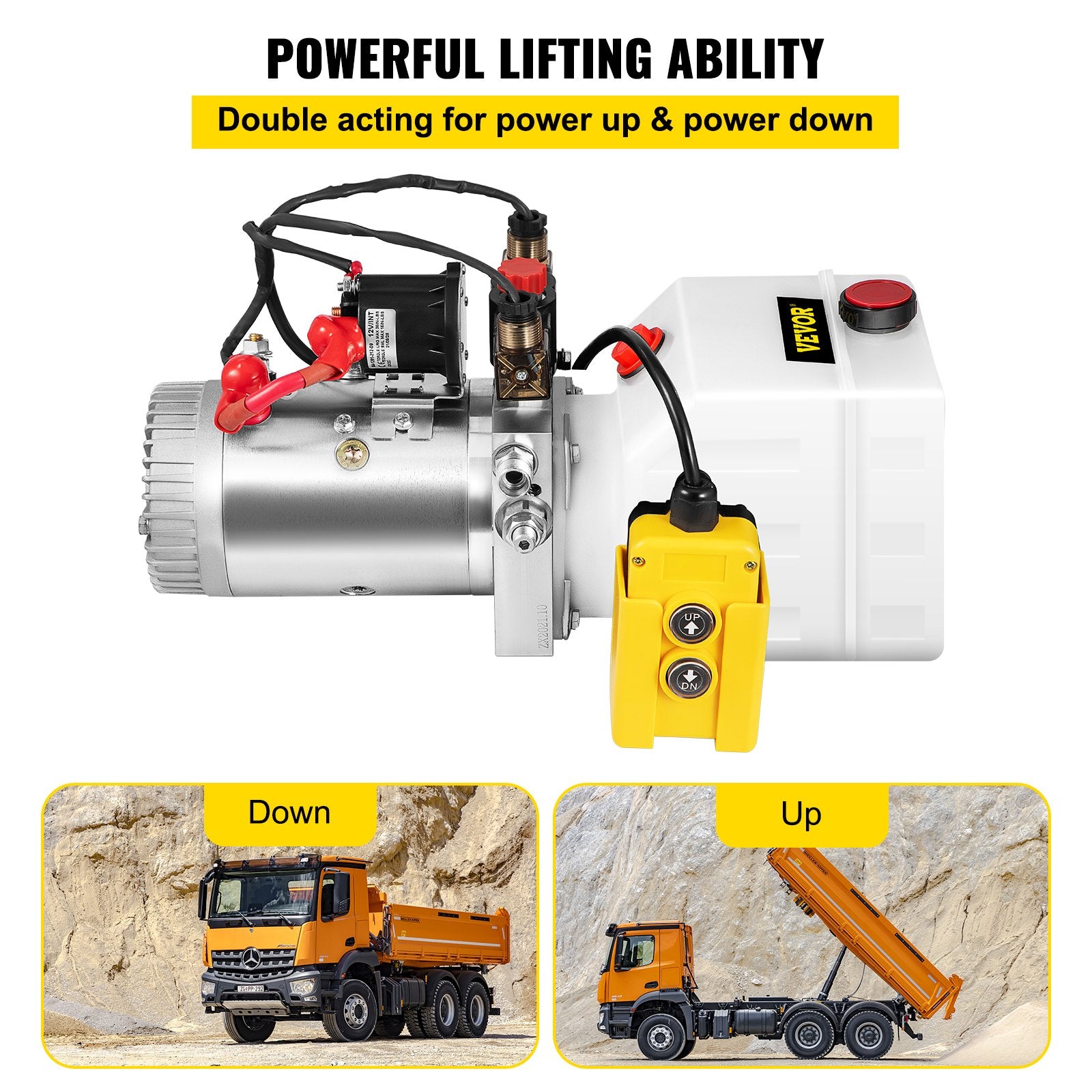

  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

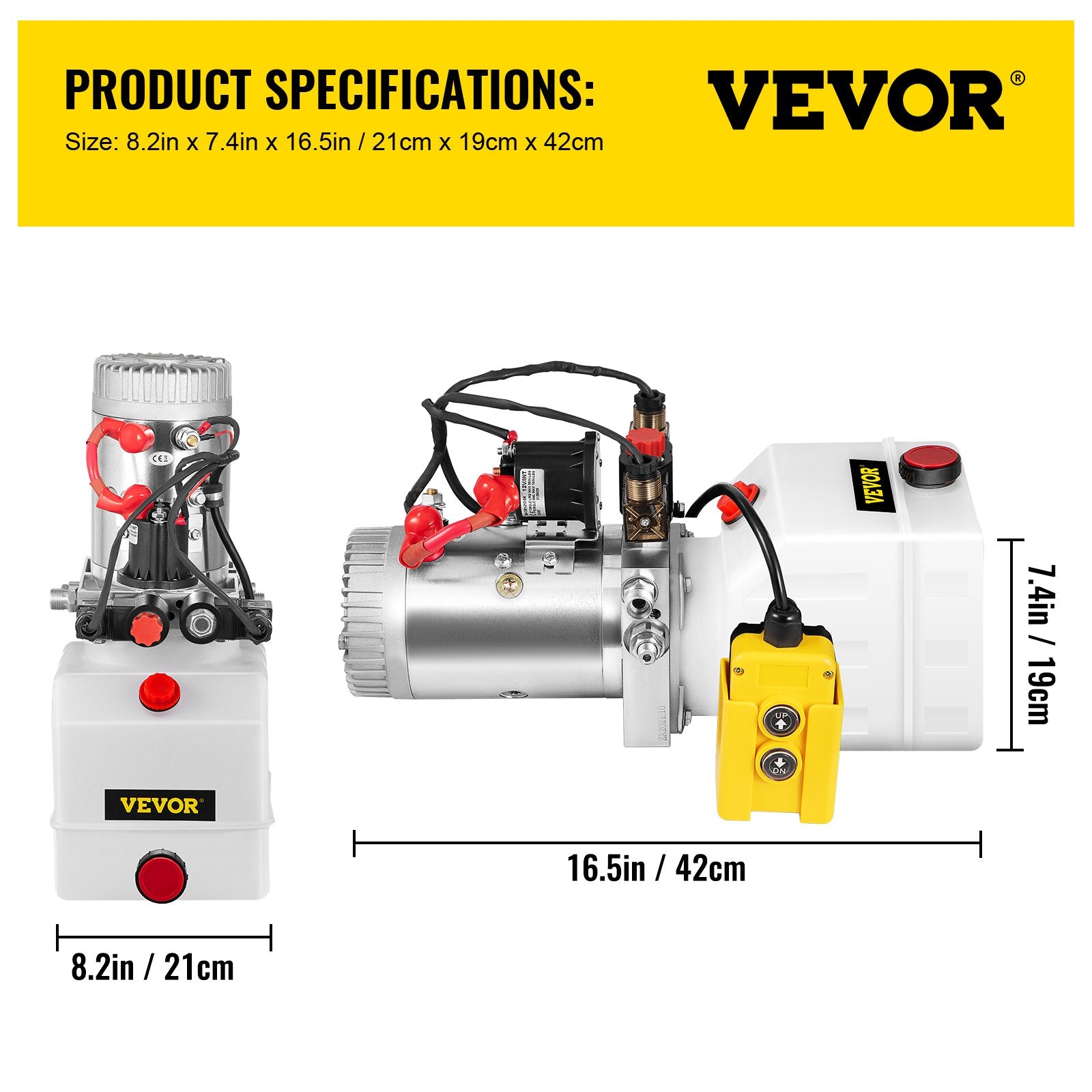

Product Specification
  • Connector: SAE # 6
  • Gross Weight: 29.1 lb (13.2 kg)
  • Max. Relief Valve Setting B Port: 1500 PSI
  • Mode: Double-Acting Power-Up/ Power-Down
  • Traffic: 1.1 cc/r
  • Mount Position: Horizontal/ Vertical
  • Rotation: Clockwise
  • Flow: 2.0 GPM
  • Max. Relief Valve Setting A Port: 3200 PSI
  • Tank Capacity: 3L/ 3Quart/ 0.75 Gal
  • Control: Solenoid and Handheld Pendant
  • Rated Speed: 2850R/MIN
  • Duty: 3 Min
  • Voltage: DC12V
  • Pendant Control Length: 15ft/ 4.5 m
  • Tank Material: Plastic (Translucent)
  • Power: 1.6KW (Rated), 3.0KW (Max)
