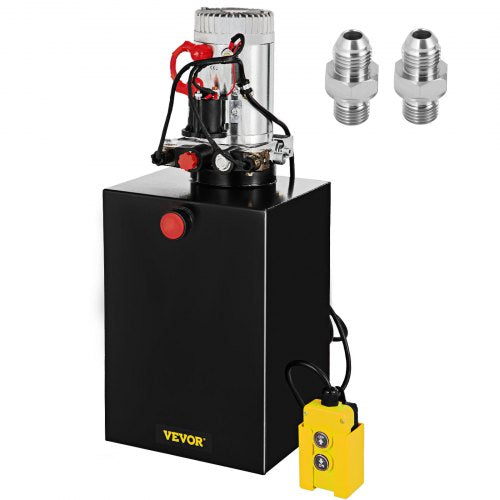

Hydraulic Pump Electric Hydraulic Pump 20 Quart Double Acting Metal Reservoir for Dump Trailer
Hydraulic Pump Electric Hydraulic Pump 20 Quart Double Acting Metal Reservoir for Dump Trailer
Regular price
$328.00 USD
Regular price
Sale price
$328.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details

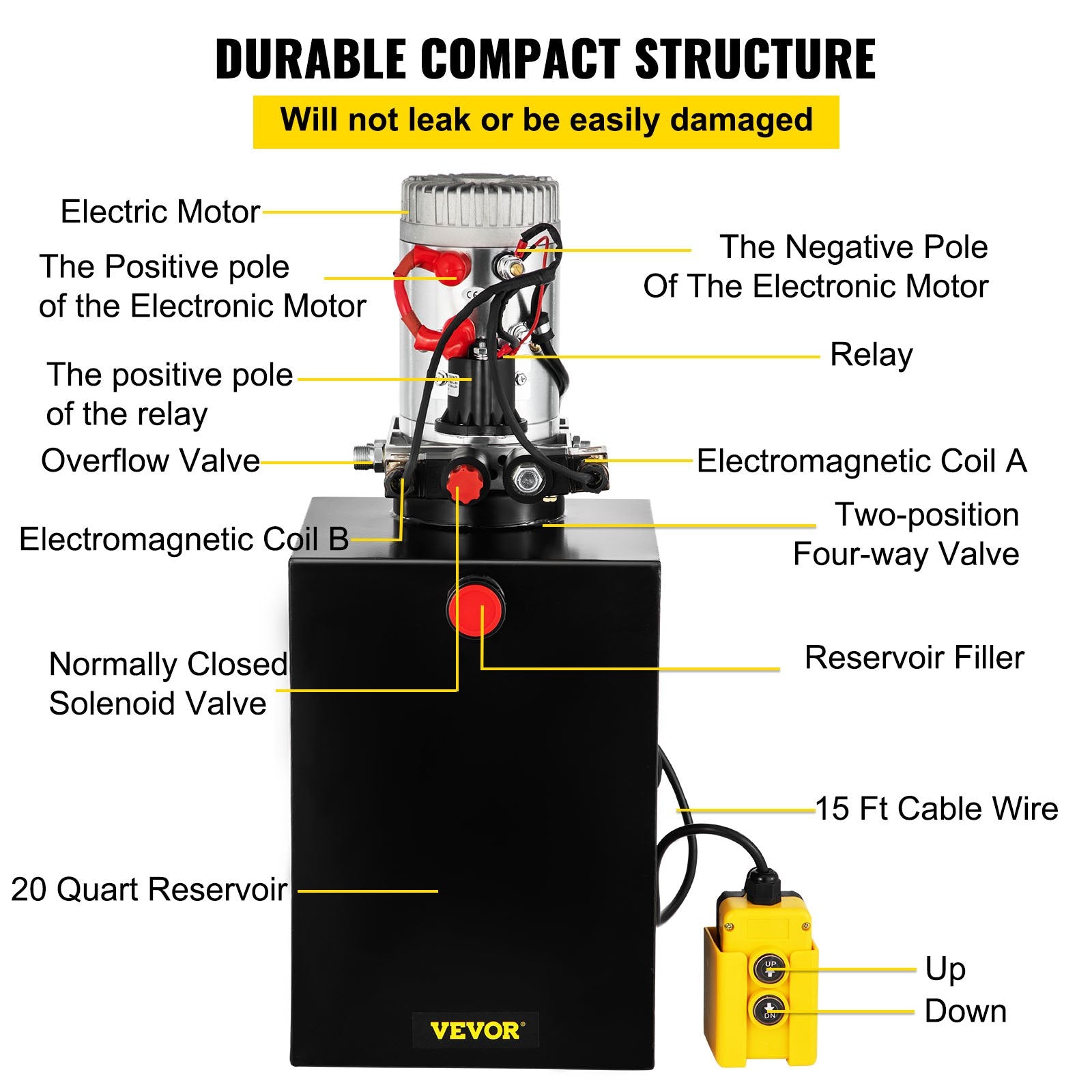

- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 20-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.

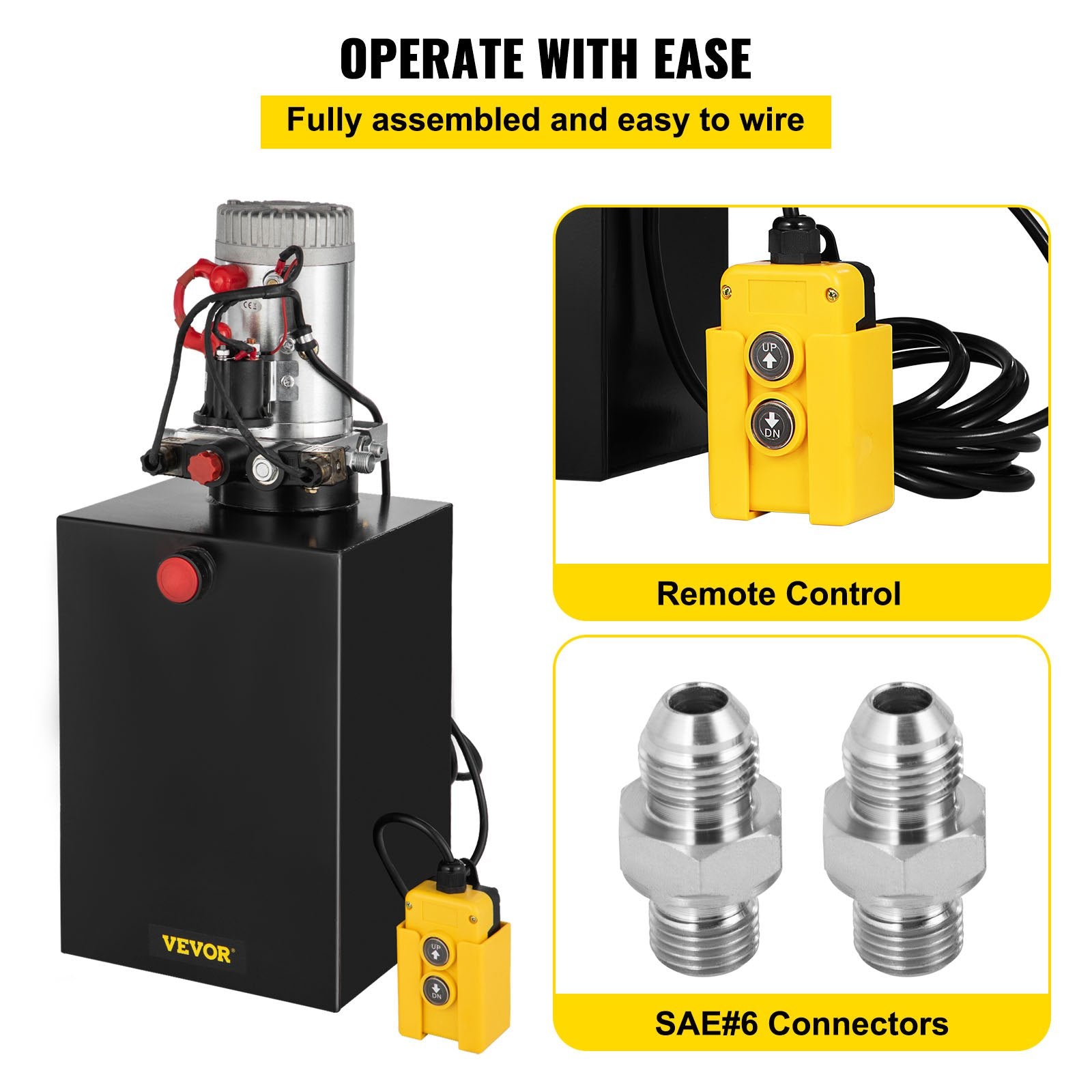

- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. It includes a 15 ft remote control and two additional SAE#6 connectors are provided for replacement.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.

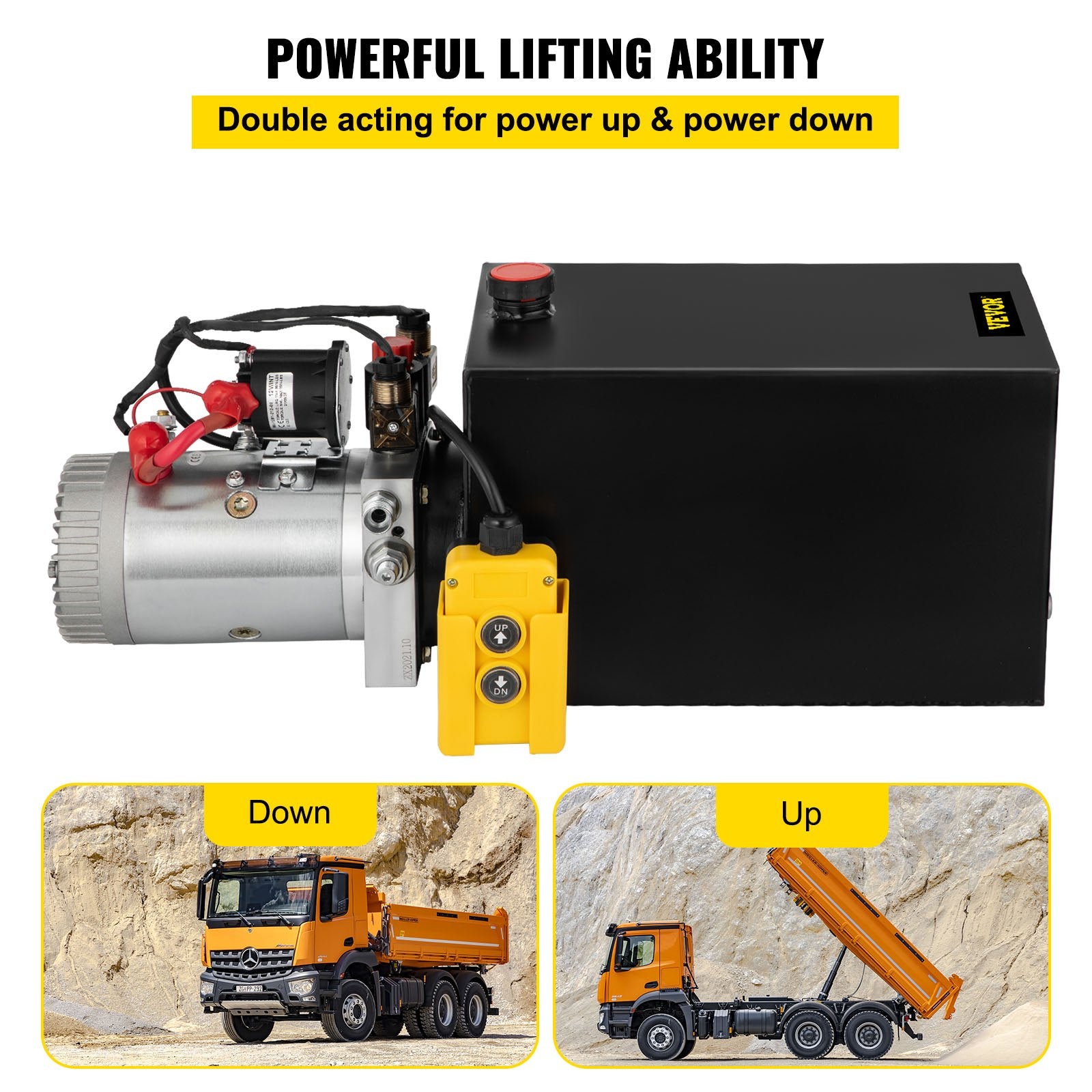

- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
- Gross Weight: 34.0 lb (16.4 kg)
- Power / Gravity: Double Acting Power-Up/Power Down

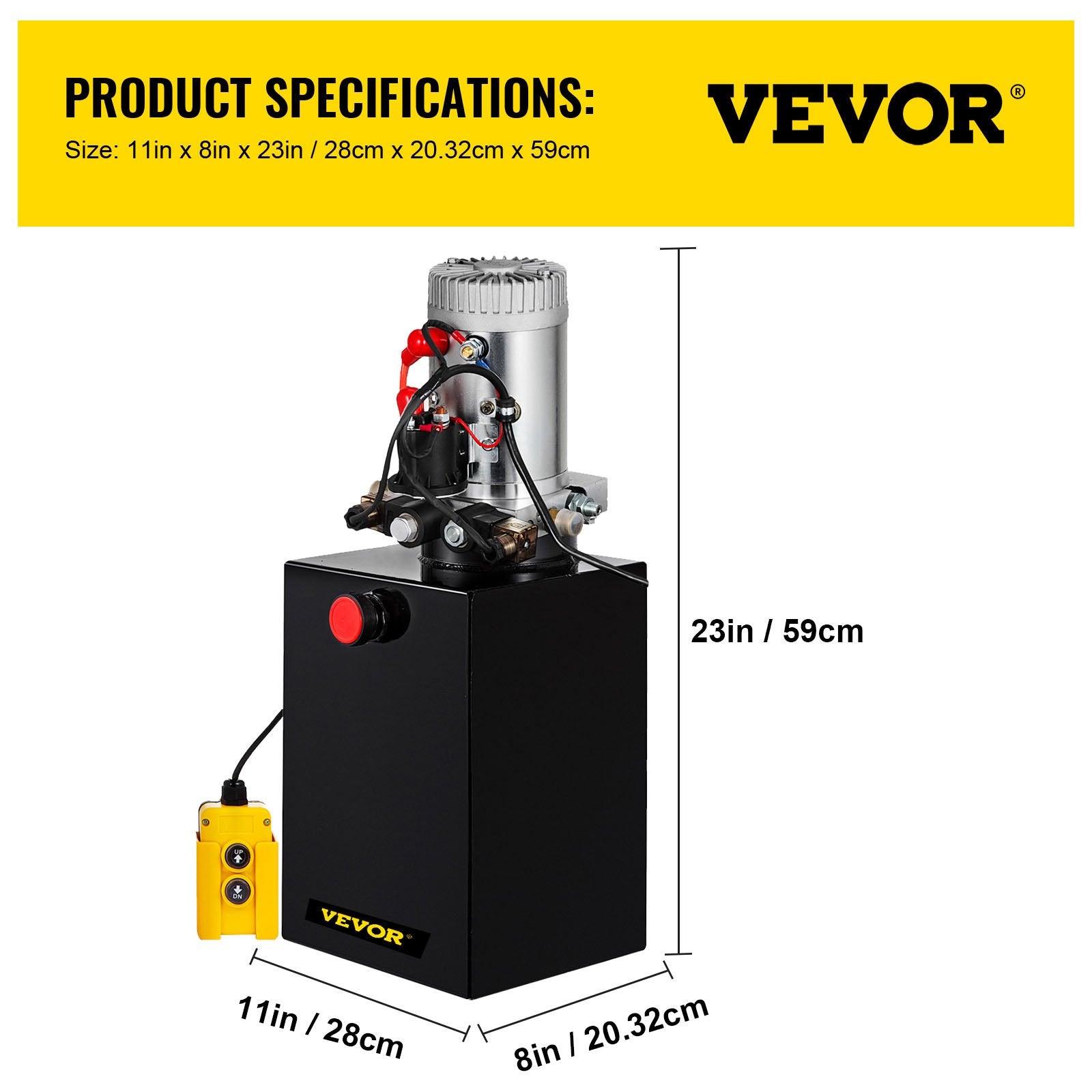

- Package Dimensions (L x W x H): 23.2" x 11.4" x 11.0" (59 x 29 x 28 cm)
- PSI: 3200 PSI Max. Relief Setting For Increased Lifting Power on A port
- Port: SAE # 6 Port, Horizonal mount
- Reservoir: 20 Quart Steel Reservoir
- Material of Tank: Metal
- Hand held pendant with 15 feet(4.5 m)removal cord:
- Fuel Tank: 20quart
