12V Linear Actuator, 7.87 Inch Ultra Heavy-Duty 2023lbs/9000N Linear Motion Actuator, IP65 Waterproof 0.2"/s with Mounting Brackets for Industrial Machinery Vessels, Heavy Lifting Systems

12V Linear Actuator, 7.87 Inch Ultra Heavy-Duty 2023lbs/9000N Linear Motion Actuator, IP65 Waterproof 0.2"/s with Mounting Brackets for Industrial Machinery Vessels, Heavy Lifting Systems

$211.00 USD
$211.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Industrial-Grade Thrust: Delivering 2023 lbs (9000N) of impressive force, VEVOR's 12V Ultra Heavy-Duty linear actuator is built for extreme conditions and heavy loads, excelling in demanding industrial automation, heavy lifting systems, and mechanical equipment

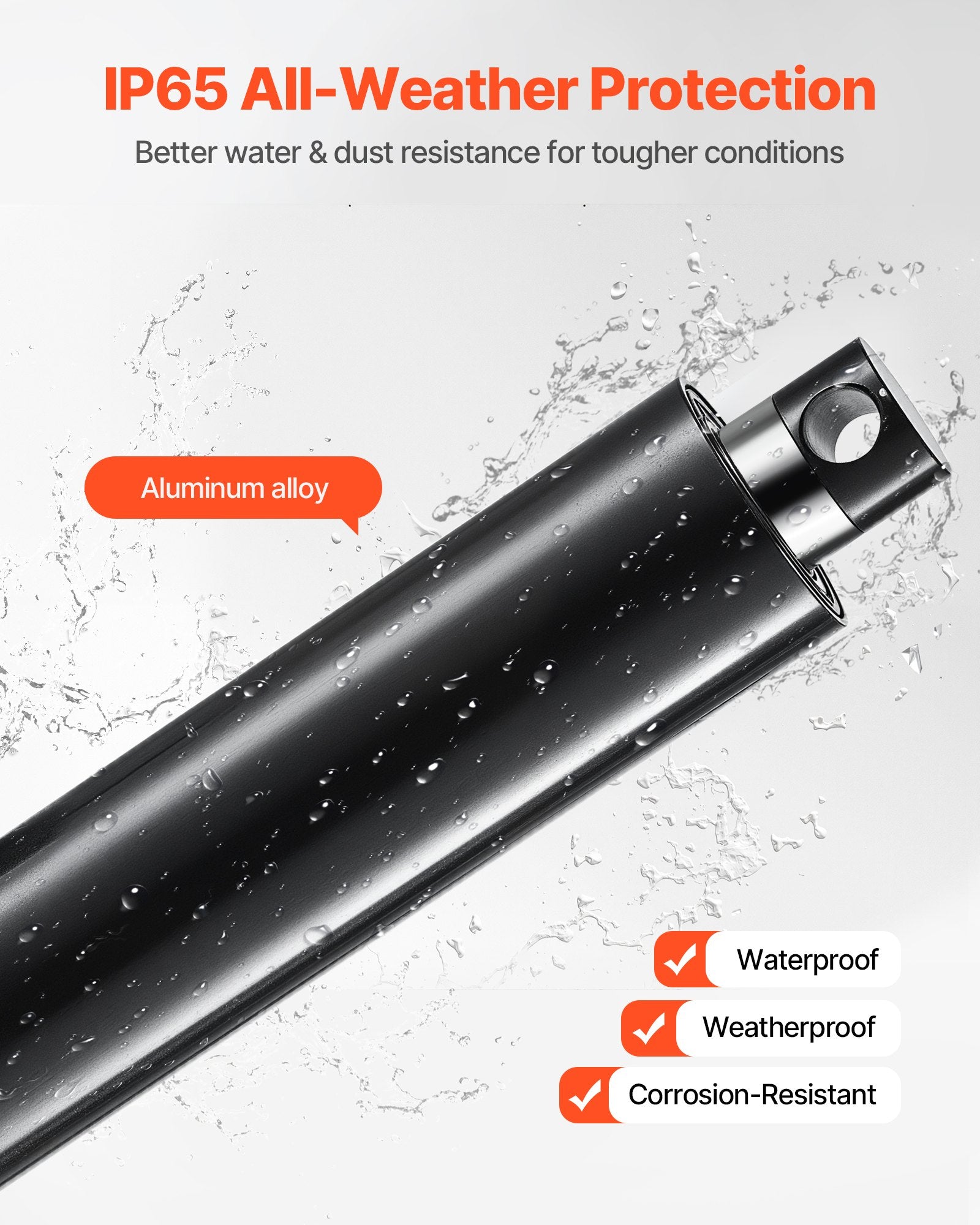

  • IP65 Superior Protection: Built tough with IP65 protection level, the 12V linear actuator offers dust and water resistance, ideal for use in indoor and outdoor environments. Keep your systems running smoothly in various conditions

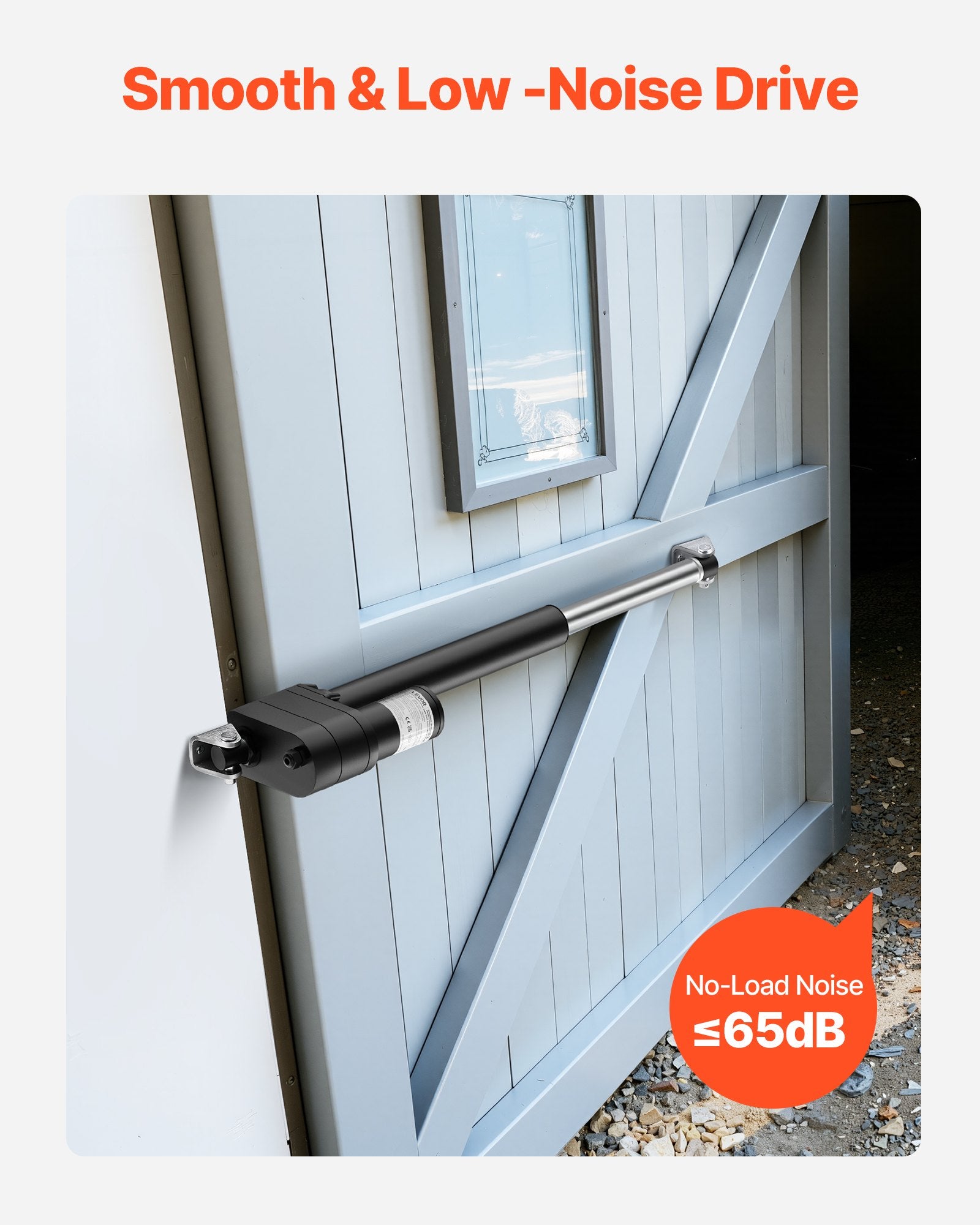

  • Versatile Applications: This heavy-duty linear actuator is ideal for barn door, heavy robotic arm pushing, heavy machinery, vessels, transportation systems, heavy lifting platform, industrial automation systems and more high-load tasks
  • Built for Heavy-Duty Use: Featuring a robust aluminum alloy housing and reinforced seals, this linear motion actuator delivers high durability and corrosion resistance, suitable for handling heavy loads in warehouses, factories, and industrial settings
  • Key Specifications: Travel Speed: 0.2"/s (5 mm/s); Stroke Length: 7.87" (200 mm); Extended Length: 25.67" (652 mm); Retracted Length: 17.8" (452 mm); Current Draw: 20 Amps; Input Voltage: DC 12V

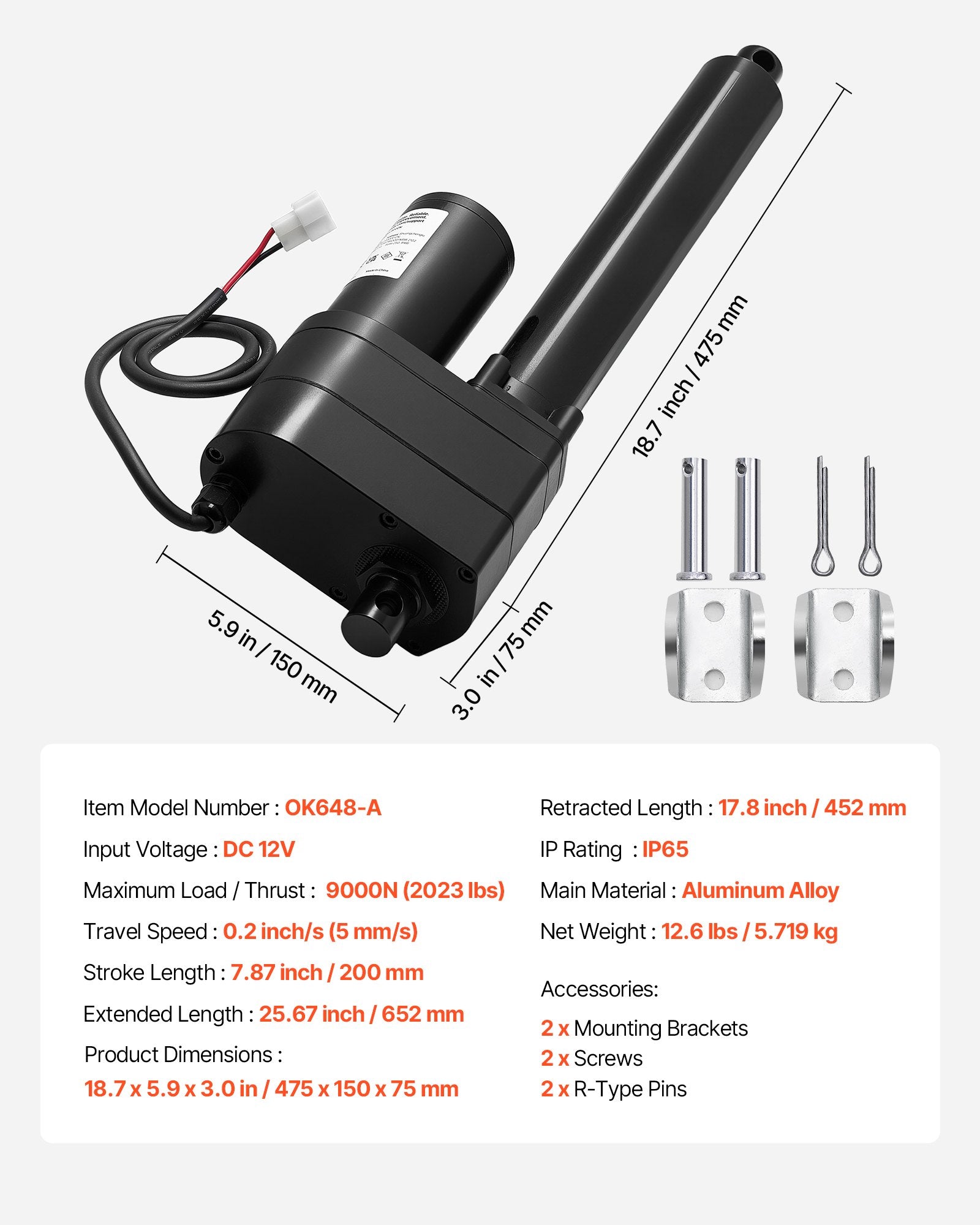

Product Specification
  • Maximum Load / Thrust: 9000N (2023 lbs)
  • IP Rating: IP65
  • Item Model Number: OK648-A
  • Travel Speed: 0.2 inch/s (5 mm/s)
  • Extended Length: 25.67 inch / 652 mm
  • Input Voltage: DC 12V
  • Stroke Length: 7.87 inch / 200 mm
  • Retracted Length: 17.8 inch / 452 mm
  • Product Dimensions: 18.7 x 5.9 x 3.0 in / 475 x 150 x 75 mm
  • Net Weight: 12.6 lbs / 5.719 kg
  • Main Material: Aluminum Alloy
