Through the Wall Kit for 6-Inch Chimney Pipe, Stainless Steel Internal Through Wall Chimney Kit with Rain Cap,Roof Waterproof Flashing Plate for 5-30 Degree Roof Pitch(No Straight Pipe)

Through the Wall Kit for 6-Inch Chimney Pipe, Stainless Steel Internal Through Wall Chimney Kit with Rain Cap,Roof Waterproof Flashing Plate for 5-30 Degree Roof Pitch(No Straight Pipe)

$359.00 USD
$359.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details

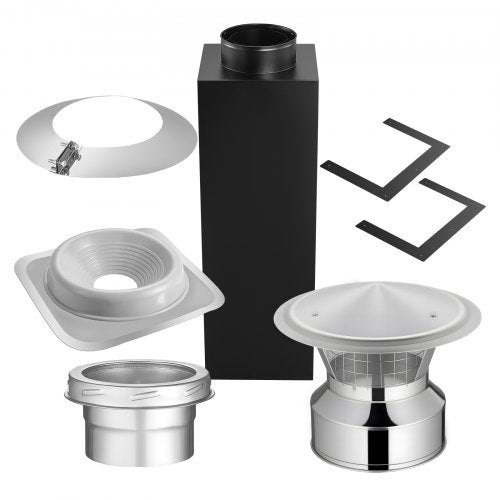

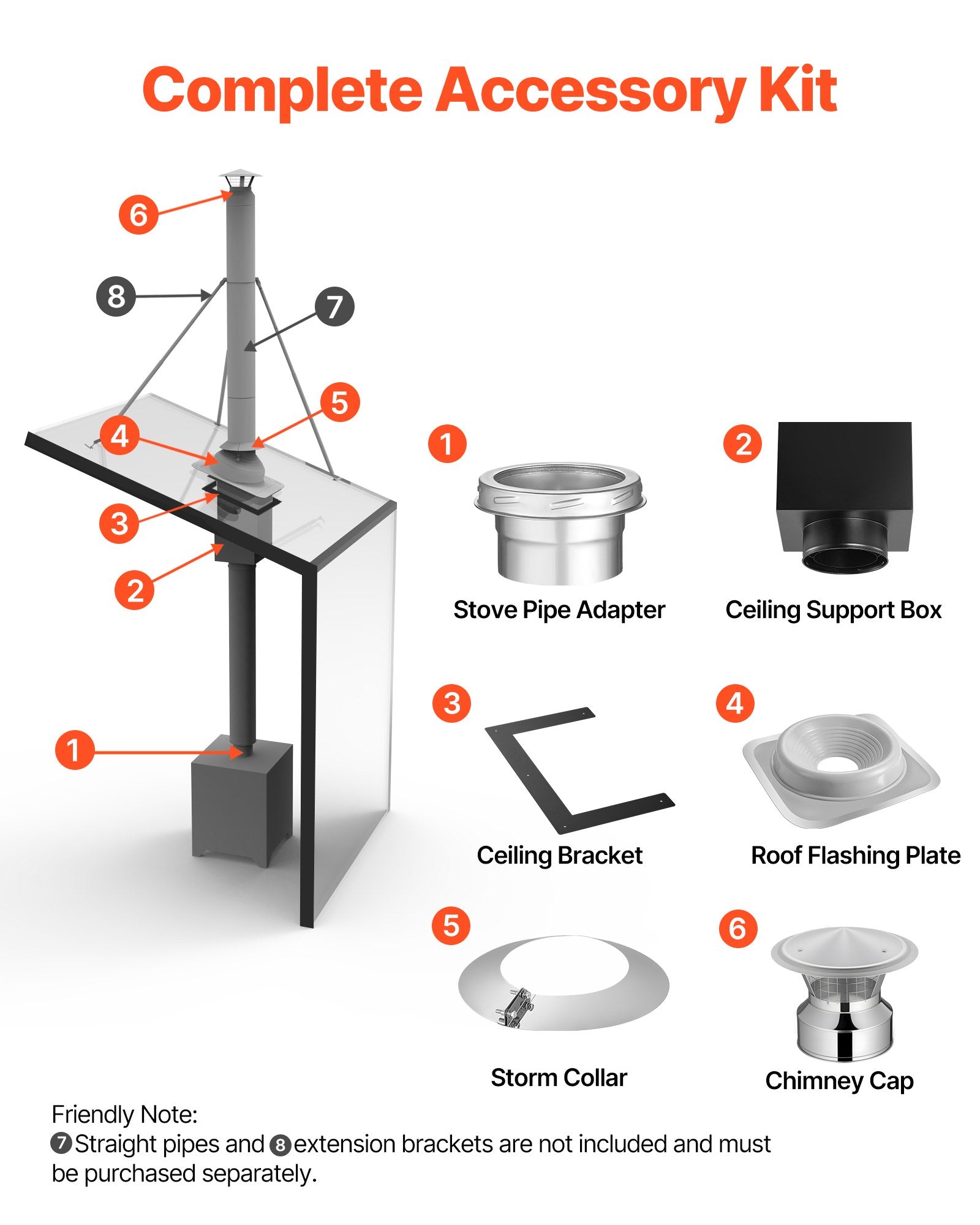

  • Complete Component Set: The through the wall kit includes one stove pipe adapter, one ceiling support box, one ceiling bracket, one roof flashing, one storm collar, and one chimney cap. A one-stop solution for through-the-wall chimney installation
  • Add-On as Needed: To complete installation, you must purchase additional VEVOR straight pipes based on the height of your building. VEVOR offers 12in, 24in, 36in, and 48in straight pipe options. This chimney support is only fit VEVOR straight pipes
  • Built to Last: Constructed from premium SUS304 stainless steel for excellent corrosion resistance and extended lifespan. This chimney support kit offers superior durability, ensuring long-term stability

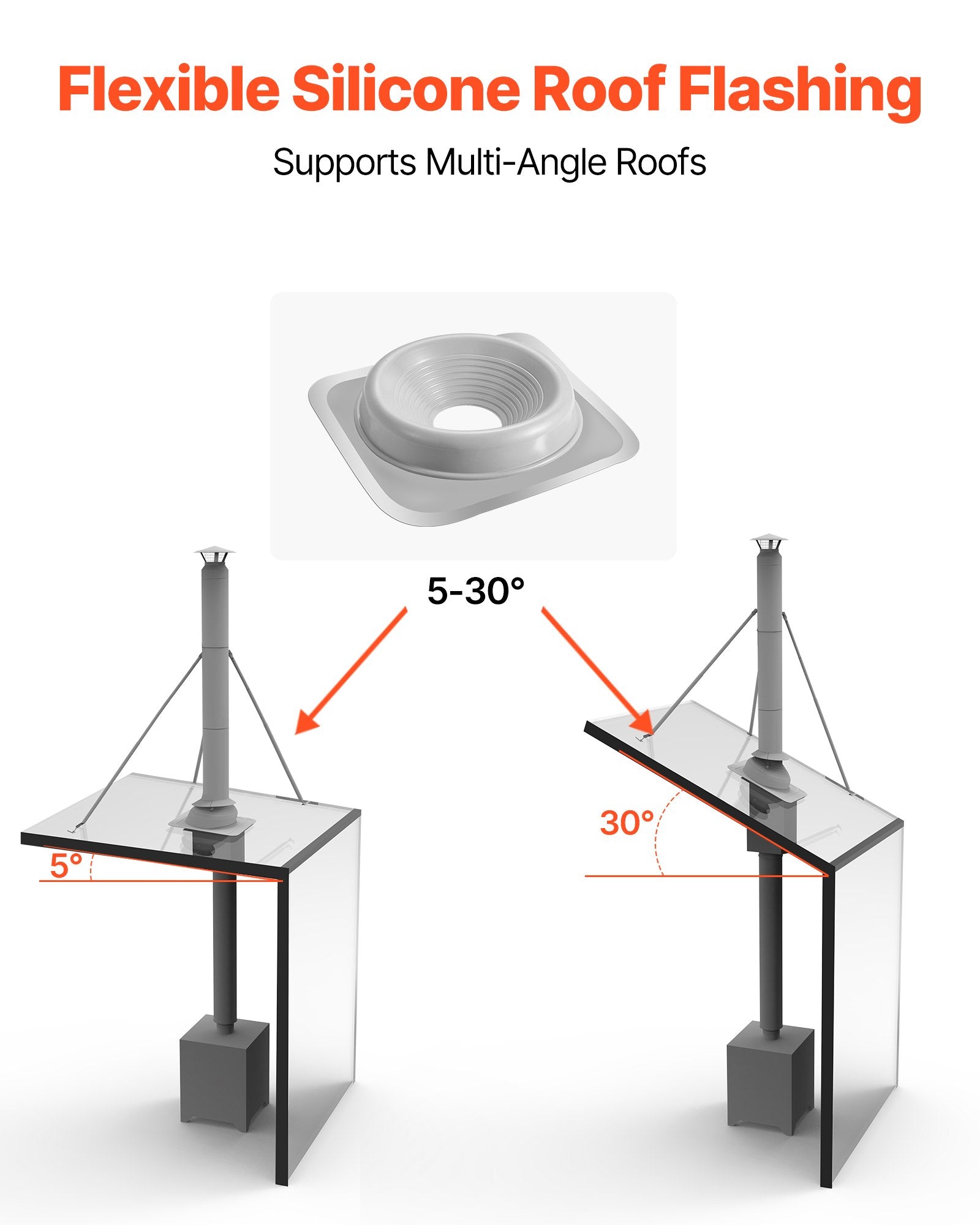

  • Supports Sloped Roofs: This through the attic kit features a flexible silicone flashing that conforms tightly to your roof. Compatible with roof pitches from 5 to 30 degrees, providing reliable waterproof protection across various angles
  • Fits Various Roof Structures: Works with vaulted, cathedral, or arched ceilings of different thicknesses. For clearance, the ceiling support box must extend at least 2 inch into the interior space as part of a proper installation

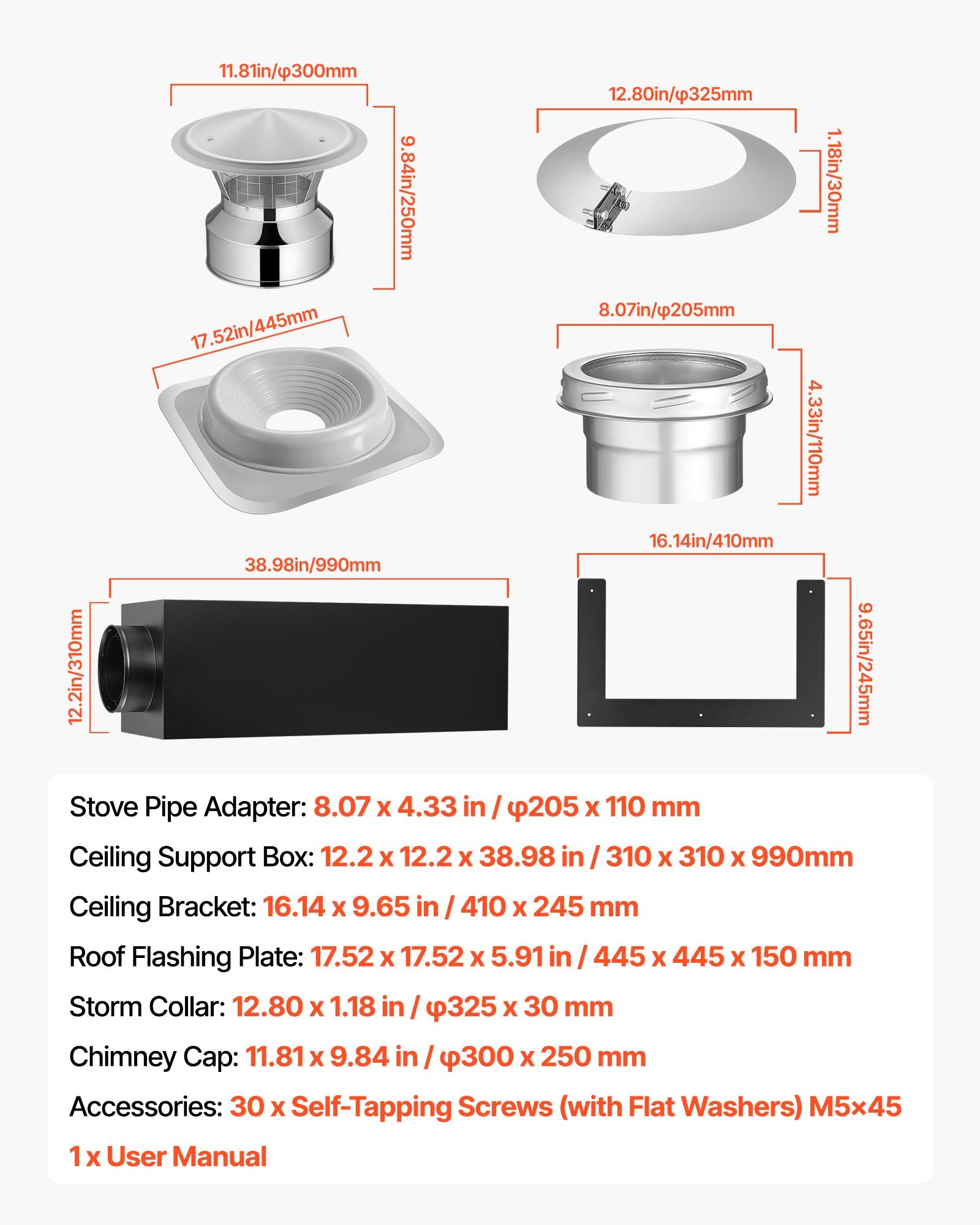

Product Specification
  • Storm Collar: 12.80 x 1.18 in / φ325 x 30 mm
  • Specifications: 6 inch
  • Stove Pipe Adapter: 8.07 x 4.33 in / φ205 x 110 mm
  • Ceiling Bracket: 16.14 x 9.65 in / 410 x 245 mm
  • Color: Silver
  • Item Model Number: TWS-6-0530K
  • Roof Flashing Plate: 17.52 x 17.52 x 5.91 in / 445 x 445 x 150 mm
  • Chimney Cap: 11.81 x 9.84 in / φ300 x 250 mm
  • Ceiling Support Box: 12.2 x 12.2 x 38.98 in / 310 x 310 x 990mm
  • Net Weight: 22.38 lbs / 10.15 kg
  • Main Material: SUS 304 Stainless Steel
