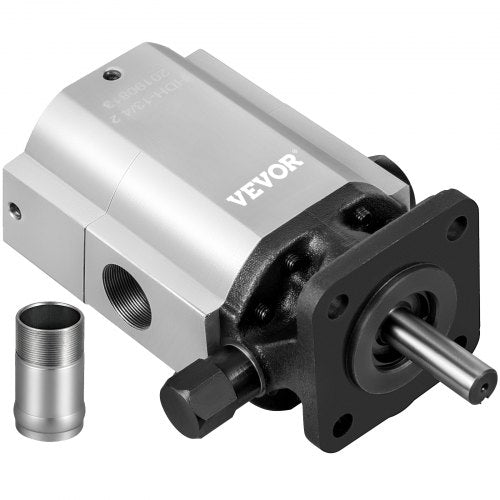

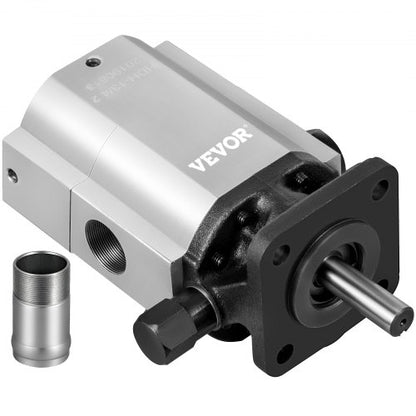

Hydraulic Pump 16 GPM Hydraulic Motor 2 Stage Hydraulic Pump Log Splitter Hydraulic Pump Wood Splitter Pumps Log Splitter Hydraulic Built Pump Hydraulic Wood Splitter Parts & Hydraulic Motor
Hydraulic Pump 16 GPM Hydraulic Motor 2 Stage Hydraulic Pump Log Splitter Hydraulic Pump Wood Splitter Pumps Log Splitter Hydraulic Built Pump Hydraulic Wood Splitter Parts & Hydraulic Motor
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Taxes included.
Quantity
Couldn't load pickup availability
Features & Details

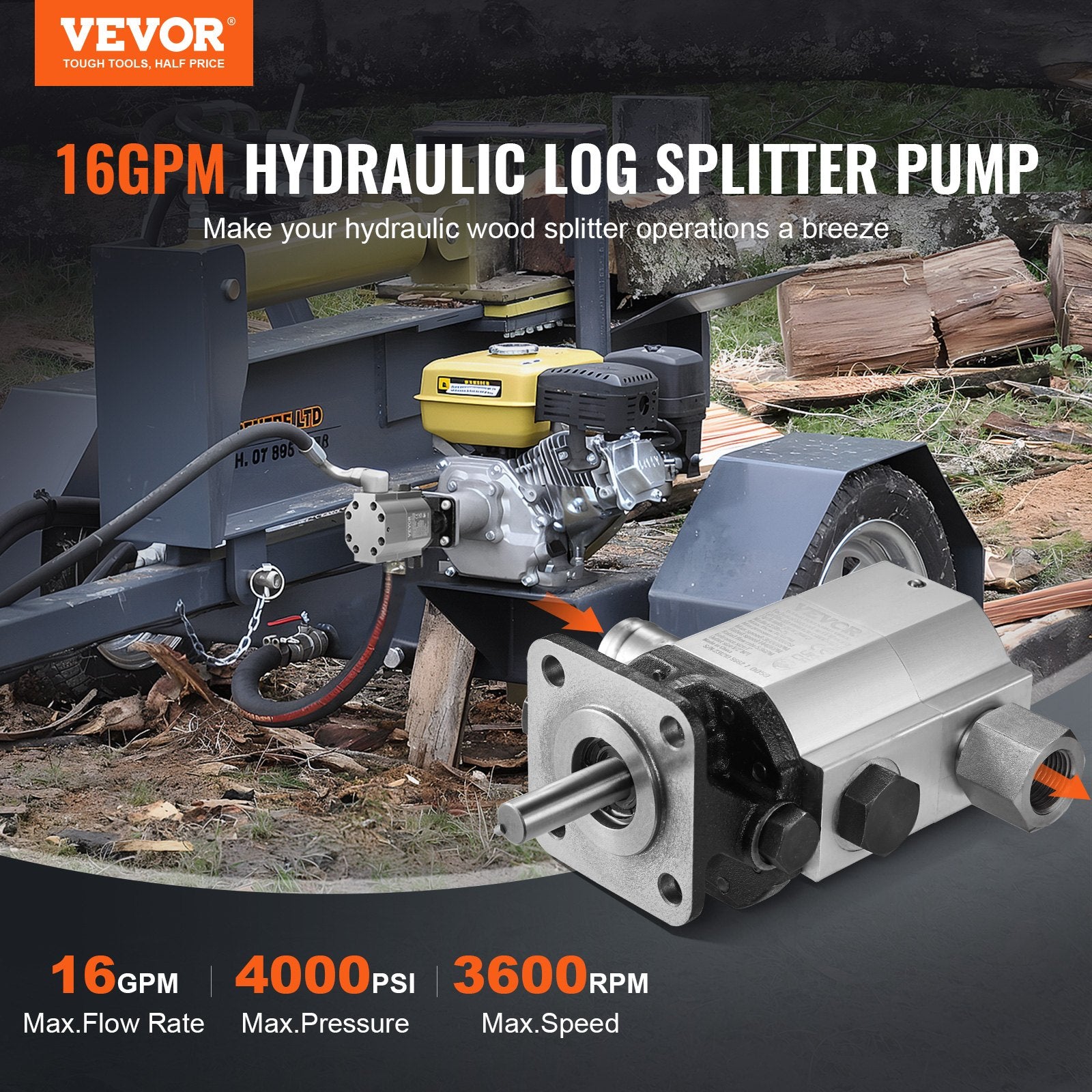

- Exceptional Performance at Your Fingertips: With a remarkable maximum speed of 3600 RPM, a maximum operating pressure of 4000 PSI, and a 16 GPM high flow rate, our hydraulic wood log splitter pump is your ultimate solution for tackling all types of wood. This hydraulic gear pump excels in both speed and force, ensuring efficient wood splitting like never before, making it your go-to tool for any wood processing task.

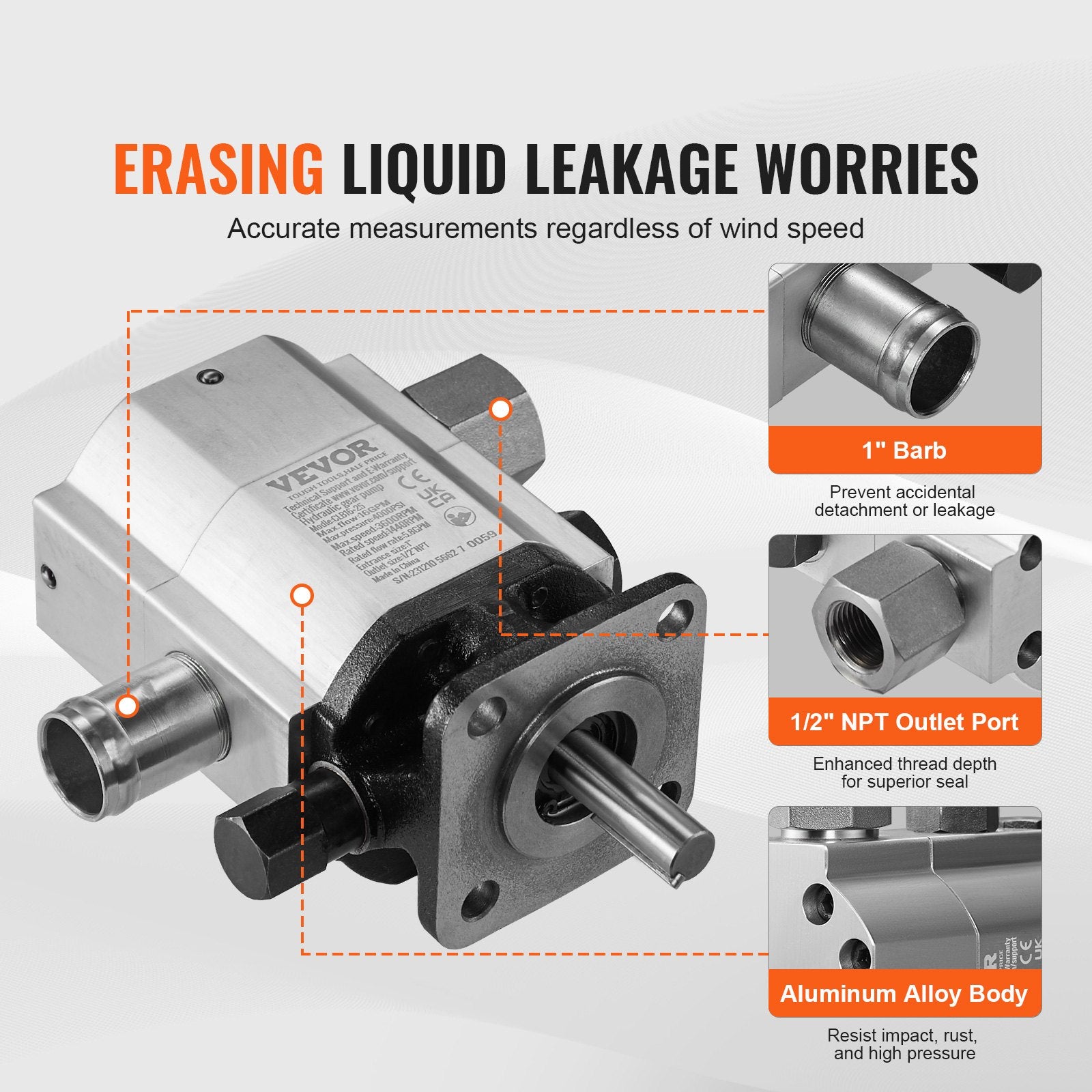

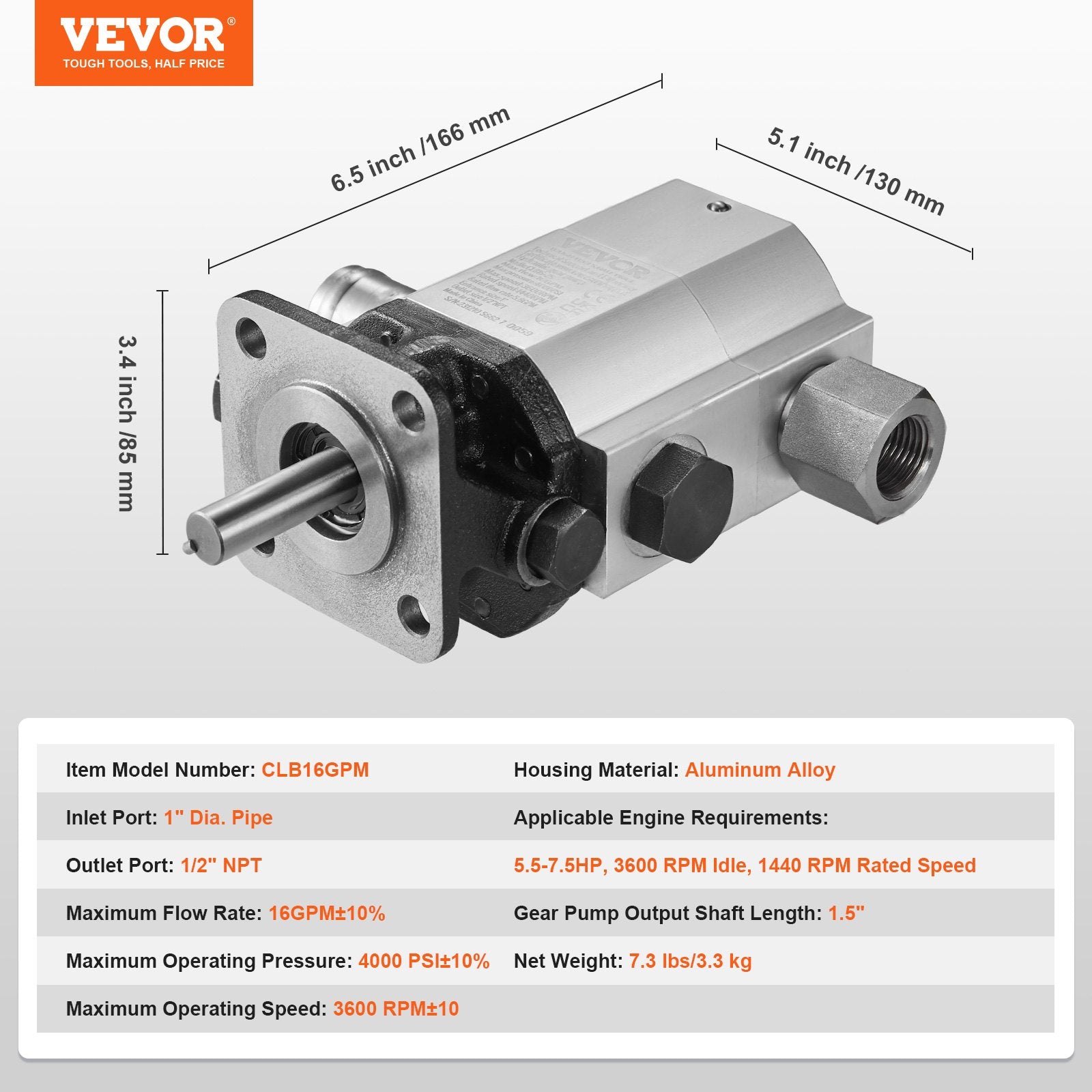

- Perfect Sealing, No Compromises: Our 2 stage log splitter pump is designed with a standardized 1-inch inlet, 1/2-inch NPT outlet, 1.5-inch shaft length and 1/2-inch shaft diameter, ensuring compatibility with a wide range of systems while maximizing sealing effectiveness and stability. Not only does it simplify the installation process, but it also enhances the overall efficiency and reliability of the hydraulic gear pump.

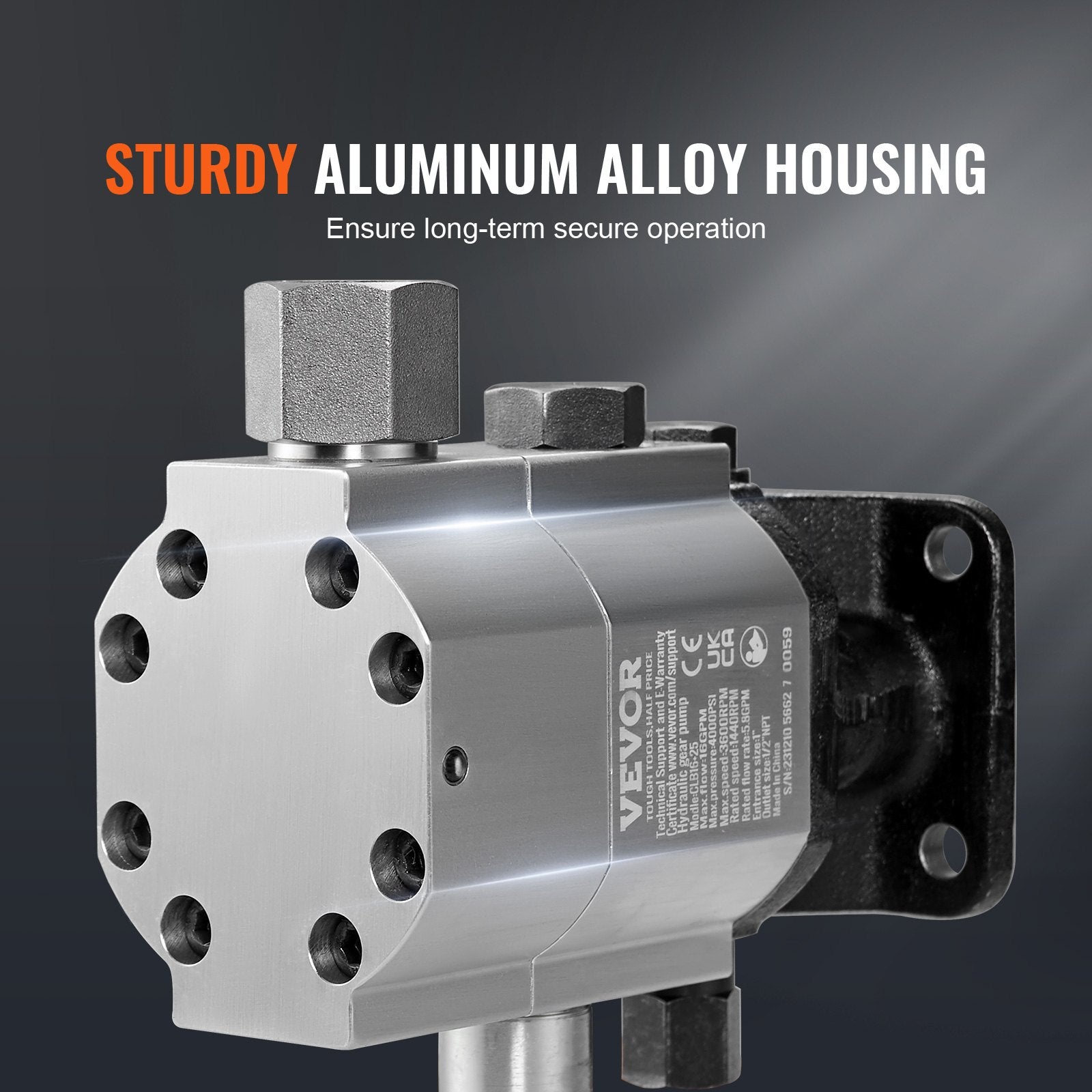

- Rugged Aluminum Alloy Construction: Our hydraulic log splitter pump is constructed from high-quality aluminum alloy material, ensuring exceptional durability and corrosion resistance. It's designed to withstand the toughest outdoor challenges, ensuring long-term reliability in any working environment. Don't settle for less; choose our hydraulic gear pump for unwavering performance.

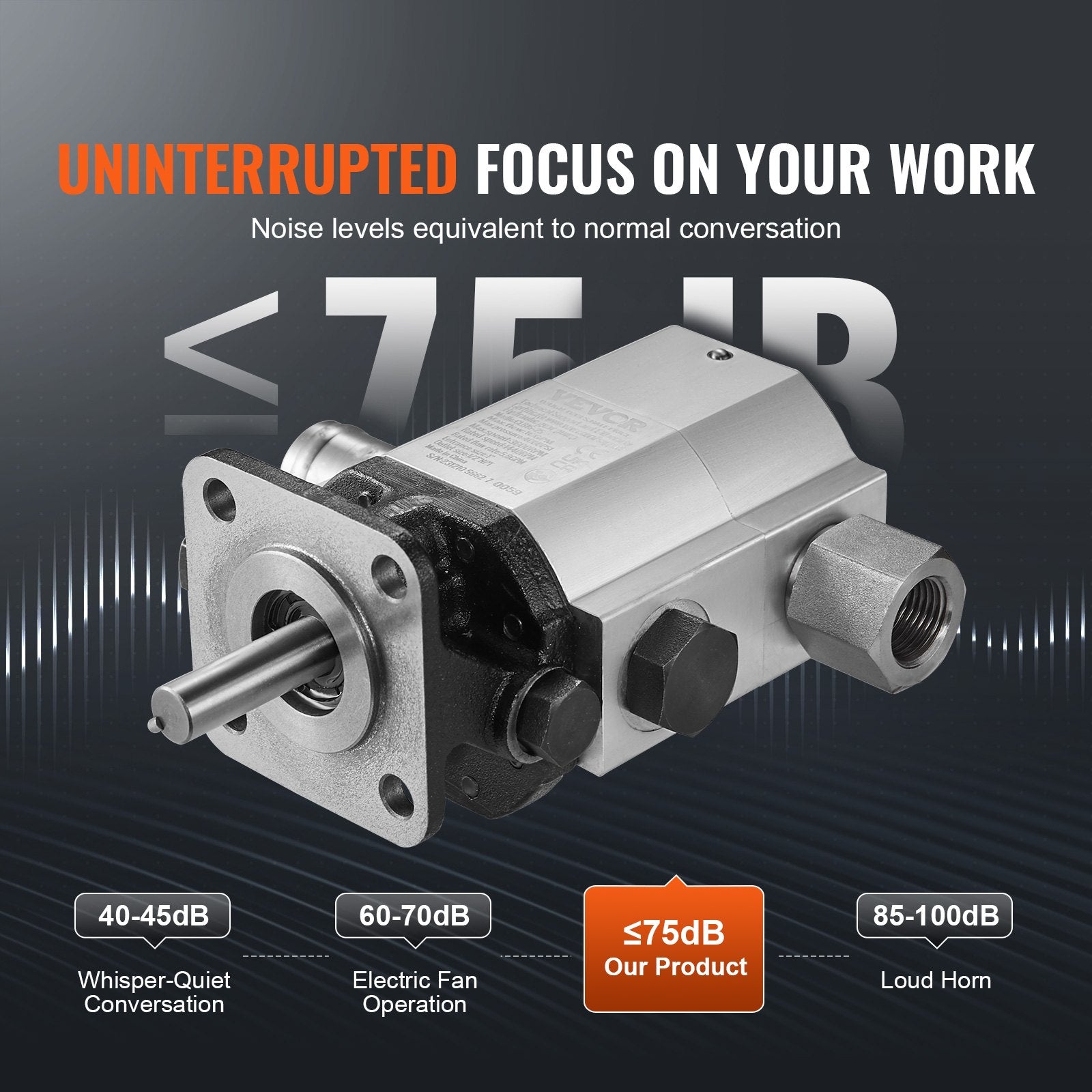

- Low Noise Operation, Stay Focused: Our wood splitter pump operates at a noise level below 75dB, ensuring that it won't disrupt your concentration. Even in environments where you need to stay focused, the pump's noise won't be a distracting factor. Stay on task and get the job done efficiently with our hydraulic gear pump.

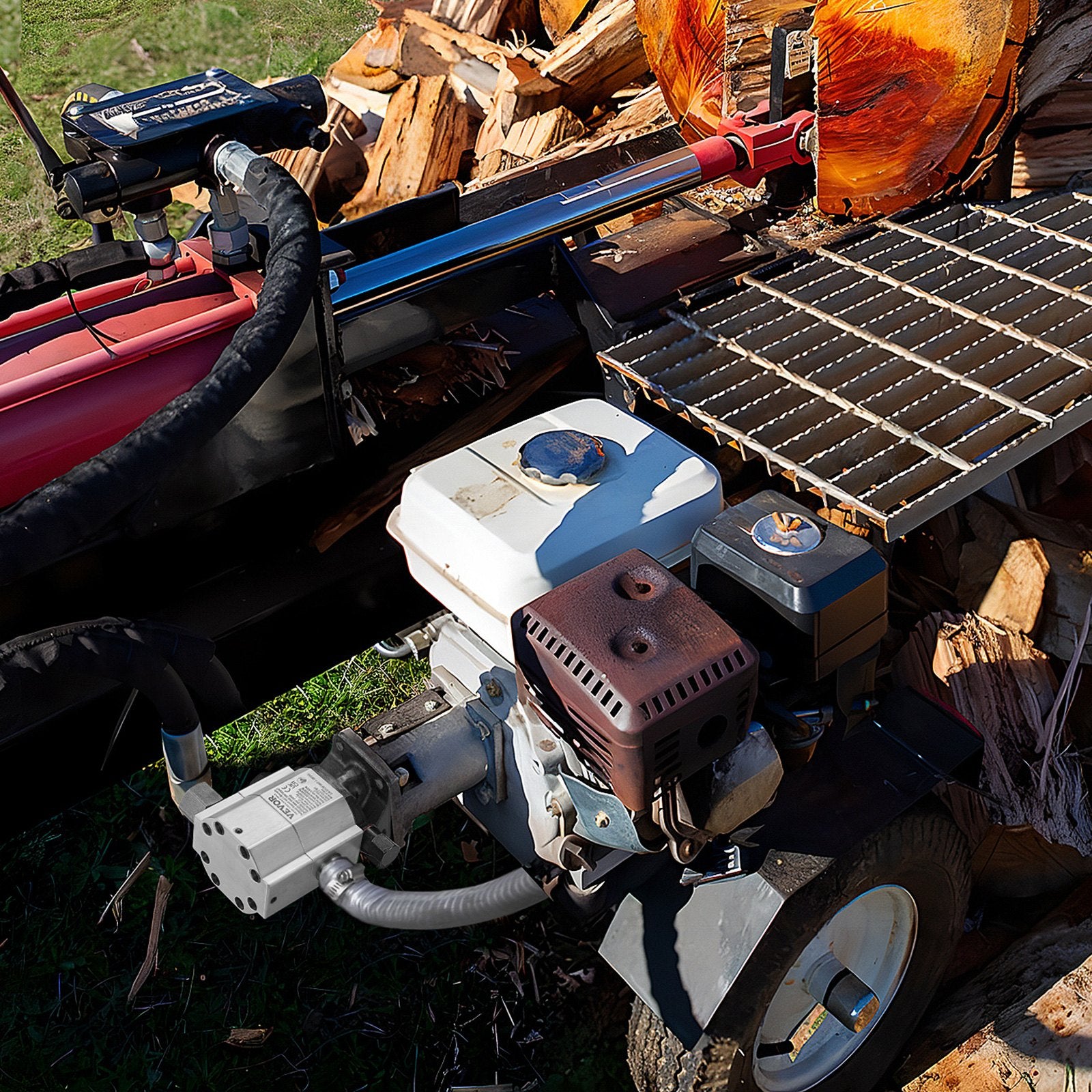

- Not Limited to Wood Splitting: Our 2-stage hydraulic pump is also perfect for powering log splitters, presses, machine tools, and snowplow hydraulic systems. Its outstanding compatibility extends to many OEM manufacturers, including Speeco, Huskee, Champion, and more. When you need reliable power for various applications, our hydraulic pump has got you covered.
- Rotation is clockwise:
- Maximum pressure: 4000 PSI
- 4 holes spaced 2” on center:
- 5- 5/8” L without shaft:
- 3 -3/8” across mounting surface:
- Second Stage: 3.5 GPM @ 2500 PSI
- Outlet port: 1/2”
- First Stage: 13 GPM @ 650 PSI
- Bolt circle: 2.83in.
- Woodruff key: 1/8in
- 3” across body:
- For use with open center hydraulic systems only:
- Inlet port: 1”, Minimum 8 HP or larger gas engine, direct drive only
- horizontal shaft:
- Mounting hole diameter: .344in
- 7- 1/4" L with shaft:
