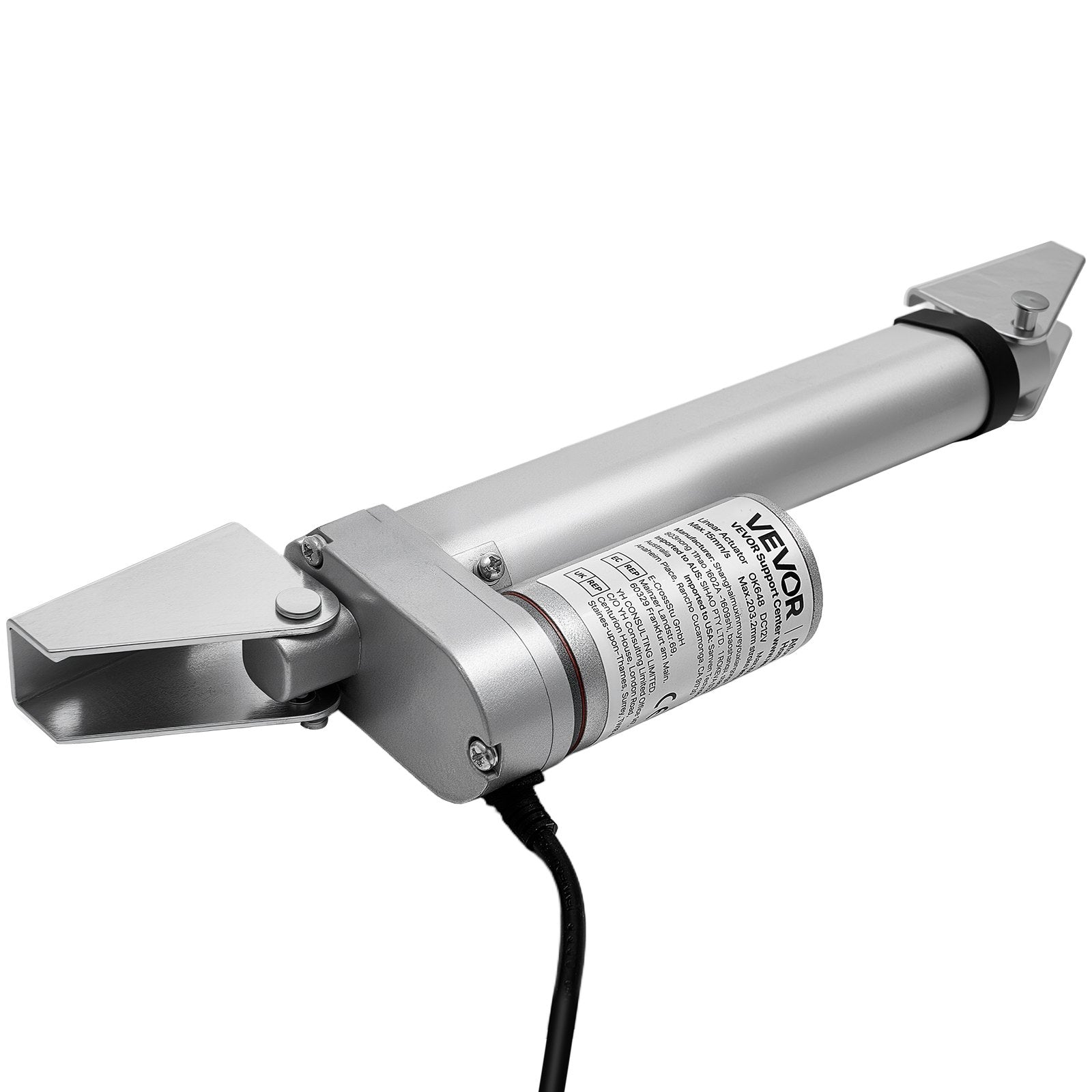

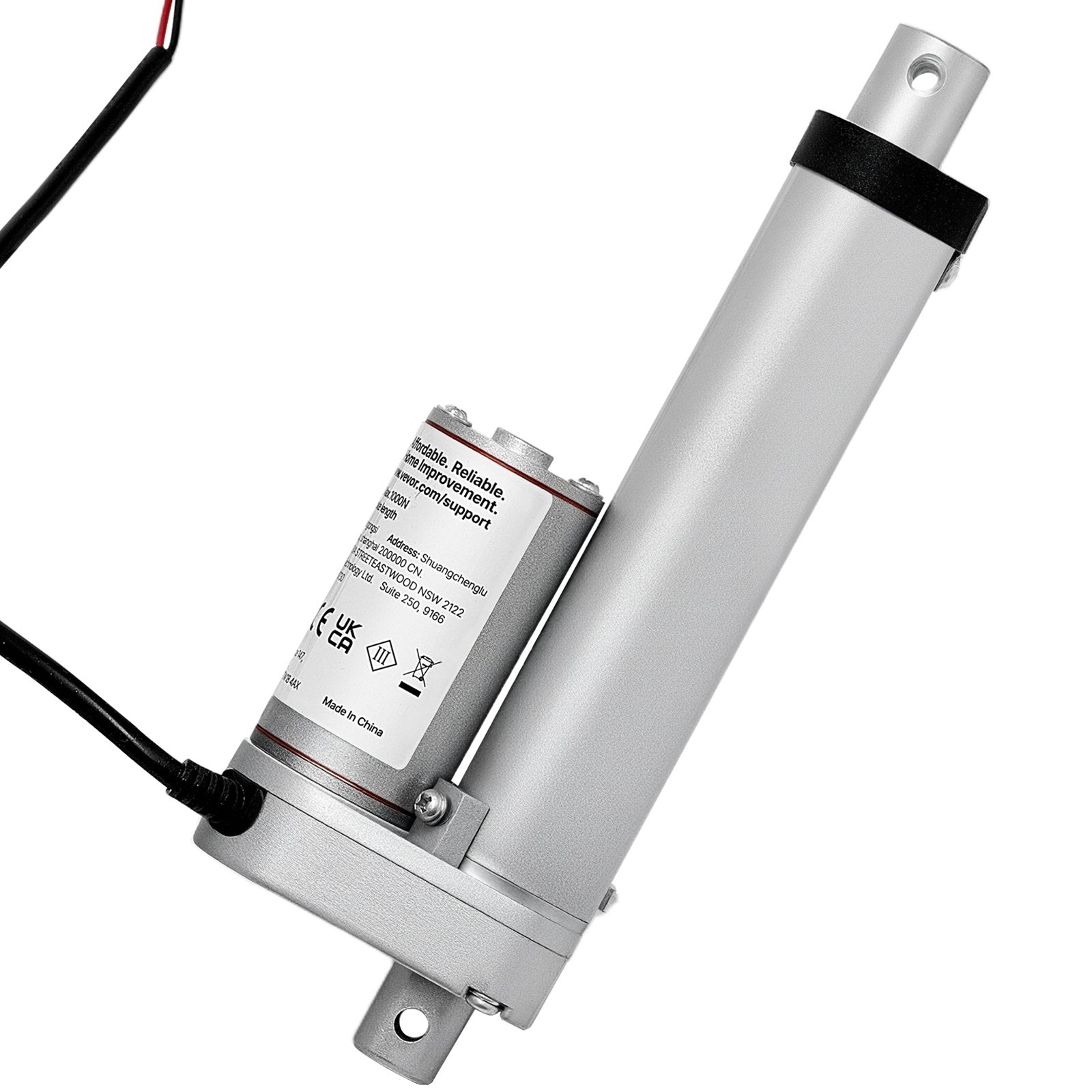

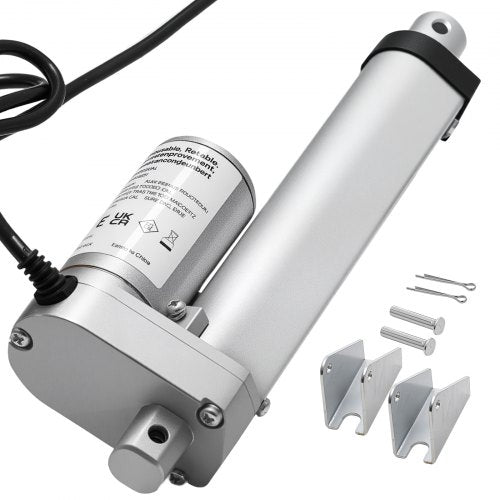

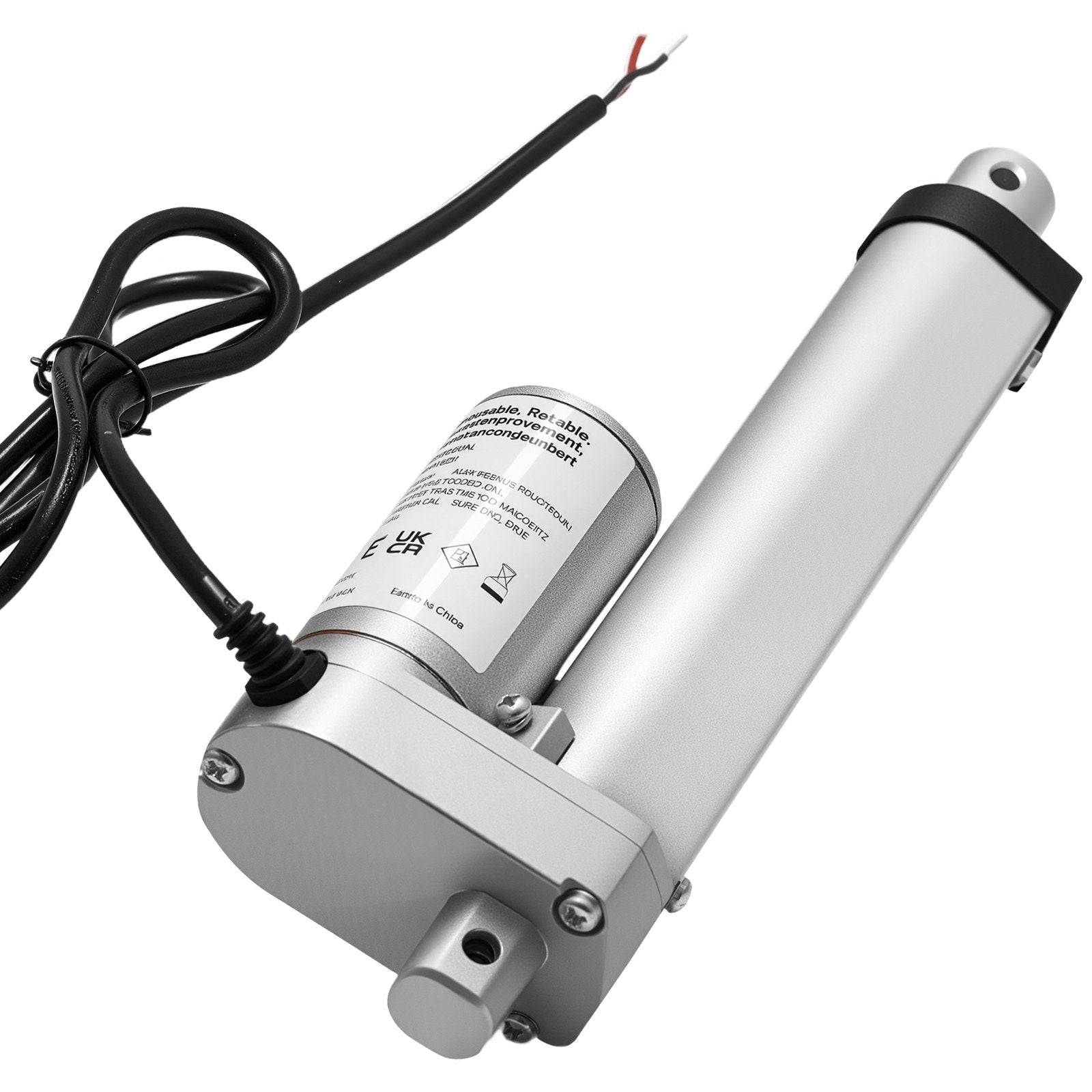

12V Linear Actuator, 4 Inch High Speed 0.6"/s Linear Motion Actuator, 225lbs/1000N with IP54 Protection & Mounting Bracket for Lift Desk, Recliner Chairs, Window Door Opener

12V Linear Actuator, 4 Inch High Speed 0.6"/s Linear Motion Actuator, 225lbs/1000N with IP54 Protection & Mounting Bracket for Lift Desk, Recliner Chairs, Window Door Opener

Regular price $70.00 USD
Regular price Sale price $70.00 USD
Sale Sold out
Taxes included.
Quantity
Features & Details

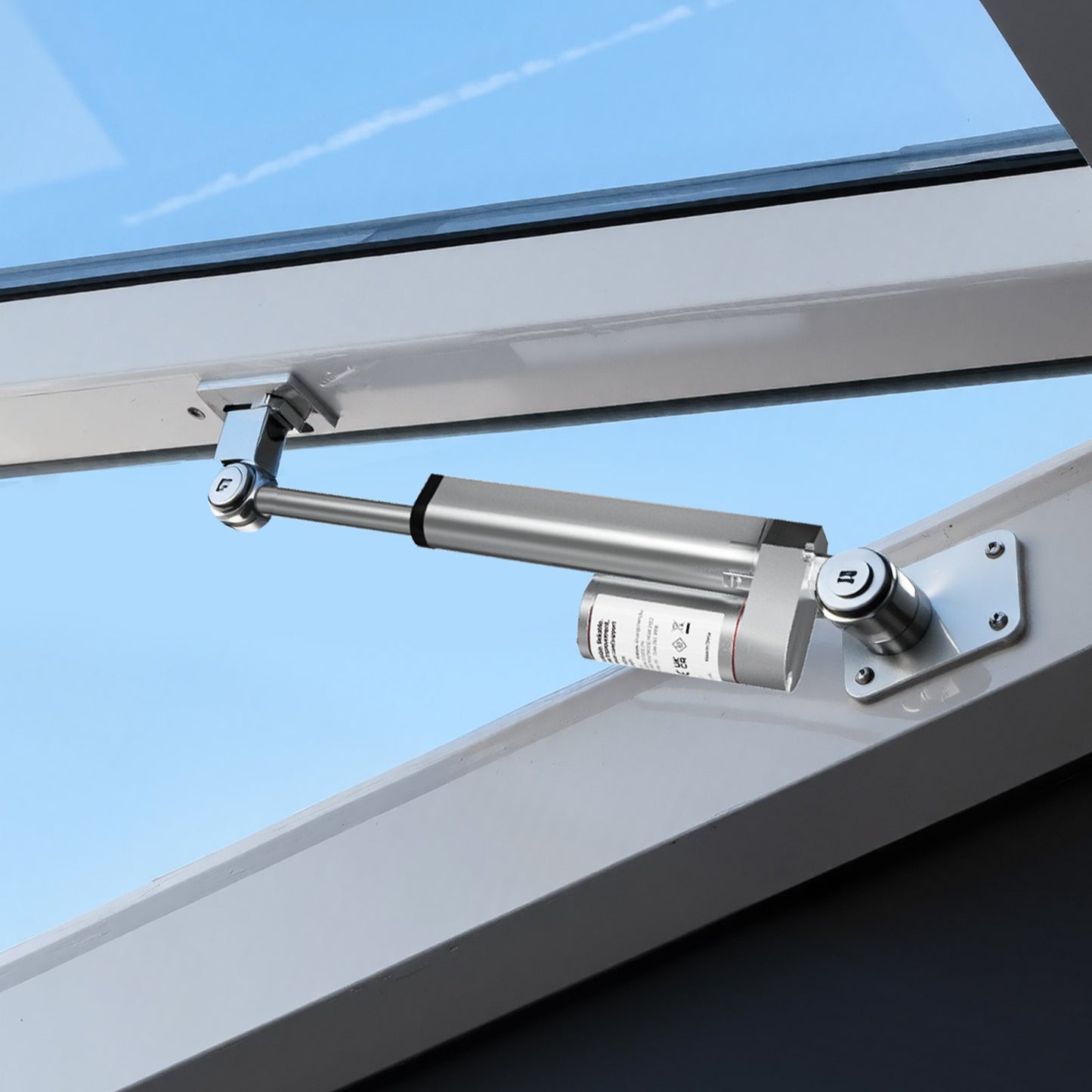

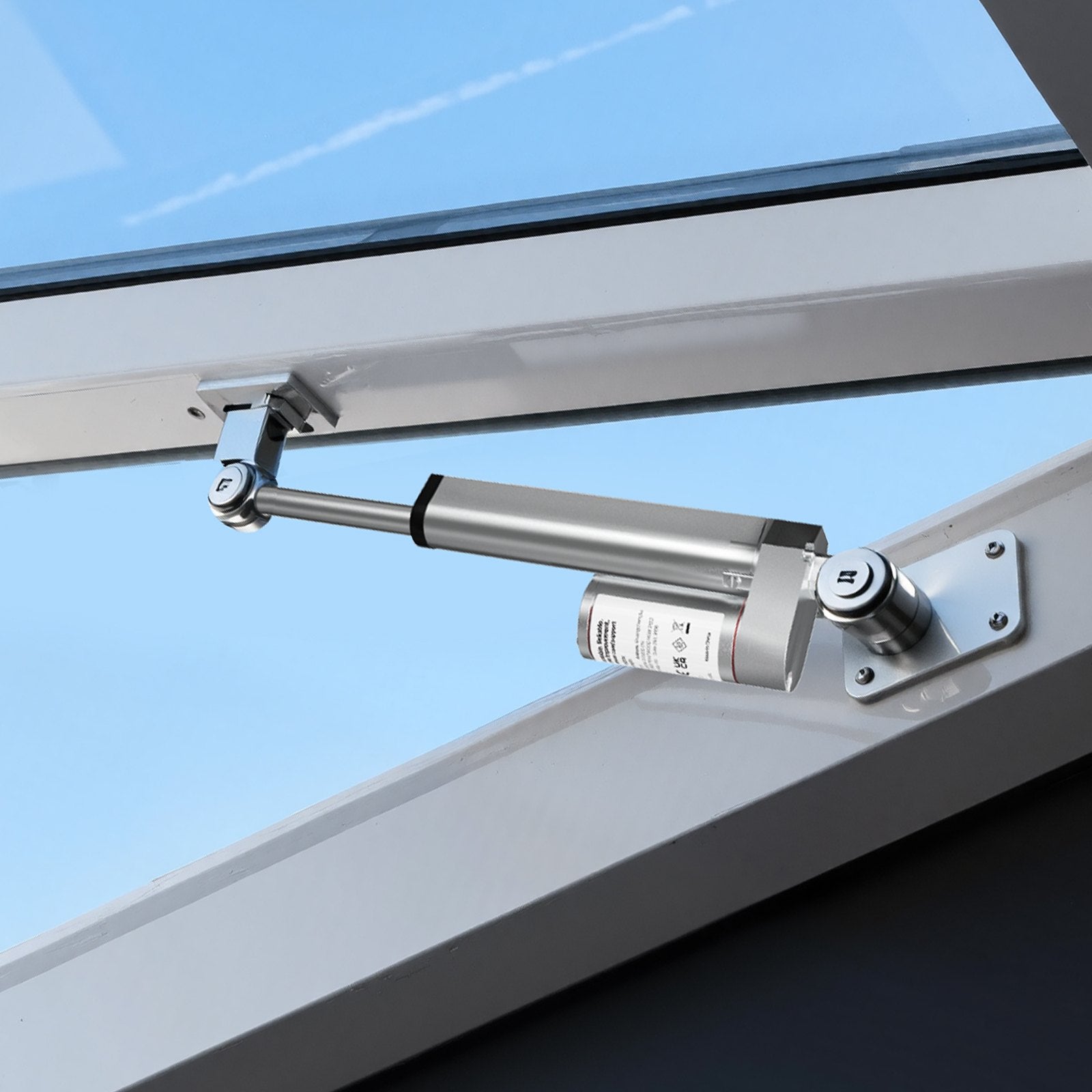

  • Efficient Stroke Adjustment: Moving swiftly at 0.6 inch/s, VEVOR 12V linear actuator is perfect for frequent height adjustments. Efficiently handles daily automation tasks, whether adjusting furniture height, raising and lowing the office desk, or opening car windows

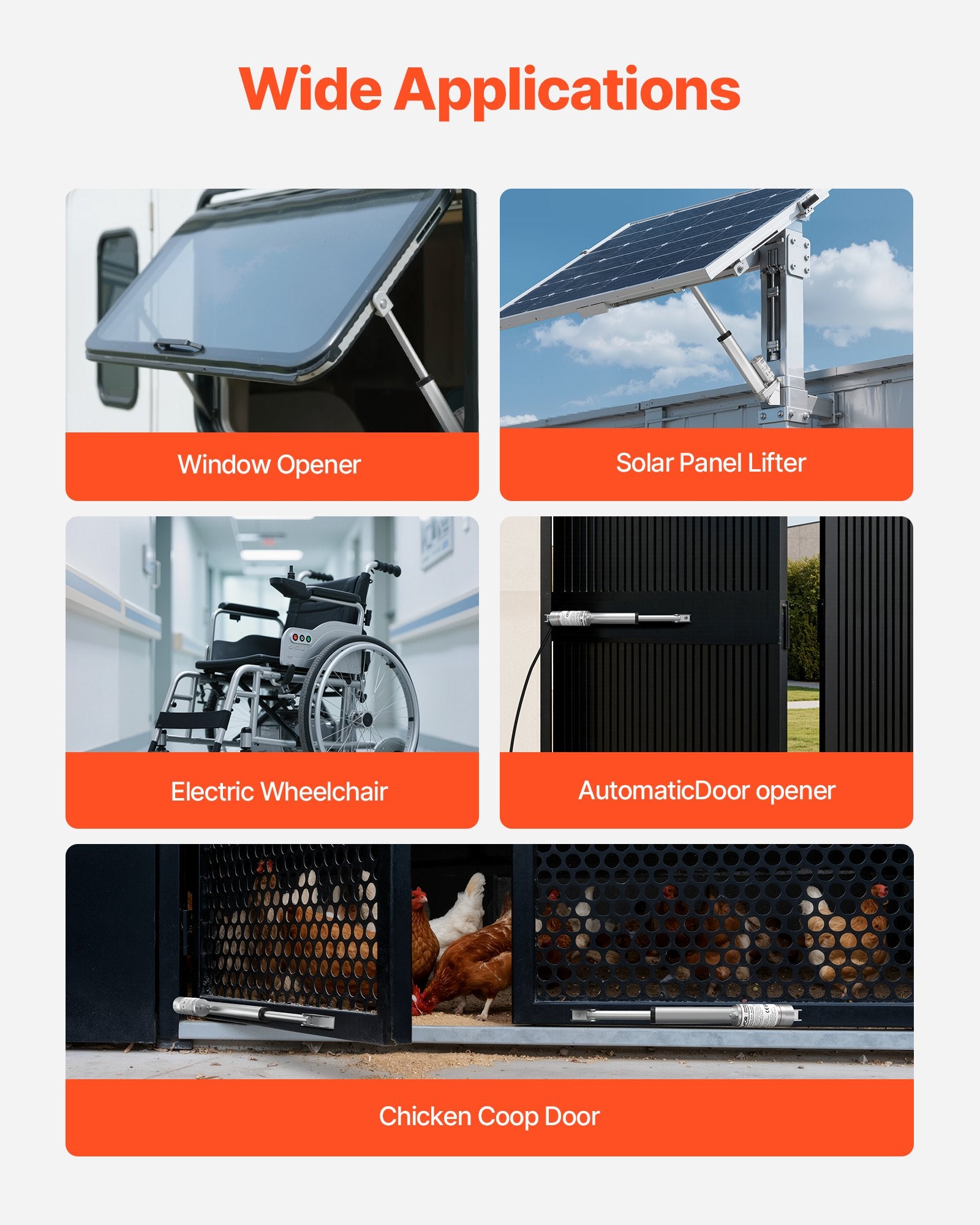

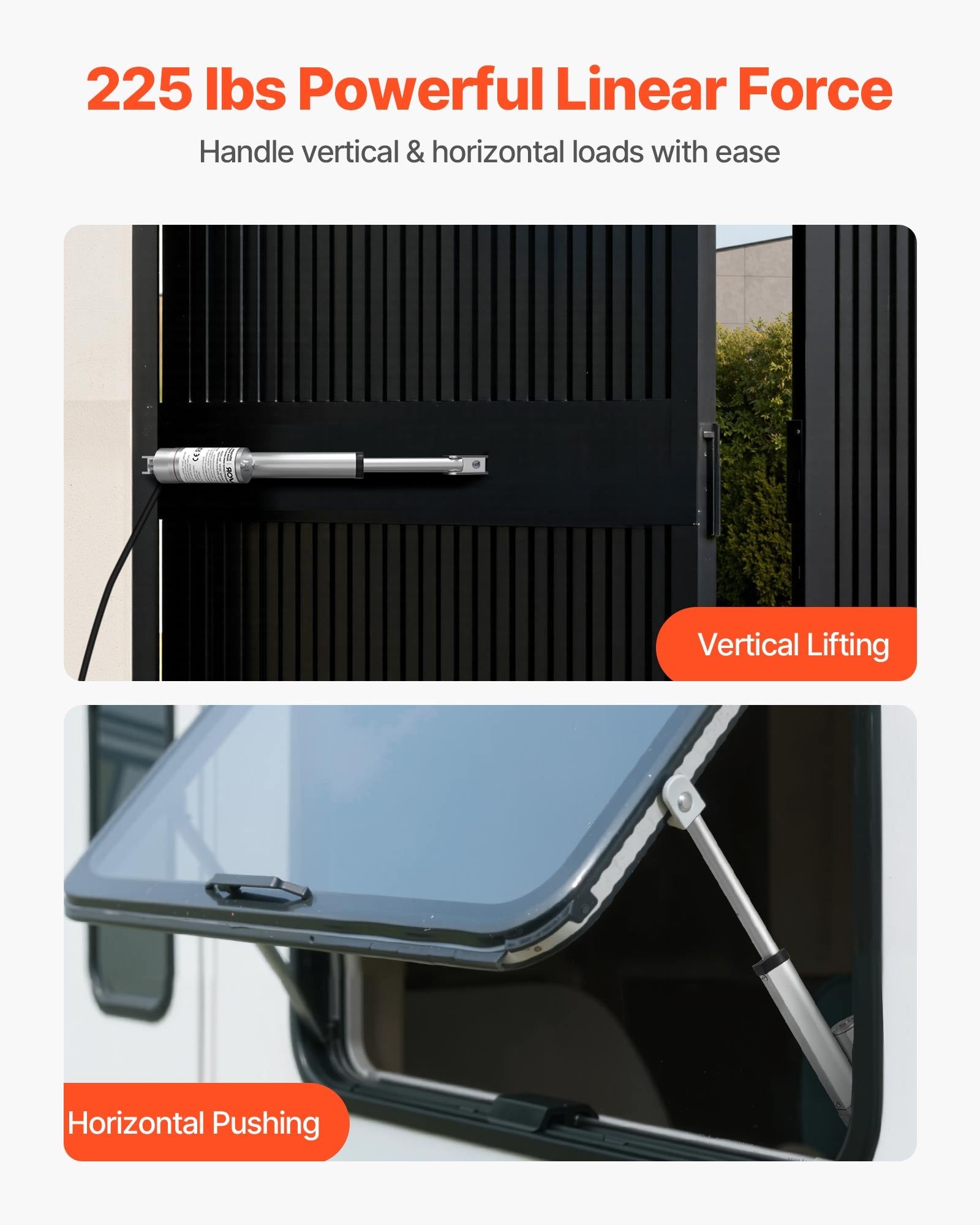

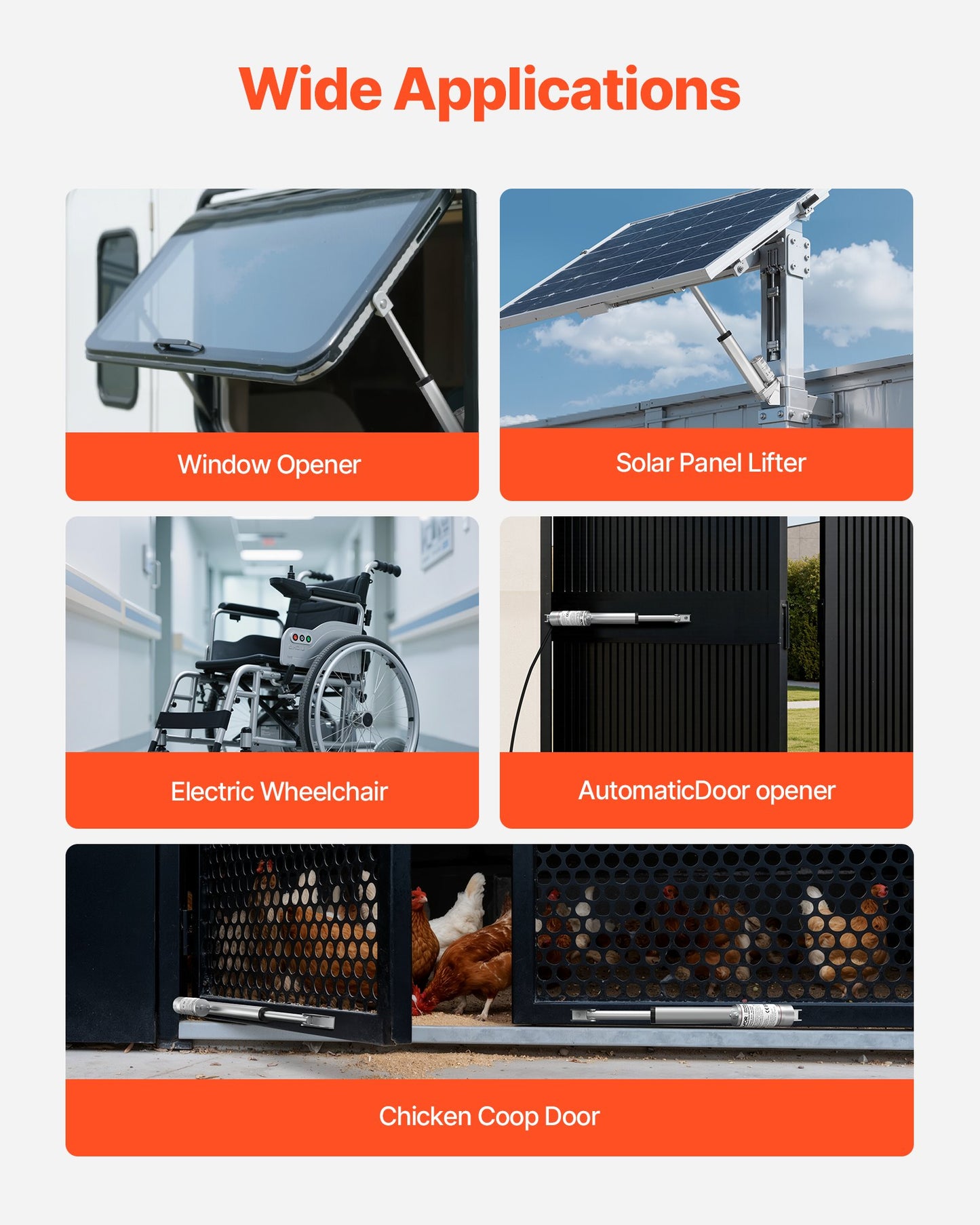

  • Powerful & Steady Torque: 225lbs (1000N) stable torque output excels in light industrial and home use such as massage sofas, recliners, TV lifters, lifting tables, electric wheelchair and window openers. Smooth and stable for low-load, long-run applications

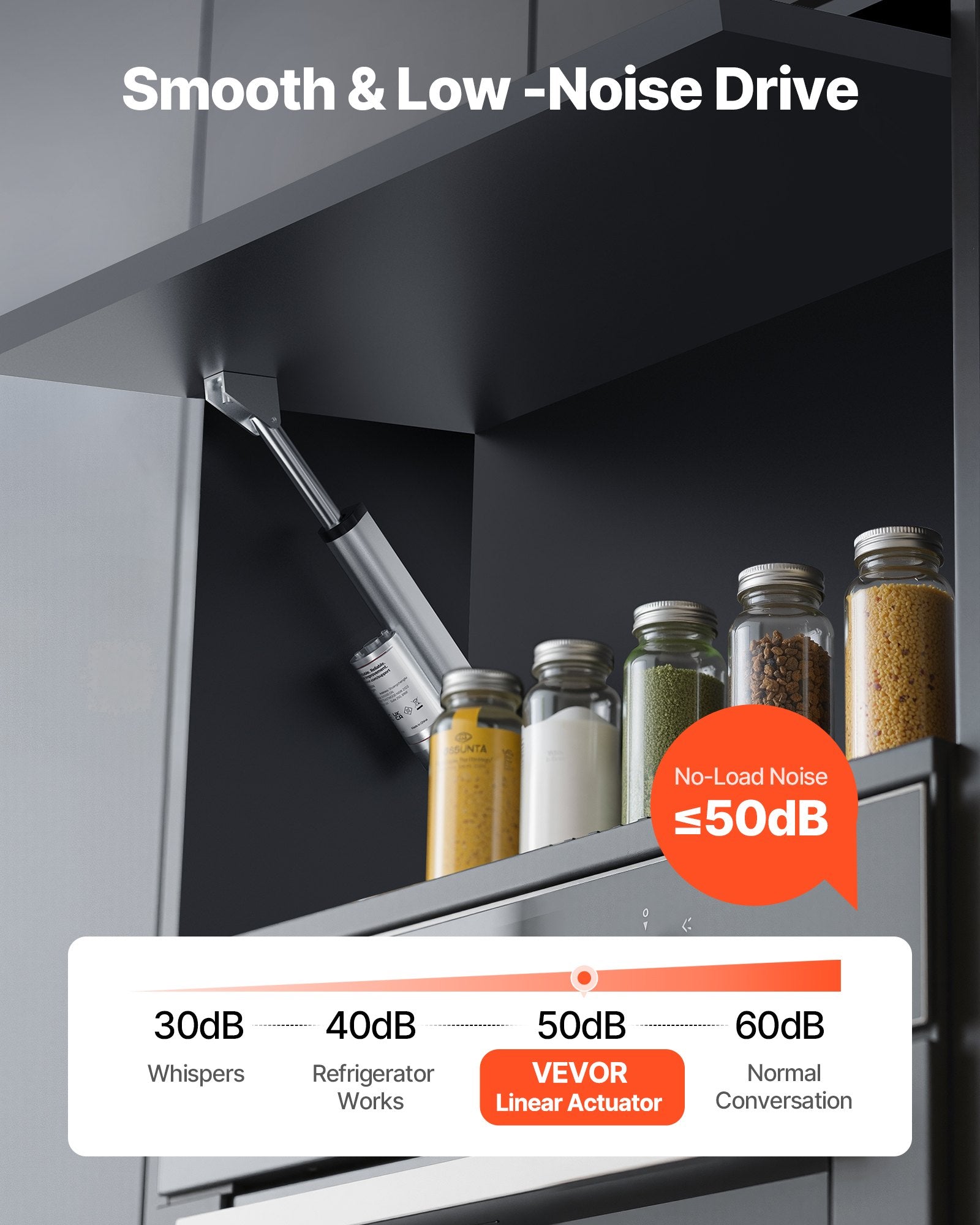

  • Quiet Operation for Comfort: Operating at less than 50 dB (no-load noise), our 12V linear actuator is your go-to choice for bedrooms, offices, hospitals, and labs where silence matters. Enjoy efficient, reliable performance without disturbing your environment

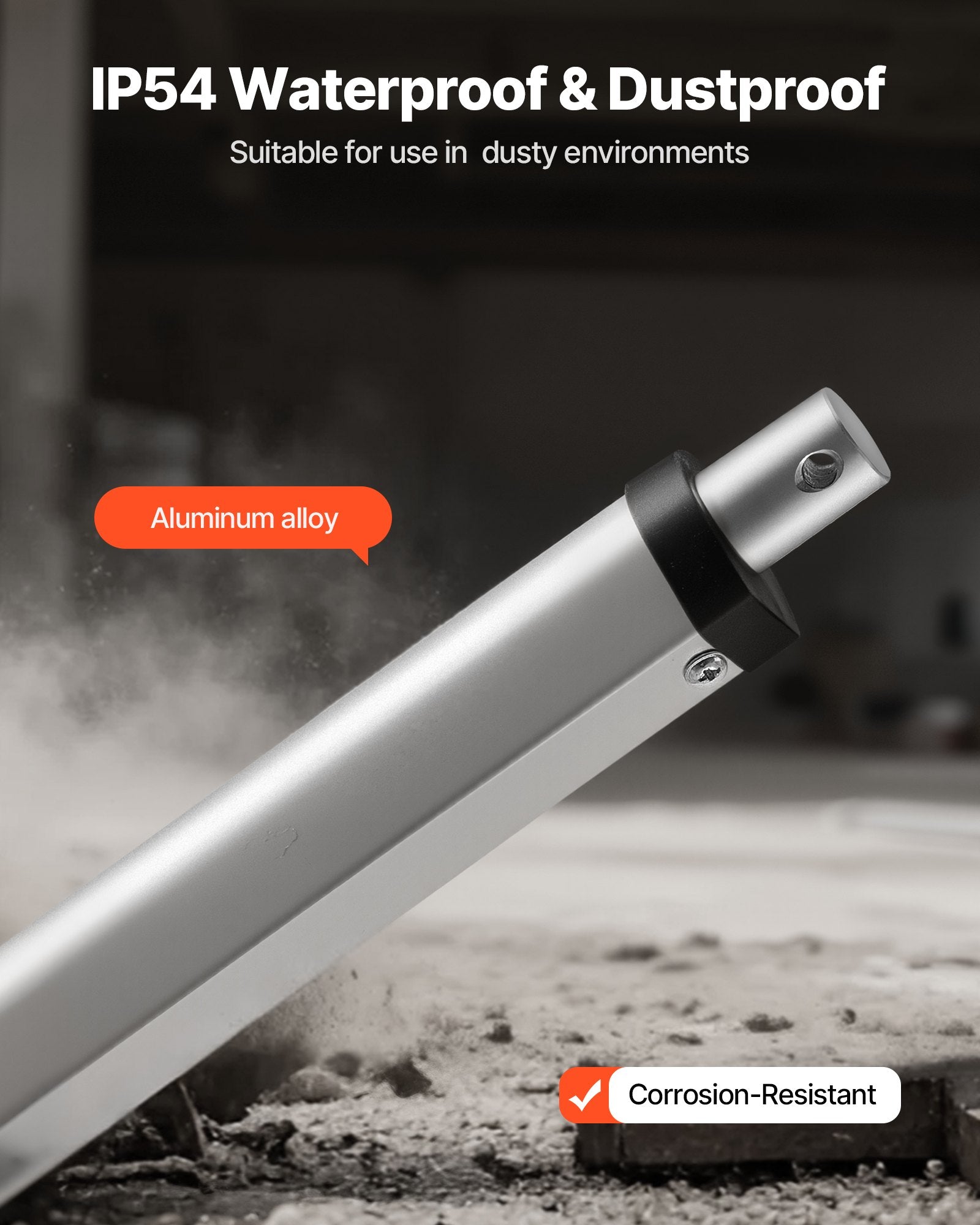

  • IP54 Protection Rating: IP54 rating and a sturdy aluminum alloy housing deliver extended indoor use service life. (Caution: For consistent performance and longer longevity, avoid outdoor use and prevent water from entering the motor to cause burnout)

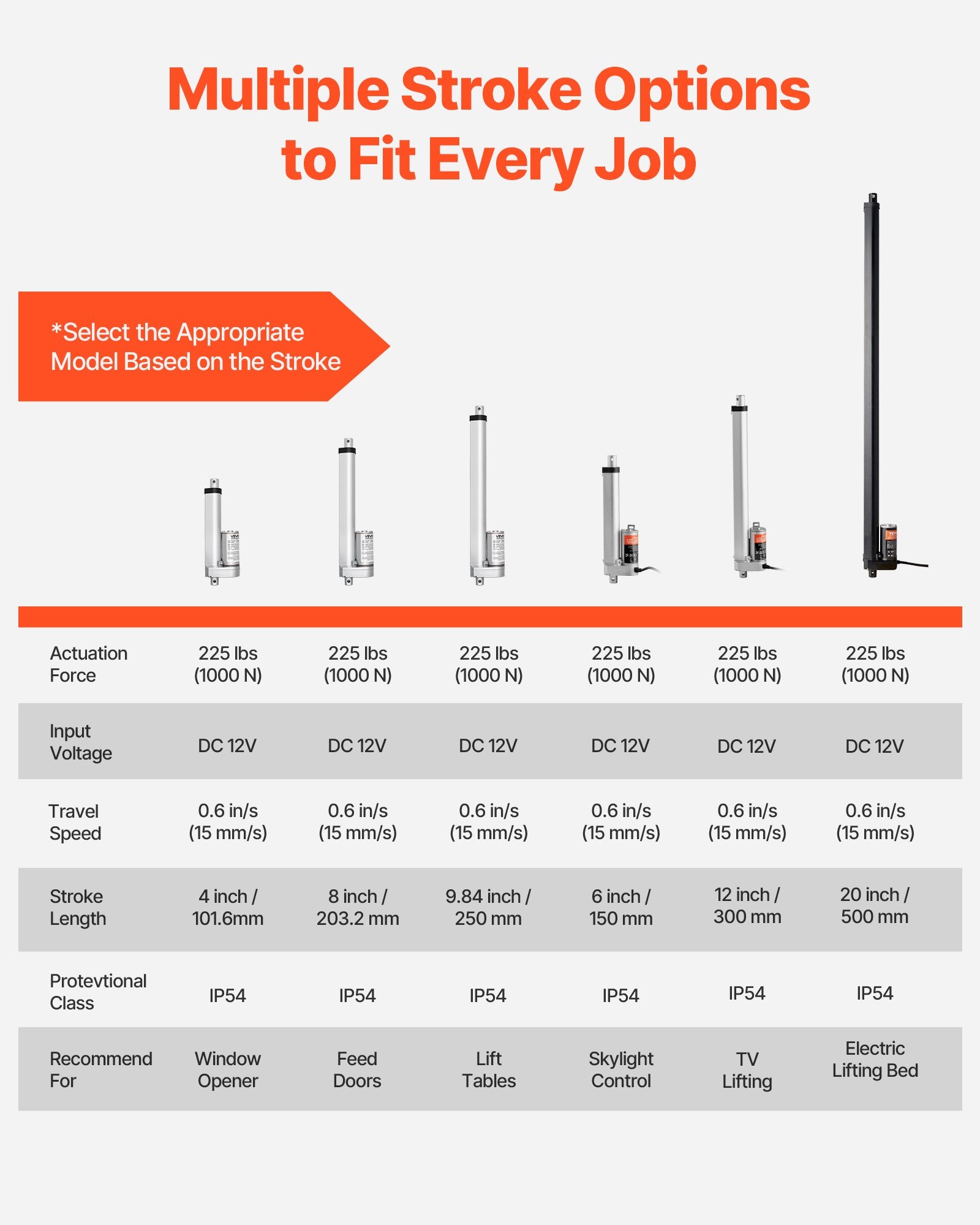

  • Key Specifications: Travel Speed: 0.6"/s (15 mm/s); Stroke Length: 4" (101.6 mm); Extended Length: 12" (304.8 mm); Retracted Length: 8" (203.2 mm); Current Draw: 5 Amps; Input Voltage: DC 12V; Duty Cycle: 25%

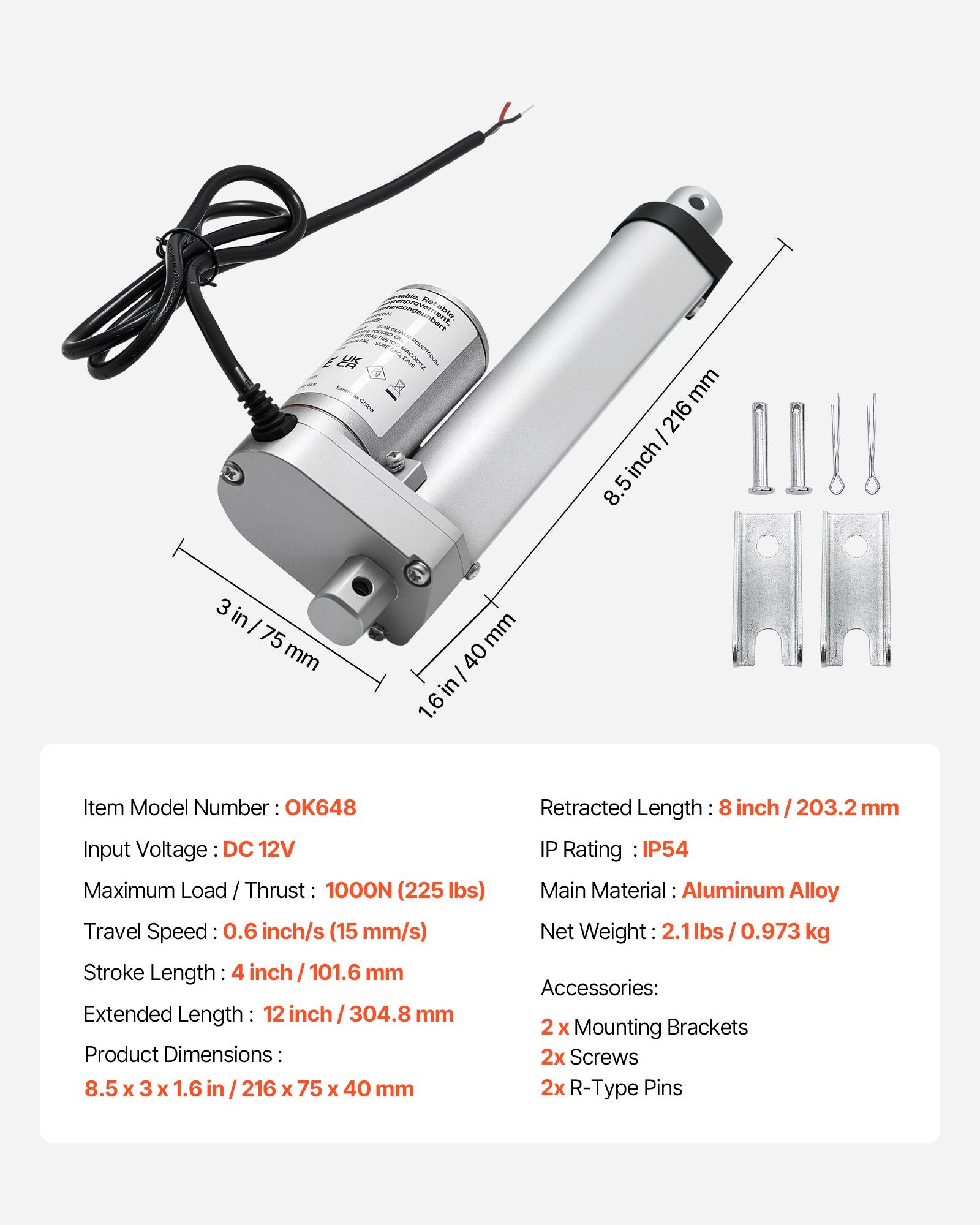

Product Specification
  • Maximum Load / Thrust: 1000N (225 lbs)
  • IP Rating: IP54
  • Item Model Number: OK648
  • Travel Speed: 0.6 inch/s (15 mm/s)
  • Extended Length: 12 inch / 304.8 mm
  • Input Voltage: DC 12V
  • Stroke Length: 4 inch / 101.6 mm
  • Retracted Length: 8 inch / 203.2 mm
  • Product Dimensions: 8.5 x 3 x 1.6 in / 216 x 75 x 40 mm
  • Net Weight: 2.1 lbs / 0.973 kg
  • Main Material: Aluminum Alloy
