PTO Shaft, 1-3/8” PTO Drive Shaft, 6 Spline Both Ends PTO Driveline Shaft, Series 6 Tractor PTO Shaft, 47”-67” Brush Hog PTO Shaft, Black PTO Shaft with Slip Clutch for Bush Hog/Finish Mower
PTO Shaft, 1-3/8” PTO Drive Shaft, 6 Spline Both Ends PTO Driveline Shaft, Series 6 Tractor PTO Shaft, 47”-67” Brush Hog PTO Shaft, Black PTO Shaft with Slip Clutch for Bush Hog/Finish Mower
Regular price
$235.00 USD
Regular price
Sale price
$235.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details

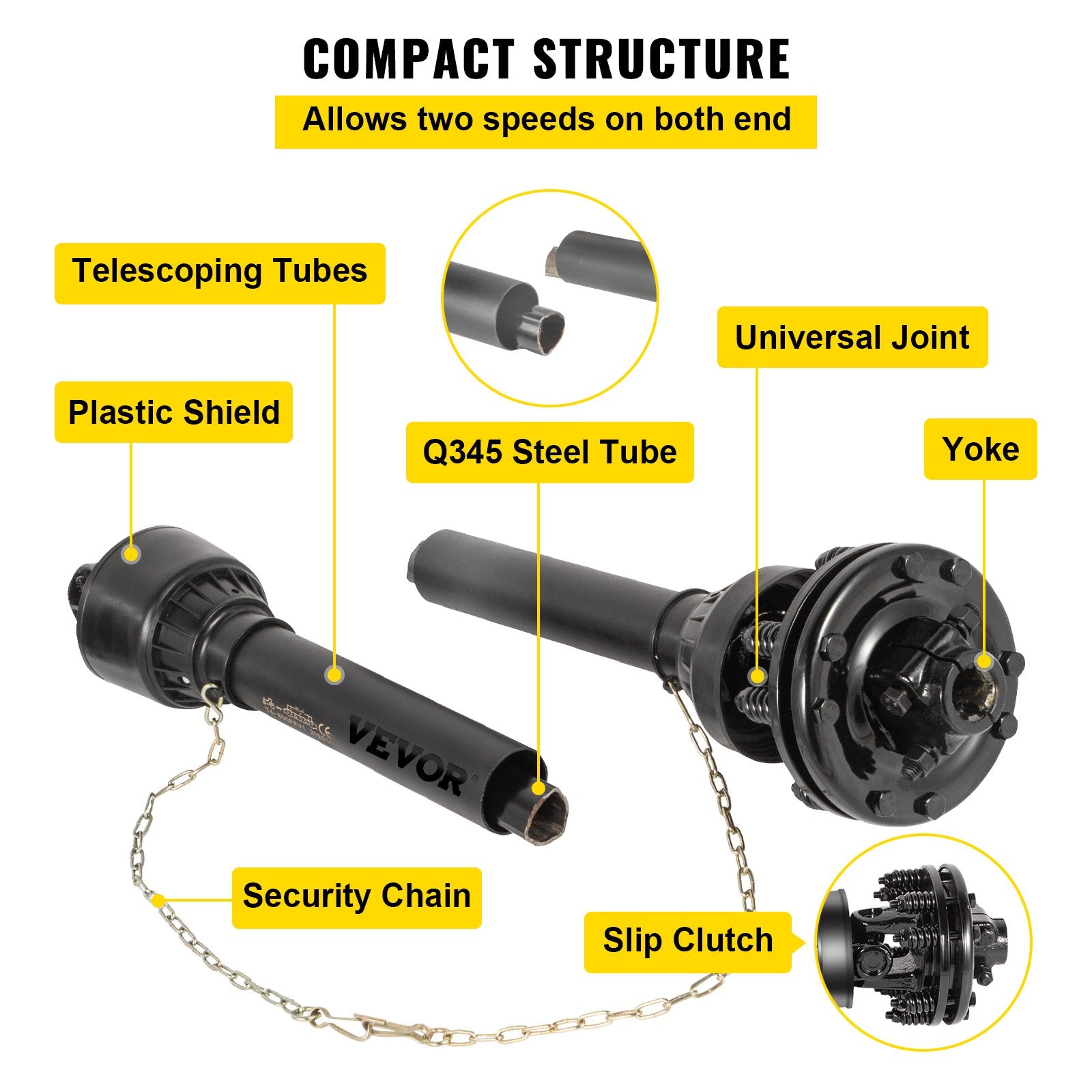

- Sturdy and Durable: This PTO shaft is a well-forged series6 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.

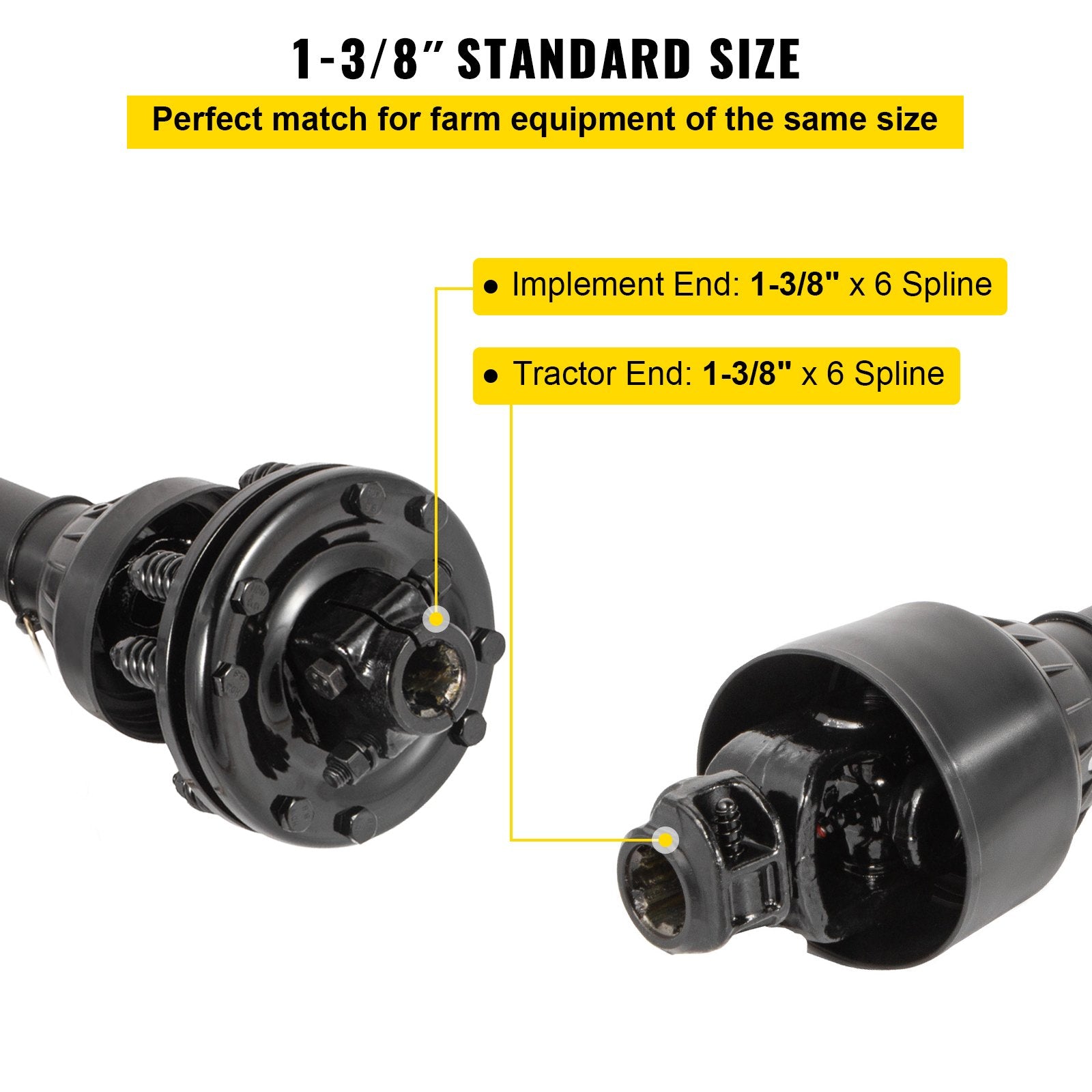

- 6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline. Our brush hog PTO shaft can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.

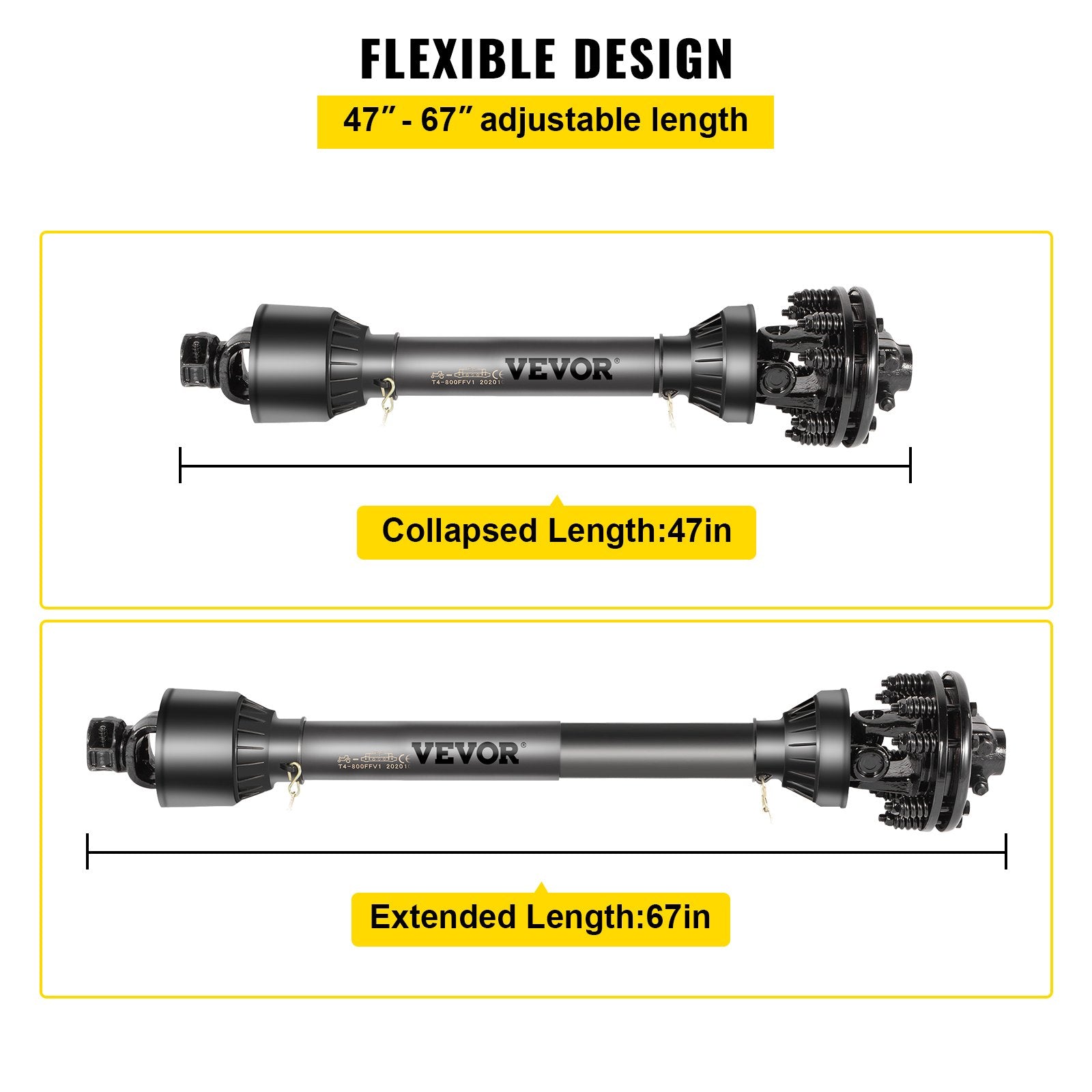

- Adjustable Length: Compressed Length: 47"; Extended Overall Length: 67". Friction Disc Dia: 5.5". The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 55 hp, 40 Kw, and 850 nm torque at 540 rpm, while at 1000 rpm features 83 hp, 61 Kw, and torque 690 nm. It allows two sides of the PTO drive line shaft to spin at different speeds.
- Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
- Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, tractors, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.

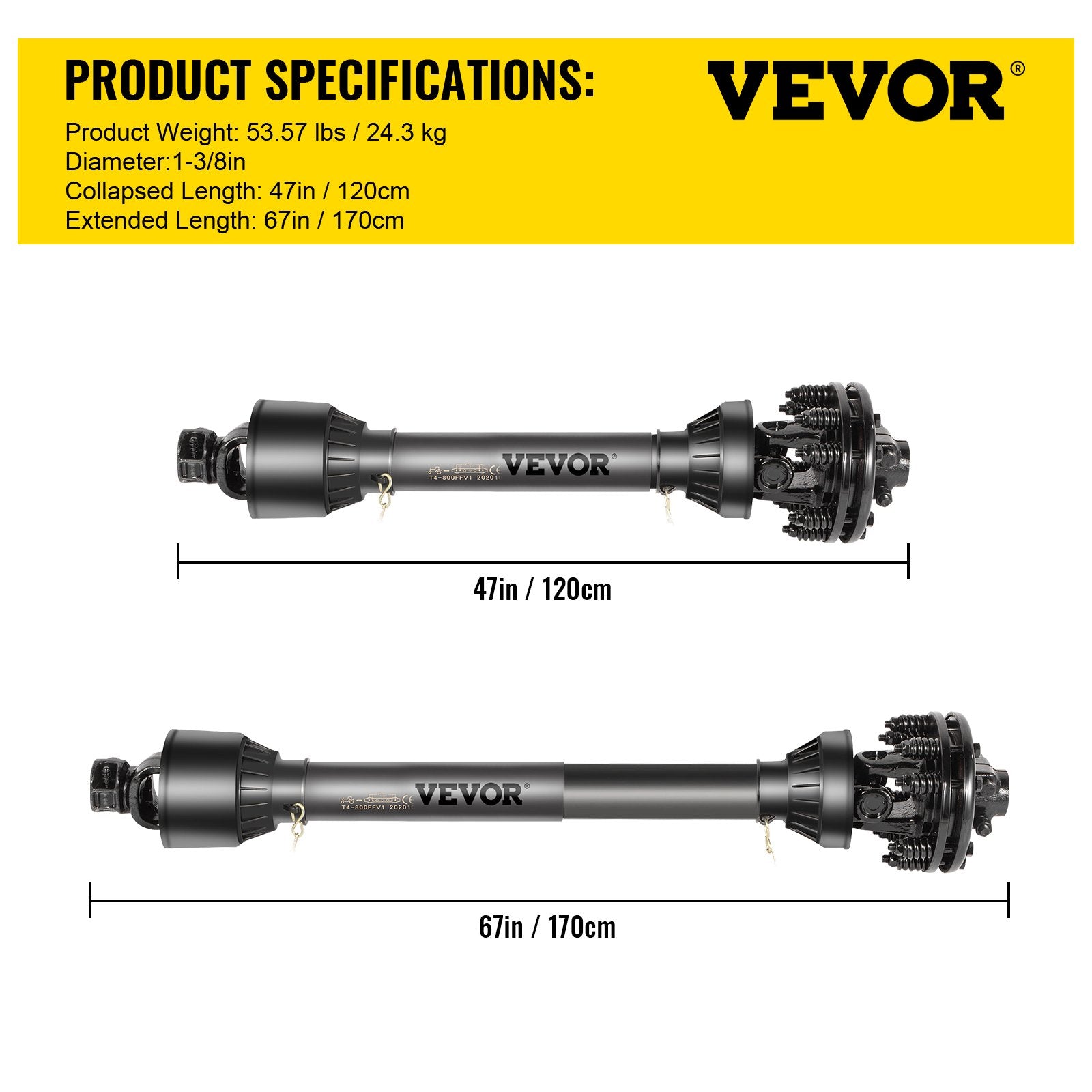

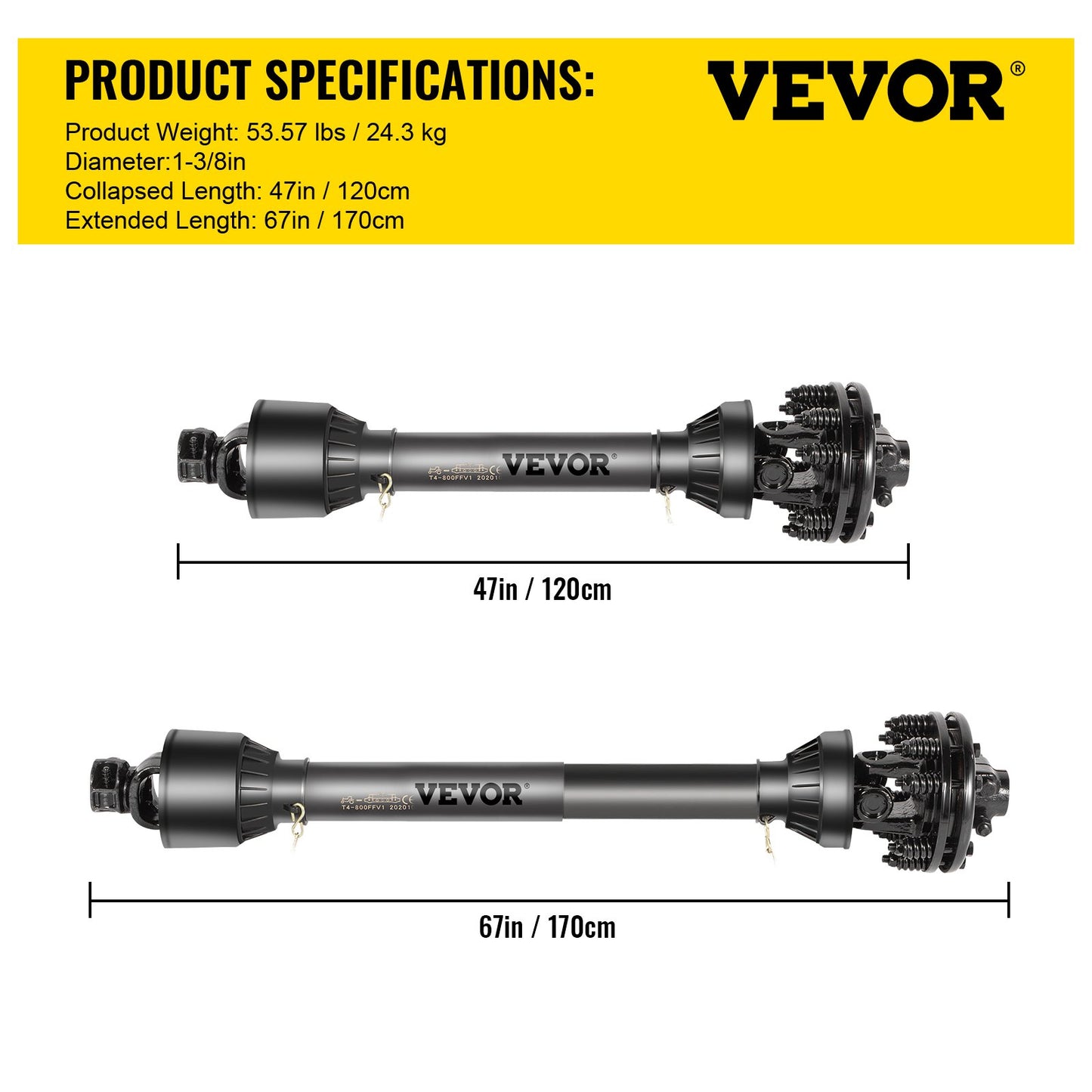

- Series: 6
- Friction Disc Dia.: 5.5" / 140 mm
- Compressed Length: 47" / 1200 mm
- Max Torque: 1500Nm
- Extended Overall Length: 67" / 1700 mm
- Tractor End: 1-3/8" x 6 Spline
- Color: Black
- Implement End: 1-3/8" x 6 Spline
- Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
- At 1000PRM: 83hp, 61Kw, 690Nm
- Part Type: PTO Drive Shaft
- At 540RPM: 55hp, 40Kw, 850Nm
