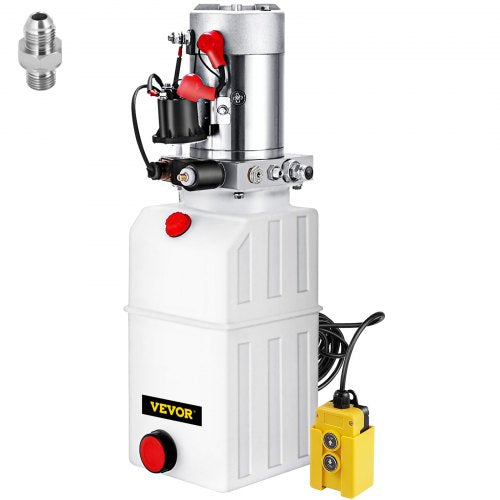

6 Quart Hydraulic Power Unit Single Acting Hydraulic Pump Dump Trailer 12V DC with 6L Metal Reservoir Hydraulic Power Pack for Car Lifting

6 Quart Hydraulic Power Unit Single Acting Hydraulic Pump Dump Trailer 12V DC with 6L Metal Reservoir Hydraulic Power Pack for Car Lifting

$235.00 USD
$235.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.

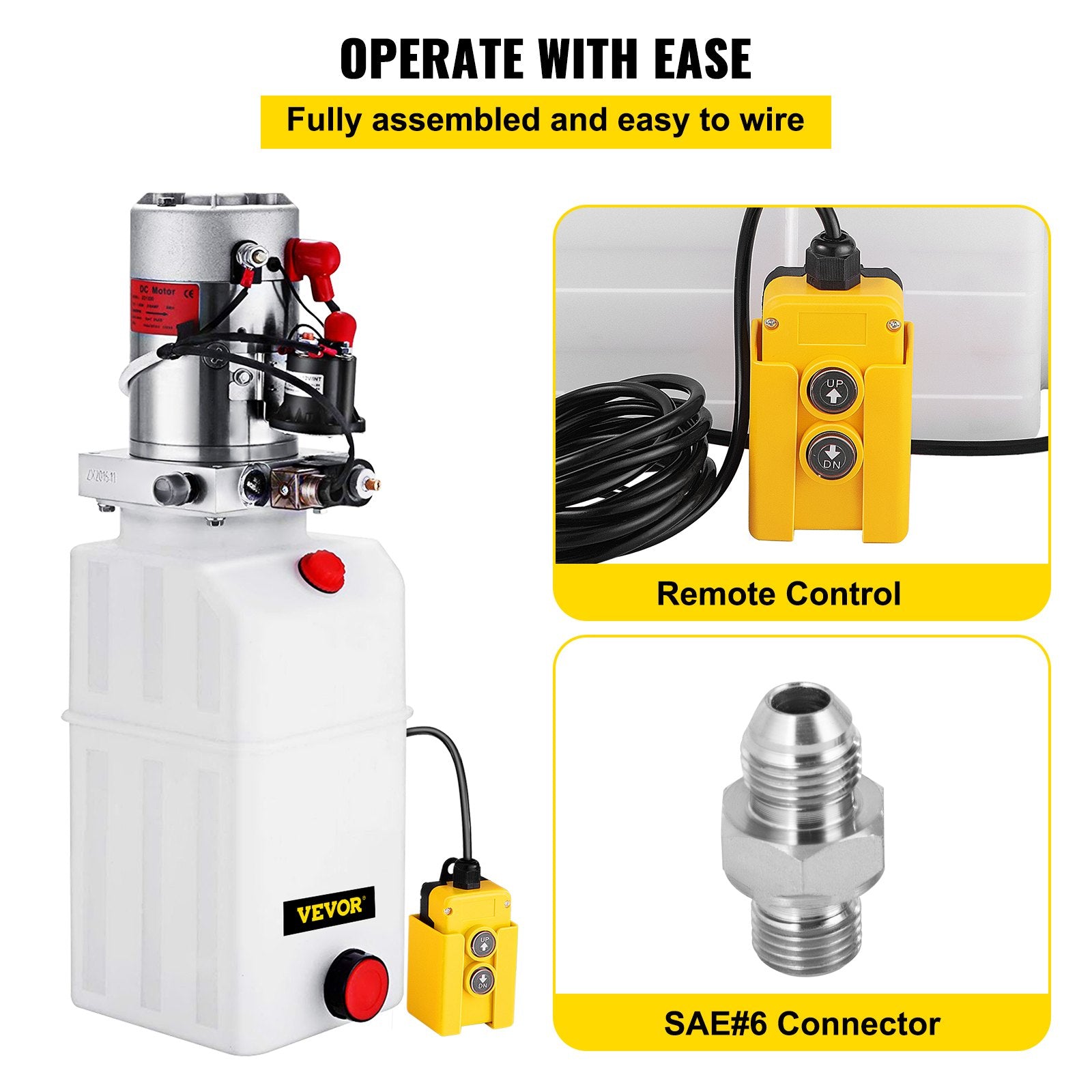

  • Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.

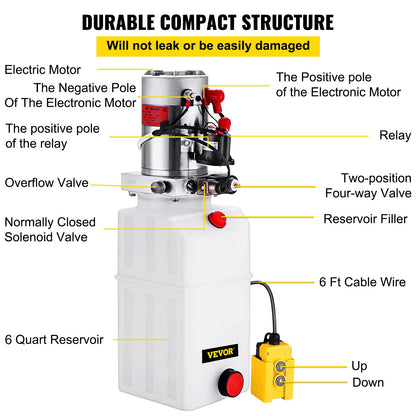

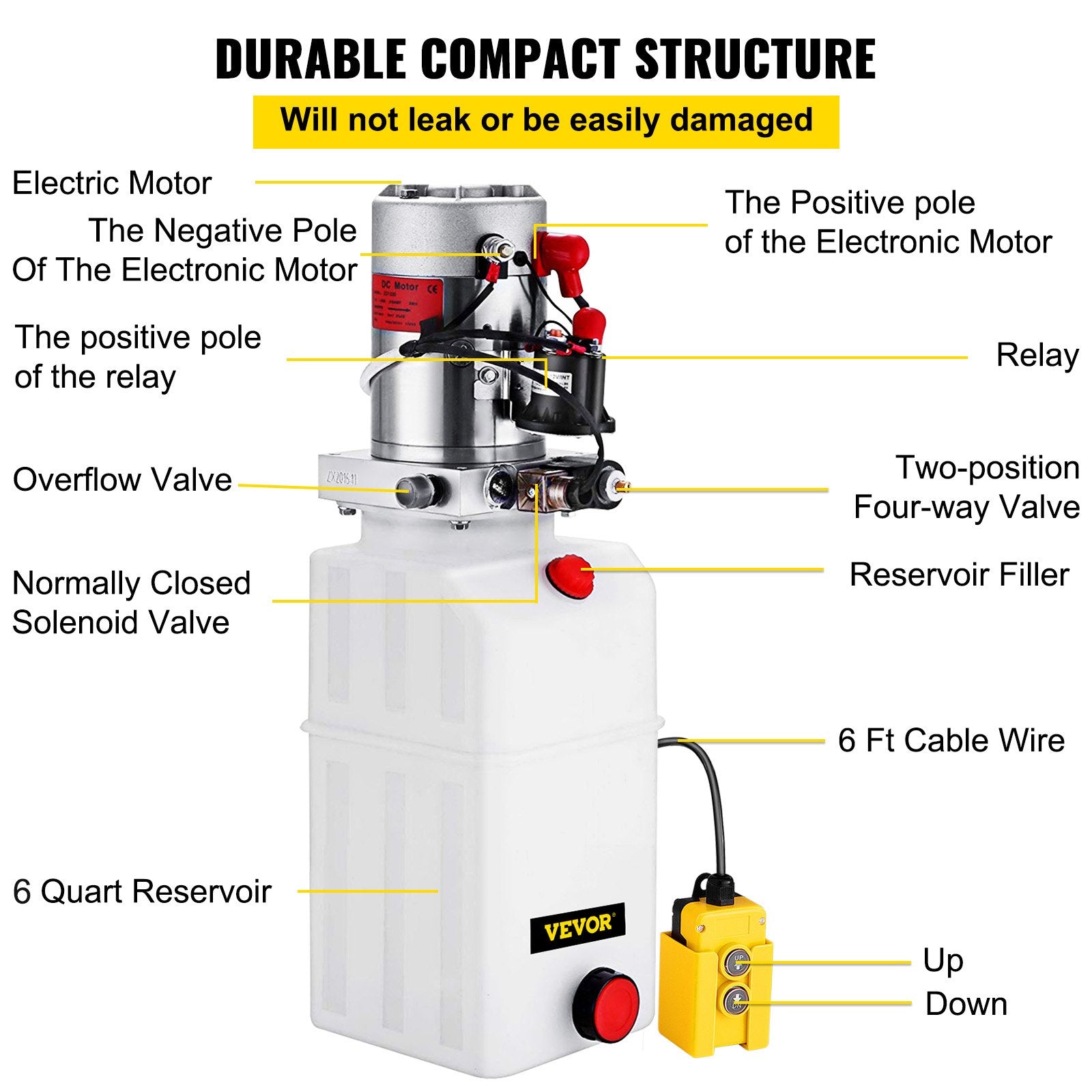

  • Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

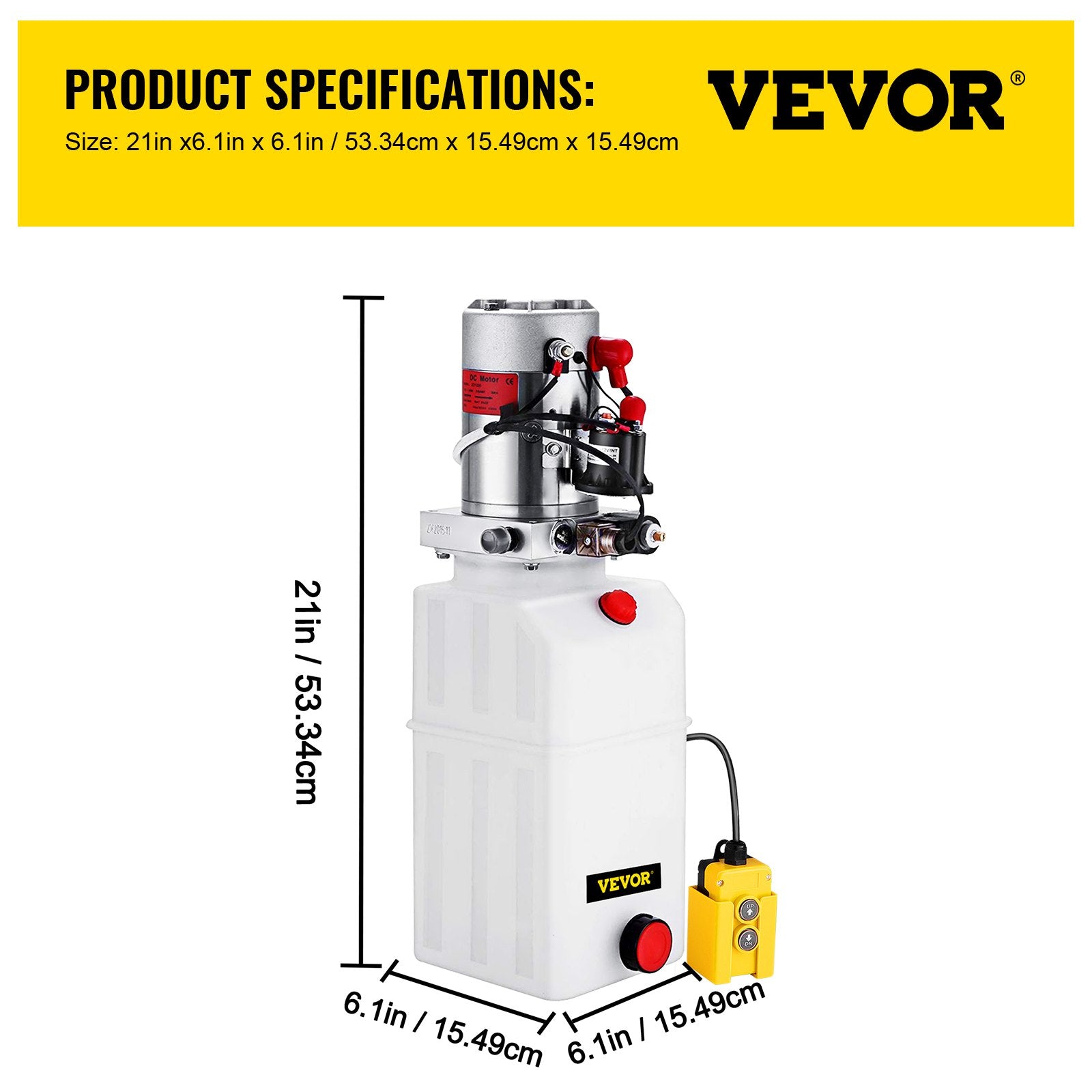

Product Specification
  • 1500 PS Max Relief Setting on B port:
  • Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port).
  • Displacement of hydraulic pump: 0.562-4.350GPM (0.75-5.8ML/R, Applicable to all single power unit for 4, 6, 8, 10 quart).
  • 6 Quart Translucent Reservoir:, SAE # 1 Port
  • Horizontal mount:
  • Rated speed: 2850R/MIN
  • Motor voltage: DC12V
  • Motor power: 1.6-3KW (Applicable to all single power unit for 4, 6, 8, 10 quart)
  • Tank Material: Plastic
  • Fuel tank: 6L
  • Hand held pendant with about 15 feet(117in/ 4.5 m)removal cord and start solenoid:

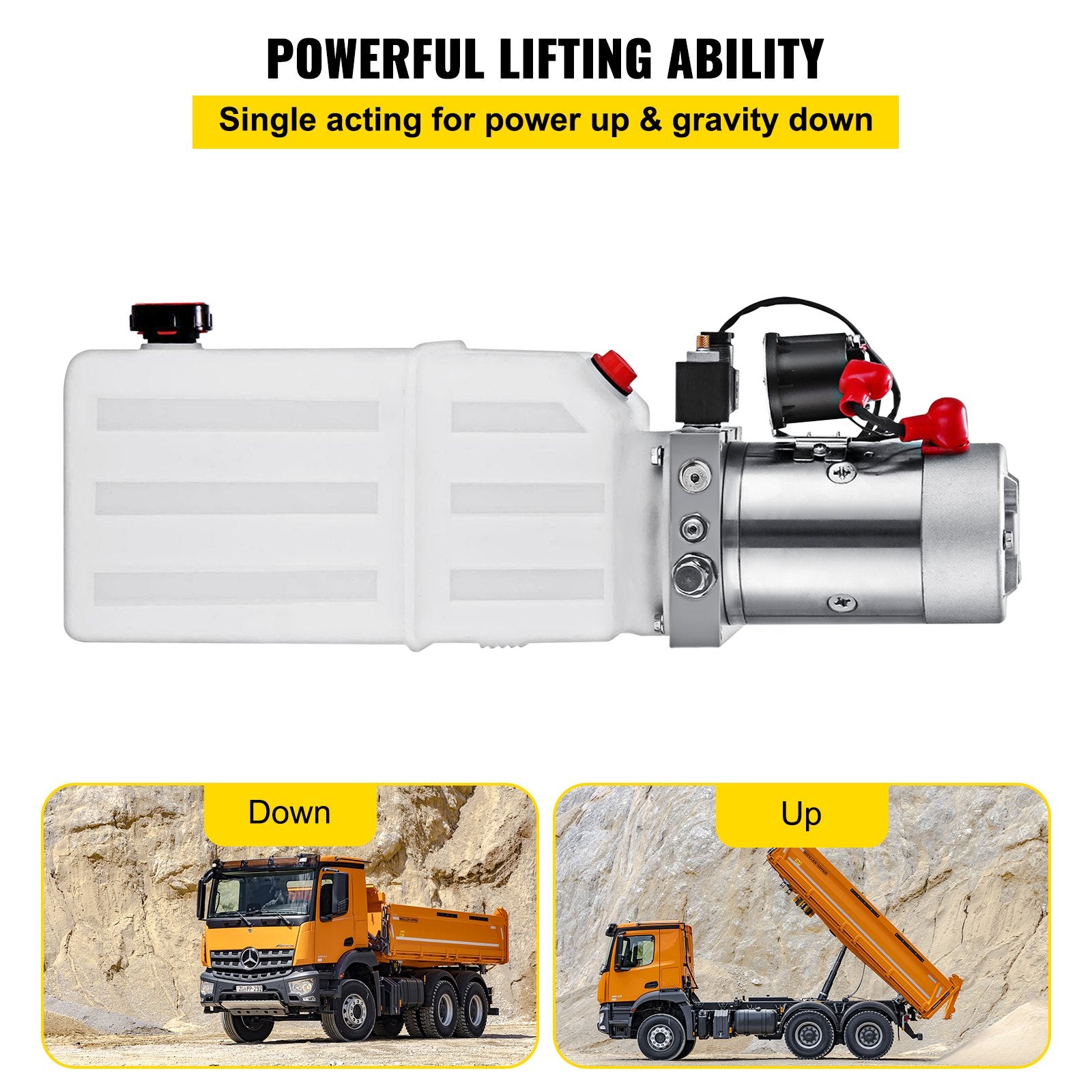

  • Single acting Power-Up/ Gravity Down:
