3315332.005 RV AC Fan Motor Replacement Genteq F48AF70A61, Dometic Brisk Air II Fan Motor, Compatible with Dometic Brisk Air II B57915 B59516 B59146 B59186 - 1/4HP AC115V 3A 1650RPM (3 Speeds)

3315332.005 RV AC Fan Motor Replacement Genteq F48AF70A61, Dometic Brisk Air II Fan Motor, Compatible with Dometic Brisk Air II B57915 B59516 B59146 B59186 - 1/4HP AC115V 3A 1650RPM (3 Speeds)

$115.00 USD
$115.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Key Features: 1/4 HP, Single Phase, Full Load Amp: 3.0A, Voltage: AC115V 60Hz, 3 Speeds - 1650/1500/1350 rpm, 0.5-inch Shaft Diameter.
  • Replacement and Compatible Models: This 3315332.005 fan motor is a direct replacement for the Genteq F48AF70A61 fan motor and the Dometic Brisk Air 2 fan motor. Compatible with dometic brisk air II models: B57915, B59516, B59146, B59186, B59196, B59530.
  • Compatible Detailed Models: B57915.711C0, B57915.711J0, B59146.711C0, B59146.711J0, B59186.711C0, B59186.711J0, B59196.711C0, B59196.711J0, B59516.711C0, B59516.711J0, B59530.701C0, B59530.701J0

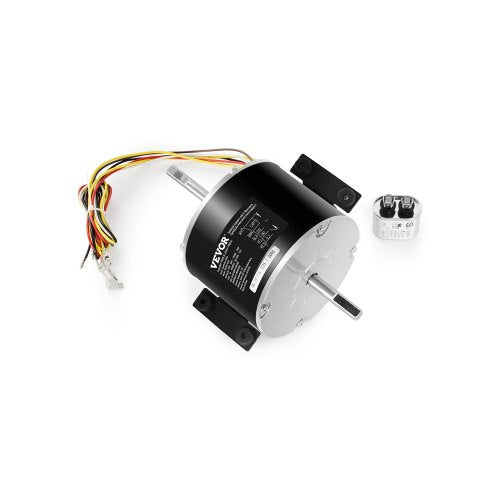

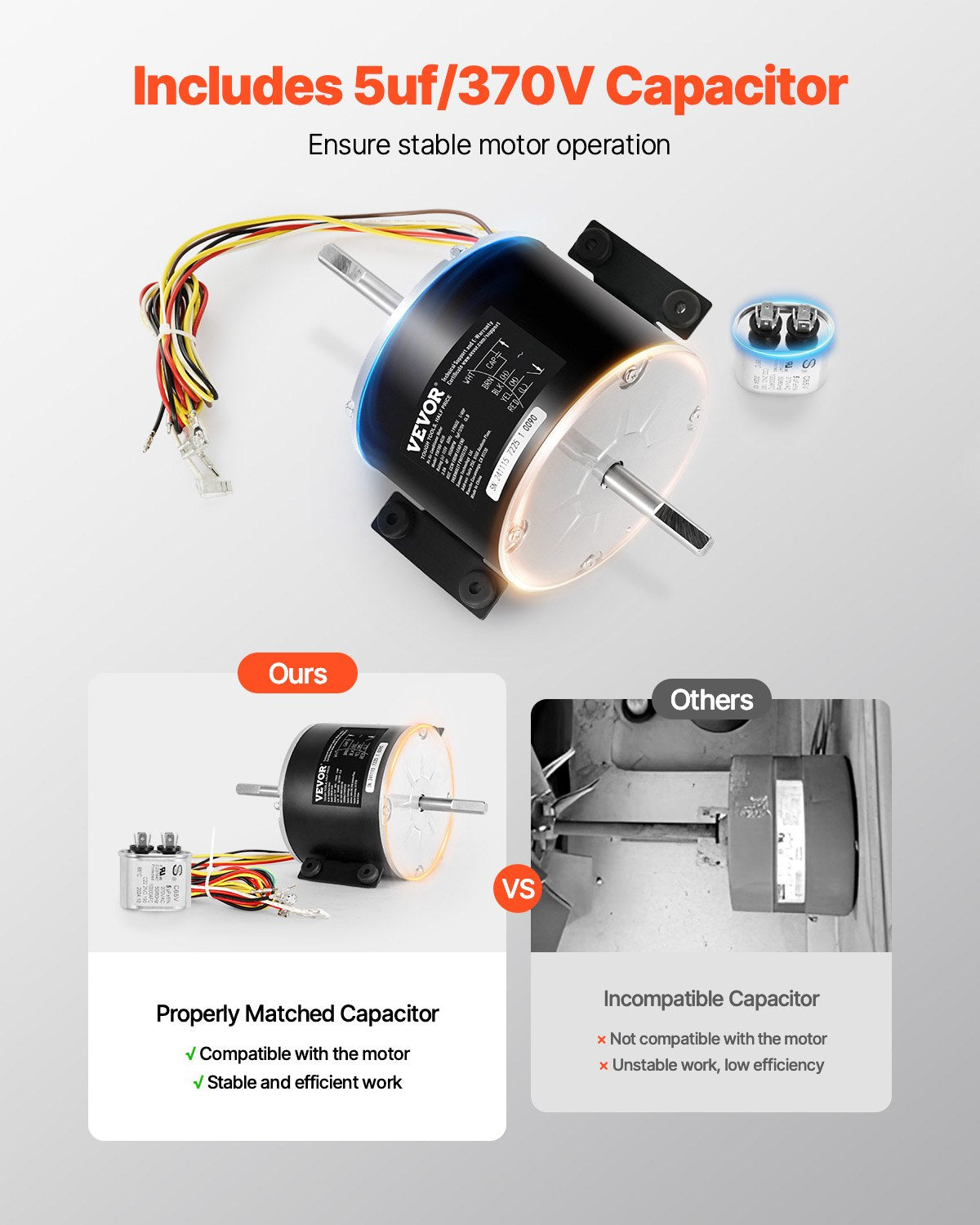

  • Convenient Accessory: This RV rooftop air conditioner motor comes with a CBB65 5uf/370V capacitor, eliminating the need to purchase a compatible unit separately, ensuring stable and efficient operation of the motor.
  • Safe and Durable: VEVOR RV AC fan motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance, providing reliable protection and extending its service life.
Product Specification
  • Equipped Capacitor Model: CBB 65, 5 µF / 370V
  • Rated Speed: 1650 / 1500 / 1350 RPM
  • Horsepower: 1/4 HP
  • Item Model Number: YDK180-4G16
  • Shaft Diameter: 0.5 in / 12.7 mm
  • Rated Current: 3 A
  • Speed Levels: 3-Speed

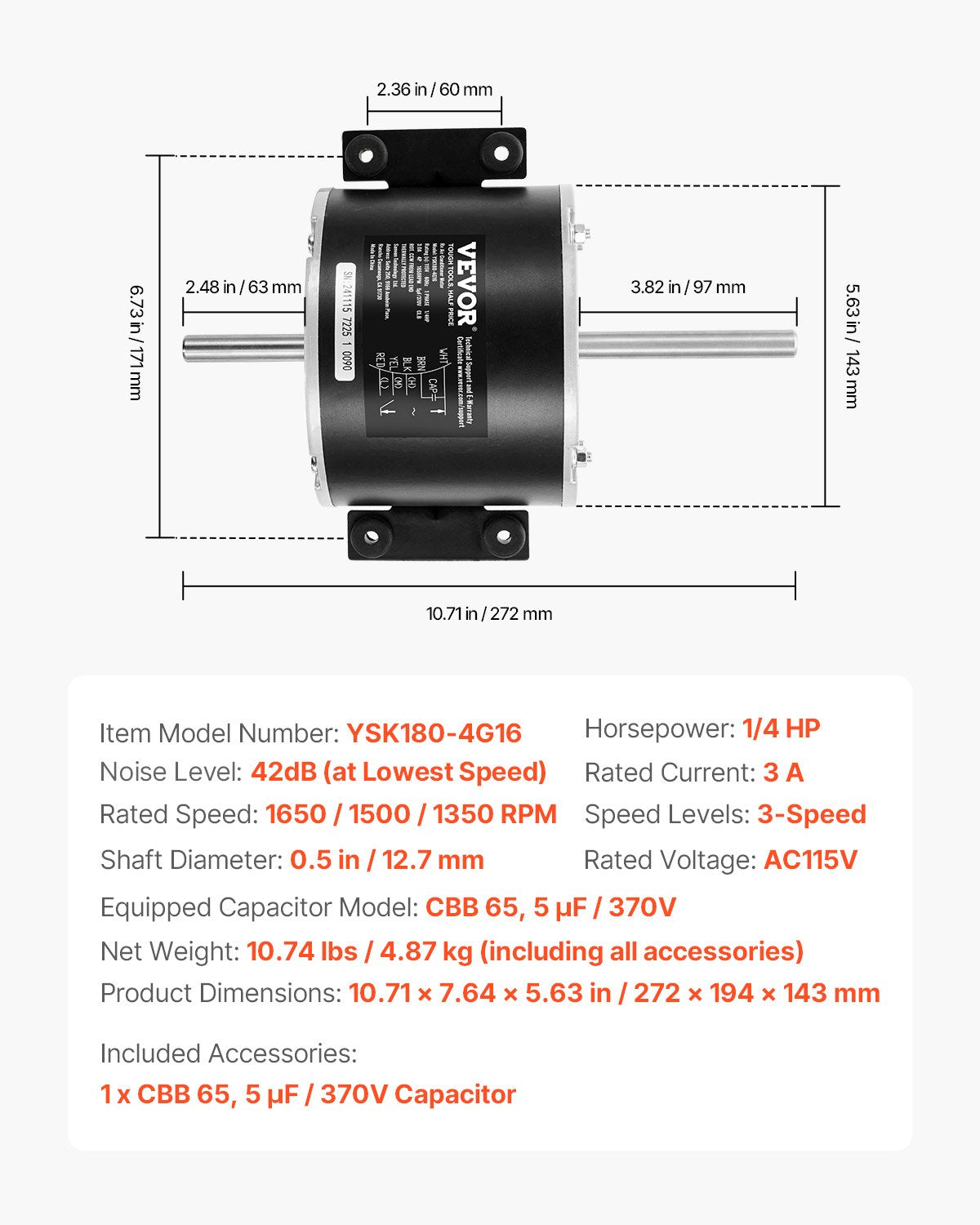

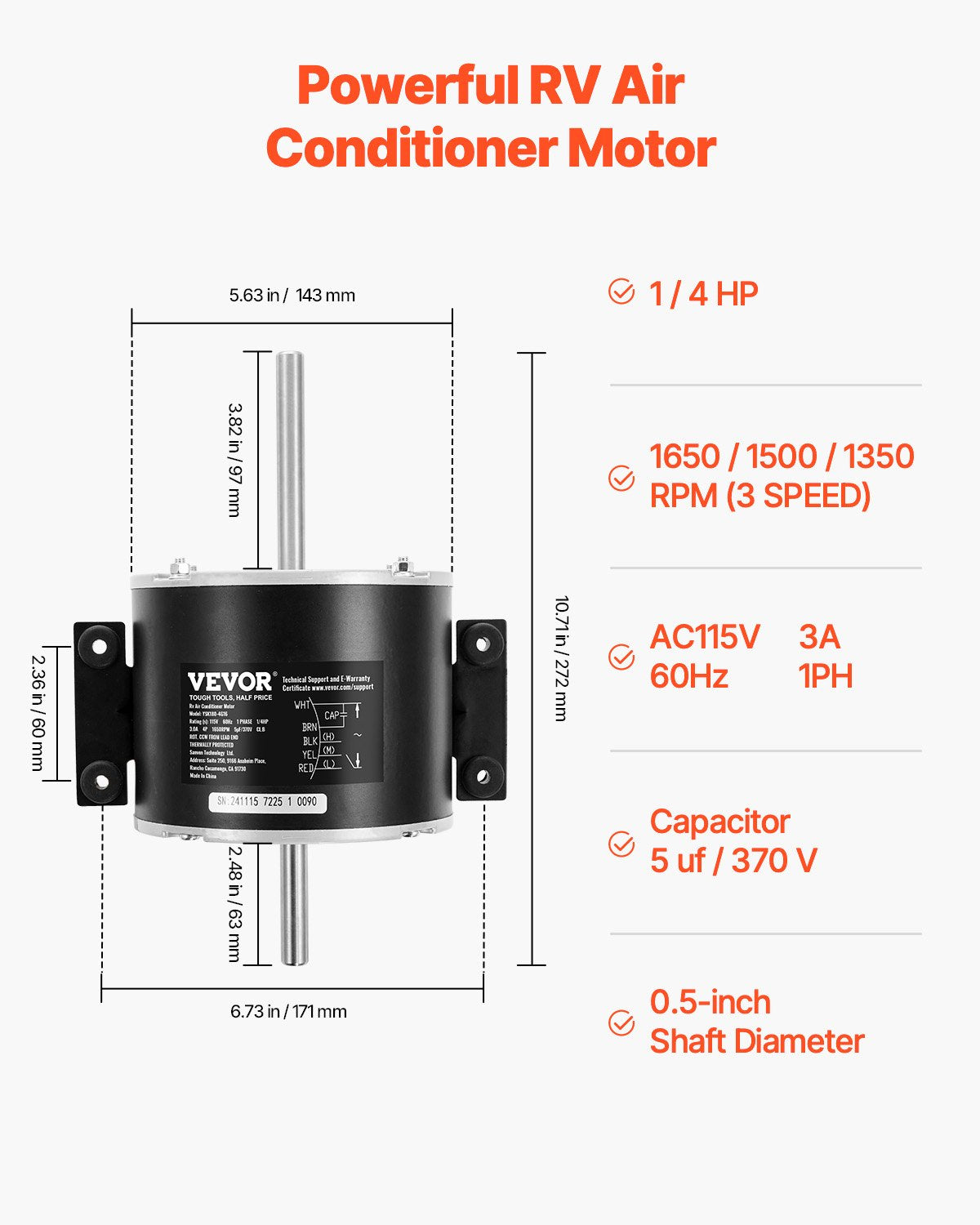

  • Product Dimensions: 10.71 x 7.64 x 5.63 in / 272 x 194 x 143 mm
  • Net Weight: 10.74 lbs / 4.87 kg (including all accessories)
  • Rated Voltage: AC115V
